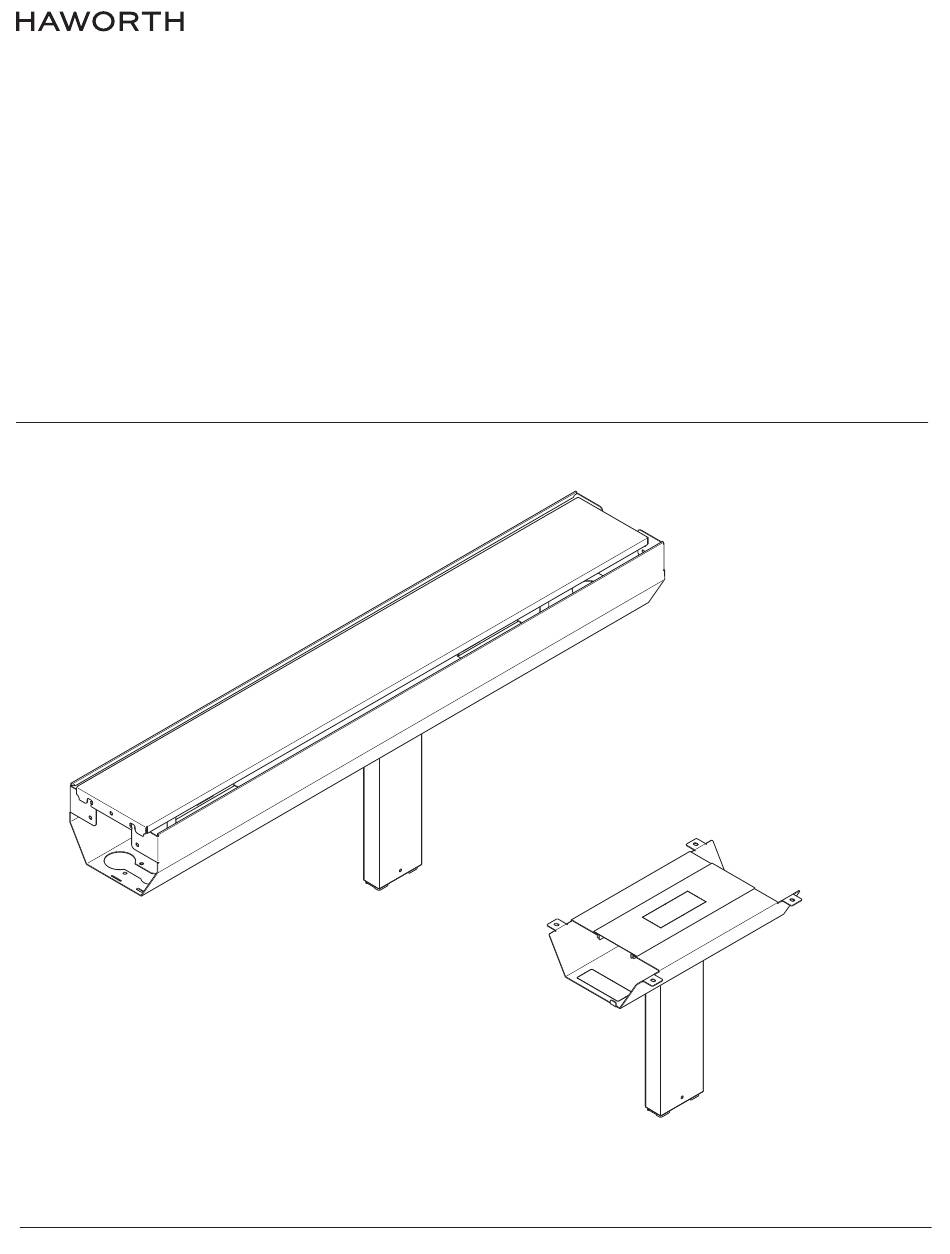

- Page 1 Upside Bench Assembly Instructions Base Feed & Tray For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com...
- Page 2 NOTE: Connections of this modular power distribution component MUST be done by a licensed electrician, who must control the size and loading of each branch circuit. The person or group installing Haworth products is responsible for complying with all applicable building and electrical code requirements.
- Page 3 Upside Bench Assembly Instructions (C) Back Cover - Qty. 1 (H) Cover - Qty. 1 (J) Base Tray - Qty. 1 (Q) Brackets - Qty. 2 (S200) M6 X 10mm Button Head - Qty. 4 (S142) #10-32 X 1/2” Screw - Qty. 4 (S349) #10-24 X 3/8”...
- Page 4 Upside Bench Assembly Instructions Assemble brackets (Q) Assemble base (C) S349 S142 (S349) (S142) #10-32 x 1/2" Flat Head Screw #10-24 x 3/8" Screw Install transition tray (G1) S200 (S200) S200 M6 X 10mm Button Head Customer Service: 800 426 8562 E.C.O.
- Page 5 Upside Bench Assembly Instructions Install oor bracket (J) WARNING! Appropriate screws/bolts (DD) must be used to attach bracket to oor. Due to various oor constructions, fasteners are not provided. OPTIONAL ROUTING ABOVE FLOOR Route cables and install cover Customer Service: 800 426 8562 E.C.O.
- Page 6 Upside Bench Assembly Instructions Route power and install cover (G2) NOTE: For cable trough instructions refer to frame instructions 61000267 - Single 61000268 - Back-to-Back 61000269 - 120° 61000291 - Power Options Customer Service: 800 426 8562 E.C.O. No 500000048016...
