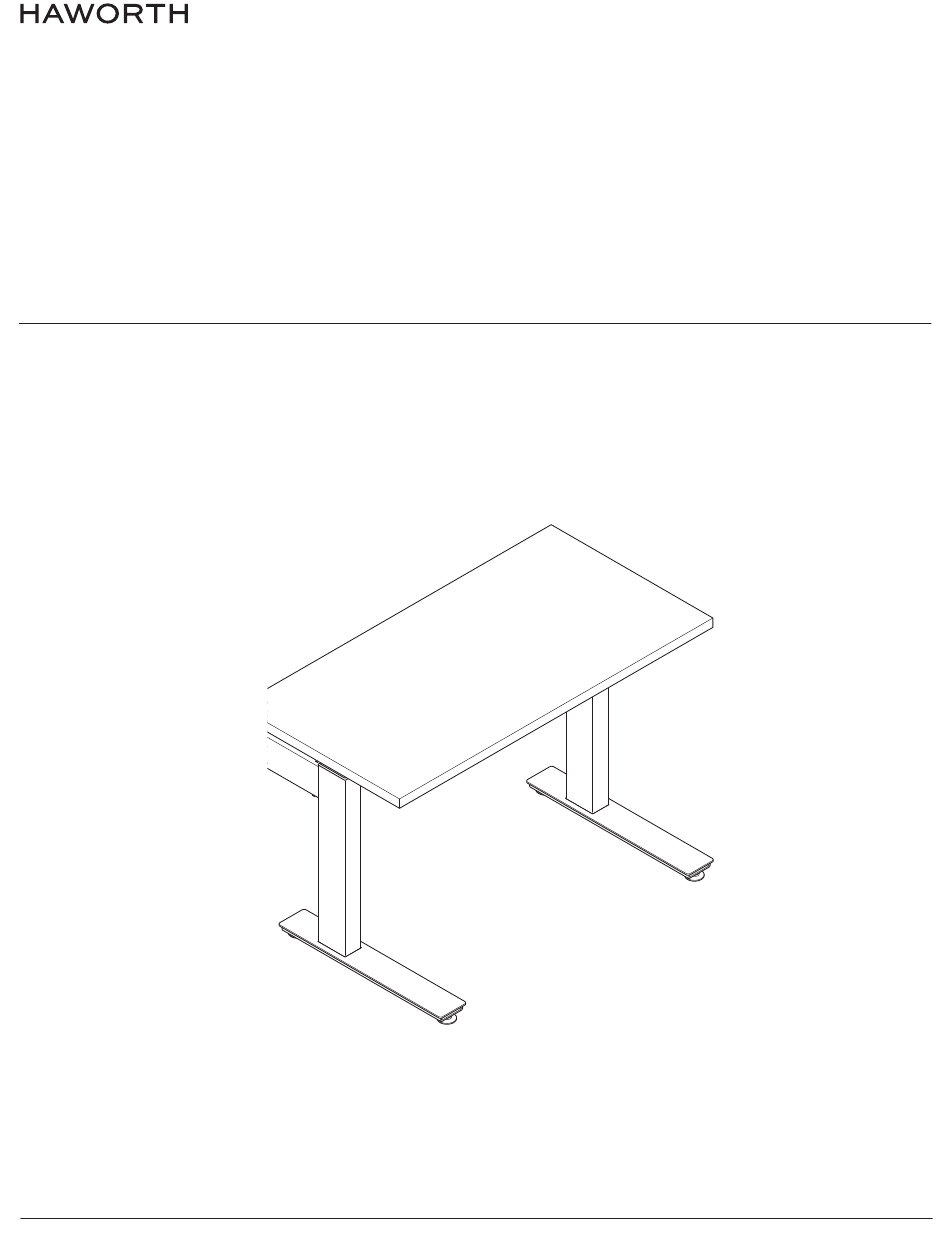

Planes
Assembly Instructions
Height Adjustable Single Sided Bench
For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Planes and is the answer not in the manual?

Questions and answers

Related Manuals for Haworth Planes

Summary of Contents for Haworth Planes

  • Page 1 Planes Assembly Instructions Height Adjustable Single Sided Bench For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com...

  • Page 2: Important Safety Instructions

    Planes Assembly Instructions IMPORTANT SAFETY INSTRUCTIONS For use with Planes Height Adjustable Single Sided Bench For Commercial Use Only This product conforms to UL962 & UL1286 and is certi ed to CAN/CSA C22.2 No. 68 & No. 203. When using an electrical furnishing, basic precautions should always be followed, including the following: Read all instructions before using this table.
  • Page 3 Planes Assembly Instructions Tools Required 2.5mm 5mm & 6mm Extension 3/8” Rachet 13mm Socket FOR ELECTRIC & CRANK TABLES FOR ELECTRIC TABLES Control Module Standard Switch S147 Programmable Switch S147 FOR CRANK TABLES S120 S147 Hex Rod S122 S120 S147...
  • Page 4 Planes Assembly Instructions COLOR CODED PARTS CHART Color Column Crank Electric Control Code Label Module Crank Column - 24" Deep Top Crank Column - 30" Deep Top Electric Single Stage - Standard Touch Pad Actuator BLACK Electric Single Stage - Programmable Touch Pad Actuator...
  • Page 5 Planes Assembly Instructions FOR ELECTRIC & CRANK TABLES (S147) (S122) ELECTRIC COLUMN M6 -1 X 12mm Button Head S147 8 mm Hex Nut S147 S122 S147 S147 CRANK COLUMN S147 S147 S120 (S147) M6 -1 X 12mm Button Head (S120) #10-24 x 3/8"...
  • Page 6 Planes Assembly Instructions FOR POWER (S124) #10-24 x 3/8" Hex Flange Head Screw Ordered Separately as power retro t kit (S147) A) All interconnected electrical S124 systems shall terminate with an o ce furnishings electrical M6 -1 X 12mm Button Head system.
  • Page 7 Planes Assembly Instructions (S147) S147 M6 -1 X 12mm Button Head (S120) #10-24 x 3/8" Screw S120 Customer Service: 800 426 8562 E.C.O. No 245-693 Part No 6100-0072 Rev 4 Page of 10...
  • Page 8 Planes Assembly Instructions (S1) #10 x 1" Pan Head Screw FOR CRANK TABLES (S1) #10 x 1" Pan Head Screw Customer Service: 800 426 8562 E.C.O. No 245-693 Part No 6100-0072 Rev 4 Page of 10...
  • Page 9 Planes Assembly Instructions FOR ELECTRIC TABLES (S1) #10 x 1" Pan Head Screw Customer Service: 800 426 8562 E.C.O. No 245-693 Part No 6100-0072 Rev 4 Page of 10...
  • Page 10 Planes Assembly Instructions FOR ELECTRIC TABLES Initial Calibration After assembly all electric tables must be calibrated to insure smooth and trouble free movement. Lower the table to the lowest height by pressing the down arrow on the switch. Continue to press the down arrow for 5 to 10 seconds.
