Summary of Contents for Goodway D-105H

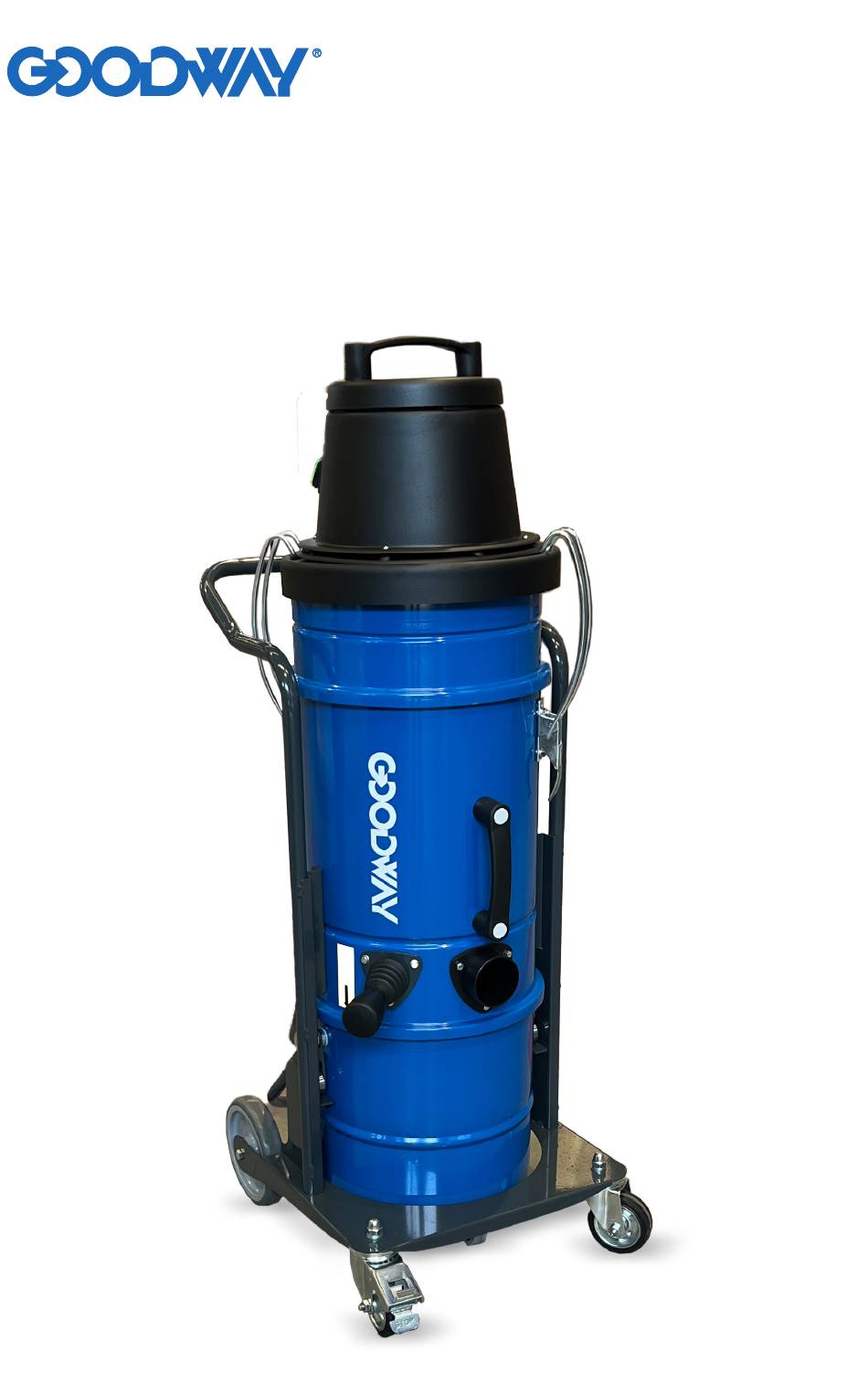

- Page 1 D-105H Industrial Vacuum Cleaner Operating and Maintenance Instructions Read before operating.
-
Page 2: Table Of Contents
TROUBLESHOOTING ..........................19 Thank you for purchasing the D-105H Industrial Vacuum Cleaner. We appreciate your business and look forward to serving you in the future. As with all Goodway products, you can be assured that the finest quality components and workmanship have gone into this machine. - Page 3 In case of loss of or damage to the manual, ask Goodway Technologies for a new copy. The technical details contained in this manual are the property of Goodway Technologies and should be deemed of a confidential nature.
-
Page 4: Warranty
The warranty shall be invalidated in the event of the vacuum cleaner having been repaired by unauthorized third parties or of equipment or accessories being used that have not been supplied by Goodway Technologies or which have not been recommended or approved by Goodway Technologies or whose serial number has been removed or altered during the warranty period. -
Page 5: Safety Warnings
The warnings in this manual and on the products should not therefore be deemed exhaustive. In the event of tools, procedures, work or machining methods being used that are not explicitly recommended by Goodway Technologies make sure no hazards exist for operators and others. - Page 6 The user is responsible for disposing of vacuumed substances in accordance with applicable laws. In the event of Customers fitting a tool to the machine not supplied by Goodway Technologies make sure the safety conditions required by Machine Directive 2006/42/ CE are complied with and in any event, Goodway Technologies is unable to accept liability for any problems arising from use of such tool.
-
Page 7: Safety Plates And Symbols
Do not use solvents, diesel fuel or petrol. Replace the damaged plates with new ones supplied by Goodway. If a plate is affixed to a replaced part, make sure a new plate is affixed to the new part. -
Page 8: Outstanding Risks
The manufacturer declines all liability in relation to vacuum cleaner safety in the event of failure to comply with the above indications. APPLIED DIRECTIVES The following directives apply to the vacuum cleaner described in this manual: • 2006/42/CE Machine Directive • 2014/30/UE Electromagnetic compatibility directive 2014/35/UE Low-voltage directive D-105H 0125... -
Page 9: Identification Of Main Parts
IDENTIFICATION OF MAIN PARTS Vacuum head Filter shaker lever ON/OFF switch Fixed wheels Release fasteners Casters Push handle 10. Removable vacuumed material container Collection tank side release lever 11. Hose Inlet Filter chamber D-105H 0125... -
Page 10: Filters
FILTERS D-105H-106 Polyester Pleated Filter – 3 micron filter D-105H-107 – HEPA filter D-105H 0125... -
Page 11: Intended Uses
Before scrapping, all plastic and rubber parts will have to be separated from the electrical material. Parts made of plastic, aluminium and steel only may be recycled if required. D-105H 0125... -
Page 12: Technical Details
115V 60Hz, 7.5 amps Max. vacuums rate 75 H2O" (1905 mm H2O) Max. air flow rate 105 cfm (62 m³/h) Filter Efficiency Model D-105H = 3 Micron Capacity 4 gallons (15 liters) Inlet 1.25" (32mm) Ø Dimensions 17.25" D x 15.75" W x 39"H (438mm D x 400mm W x 990mm H) The machine is supplied in a strong cardboard box secured with straps. -
Page 13: Installation
NOTE: No standard accessories (reducers, hoses, nozzles) are included with the vacuum; accessories must be specified and ordered separately. Contact your dealer for information relating to the different types of optional accessories available for this specific vacuum cleaner model. Fit the supplied connector on the pipe union. D-105H 0125... -
Page 14: Description Of Controls
WARNING: Do not fit the plug in the power socket with wet hands. In the event of an extension being used, make sure this is in perfect condition, and is suitable for the power input of the vacuum cleaner. DESCRIPTION OF CONTROLS ON/OFF button D-105H 0125... -
Page 15: Work Cycle
If the vacuum is moved on inclined grounds, you can risk to lose the control, because of the weight and to damage persons or things. WARNING: During vacuuming, avoid rolling up or bending the flexible hose. D-105H 0125... - Page 16 WARNING: Perform the container release operation by means of the levers located on the sides or on the handle with BOTH HANDS! Danger of crushing upper limbs when fitting and locking the container on the vacuum cleaner. D-105H 0125...
-
Page 17: Using The Filter Shaking System
In the case of major repairs, it is best to contact an authorized dealer, whose skilled personnel, backed by all the technological experience relating to the original factory construction methods, are always available and ready to promptly intervene. D-105H 0125... -
Page 18: General Safety Warnings
The electrical parts (plugs, switches, cables, etc.) must not be faulty. • The screws and nuts must always be tight. • Make sure the container is not overfull. This should be emptied when the vacuumed material has reached 3/4 of maximum capacity. D-105H 0125... -
Page 19: Replacing The Filters
If the flexible hose is perforated, the power of the cleaner will be reduced and dust and liquids will leak into the environment. WARNING: All maintenance and repair jobs must be performed directly by Goodway or authorized dealers. REPLACING THE FILTERS To replace the filters, proceed as follows: •... - Page 20 The container locking operation must be performed by one person only, who must grip the two handles at the same time with both hands and press these fully down. WARNING:Hand crushing hazard! D-105H 0125...
-
Page 21: Troubleshooting
Air leak Check for any air leaks out of closing fasteners, tightening screws, container or filter chamber Motor very noisy Contact Goodway Technologies after-sales WARNING: For any other problems, contact the Goodway Technologies after-sales service. D-105H 0125... - Page 22 NOTES D-105H 0125...
- Page 23 NOTES D-105H 0125...
- Page 24 Email: goodway@goodway.com Visit: www.goodway.com P/N:D-105H ©Copyright 2025 Goodway Technologies Corp., Stamford, CT USA Effective date January 03, 2025 Goodway is a Trademark of Crossford International. Goodway reserves the right to improve products; contact the factory for the latest configuration and uses.
