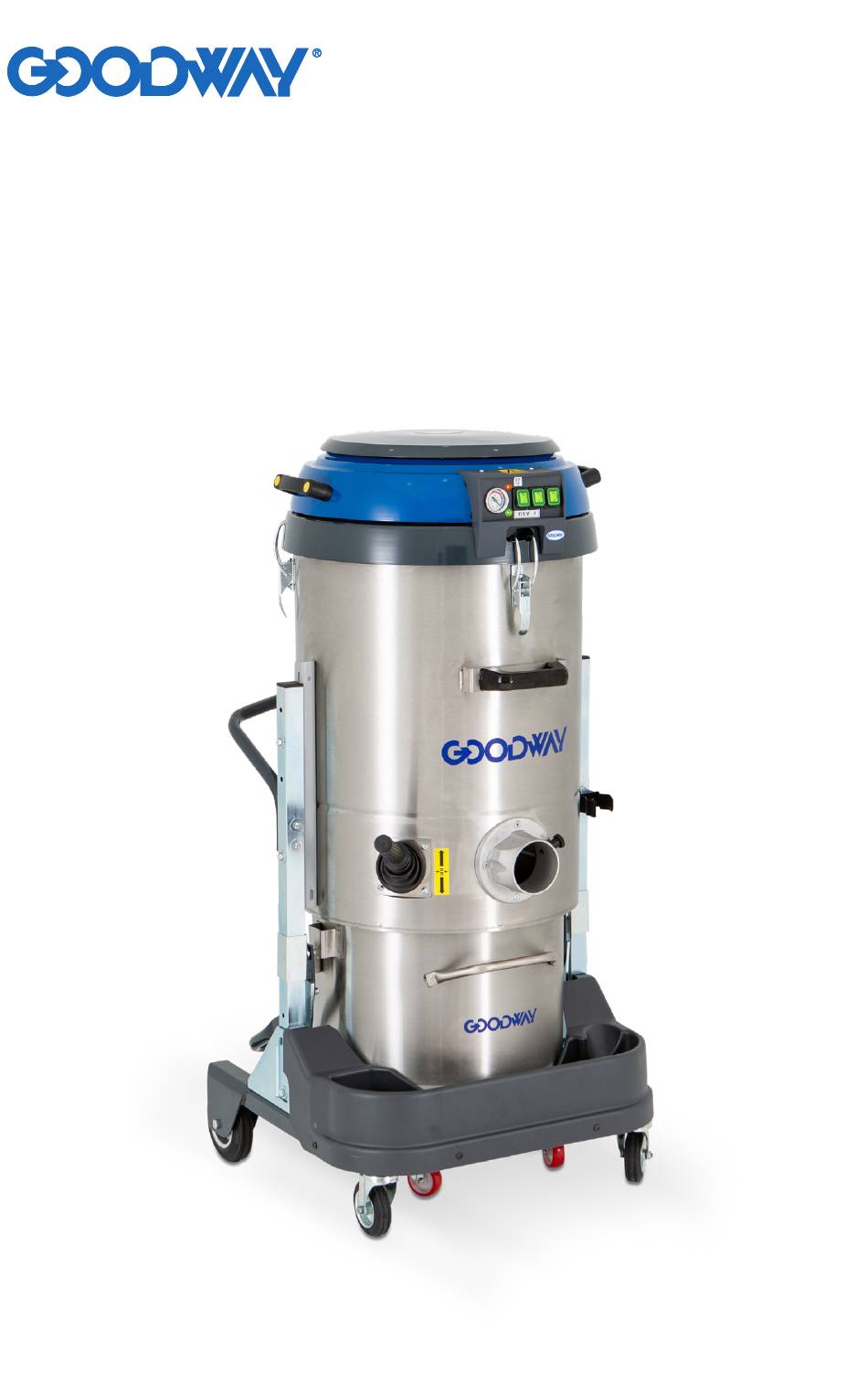

- Page 1 D-285HSS Industrial Vacuum Cleaner Operating and Maintenance Instructions Read before operating.
-
Page 2: Table Of Contents
D-285HSS EXPLODED VIEW ......................8-15 Thank you for purchasing this Goodway vacuum. We appreciate your business and look forward to serving you in the future. As with all Goodway products, you can be assured that the finest quality components and workmanship have gone into this machine. -
Page 3: Important Safety Instruction
Do not use with a damaged cord or plug. If unit is not working as it should, has been dropped, damaged, left outdoors, or droped into water, contact Goodway Technologies Corporation’s Customer Service at (800) 370-2855. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. -
Page 4: Grounding Instructions
Whenever the adaptor is used, it must be held in place by a metal screw. NOTE: In Canada, the use of an adaptor is not permitted by the Canadian Electrical Code. SAVE THESE INSTRUCTIONS D-285HSS 0125... -
Page 5: Set-Up
SET-UP Remove from packaging and inspect unit. Report any discrepancies to Goodway Technologies Corporation’s Customer Service at (800) 370-2855. Position this vacuum cleaner in the area it will be used. Ensure the filter is in place under the vacuum head. -
Page 6: To Change The Filter
Unscrew the nuts that holds the filter cage and release the top clamps that block the filter container (see figure). Remove the vacuum head. Remove the filter container. Take the filter out by loosening the filter clamps. The inverse operation for re-assembly the filter. D-285HSS 0125... -
Page 7: Troubleshooting
Check drum for smooth, even top for proper vacuum seal. Check vacuum lid or drum adapter sealing ring. Check drum for holes or leaks. If the motors do not operate, the brushes need replacing. Contact Goodway at (800)333-7467 for replacements. SPECIFICATIONS... -
Page 8: D-285Hss Exploded View
D-285HSS Exploded View CODE DESCRIPTION DV-3-SSH-HEAD /DA-KT.0178.7011 120/230V MOTOR HEAD KIT DA-KT.0052.0020 FILTER KIT (GALVANIZED) DA-KT.0509.7011 CHAMBER KIT DA-KT.0606.7011 CONTAINER KIT DA-KT.0610.7011 BODY KIT DA-RT.0044.0000 CASTER WITH HOLE DA-RT.0045.0000 CASTER WITH BRAKE DA-RT.0020.0000 FIXED CASTER DA-RT.0011.0000 WHEEL AXEL KIT D-285HSS 0125... - Page 9 D-285HSS Exploded View CODE DESCRIPTION DA-GI.0003.0000 Filter gasket DA-SL.0475.0020 Filter holder ring DA-SL.0223.0000 Filter clamp DA-SL.0426.0020 Filter shaker cage DA-FI.0057.0000 14 Pocket “g” polyester filter DA-FI.0058.0000 14 Pocket “c” polyester filter DA-FI.0094.0000 14 Pocket antistatic “c” polyester filter DA-FI.0063.0000 20 Pocket antistatic “c” polyester filter DA-FI.0042.0000...
- Page 10 D-285HSS Exploded View D-285HSS 0125...
- Page 11 Motor head spacer DA-SL.0906.0020 Motor head spacer DA-EP.0072.0000 Fuse cover DA-EP.0071.0000 10A 250v fuse DA-EP.0422.0000 Fuse wire harness DA-EP.0213.0000 30A 250v fuse holder DA-EP.0136.0000 Air pressure switch DA-EX.0010.0000 1/8” Male air plug 0.4M DA-TA.0316.0000 Polyurethane hose DA-SL.0905.0020 Motor head spacer D-285HSS 0125...
- Page 12 D-285HSS Exploded View CODE DESCRIPTION DA-ST.0234.7011 Filter chamber DA-SL.0216.0000 Latch toggle clamp DA-SL.1886.0000 M8 hex insert with flange DA-GI.0270.0000 Gasket with hole DA-SL.0239.7011 Filter shaker flange DA-SL.0238.0020 Filter shaker lever DA-SL.0240.0000 Filter shaker lever bellows DA-SL.0217.0000 Filter shaker lever knob DA-SL.0400.0000...
- Page 13 D-285HSS Exploded View CODE DESCRIPTION DA-ST.0235.7011 Container DA-SL.0509.0000 Locknut DA-SL.0245.0000 Level indicator DA-RT.0001.0000 Caster D-285HSS 0125...
- Page 14 D-285HSS Exploded View See parts chart on next page. D-285HSS 0125...
- Page 15 Left column DA-SL.1481.7016 Front push handle DA-SL.0439.0031 Double bend spring DA-SL.1476.0000 Plastic accessory holder DA-ST.0232.7011 Trolley DA-SL.0272.0000 Square head cover DA-SL.1473.0000 Left plastic cover DA-SL.1478.7011 Right column DA-SL.0368.0020 Fasteneing lever fulcrum DA-SL.1487.0000 8X24 nylon washer DA-SL.1886.0000 M8 hex insert D-285HSS 0125...
- Page 16 Email: goodway@goodway.com Visit: www.goodway.com P/N:D-285HSS ©Copyright 2025 Goodway Technologies Corp., Stamford, CT USA Effective date January 09, 2025 Goodway is a Trademark of Crossford International. Goodway reserves the right to improve products; contact the factory for the latest configuration and uses.
