Summary of Contents for Goodway DV-M2

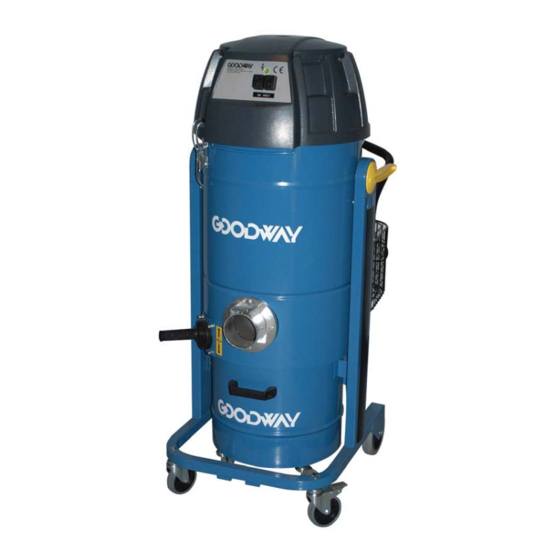

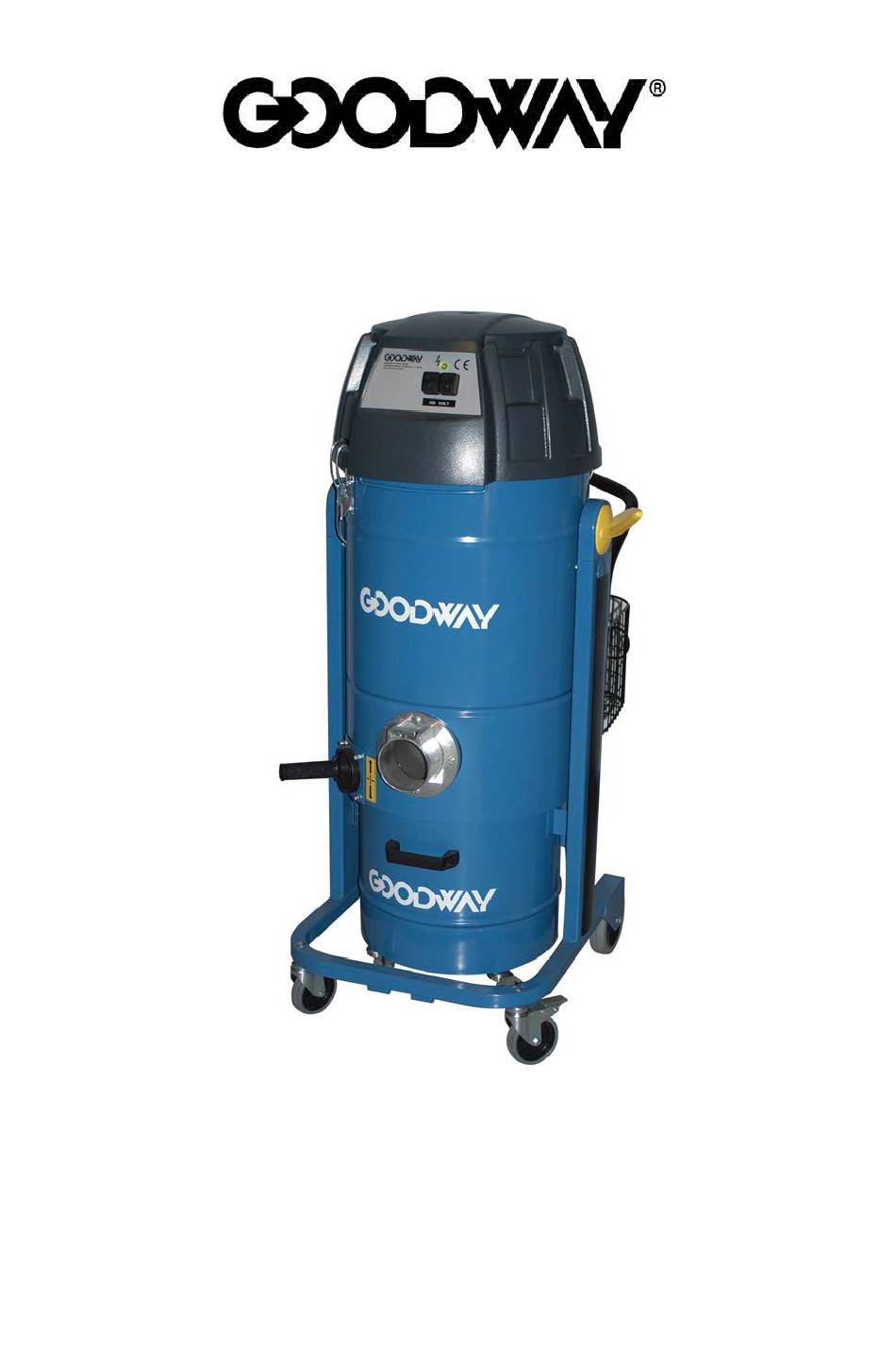

- Page 1 DV-M2 Industrial Vacuum Cleaner Operating and Maintenance Instructions Goodway Technologies Corporation 420 West Avenue Stamford, CT 06902-6384 USA Phone (203) 359-4708 Toll Free 1-800-333-7467 Fax (203) 359-9601 Internet: http://www.goodway.com E-Mail: goodway@goodway.com DV-M2 1/2013...
- Page 2 For Sales call 1-800-333-7467 For Service call 1-800-370-2855 Goodway Technologies Corp. Goodway reserves the right to improve products; contact the factory for the latest configuration and uses. ©Copyright 2013 Goodway Technologies Corp., Stamford, CT USA Effective date: January 1, 2013 DV-M2 1/2013...
-
Page 3: Important Safety Instruction
GENERAL The DV-M2 is an industrial grade vacuum cleaner for the recovery of dry material only. Its collection tank is easily detached from the rest of the unit making disposal of collected material easy. The DV-M2 consists of the following components: 1. - Page 4 Goodway Technologies Corporation’s Customer Service at (800) 370-2855. 5. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
-
Page 5: Grounding Instructions
Whenever the adaptor is used, it must be held in place by a metal screw. NOTE: In Canada, the use of an adaptor is not permitted by the Canadian Electrical Code. SET-UP DV-M2 1/2013... -
Page 6: Operation
Remove from packaging and inspect unit. Report any discrepancies to Goodway Technologies Corporation’s Customer Service at (800) 370- 2855. Position this vacuum cleaner in the area it will be used. Connect the power cord to a properly rated outlet, see unit’s nameplate for power requirements. - Page 7 4. Remove the filter container. 5. Take the filter out by loosening the filter clamps. 6. Remove the knots and take out the pocket filter. Fit the new filter and put everything back in place, locking the cap. DV-M2 1/2013...
-
Page 8: Troubleshooting
2. Perforated filter. Replace the filter. 3. Filter unsuitable for type of job. Fit a suitable filter for the type of material to be vacuumed. Contact Goodway Technologies Corporation’s Customer Service at (800) 370-2855 if problems are not resolved. Technical details... - Page 9 Body Assembly Drawing: DV-M2 1/2013...
- Page 10 Die-cast union spring AR 2416 Die-cast union pin AR 2413 Die-cast union AR 3491 Metallic die-cast union seal AR 3439 Metallic cont. seal/chamber AR 3492 Oval-head screw AR 3493 Metallic container AR 2061 Bridge handle AR 2399 Castor DV-M2 1/2013...
- Page 11 Trolley Assembly Drawing DV-M2 1/2013...
- Page 12 Left hand lifting release rod AR 3505 Nylon spacer AR 3506 Countersunk screw for rotation fulcrum AR 3507 Rotation closing washer AR 3508 Aluminum body AR 3509 Lever mechanism rotation fulcrum AR 3510 Container fastening lever AR 3511 Push handle DV-M2 1/2013...
- Page 13 Motor Head Assembly Drawing DV-M2 1/2013...
- Page 14 AR 2037 Motor dampers AR 3536 F/F spacers AR 3537 M/F spacers AR 3538 M/M spacers AR 3539 Base valve AR 3540 Open base AR 3542 Base sound-proofing (set 4 pcs) AR 3543 Base AR 3544 Base cable gland DV-M2 1/2013...
- Page 15 We Are Here to Serve You! For Sales Call: 1-800-333-7467 For Service Call: 1-800-370-2855 Goodway Technologies Corporation manufactures and distributes a complete line of Tube/Pipe Cleaning Systems, Duct Cleaning Systems, Vacuums, Floor Machines, Hi-Pressure Washers and other maintenance related equipment.
