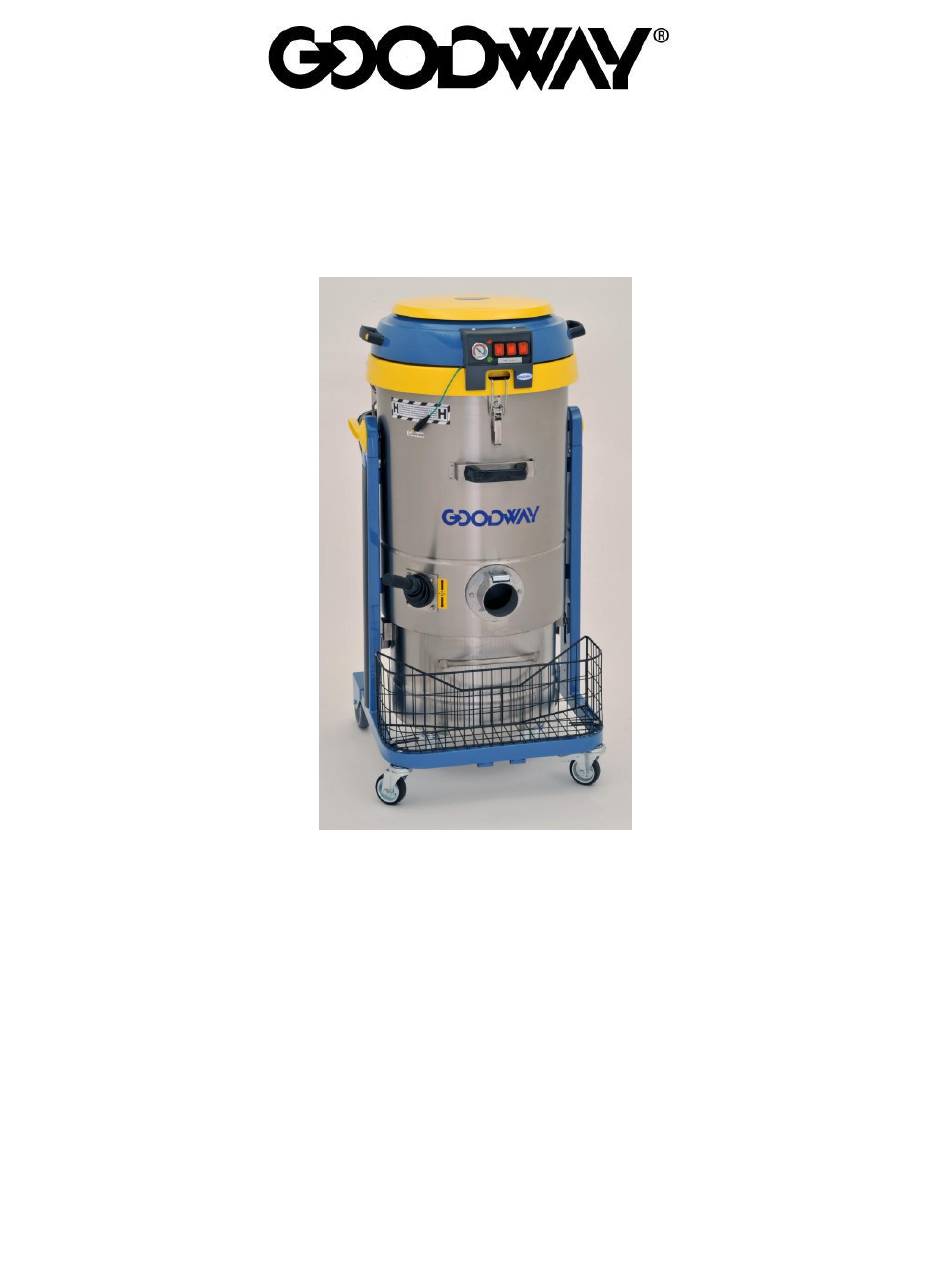

DV-3-SSH

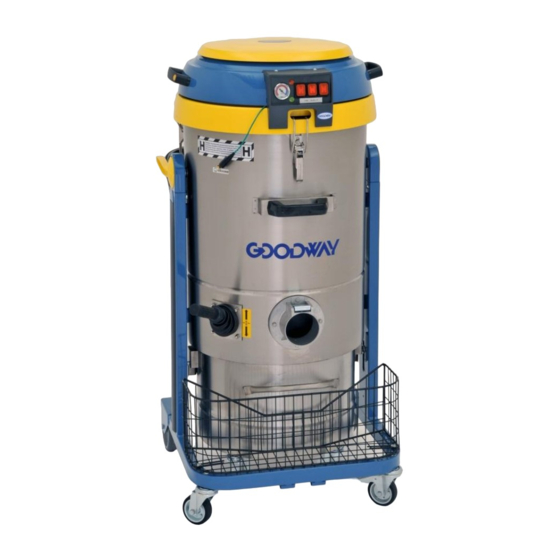

Industrial Vacuum Cleaner
OPERATING AND MAINTENANCE INSTRUCTIONS
Goodway Technologies Corporation
420 West Avenue
Stamford, CT 06902-6384
Phone (203) 359-4708
Toll Free 1-800-333-7467
Fax (203) 359-9601
www.goodway.com
Effective date April 1, 2013
©Copyright 2011Goodway Technologies Corp., Stamford, CT USA
Goodway is a registered trademark of Crossford International LLC
Goodway reserves the right to improve products; contact the factory for the latest configuration and uses.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Goodway DV-3-SSH
Summary of Contents for Goodway DV-3-SSH
- Page 1 Fax (203) 359-9601 www.goodway.com Effective date April 1, 2013 ©Copyright 2011Goodway Technologies Corp., Stamford, CT USA Goodway is a registered trademark of Crossford International LLC Goodway reserves the right to improve products; contact the factory for the latest configuration and uses.
- Page 2 INTRODUCTION Thank you for purchasing this Goodway vacuum. We appreciate your business and look forward to serving you in the future. As with all Goodway products, you can be assured that the finest quality components and workmanship have gone into this machine.
-
Page 3: Important Safety Instruction
Do not use with a damaged cord or plug. If unit is not working as it should, has been dropped, damaged, left outdoors, or droped into water, contact Goodway Technologies Corporation’s Customer Service at (800) 370-2855. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. -
Page 4: Grounding Instructions
Whenever the adaptor is used, it must be held in place by a metal screw. NOTE: In Canada, the use of an adaptor is not permitted by the Canadian Electrical Code. DV-3-SSH 04/01/2013... - Page 5 SET-UP 1. Remove from packaging and inspect unit. Report any discrepancies to Goodway Technologies Corporation’s Customer Service at (800) 370-2855. 2. Position this vacuum cleaner in the area it will be used. 3. Ensure the filter is in place under the vacuum head.
- Page 6 2. Unscrew the nuts that holds the filter cage and release the top clamps that block the filter container (see figure). 3. Remove the vacuum head. 4. Remove the filter container. 5. Take the filter out by loosening the filter clamps. 6. The inverse operation for re-assembly the filter. DV-3-SSH 04/01/2013...
-
Page 7: Troubleshooting
6. Check drum for smooth, even top for proper vacuum seal. 7. Check vacuum lid or drum adapter sealing ring. 8. Check drum for holes or leaks. 9. If the motors do not operate, the brushes need replacing. Contact Goodway at (800)333- 7467 for replacements. SPECIFICATIONS... - Page 8 DV-3-SSH Parts List REF# Part# Qty. Description AR2415 Die-cast deflector AR2002 Snap fastening AR2058X Filter chamber AR2001 Handle AR2003 Union seal 6(a) AR2413 Die-cast union 6(b) AR2417 Die-cast union spring 6(c) AR2418 Die-cast union pawl 6(d) AR2416 Die-cast union pawl pin...
- Page 9 DV-3-SSH Assembly Drawing DV-3-SSH 04/01/2013...
- Page 10 DV-3-SSH Vacuum Head Parts List Ref # Part # Description Qty Required AR4082 Head Cover AR4059 Spacer AR4060 Adhesive Silencer AR4085 Cooling Ring AR4083 Handle AR4084 Plastic Adapter AR2029 Power Cord 380-6-P DV-E2 Plug AR2028 Spiral Lead AR3372 Strain Relief...
- Page 11 DV-3-SSH Vacuum Head Assembly Drawing DV-3-SSH 04/01/2013...
- Page 12 We Are Here to Serve You! For Sales Call: 1-800-333-7467 For Service Call: 1-800-370-2855 Goodway Technologies Corporation manufactures and distributes a complete line of Tube/Pipe Cleaning Systems, Duct Cleaning Systems, Vacuums, Hi-Pressure Washers and other maintenance related equipment. GOODWAY TECHNOLOGIES CORPORATION 420 WEST AVENUE, STAMFORD, CT 06902 USA Tel: 203-359-4708 ·...
