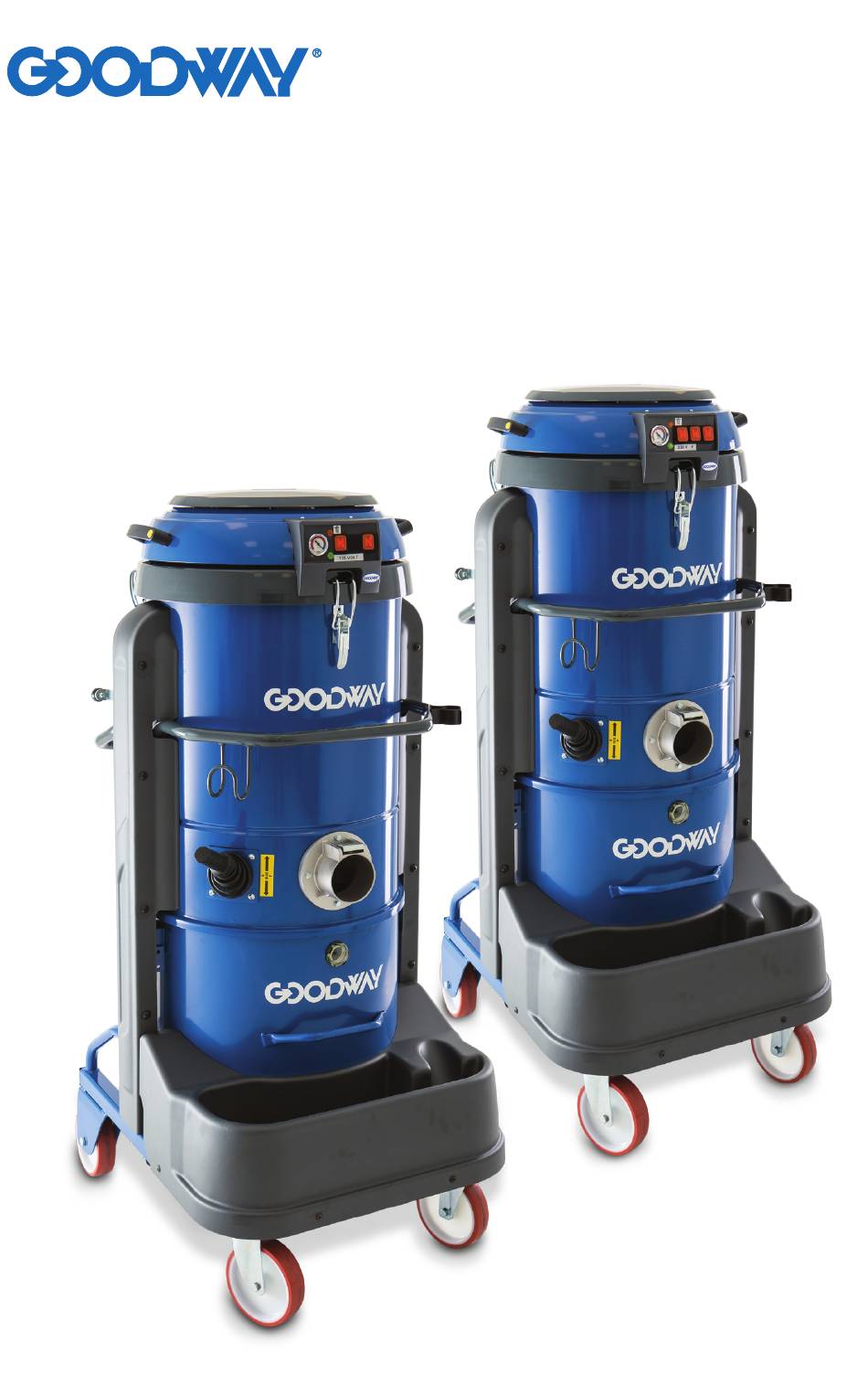

- Page 1 DV-E2/E3 Electric Powered Industrial Vacuum Cleaner Operating and Maintenance Instructions Read before operating.
- Page 2 PARTS BREAKDOWN ......................... 10-17 Thank you for purchasing this Goodway vacuum. We appreciate your business and look forward to serving you in the future. As with all Goodway products, you can be assured that the finest quality components and workmanship have gone into this machine.
- Page 3 Keep all openings free of lint, dust or anything that impedes air flow. Be extra careful when cleaning stairs. Use only attachments and filters recommended by Goodway. Strict supervision is required when vacuum is operated near children. 10. Do not use vacuum if switch does not turn it off.
- Page 4 Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet installed by a qualified electrician. DV-E2/E3 1124...
- Page 5 IDENTIFYING MAIN PARTS Vacuum Head Filter Shaker ON / OFF Motor Switches Rear Wheels Release Latches Front Wheels Push Handle and Vacuumed 10. Accessory Basket Material Container Release Lever 11. Collection Container Safety Lock 12. Intake Manifold Filter Chamber DV-E2/E3 1124...
- Page 6 Secure the vacuum in place using the locks on the swivel casters. Grip the suction end on the hose with the necessary accessory. Turn on the motors (2 on the DV-E2 or 3 on the DV-E3). Turn off the motors when finished.
- Page 7 HOW TO EMPTY THE CONTAINER Turn off the vacuum motors. Unplug the power cord. Lift the safety lock (1) and push down on the container release lever (2) located on the back of the vacuum. Remove the container DV-E2/E3 1124...
- Page 8 Loosen the clamp and remove the Remove the filter with its complete support ring with the seal. support. 10. Remove the knots and take out the pocket filter. Fit the new filter and put everything back in place. DV-E2/E3 1124...
- Page 9 Check the seals, and if necessary, Seals are worn replace them Check for any air leaks out of the Air leak fasteners, screws, container, or filter chamber, and replace gaskets or seals where necessary DV-E2/E3 1124...
- Page 10 PARTS BREAKDOWN Item# Part# Description KT.0552.5010 VACUUM HEAD KIT KT.0052.0020 FILTER KIT KT.0509.5010 CHAMBER KIT KT.0606.5010 CONTAINER KIT KT.0610.5010 DOLLY ASSEMBLY DV-E2/E3 1124...
- Page 11 Item# Part# Description SL.0955.0000 VACUUM HEAD LABEL MC.0197.0021 M8x35 SOCKET SCREW CT.0087.7016 MOTOR HEAD COVER GI.0110.0000 HEAD COVER NOISE BUFFERING MATERIAL DA-SL.0902.0020 MOTOR HEAD SPACER SL.0914.0000 COOLING RING DV-E2/E3 1124...
- Page 12 SL.0905.0020 MOTOR HEAD SPACER SL.0906.0020 MOTOR HEAD SPACER DA-EP.0072.0000 FUSE COVER EP.0071.0000 10A 250V FUSE EP.0171.0000 MOTOR HEAD WIRING KIT EP.0213.0000 30A 250V FUSE HOLDER EP.0136.0000 PRESSURE SWITCH TA.0316.0000 6x4 POLYURETHANE HOSE 0.4M EX.0010.0000 4x6 OUTLET AIR PLUG DV-E2/E3 1124...
- Page 13 Item# Part# Description GI.0003.0000 FILTER GASKET SL.0475.0020 FILTER HOLDER RING SL.0223.0000 FILTER CLAMP DA-SL.0426.0020 FILTER SHAKER CAGE DA-PF-14 14 POCKET “G” POLYESTER FILTER DA-SL.0427.0020 FILTER CAGE SUPPORT SL.0441.0020 CAGE LOCK PIN SL.0440.0000 CAGE COTTER PIN DV-E2/E3 1124...
- Page 14 COOLING RING MC.0120.0021 M6 HEX NUT MC.0033.0000 6.5x18mm WASHER SL.0912.0000 VACUUM HEAD HANDLE SL.0913.0000 VACUUM HEAD HANDLE ADAPETER EP.0166.0000 PLASTIC NUT DA-EP.0126.0000 STRAIN RELIEVER EP.0021.0000 PLASTIC CABLE FASTENER EP.0022.0000 3x2.5 16A POWER SUPPLY CABLE CT.0083.5010 MOTOR HEAD COVER DV-E2/E3 1124...
- Page 15 Item# Part# Description ST.0235.5010 CONTAINER SL.0509.0000 LOCK NUT SL.0245.0000 LEVEL INDICATOR RT.0001.0000 CASTER, BLACK RUBBER DV-E2/E3 1124...
- Page 16 DV-E2/E3 1124...
- Page 17 DA-RT.0044.0000 CASTER ST.0232.5010 TROLLEY RT.0045.0000 CASTER WITH BRAKE DA-RT.0020.0000 WHEEL DA-RT.0011.0000 AXLE SL.1473.0000 LEFT COVER PLATE FOR LEVER SYSTEM SL.0272.0000 HEAD COVER SL.1478.5010 RIGHT COLUMN SL.1477.5010 LEFT COLUMN DA-SL.0368.0020 FULCRUM SL.1487.0000 8x24 WASHER SL.1886.0000 M8 HEX INSERT WITH FLANGE DV-E2/E3 1124...
- Page 18 Visit: www.goodway.com P/N: MNL-VAC-EX-120-25SS ©Copyright 2024 Goodway Technologies Corp., Stamford, CT USA Effective date November 8, 2024 Goodway is a Trademark of Crossford International. Goodway reserves the right to improve products; contact the factory for the latest configuration and uses.
