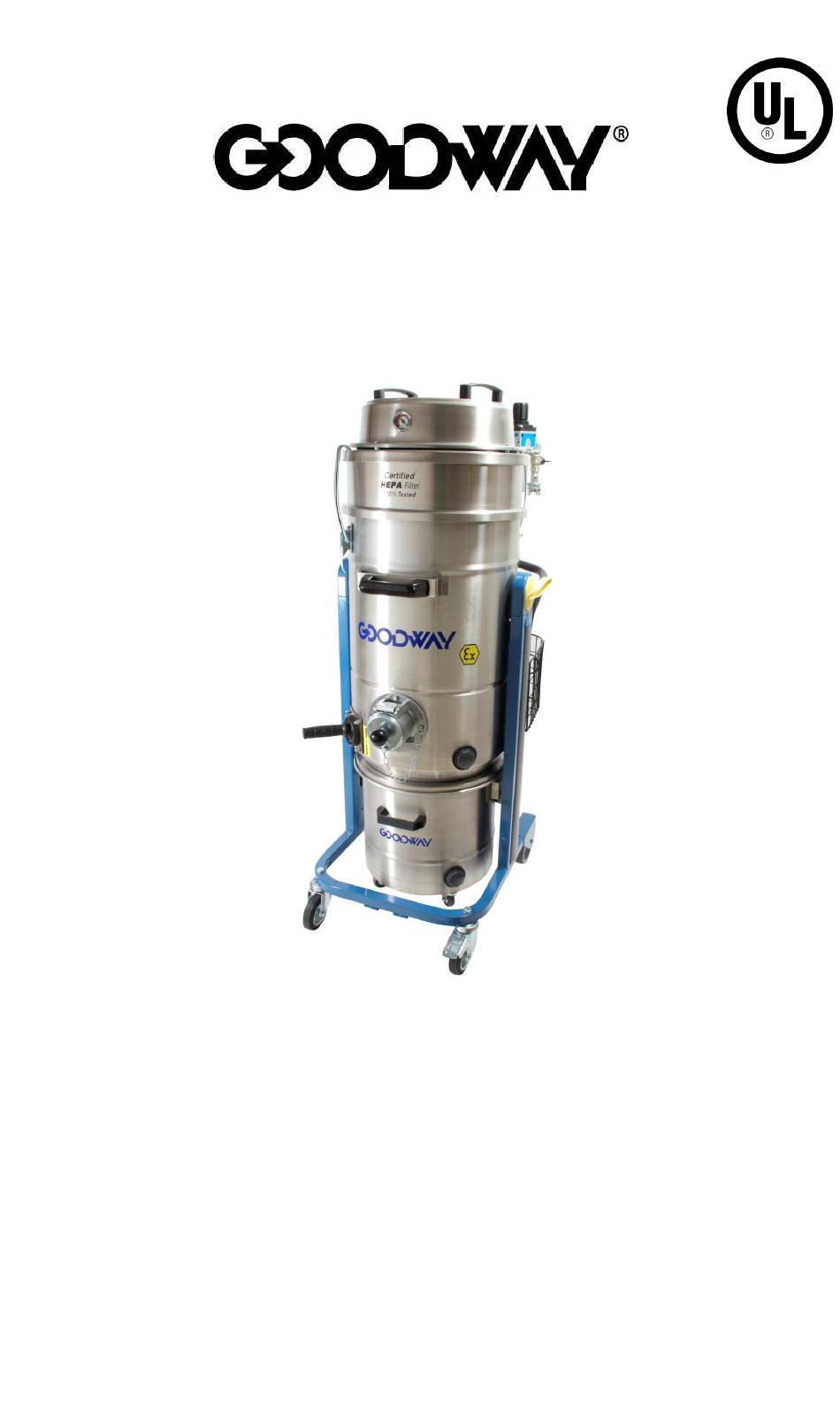

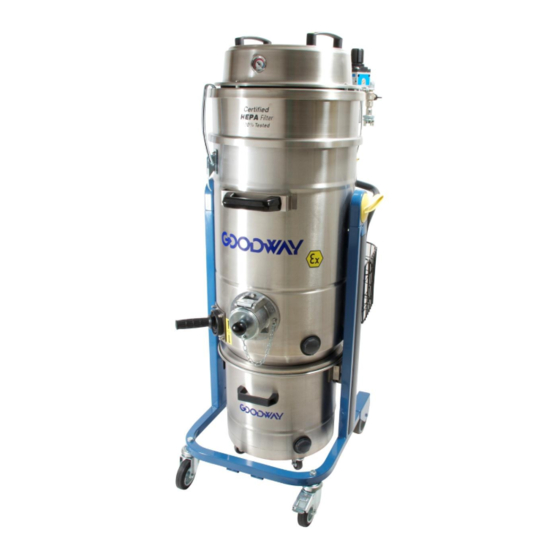

MODEL DV-AV9-EX
Industrial Vacuum Cleaner
UL® Listed For Use in Potentially Explosive Environments
Operating and Maintenance Instructions
Goodway Technologies Corporation
420 West Avenue
Stamford, CT 06902-6384 USA
Phone (203) 359-4708
Toll Free 1-800-333-7467
Fax (203) 359-9601
Internet: http://www.goodway.com
E-Mail: goodway@goodway.com
©Copyright 2014 Goodway Technologies Corp., Stamford, CT USA
Effective date February 1, 2014
Goodway is a Trademark of Crossford International.
Goodway reserves the right to improve products; contact the factory for the latest configuration and uses.
Advertisement
Related Manuals for Goodway DV-AV9-EX
Summary of Contents for Goodway DV-AV9-EX
- Page 1 Internet: http://www.goodway.com E-Mail: goodway@goodway.com ©Copyright 2014 Goodway Technologies Corp., Stamford, CT USA Effective date February 1, 2014 Goodway is a Trademark of Crossford International. Goodway reserves the right to improve products; contact the factory for the latest configuration and uses.
- Page 2 INTRODUCTION Thank you for purchasing this Goodway vacuum. We appreciate your business and look forward to serving you in the future. As with all Goodway products, you can be assured that the finest quality components and workmanship have gone into this machine.
-
Page 3: Safety Instructions
Disconnect appliance from compressed air source when not being used and before servicing. Use only as described in this manual. Use only Goodway Technologies recommended attachments. Do not use if compressed air supply hose is damaged. Unrestricted compressed air hoses can whip causing personal injury and equipment damage. - Page 4 5. Service or replace the filter by loosening the clamp. Re-install the filter onto the ring. 6. Put the filter assembly back into the unit. 7. Reinstall the pin, cotter pin and grounding wire. Warning: Failure to reinstall the grounding wires can cause a static build-up and possible sparking. DV-AV9-EX 2/1/2014...
-
Page 5: Troubleshooting
8. Check interface between debris container and vacuum tank, and between vacuum head and tank for leaks. 9. Check drum for holes or leaks. 10. Check the venturi ejector (see Head Assembly Schematic) for clogging and clean if necessary. DV-AV9-EX 2/1/2014... -
Page 6: Available Accessories
VAC-302 1 ½” Aluminum Pipe Tool for pipes 1”-3” O.D. VAC-303 1 ½” Nylon Floor brush 14” wide VAC-013 1 ½” Dusting Brush 3” Diameter VAC-080 ½ “ ID Air Hose Grounded 50’ Long DV-AH-50 DA-AH-HF HEPA Filter DV-AV9-EX 2/1/2014... - Page 7 DV-AV9-EX Machine Body Assembly Drawing DV-AV9-EX 2/1/2014...
- Page 8 AR2418 Die-cast union pawl AR2416 Die-cast union pin AR2413 Die-cast union AR3491 Die-cast union seal AR3439 Filter chamber seal AR3492 Screw AR2061 Handle 25(a) AR3493 Debris container 25(a) AR3493/b Debris container (stainless steel) AR2399 Castor AR2721 Motor head DV-AV9-EX 2/1/2014...
- Page 9 DV-AV9-EX Trolley Assembly Drawing Trolley Parts List Ref # Part # Qty Description AR2195 1 Castor with brake AR2196 1 Castor AR2194 2 Antistatic rubber fixed wheels AR3451 2 Wheel axles AR3497 2 Screw AR3498 2 Screw AR3499 2 Columns...
- Page 10 DV-AV9-EX Motor Head Assembly Drawing DV-AV9-EX 2/1/2014...
- Page 11 AR2338 Ball valve AR3905 Plug in for rubber holder AR3906 Rubber holder AR2396 Joint AR2335 Manometer AR4076 Cuffs AR3909 Screw AR3907 Collar AR3915 Easy plug AR4077 Clamp AR3916 Plug AR4080 Spacer AR3545X 1 Base AR4079 Screw AR2036 Joint DV-AV9-EX 2/1/2014...
- Page 12 We Are Here to Serve You! For Sales Call: 1-800-333-7467 For Service Call: 1-800-370-2855 Goodway Technologies Corporation manufactures and distributes a complete line of Tube/Pipe Cleaning Systems, Duct Cleaning Systems, Vacuums, Floor Machines, Hi-Pressure Washers and other maintenance related equipment.
