DV-CNC / DV-CNC3
ChipMaster Plus
Operating and Maintenance Instructions
Goodway Technologies Corporation
420 West Avenue
Stamford, CT 06902-6384 USA
Phone (203) 359-4708
Toll Free 1-800-333-7467
Fax (203) 359-9601
Internet: http://www.goodway.com
E-Mail: goodway@goodway.com
Effective date March, 29, 2017
©Copyright 2017 Goodway Technologies Corp., Stamford, CT USA
Goodway is a Trademark of CROSSFORD INTERNATIONAL, LLC
Goodway reserves the right to improve products; contact the factory for the latest configuration and uses.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Goodway ChipMaster Plus
Summary of Contents for Goodway ChipMaster Plus
- Page 1 Internet: http://www.goodway.com E-Mail: goodway@goodway.com Effective date March, 29, 2017 ©Copyright 2017 Goodway Technologies Corp., Stamford, CT USA Goodway is a Trademark of CROSSFORD INTERNATIONAL, LLC Goodway reserves the right to improve products; contact the factory for the latest configuration and uses.
- Page 2 Thank you for purchasing this Goodway vacuum. We appreciate your business and look forward to serving you in the future. As with all Goodway products, you can be assured that the finest quality components and workmanship have gone into this machine.
-
Page 3: Important Safety Instruction
4. Do not use with a damaged cord or plug. If unit is not working as it should, has been dropped, damaged, left outdoors, or droped into water, contact Goodway Technologies Corporation’s Customer Service at (800) 370-2855. 5. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. -
Page 4: Grounding Instructions

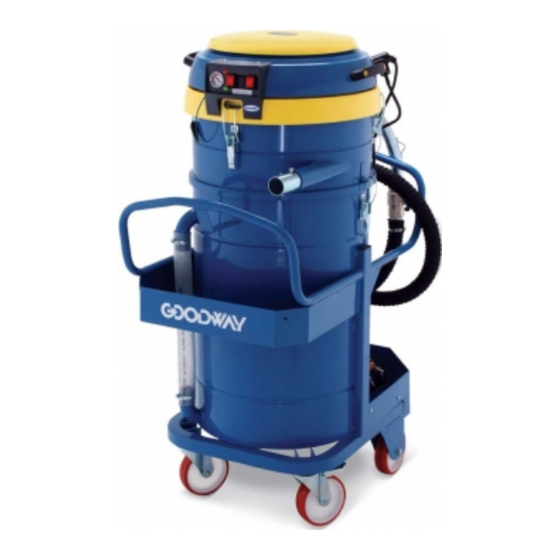

14. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. 15. Do not use without dust bag and/or filters in place. SAVE THESE INSTRUCTIONS GROUNDING INSTRUCTIONS This vacuum must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. - Page 5 COMPONENTS (1) Vacuum Head (2) Vacuum Motor Switches (3) Level Indicator (4) Pump Switch (5) Discharge Pump (6) Float (7) Chip Basket DV-CNC /DV-CNC3 032917...
-
Page 6: General Features
GENERAL FEATURES Switching on and off The vacuum unit and the electric pump can work simultaneously, allowing for recovery filter and pump back at the same time. Independent switches (2 & 4) activate the vacuum motors and the pump. Protection The vacuum motor is protected by a floating device (6): when the level of the liquid rises up, it lifts the floating device which stops the suction before the liquid reaches the motor. - Page 7 INSTALLING THE MACHINE (SET-UP) 1. Remove from packaging and inspect unit. Report any discrepancies to Goodway Technologies Corporation’s Customer Service at (800)-370-2855. 2. Position this vacuum cleaner in the area where it will be used. Make sure to use the wheel locks located on the casters.
-
Page 8: Maintenance
Working Limits of the Electric Discharge Pump DANGER - The pump is not suitable for dangerous or inflammable liquids. WARNING -Maximum working pressure 116 PSI (8 bar) -Maximum liquid temperature: 85°F -Maximum number of starts per hour, evenly distributed: 40 Priming WARNING - The pump must be filled with water (see figure 4 below) before starting. -
Page 9: Troubleshooting
TROUBLESHOOTING The Suction is Weak: • Make sure that the hose is not clogged, punctured or torn. • Check the level of the liquid. If the tank is full, empty it before starting again. • Make sure that the filter is not saturated or torn. •... - Page 10 Cleaning To Clean the Machine: 1. Discharge the liquid left inside the tank, with the discharge pump. 2. Remove the vacuum head and intermediate ring. Remove the chip basket. Clean these assemblies, less the vacuum head, with hot water. 3. Wash out the tank assembly with hot water. 4.
- Page 11 DV-CNC / DV-CNC3 BODY ASSEMBLY DRAWING DV-CNC /DV-CNC3 032917...
- Page 12 DV-CNC / DV-CNC3 BODY PARTS LIST Ref# Parts# Qty. Model Description AR3449 Both Wheel AR3450 Both Wheel with brake AR2288 Both Rear wheel AR2519 Both Hose clamp AA1108 Both Level indicator tube AR3165 Both Wand clips AR3830 Both Collection body AR3831 Both Pump cover / shield...
- Page 13 Vacuum Head Assembly Drawing DV-CNC /DV-CNC3 032917...
- Page 14 Vacuum Head Parts List Ref# Part# Qty. Description AR4082 Single-phase head cover AR4059 Spacer AR4060 Adhesive silencer head cover AR4085 Moulded rubber cooling ring AR4083 Vacuum head’s handle AR4084 Plastic adapter for vacuum heads handle AR2029 Supply cable AR2028 Spiral fairlead AR3372 Fairlead for single phase head AR4073...
- Page 15 DV-CNC /DV-CNC3 032917...
- Page 16 We Are Here to Serve You! For Sales Call: 1-800-333-7467 For Service Call: 1-800-370-2855 Goodway Technologies Corporation manufactures and distributes a complete line of Tube/Pipe Cleaning Systems, Duct Cleaning Systems, Vacuums, Floor Machines, Hi-Pressure Washers and other maintenance related equipment.
