Summary of Contents for Bartscher 610836

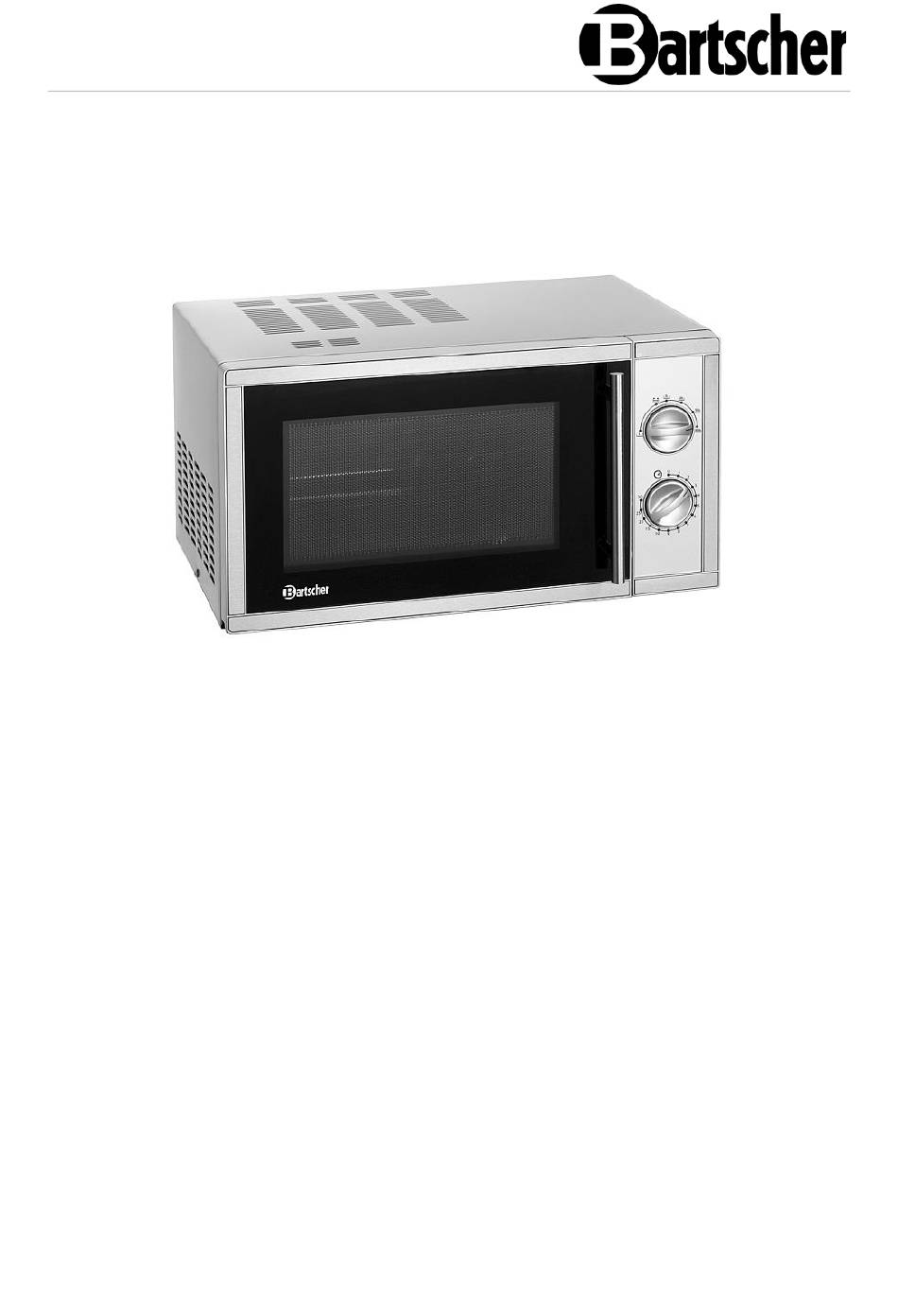

- Page 1 23L, 900W 610836...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 6.0 Date of preparation: 2025-06-06...
-
Page 3: Table Of Contents
Basics of Thermal Processing in Microwave .......... 13 Cookware Suitable for Use in Microwave ..........14 Operation ....................15 Cleaning ...................... 20 Safety Instructions for Cleaning ............. 20 Cleaning ....................20 Possible Malfunctions .................. 21 Disposal ....................... 22 610836 1 / 24... -
Page 4: Safety
You must strictly follow the instructions, to prevent accidents, personal injuries and property damages. DANGER! The signal word DANGER warns against hazards that lead to severe injuries or death if the hazards are not avoided. 2 / 24 610836... -
Page 5: Safety Instructions
Any repairs or housing opening may be carried out by professionals and relevant workshops only. • Do not transport the appliance, holding it by the power cord. • Do not allow the power cord to come into contact with heat sources or sharp edges. 610836 3 / 24... - Page 6 • Food products with thick skins, such as potatoes, pumpkins, apples or chestnuts, should be pierced prior to heating. • Do not place solutions inside containing water, oil or grease, as such a mixture may explode. 4 / 24 610836...
- Page 7 – warping and indentations, – cracked and/or properly secured hinges and screws, – damaged door seals, – cracked glass pane, – damaged locking elements. • The space between the door and the appliance must be free of foreign objects. 610836 5 / 24...
-
Page 8: Operator's Responsibility
The appliance may only be used when it is clean. • Use only original spare parts. Never attempt to repair the appliance on your own. • Do not introduce any changes in the appliance nor modify it. 6 / 24 610836... -
Page 9: Intended Use
The following is an unintended use: – for industrial and laboratory needs, – as a storage compartment (e.g., for cookware/dishes), – drying paper, textiles or other flammable materials, – heating/heating up flammable, harmful, and quickly evaporating liquids or materials, etc. 610836 7 / 24... -
Page 10: General Information
Declaration of Conformity The appliance meets the currently applicable standards and guidelines of the European Union. We confirm the above in the EC Declaration of Conformity. We may provide relevant Declaration of Conformity upon request. 8 / 24 610836... -
Page 11: Transport, Packaging And Storage
– in a location protected against mechanical shocks. In the case of extended storage (over three months), make sure you check the condition of the packaging and the parts regularly. If needed, replace the packaging with a new one. 610836 9 / 24... -
Page 12: Technical Data
Technical Data Technical Data Technical Specifications Name: Microwave 23L, 900W 610836 Article number: Material: stainless steel Chamber material: stainless steel Turntable material: glass Diameter of the turntable, in mm: Microwave oven output, in W: Number of magnetrons: Power levels: Volume, in L:... -
Page 13: List Of Components Of The Appliance
The microwave unit is designed for heating up and defrosting foods with the use of cookware suitable for use in microwave units. With the use of suitable rotary controllers you may set power output and time, as required for a given food. 610836 11 / 24... -
Page 14: Installation And Operation
– Allow sufficient space for work, maintenance and cleaning. – Leave the supply and exhaust air vents, if any, free. – Comply with applicable technical and building regulations. • Maintain sufficient clearance from table edges. The appliance might turn over and fall down. 12 / 24 610836... -
Page 15: Basics Of Thermal Processing In Microwave
Remember the cooking time. It is best to at first set the shortest possible time and then lenghten cooking time as necessary. Excessive cooking time may cause the food product to smoke or catch fire. • Cover food products during cooking. This will ensure even cooking and prevent splattering. 610836 13 / 24... -
Page 16: Cookware Suitable For Use In Microwave
To avoid food from baking onto the edge of dishes, you may cover the edges with thin strips of aluminum foil. Do not use too much aluminum foil, and leave a minimum distance of 2.5 to 3.0 cm between the foil and walls of the microwave cooking chamber. 14 / 24 610836... -
Page 17: Operation
1. Insert the roller ring (6) in the groove in the bottom of the thermal processing chamber. 2. Put the glass turntable (7) at the bottom of the chamber with the ribbed side down and rotate it until it engages with the turntable drive (a). 610836 15 / 24... - Page 18 A – power output level controller Power output levels (6) High Output: 100% Medium high Output: 85% Medium Output: 66% Medium low Output: 48% Defrosting Output: 40% Output: 17% B - Timer (0 – 30 min.) 16 / 24 610836...
- Page 19 2. Place a container with food on the glass turntable (7). 3. Close the door making sure that door seals are free of foreign objects and that the door closes securely. 610836 17 / 24...
- Page 20 This ensures even defrosting of the food product. 1. Prior to defrosting, remove the packaging from the product. 2. Place the product on a plate. While defrosting proceed in accordance with the following instruction: 18 / 24 610836...
- Page 21 The time for leaving dishes out following defrosting is very important, as it guarantees continuation of the defrosting process. After defrosting, the defrosted food product should be cooked as soon as possible. Do not re-freeze defrosted food products. 610836 19 / 24...
-
Page 22: Cleaning
3. Clean external surfaces with a soft, damp cloth. NOTE! To protect elements inside the device against damages, do not allow water to enter the device through ventilation openings. 4. Wipe the door, door seals and neighbouring elements gently with a damp cloth. 20 / 24 610836... -
Page 23: Possible Malfunctions
NOTE: If all the errors listed above may be excluded, have a qualified specialist or a re-seller immediately check the appliance and repair it should it be necessary. 610836 21 / 24... -
Page 24: Disposal
You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance. Electrical appliances should be returned to designated collection points. 22 / 24 610836...
