Summary of Contents for Bartscher 610836

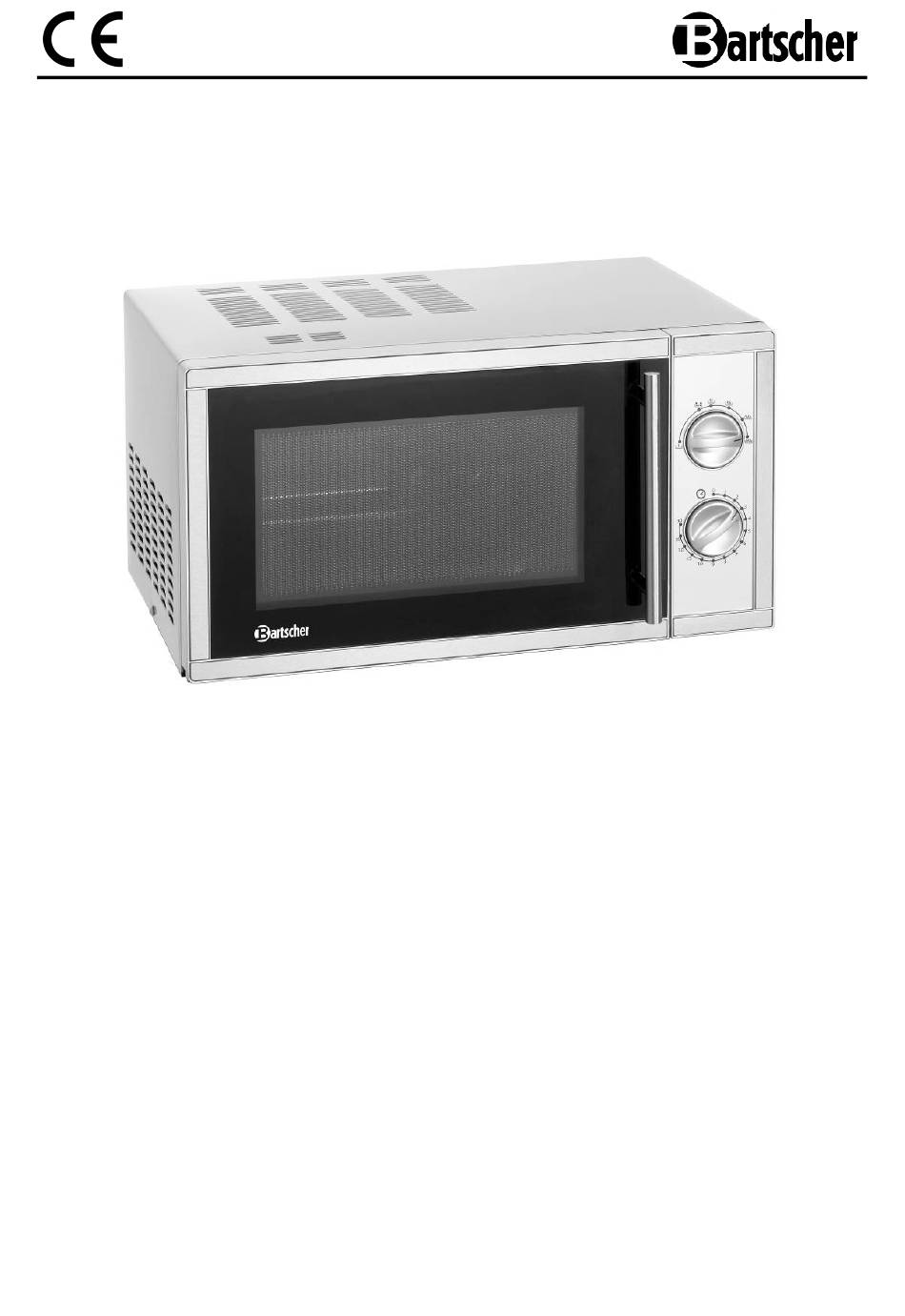

- Page 1 610836 Original-Gebrauchsanleitung V3/0416...
-
Page 2: Table Of Contents
5.4 Suitable dishes for use in the microwave oven ............. 34 5.4 Operation ......................35 6. Cleaning ........................38 7. Possible Malfunctions .................... 39 8. Waste disposal ......................40 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany... -
Page 3: Safety
Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. - Page 4 • This device may only be operated in technically proper and safe condition. • Never use the device without the rotating tray nor without food products inside. The device may be damaged. • Prevent access of children to the package materials like plastic bags and foamed polystyrene elements.
- Page 5 • The supply cable must be disconnected from the socket only by pulling the plug. • Never carry or lift the device by the supply cable. • In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur.
- Page 6 • Door seals must be tight and clean, as dirt and damage may allow electromagnetic waves to escape from the microwave oven. Take care to prevent buildup of any residues (e.g. cleaning agents, dust, grease, etc.). WARNING! Burn hazard! To avoid the effects of this risk, follow the safety instructions presented below.
- Page 7 WARNING! Fire or explosion hazard! To avoid the effects of this risk, follow the safety instructions presented below. • Never heat any flammable objects in the device. • Do not prepare any food products which contain alcohol. • Do not place any objects inside the device (cookbooks, sponges, etc.). Sudden activation of the device can cause damage to such objects, and even burn them.
-
Page 8: Key To Symbols
1.2 Key to symbols In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage. WARNING! This symbol highlights hazards which could lead to injury. -
Page 9: Proper Use
1.3 Proper use The operational safety of the device is assured only in case of proper use, according to the operation manual. All technical activities like installation and maintenance must be performed by the qualified service personnel only. The device is intended for home use or in similar places such as: →... -
Page 10: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 11: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 12: Technical Data
4. Technical data 4.2 Technical specification Name Microwave oven 610836 Code-no.: Construction of casing and interior: stainless steel Microwave power output: 900 W Power: 1,4 kW / 230 V Power levels: Manual times: up to 30 minutes int.: W 315 x D 290 x H 200 mm Dimensions: ext.: W 483 x D 425 x H 281mm... - Page 13 Control panel Power regulator power levels 100 % power High 85 % power Medium-high 66 % power Medium 48 % power Medium-low 40 % power Defrost 17 % power manual timer (0 – 30 min.) - 32 -...
-
Page 14: Installation And Operation
5. Installation and operation 5.1 Installation Positioning • Unpack the device and remove the packing material. CAUTION! Never remove the nameplate and warning signs from the device. • Place the device on a flat, stable surface which can support the weight of a microwave oven, as well as heavy dishes and food products. -
Page 15: Guidelines For Cooking With The Microwave Oven
5.3 Guidelines for cooking with the microwave oven Instead of traditional heat sources, a microwave oven applies an electron lamp which emits electromagnetic waves. These waves, like radio waves, are invisible but their effects can be observed. Such waves can pass through materials such as glass, porcelain, artificial materials and paper. -
Page 16: Operation
7. To avoid food from baking onto the edge of dishes, you may cover the edges with thin strips of aluminum foil. Do not use too much aluminum foil, and leave a minimum distance of 2.5 to 3.0 cm between the foil and walls of the microwave oven’s cooking chamber. - Page 17 Heating and cooking 1. Prior to turning the microwave oven on, check that the rotating tray ( ) and rotating ring ( ) are properly installed. The cooking chamber must be clean; the rotating ring ( ) must be located in the depression; the rotating tray ( ) must be secured to the tray drive ( 2.
- Page 18 WARNING! Danger of burns! Dishes used for cooking may be very hot, as heat is emitted from the food product. Use protective gloves or a towel when removing dishes. CAUTION! If the device is set to a high power level, keep it under constant observation! In the event of strange noises, food products swelling, or liquids churning, reduce the power level! Defrosting...
-
Page 19: Cleaning
Delicate foods Delicate foods such as pate / cakes, cream, cheese or bread should be only partially defrosted, and the defrosting process should be finished at room temperature. In this manner you will avoid a situation where the food is too hot on the outside while still frozen on the inside. -
Page 20: Possible Malfunctions
o If condensation forms on the inside or outside of the door, remove it with a soft cloth. Condensation forms when the device is operated in conditions of high humidity. This is a normal occurrence. o Unpleasant odours can be removed from the device by placing a glass of water with lemon juice and lemon peel, then heating for approx. -
Page 21: Waste Disposal
CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
