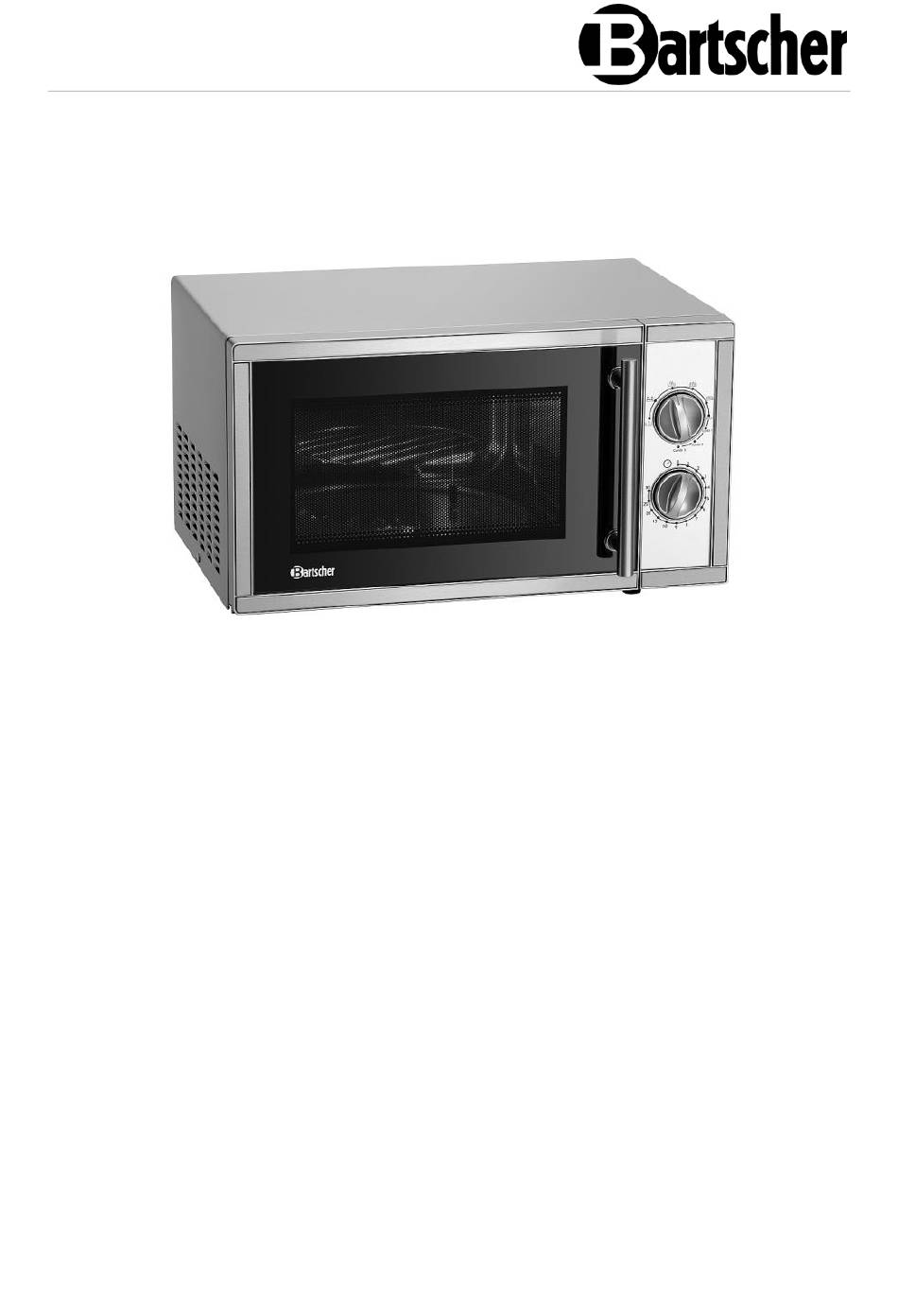

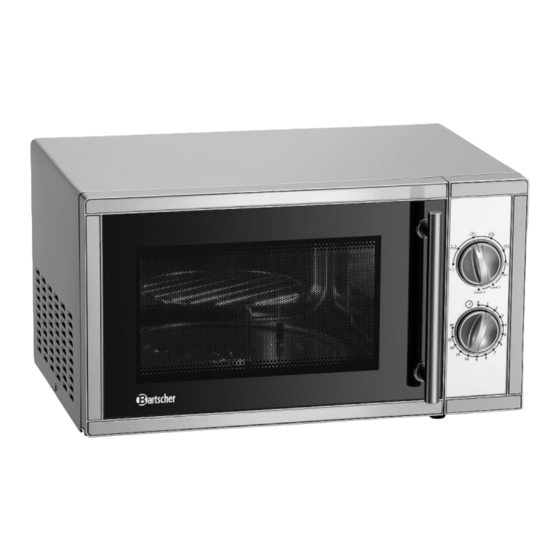

- Page 1 9231D-GR 610856...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2021-05-06...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 7 Unintended Use ..................7 General information ..................8 Liability and Warranty ................8 Copyright Protection ................8 Declaration of Conformity ................ 8 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hi nweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety • Do not use the appliance for preparation of fresh or hard-boiled eggs, either in shell or peeled, as eggs may explode. • Food products with thick skins, such as potatoes, pumpkins, apples or chestnuts, should be pierced prior to heating. •...
- Page 8 Safety Microwave Radiation Hazard! Exposure to microwave radiation may cause bodily injury. To avoid the effects of this risk, follow the safety instructions presented below: • Do not turn the microwave oven on when the door is open, as the appliance may emit an excess of damaging electromagnetic waves.
-
Page 9: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – preparing, heating-up, grilling and defrosting foods with the use of suitable cookware. -
Page 10: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 11: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 12: Technical Data
Technical Data Technical Data Technical Specifications Name: Microwave 9231D-GR 610856 Article number: Material: stainless steel | steel, painted Thermal processing chamber material: stainless steel Rotary plate material: glass Diameter of rotary plate, in mm: Microwave output, in W: Grill output, in W:... -
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Door safety lock system 2. Door handle 3. Door with sight glass 4. Ventilation openings 5. Housing 6. Grill heater 7. Roller ring 8. Rotary plate 9. Grill grate 10. -
Page 14: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. -
Page 15: Basics Of Thermal Processing In Microwave
Installation and operation • The device must remain a minimum distance of 2 m from radios, televisions, and other such electronics in order to avoid interference with the signal reception. Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. -
Page 16: Cookware Suitable For Use In Microwave
Installation and operation Cookware Suitable for Use in Microwave • Check that a dish is suitable to be used in a microwave. Test: place the empty dish together with a glass of water (never activate the device when empty or with only an empty container inside), then heat at the highest power level for 60 seconds. -
Page 17: Operation
Installation and operation The below table will be helpful in selecting suitable cookware: Cookware piece Microwave Grill Combine unit mode mode d mode Heat resistant glass High temperature non-resistant glass Heat resistant ceramics Plastic cookware suitable for microwave units Kitchen paper Metal tray / metal bowl Metal grate Aluminium film &... - Page 18 Installation and operation Control Panel A – Function selector knob Microwave unit functions Output levels Output Defrosting Medium Medium high High 100% – Grill function Combined functions: – Combi 1 – Combi 2 – Combi 3 B – Timer knob (0–30 min.) 16 / 24 610856...
- Page 19 Installation and operation Heating up Food WARNING! Risk of burns by hot cookware! Cookware may be very hot, as high temperature from food is being radiated. Remove cookware using only oven mitts or kitchen dish-cloth. CAUTION! Risk of incineration! Observe the appliance especially with high output levels. Reduce the output in the case of abnormal noises, pouring or bubbling of liquids.
- Page 20 Installation and operation 5. Using the right controller, set the required output level and thermal processing duration (1–30). The thermal processing duration depends on the following food characteristics: the lower, the longer the thermal processing initial temperature: duration the higher, the longer the thermal processing density: duration the lower, the longer the thermal processing...
- Page 21 Installation and operation – close the appliance door, – rotate the function control knob to the right, to set the grill function and prepare food. Combined Functions It is possible to combine in the appliance the function of microwave unit and grill for the purpose of defrosting, cooking, heating up and au gratin processing.
-
Page 22: Cleaning
Cleaning Covering Food products should be covered, in order to: – quicken their heating, – avoid drying out, – avoid splattering of grease in the cooking chamber, Exceptions: bread, baked goods, breaded food products and products which are supposed to be crunchy should not be covered. Turning over / mixing Practically all food products should turned over and/or mixed at least once during defrosting. -
Page 23: Cleaning
Cleaning • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. Do not clean the appliance with a pressurized water jet. • Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp or pointed implements may damage the appliance, and when in contact with live parts, they may cause electric shock. -
Page 24: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche If the microwave does not work: 1. Check if the appliance is correctly connected to the power supply. Remove the plug from the socket and wait for approx. 10 minutes before re-connecting it correctly. 2. Check if a fuse has not been tripped or if the main switch is not switched off. If they operate correctly, check the connection with another appliance.
