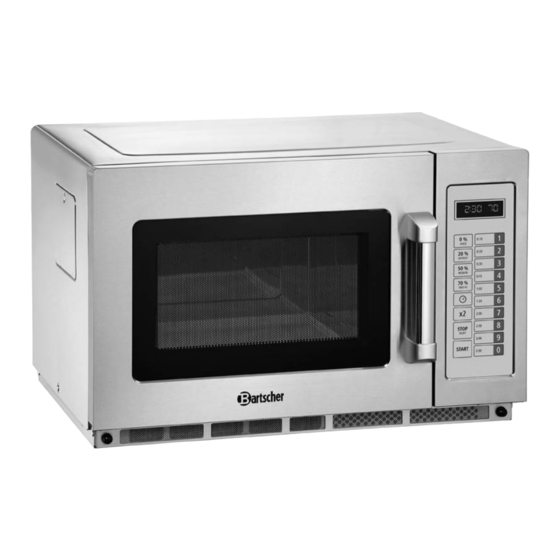

Bartscher 610188 Instruction Manual
  1. Manuals
  2. Brands
  3. Bartscher Manuals
  4. Microwave Oven
  5. 610188
  6. Instruction manual

Bartscher 610188 Instruction Manual

Hide thumbs Also See for 610188:
Table of Contents

Advertisement

Quick Links

Download this manual
18340D
610188
Original-Gebrauchsanleitung
V3/0419

Advertisement

Table of Contents
loading

Related Manuals for Bartscher 610188

Summary of Contents for Bartscher 610188

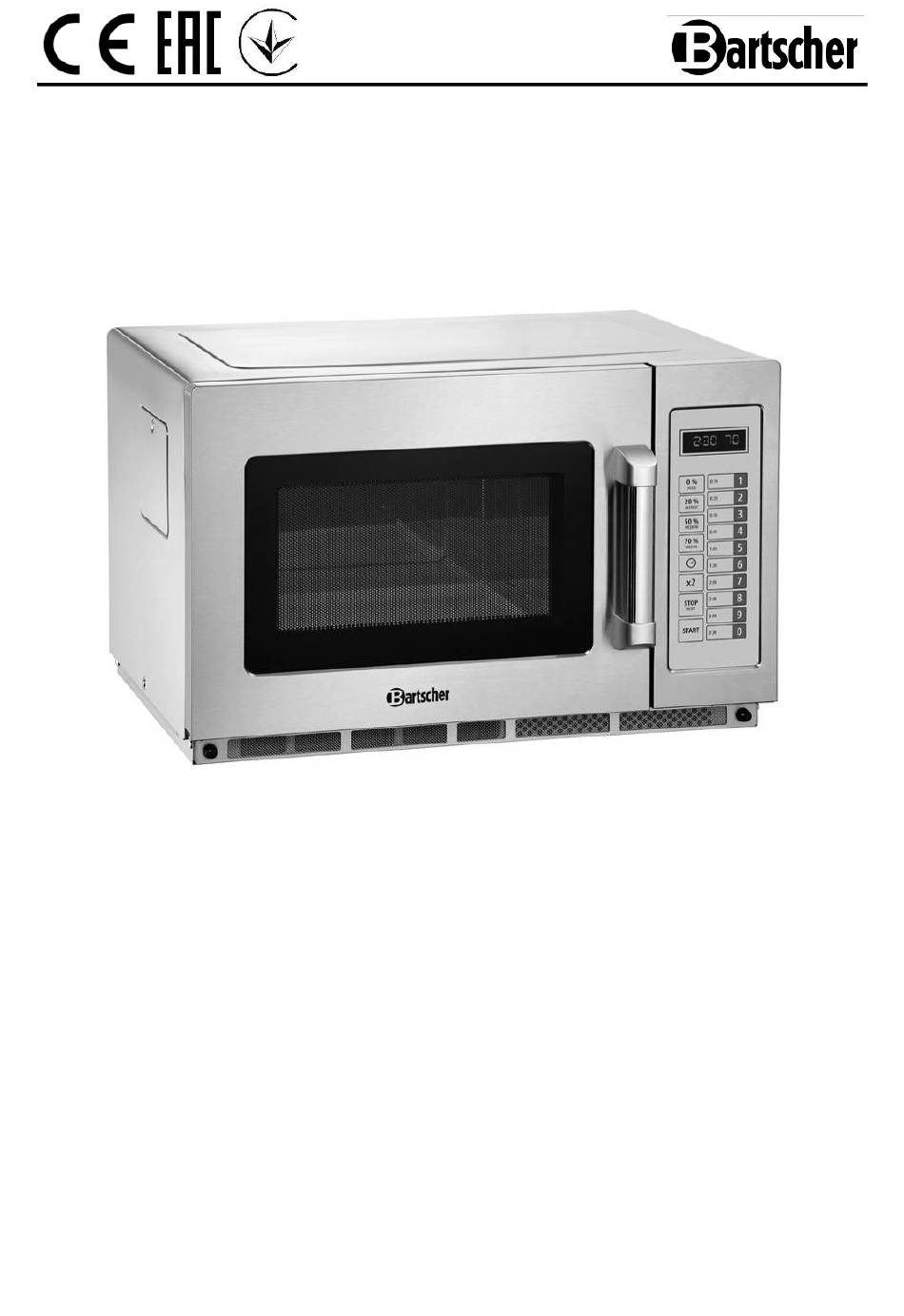

  • Page 1 18340D 610188 Original-Gebrauchsanleitung V3/0419...

  • Page 2: Table Of Contents

    5.3 Suitable dishes for use in the microwave oven ............. 47 5.4 Operation ......................48 6. Cleaning ........................56 7. Possible Malfunctions .................... 59 8. Waste disposal ......................60 Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax: +49 5258 971-120...

  • Page 3: Safety

    Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

  • Page 4: Safety Instructions

    CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation. 1.2 Safety instructions  The device can be used by children 8 years and up, as well as by people with disabilities and those with limited experience/ knowledge as long as they are under supervision or have been instructed on proper use of the device and its possible dangers.
  • Page 5  To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken. DANGER! Electric shock hazard! To avoid effects of this risk, follow the safety instructions presented below: ...
  • Page 6  Do not use any acid agents and make sure no water ingresses the device.  Never operate the device with moist hands or standing on wet floor.  Remove the plug from its socket: when the device is not used, in case of anomalies during operation, before cleaning.
  • Page 7  Door seals must be tight and clean, as dirt and damage may allow electromagnetic waves to escape from the microwave oven. Take care to prevent buildup of any residues (e.g. cleaning agents, dust, grease, etc.). HOT SURFACE! Burn hazard! To avoid effects of this risk, follow the safety instructions presented below: ...
  • Page 8  For that reason avoid using tall, narrow containers with a thin neck.  Place a spoon (only in exceptional cases use a metallic one) or glass stirrer in the beverage, then place the dish in the center of the rotating tray. Stir the liquid prior to heating and after half the heating time has elapsed.

  • Page 9: Proper Use

     Do not prepare food products and beverages in closed or sealed containers. Such containers may crack inside the device or injure the user when being opened!  Do not use the device for preparation of fresh or hard-boiled eggs, either in shell or peeled, as eggs may explode. ...

  • Page 10: General Information

    2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors.

  • Page 11: Transport, Packaging And Storage

    3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

  • Page 12: Technical Data

    4. Technical data 4.1 Overview of parts Safety closing system Door handle Door with glass Cooking compartment lighting Cooking compartment Upper lid of anti-splash cover Ceramic bottom of cooking compartment Housing Control panel Filter - 41 -...

  • Page 13: Functions Of Display And Buttons

    4.2 Functions of display and buttons (1) Digital display (2) Power level buttons (3) Manual time adjustment buttons (4) Button x2 (5) Pause/STOP/Reset button (6) START button (7) Cooking time preset buttons (10) - 42 -...
  • Page 14 (1) The digital display shows cooking time and power, as well as selected cooking programs, options, and current mode. Example: 5:5 20 (5 min: 5 seconds 20% of power) (2) The following preset power levels may be selected with use of appropriate buttons: Preset Power in %...

  • Page 15: Technical Specification

    4.3 Technical specification Description Microwave oven 18340D 610188 Art. no.: Material: housing and cooking compartment: stainless steel  functions: heating, defrosting  no. of cooking programs: 100  control: electronic Realization:  digital display  internal lighting Microwave power: 1.8 kW No.

  • Page 16: Installation And Operation

    5. Installation and operation 5.1 Installation Positioning  Unpack the device and remove the packing material. CAUTION! Never remove the nameplate and warning signs from the device.  Place the device on a flat, stable surface which can support the weight of a microwave oven.

  • Page 17: Guidelines For Cooking With The Microwave Oven

    Connection DANGER! Electric shock hazard! The device can cause injuries due to improper installation! Before installation and connecting the local power grid specification should be compared with that of the device (see rating plate). Connect the device only in case of compliance! ...

  • Page 18: Suitable Dishes For Use In The Microwave Oven

    5.3 Suitable dishes for use in the microwave oven 1. Check that a dish is suitable to be used in a microwave oven. Test: place the empty dish together with a glass of water, then heat at the highest power level for 60 seconds. Never switch the device on when empty or with only an empty container inside.

  • Page 19: Operation

    5.4 Operation Before the first use  Prior to the first use, clean the device so that the remnants of packing material do not affect the taste of food products.  Wipe the interior and exterior of the device with a soft, moist cloth and dry thoroughly afterwards.
  • Page 20 Open door mode  When the oven door is opened, the device is in the open door mode.  in that mode the digital display shows no values, only fan and lighting are activated.  When the oven door is closed and OP 60 is selected (inactive door reset), the device is ready for preset or manually set cooking cycle.
  • Page 21  When “START” is pressed during setting, the cooking mode is recalled. By pressing”Pause/STOP/Reset” button the device is switched to the ready mode. Manual cooking mode  When the device is in that mode and “START” button is pressed, the manual cooking mode is activated.
  • Page 22 Quick start mode  When the device operates and OP 51 (quick start active) is selected, after pressing one of numeric buttons the saved cooking program is activated automatically.  The digital display shows the corresponding power.  When the cooking program is realized, the device switches to the cooking cycle end. Programming mode That mode allows the user to program the cooking times and power levels for the individual numeric buttons.
  • Page 23  When the oven door is closed, the device switches to the ready mode.  When during setting the “Pause/STOP/Reset” button is pressed, the device switches to the open door mode. The program which is not saved is lost.  When the cooking program is saved under one of the numeric buttons, it may be started by pressing that button.
  • Page 24  the digital display shows “DOUBLE”. After pressing  When setting is made with use of numeric buttons, the preset cooking time is shown on the display. Example: the preset cooking time for numeric button “5” is 1 minute. After pressing the cooking time is changed: 1: 0 *(1 +0.8) = 1 48 (1 minute and 48 seconds).
  • Page 25 h. Press “START” button to start cooking. i. The remaining cooking program time (not the individual stages) is counted down on the display. Options mode User options Hint: bold values in the table are the factory default values. Button / option Settings Description OP:10...
  • Page 26 The options mode allows the user to select between various settings (table “User options”, page 54).  Open the door and press the numeric button “2” for 5 second, the acoustic signal is activated and the device switches to the options mode. ...

  • Page 27: Cleaning

     Delicate food such as paste / cakes, cream, cheese or bread should be only partially defrosted and the defrosting process should be finished at room temperature. This way the food will not be too hot on the outside while still frozen on the inside. ...
  • Page 28 o Unpleasant odours can be removed from the device by placing a glass of water with lemon juice and lemon peel in a container designed for use in microwave ovens and heating it for approx. 10 minutes. Afterwards, wipe the device thoroughly with a soft, dry cloth.
  • Page 29 Upper splash guard Press the recesses (a) with a thumb to loosen the upper splash guard. Pull it down. Remove the upper splash guard from the device. Set the upper splash guard in the initial position. Remember to insert 3 hooks into the holes at the rear of the device.

  • Page 30: Possible Malfunctions

    7. Possible Malfunctions If the microwave oven fails to function: 1. Check that it has been properly plugged in. Remove the plug from its socket and wait approx. 10 seconds, then reinsert it into the socket. 2. Check that a circuit breaker or the main circuit has not been disconnected. If they are functioning properly, check the connection using other electronic appliances.

  • Page 31: Waste Disposal

    Electric devices should be used and disposed of properly to prevent the impact on the environment.  Disconnect the device from the power supply and remove the power cord from the device. Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax: +49 5258 971-120...
