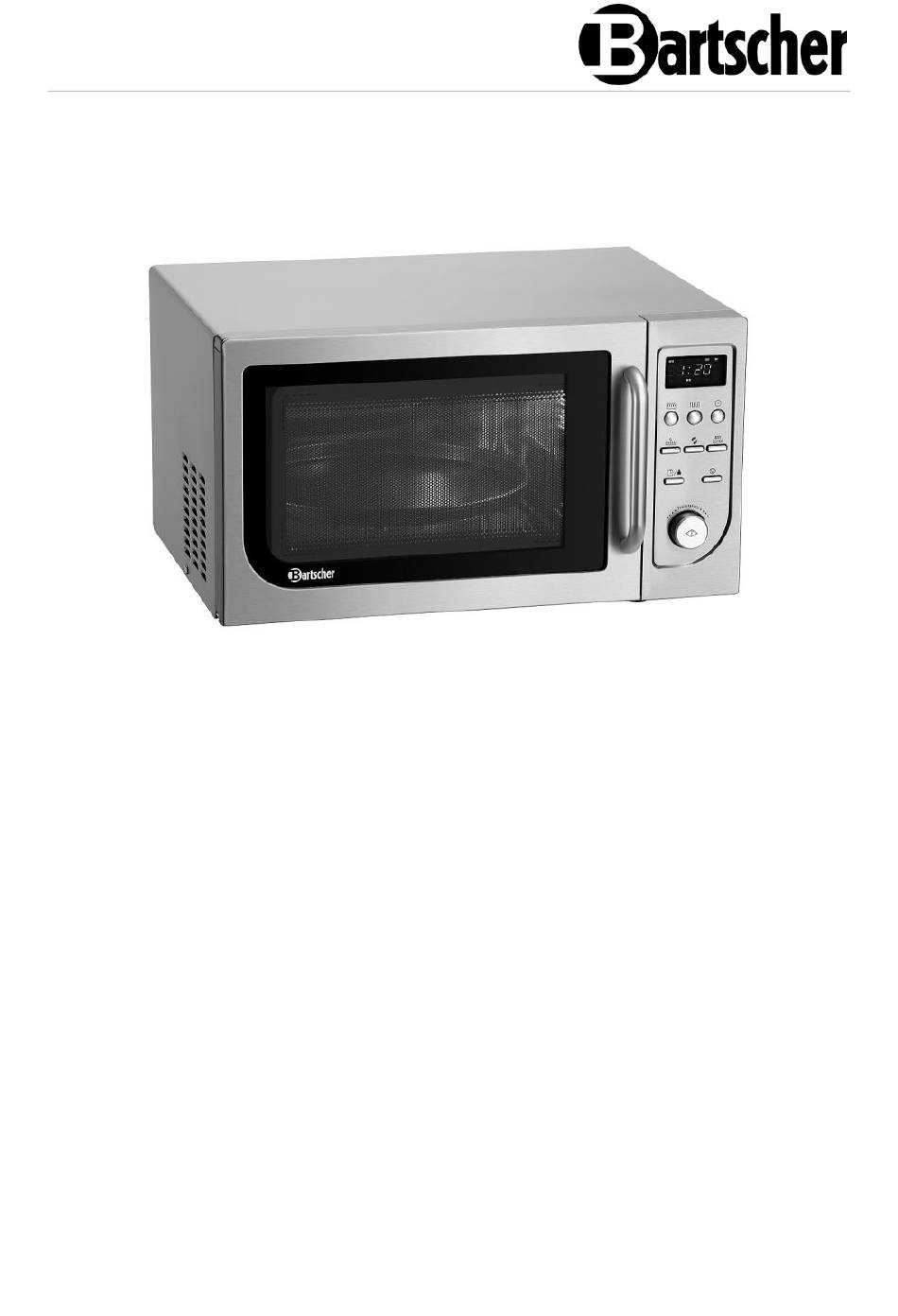

  • Page 1 14250M-HLGR 610837...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2021-04-08...

  • Page 3: Table Of Contents

    Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 7 Unintended Use ..................7 General information ..................8 Liability and Warranty ................8 Copyright Protection ................8 Declaration of Conformity ................ 8 Transport, Packaging and Storage ..............

  • Page 4: Safety

    Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hi nweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den.

  • Page 5: Safety Instructions

    Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,...
  • Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. Flammable Materials • Never subject the appliance to contact with high temperature sources, e.g.: oven, furnace, open flame, heat generating devices, etc.
  • Page 7 Safety • Do not place solutions inside containing water, oil or grease, as such a mixture may explode. Safety of Microwave Oven Operation • Do not fry any food products in the appliance. Hot oil can lead to skin burns and/or damage to the appliance.
  • Page 8 Safety Microwave Radiation Hazard! Exposure to microwave radiation may cause bodily injury. To avoid the effects of this risk, follow the safety instructions presented below: • Do not turn the microwave oven on when the door is open, as the appliance may emit an excess of damaging electromagnetic waves.

  • Page 9: Intended Use

    Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – preparing, heating-up, grilling and defrosting foods with the use of suitable cookware.

  • Page 10: General Information

    General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual.

  • Page 11: Transport, Packaging And Storage

    Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint.

  • Page 12: Technical Data

    Technical Data Technical Data Technical Specifications Name: Microwave 14250M-HLGR 610837 Article number: Material: stainless steel | steel, painted Thermal processing chamber material: stainless steel Rotary plate material: glass Diameter of rotary plate, in mm: Microwave output, in W: 1400 Convection output, in W:...

  • Page 13: List Of Components Of The Appliance

    Technical Data • Rotary plate • Internal lighting • The set includes: 1 grill pan, Ø275 mm, height 50 mm, detachable handle List of Components of the Appliance Fig. 1 1. Door safety lock system 2. Door handle 3. Door with sight glass 4.

  • Page 14: Functions Of The Appliance

    Technical Data Control Panel A – Digital display B – Function buttons Microwave Grill Time Microwave + convection Convection Microwave + grill Clock / Scales Stop / Reset C – Time/Menu rotary controller Start/Quick Start Button Fig. 2 Functions of the Appliance The microwave is designed for preparing and defrosting foods with the use of cookware suitable for use in microwave.

  • Page 15: Installation And Operation

    Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it.

  • Page 16: Basics Of Thermal Processing In Microwave

    Installation and operation • The device must remain a minimum distance of 2 m from radios, televisions, and other such electronics in order to avoid interference with the signal reception. Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification.

  • Page 17: Cookware Suitable For Use In Microwave

    Installation and operation Cookware Suitable for Use in Microwave • Check that a dish is suitable to be used in a microwave. Test: place the empty dish together with a glass of water (never activate the device when empty or with only an empty container inside), then heat at the highest power level for 60 seconds.

  • Page 18: Operation

    Installation and operation Information in the below table may be helpful in selecting the right cookware: Cookware piece Microwave Grill Convection Combined unit function function function * operation Heat resistant glass High temperature non- resistant glass Heat resistant ceramics Plastic cookware suitable for microwave Paper towels Metal tray / bowl...
  • Page 19 Installation and operation Switching-On WARNING! Risk of burns by hot cookware! Cookware may be very hot, as high temperature from food is being radiated. Remove cookware using only oven mitts or kitchen dish-cloth. CAUTION! Risk of incineration! Observe the appliance especially with high output levels. Reduce the output in the case of abnormal noises, pouring or bubbling of liquids.
  • Page 20 Installation and operation When the settings are introduced and the selected program is activated, the thermal processing chamber is lit, and the rotary plate rotates. ATTENTION! The rotary plate must always be able to rotate freely. Settings Data Input 1. When inputting data, press the buttons one by one. With longer pauses, the appliance interrupts the process automatically.
  • Page 21 Installation and operation Clock Setting 1. Press the button for at least 3 seconds. The '12H' appears. 2. Rotate the Time/Menu rotary controller until the right hour is displayed. 3. Press the button to confirm. 4. Rotate the Time/Menu rotary controller until the right hour is displayed. 5.
  • Page 22 Installation and operation You may use this setting to conveniently set the appliance to 100% thermal processing. 1. To set the time of thermal processing, rapidly press a few time the Start/Quick Start button. Maximum thermal processing time is 10 minutes. The appliance starts automatically after 2 seconds.
  • Page 23 Installation and operation 1. First, using the button, select the output level, and then use the Time/Menu rotary controller to set the required thermal processing time. 2. To end with, press the Start/Quick Start button, to start the thermal processing. Example: To heat up products for 5 minutes at the output level of 60%, introduce the following commands via the control panel:...
  • Page 24 Installation and operation Grill Function Thermal processing with grill function is suitable especially for thin slices of meat, steaks, chops, kebab, sausages and chicken. It is also suitable for hot sandwiches and au gratin dishes. 1. Use the enclosed pan for grilling. 2.
  • Page 25 Installation and operation Thermal Processing with Convection You may set the thermal processing temperature with the button. An overview of temperature settings is provided in Table 2. In the left column of the table a number of the button presses is given to set the required output.
  • Page 26 Installation and operation Press the Stop / Reset button or open the appliance door to clear the 'END' message in the digital display, before starting another function. During thermal processing, you may check the convection temperature by pressing the button. Pre-Heating and Thermal Processing with Convection Your microwave may be programmed to combine the pre-heating process and the thermal processing with convection.
  • Page 27 Installation and operation The required thermal processing time is shown in the digital display. 3. Press the Start/Quick Start button to start the program. Attention: Maximum thermal processing time is 95 minutes. When the set time of thermal processing elapses, an acoustic signal sounds four times, and 'END' is shown in the digital display.
  • Page 28 Installation and operation Microwave + Convection This combined operation mode with convection and microwave is suitable for: – high-humidity au gratin dishes – thicker pieces of meat – frozen, ready-made pastries – higher humidity cakes The appliance features four factory default pre-programmed settings, which make the thermal processing with convection and microwave easy.
  • Page 29 Installation and operation Defrosting The microwave energy heats up the external part of food products and the heat is slowly directed inside products. This ensures even defrosting of a food product. Example: Let's assume, that a frozen product is to be defrosted for 5 minutes and 30 seconds.
  • Page 30 Installation and operation Press the Stop / Reset button or open the appliance door to cleat the 'END' message before starting the next thermal processing program. Defrosting techniques While defrosting proceed in accordance with the following instruction: Covering Food products should be covered, in order to: –...
  • Page 31 Installation and operation Multi-Stage Thermal Processing Using this appliance, there is possibility of initial selection of three programs, which are executed one by one. DEFROSTING may be selected due to practical reasons only before a thermal processing program. The following thermal processing settings are available: Level 1 Defrosting / thermal processing in microwave mode / microwave + grill / convection (without pre-heating) / microwave + convection...
  • Page 32 Installation and operation Settings for Automatic Menu The 'Automatic Menu' functions makes it possible to automatically execute thermal processing or heating up of food products without the need for setting output levels or time. It is enough to know the type and weight of a food product. 1.
  • Page 33 Installation and operation Attention: It is necessary to provide the right weight — the thermal processing time is then set accordingly. In A-03 (Popcorn) and A-08 (Cakes) programs, you may set the thermal processing time if the pre-set time is not suitable. To set the thermal processing time anew: 1.

  • Page 34: Cleaning

    Cleaning AUTOMATIC SAFETY MECHANISM High Temperature Protection If the temperature in the microwave rises to 300°C, the appliance automatically switches to self-protection mode. 'E01' is displayed in the digital display and an acoustic signal sounds. 1. To switch the appliance again to standard operating mode, press the Stop / Reset button.

  • Page 35: Cleaning

    Cleaning Cleaning 1. Clean the appliance regularly after the end of each working day, or more frequently if needed. 2. Thoroughly remove all food left-overs and beverage remains from internal walls with a soft and damp cloth. With extensive soiling you may also use a mild cleaning agent.

  • Page 36: Possible Malfunctions

    Possible Malfunctions Possible Malfunctions Mögliche If the microwave does not work: 1. Check if the appliance is correctly connected to the power supply. Remove the plug from the socket and wait for approx. 10 minutes before re-connecting it correctly. 2. Check if a fuse has not been tripped or if the main switch is not switched off. If they operate correctly, check the connection with another appliance.
