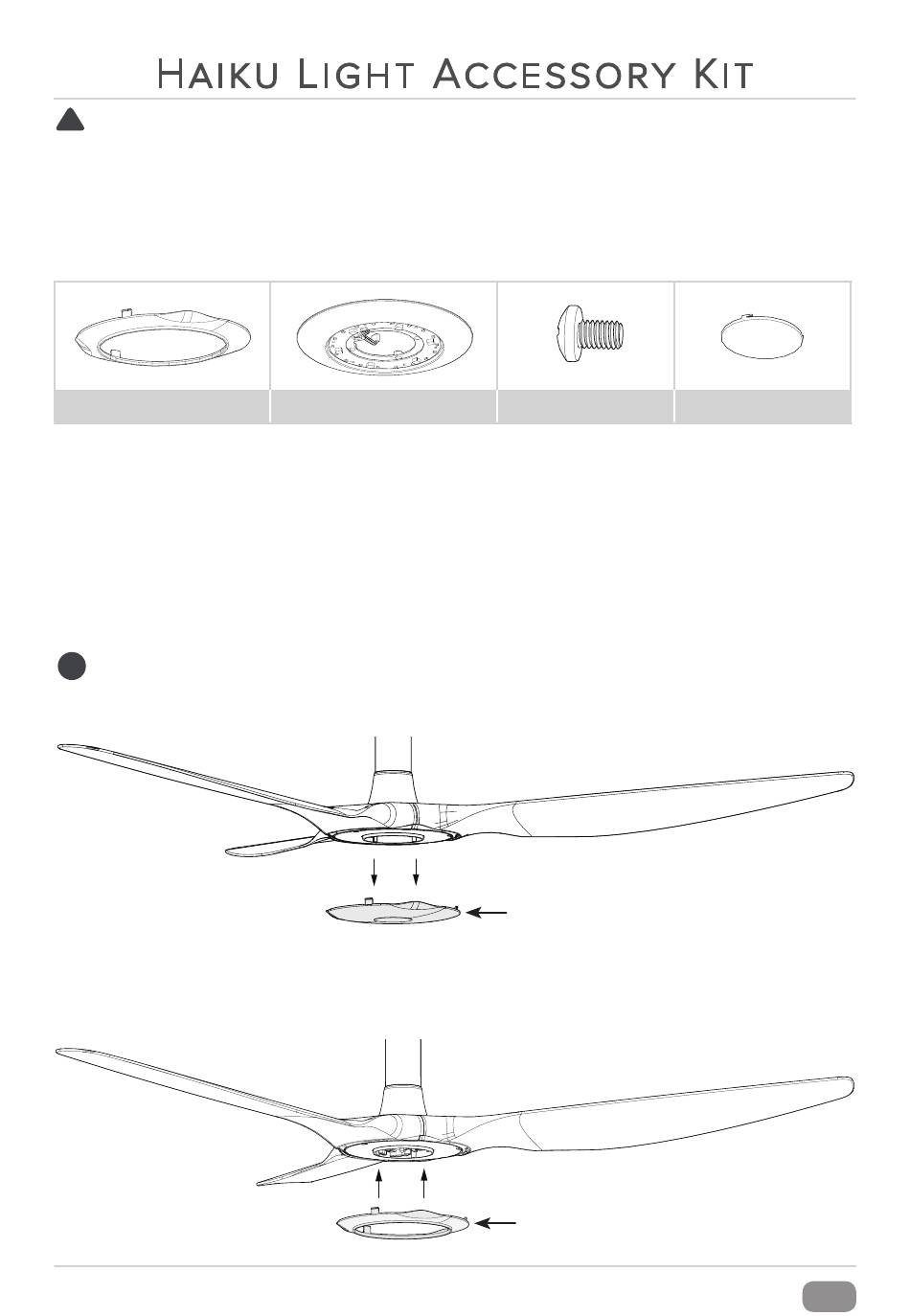

H a ik u L i gh t A c ce ss or y Kit
!
Ensure power is disconnected before installing the light accessory kit.
Review the safety guidelines in the complete Haiku installation guide. If you have questions about any
aspect of the installation process, contact Haiku Technical Service for assistance.
Parts and hardware
If you are missing any parts or hardware required for the installation of your Haiku, contact Haiku
Technical Service. Note: Drawings below are not to scale.
LED cover ring
*A white lens and a black lens are included with the kit. Install the white lens for maximum light emission. Install the
black lens for dimmer light emission.
Installation
Follow the steps below to install the Haiku light accessory kit on your Haiku fan.
Note: If you purchased the wall control kit, install it prior to installing the light accessory kit. Return
to these instructions once the wall control kit is installed.
Step 1. Remove lower cover
Retain the lower cover for future use.
tip!
Place both hands flat on the lower cover, and then turn it counterclockwise to unlock and remove it.
Step 2. Install LED cover ring
Position and install the LED cover ring by placing both hands flat on the ring and turning it clockwise to
lock into place.
©2012 DELTA T CORP. ALL RIGHTS RESERVED.
HAIKU
by BIG ASS FANS
®
LED light module
HKU-INST-23-MUL-01 REV. E0
(4) M4 x 8 screw
Lower
Cover
LED Cover
Ring
(2) Lens cover*
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HAIKU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BIG ASS FANS HAIKU

  • Page 1 Haiku Technical Service for assistance. Parts and hardware If you are missing any parts or hardware required for the installation of your Haiku, contact Haiku Technical Service. Note: Drawings below are not to scale.
  • Page 2 HAIKU by BIG ASS FANS ® Hai ku L ight a cces so ry K i t (c o nt. ) Step 3. Install LED module Do not touch the LEDs or electronics during installation! Secure the LED module to the mounting bracket with the (4) M4 x 8 screws as shown. Ensure the wires and wiring harness remain positioned through the square hole on the LED module.
  • Page 3: Operating The Light

    Operating the light Do not stare directly into the light! The Haiku light accessory operates independently from the fan, providing a variable level of illumination that is increased or decreased by pressing the Up or Down Light button on the remote.
  • Page 4 Installer la lentille noire pour une émission de lumière plus faible. Installation Suivre les étapes ci-dessous pour installer le kit du dispositif d'éclairage Haiku sur le ventilateur Haiku. Remarque : Si vous avez acheté le kit de dispositif de commande mural, installez-le avant d’installer kit du dispositif d’éclairage.
  • Page 5 HAIKU par BIG ASS FANS ® Kit d'éclairage LED Haiku (suite) Étape 3. Installation du module LED Ne pas toucher les LED ou les composants électroniques au cours de l'installation ! Fixer le module LED sur le support de montage à l'aide de (4) vis M4 x 8 comme indiqué. Veiller à ce que les fils et le faisceau de câblage restent positionnés à...
  • Page 6 Fonctionnement de la lumière Ne pas regarder directement dans la source de lumière ! Le dispositif d'éclairage Haiku fonctionne indépendamment du ventilateur et offre un niveau d'éclairage variable qu'on augmente ou diminue en appuyant sur la touche lumière Up ou Down de la télécommande.
