Installation guide
EN
* Up to 10 years valid under the conditions of use specifi ed in the installation instructions and
the General Conditions of Sale
2xLS 14500 - 3,6 V - 5,8 Ah - Lithium
Consumption stand-by : 9,5 µA
Consumption : 27 mA max
[868 - 868.6] MHz and
[868.7 - 869.2] MHz
100 m
Maximum power radio < 10 mW,
receiver category: 2
-10°C / +70°C
-20°C / +60°C
IP
71,5 x 186 x 105 mm
Contents
300m
Ý
IP 55
75%
420 gr.
Important product
information (¸)
Instructions
Important
Product
Informations

Advertisement

loading
Need help?

Need help?

Do you have a question about the DME TYXAL + and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DELTA DORE DME TYXAL +

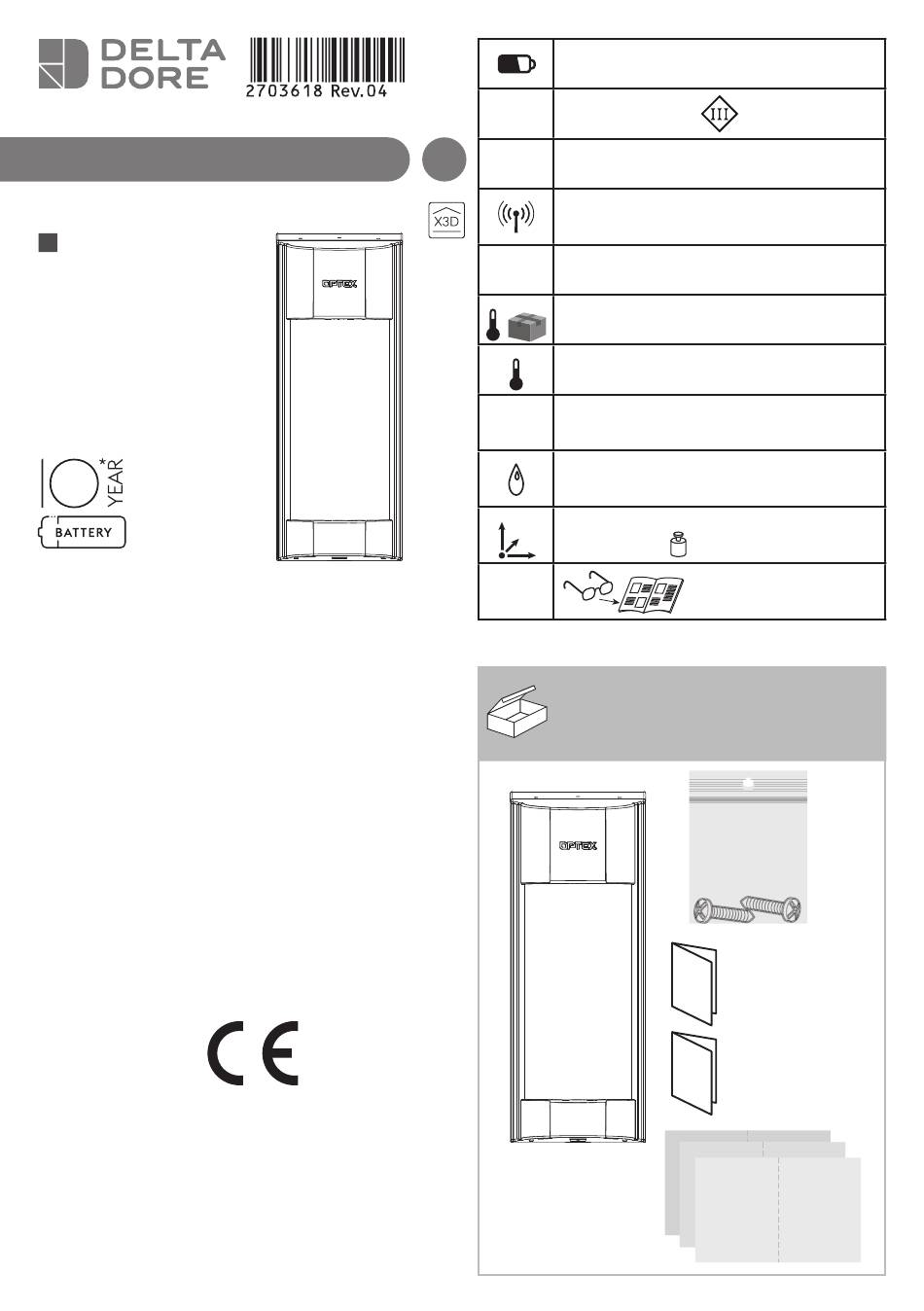

  • Page 1 2xLS 14500 - 3,6 V - 5,8 Ah - Lithium Consumption stand-by : 9,5 µA DME TYXAL + Consumption : 27 mA max [868 - 868.6] MHz and www.deltadore.com [868.7 - 869.2] MHz 100 m 300m Ý Installation guide Maximum power radio < 10 mW, receiver category: 2 -10°C / +70°C -20°C / +60°C...
  • Page 2 1. Presentation 2. Location DME TYXAL+ is a passive infrared motion detector, de- signed to detect the infrared radiation emitted by human bodies. N°3 This motion detector aims to protect the outside of a Install the motion detector vertically, with building by detecting intrusions prior to penetration into both high and low detection zones parallel the premises.
  • Page 3 3. Mounting 4. Activation Ê Ë Ë Ê Do not touch the mirrors. Plug the battery cable into the card Reposition the sensor/electronic card connector. into the rear mount and attach them. Set the product you want to associate Remove the top of the detec- Remove the fi xing screw from to ‘pending association’, then press the tor unit.
  • Page 4 5. Detection zone settings 6. Detector range settings To change these settings: To conceal the zones: Ê Ë Ê Hindrance (e.g. tree) Remove the lens from the top cover Conceal the concerned section thanks to stickers from sheet 1 Change the detection range by sliding the lower infrared cell to the desired position. Ì...
  • Page 5 6. Detector range settings 7. Special detection zone Ì Put the top cover in its place and conduct a detection test. (See "Detection test"). Both sides You can use the LED light to determine the detection zones 12 m (See section "Function settings" Switch 1). 10 m If the detection zones are not suitable, readjust the range by sliding the lower infrared cell to the desired position.
  • Page 6 8. Function settings 9. Detection test Detection sensitivity settings Check the device functions properly by conducting a detection test. The sensitivity can be set to 3 different positions: • L(low), LED ON Ê Ë • M (medium), • H (high), The chosen position will depend on environmental condi- tions.
  • Page 7: 12. Troubleshooting

    11. Battery replacement The LED flashes continuously, the battery is dead. Before opening the unit, the alarm control unit must be in Maintenance mode (refer to system installation guide). Ê Ë Ì ¹ 12. Troubleshooting Problem Probable cause Solution The LED flashes Establish a power supply Incorrect power supply.
