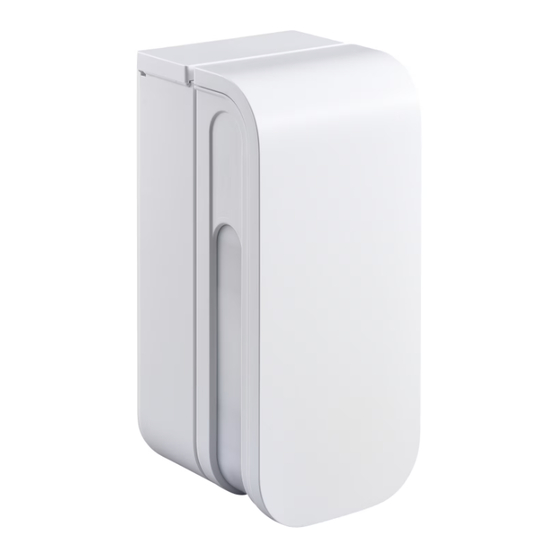

- Page 1 DMF Tyxal+ Wireless outdoor barrier motion detector * Up to 10 years valid under the conditions of use specified in the installation instructions and the General Conditions of Sale...
- Page 2 3. Location 1. Contents Install the motion detector vertically, with its N°2 Instructions high detection zones parallel to the ground. If the detector is installed at an angle, Straps detection reliability may be compromised. Hook & Loop Important An integrated spirit level enables optimal Product installation.
- Page 3 4. Mounting 5. Activation Only the blue parts are action- able. ❶ Unlatch the top cover to open it. ❶ Plug the battery cable into the card connector. ❷ Reposition the sensor/electronic Set the (Tyxal+) alarm control panel to ‘pending card on the base pairing’, then press the pairing button on the card.
- Page 4 6. Detector range settings for each side 7. Detection sensitivity settings Depending on your installation, the detection beams can be offset from the wall (3 degrees). Switch settings To do this, slide the compartment to reveal the "AWAY WALL" message (see image below). The switches must be positioned towards the The detection distance can be configured separately for the right and the left side.
-
Page 5: Battery Replacement
9. Battery replacement The LED flashes continuously, the battery is dead. IMPORTANT: Before opening the unit, the alarm control unit must be in Maintenance mode (refer to system installation guide). ❷ Press on the blue strips to separate the ❶ Unlatch the top cover to open it. detector from its base. - Page 6 Caractéristiques techniques / Technical characteristics / Technische Daten Caratteristiche tecniche / Características técnicas / Technische kenmerken 2xLS 14500 - 3.6 V / 5.2 Ah - Lithium Consumption stand-by : 16 µA Consumption : 8 mA max / 3,6 Vcc [868 - 868.6] MHz and [868.7 - 869.2] MHz 100 m ->...
