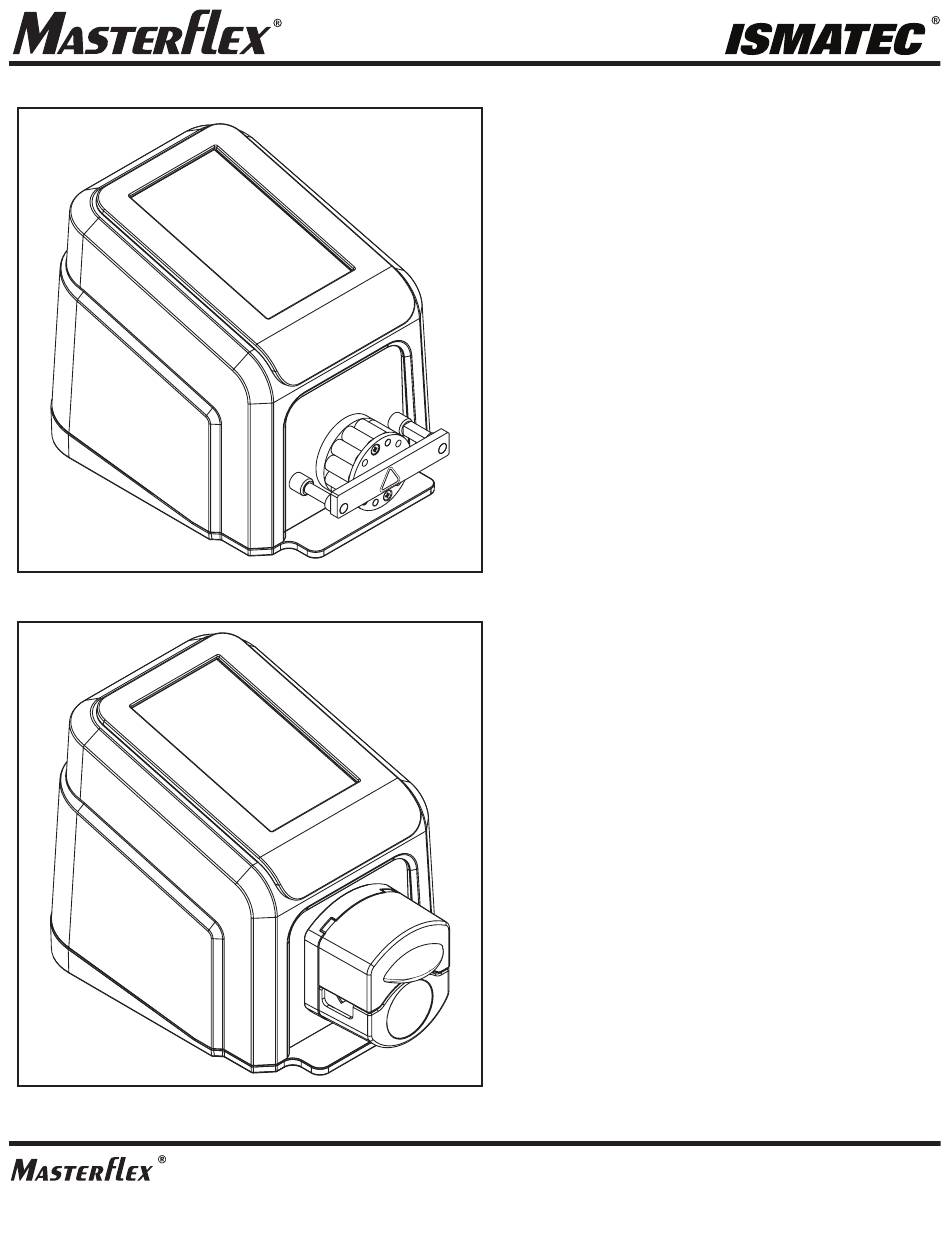

OPERATING MANUAL:
REGLO DIGITAL PUMP
DRIVES WITH ADVANCED
CONNECTIVITY
Model Nos.
78018-10
78018-12
78018-14
78018-20
78018-22
78018-24
78018-40
78018-42
A-1299-5201
Edition 02
Advertisement
Table of Contents
Related Manuals for Ismatec MASTER REGLO 78018-10
Summary of Contents for Ismatec MASTER REGLO 78018-10
- Page 1 OPERATING MANUAL: REGLO DIGITAL PUMP DRIVES WITH ADVANCED CONNECTIVITY Model Nos. 78018-10 78018-12 78018-14 78018-20 MASTERFLEX REGLO 78018-10 78018-22 ® 78018-24 78018-40 78018-42 MASTERFLEX REGLO 78018-40 ® A-1299-5201 Edition 02 (US & Canada only) Toll Free 1-800-MASTERFLEX • 1-800-637-3739 (Outside US & Canada) 1-847-549-7600 • 1-847-381-7050 www.masterflex.com •...
- Page 2 © 2019 Cole-Parmer Instrument Company. All rights reserved. Masterflex® is a registered trademark of the Cole-Parmer Instrument Company. Trademarks bearing the symbol in this publication are registered in the US and in other countries. ® PUMP FOR LIQUIDS ORIGINAL INSTRUCTIONS Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex...
-
Page 3: Table Of Contents
Table of Contents Table of Contents SECTION 1: INTRODUCTION Safe Operation About the REGLO Package Contents Peristaltic Cassette Models Peristaltic Miniflex Models Non-Peristaltic Pump Models Available Models SECTION 2: BASIC SETUP & SETTINGS Touchscreen Icons Before Starting the Drive Switching on the Drive Settings Language Settings Setting the Time... - Page 4 Table of Contents Time Mode Run Screen 3-20 Time Mode Edit Screen 3-21 Time Mode Operation 3-21 Saving Time Mode Settings as a New Program 3-23 Volume Mode 3-24 Volume Mode Run Screen 3-24 Volume Mode Edit Screen 3-25 Volume Dispense Mode Operation 3-25 Saving Volume Mode Settings as a New Program 3-27...
-
Page 5: Section 1: Introduction
Section 1: Introduction SECTION 1: INTRODUCTION SAFE OPERATION The REGLO Digital Pump Drive with Advanced Connectivity is designed for pumping and dispensing applications in laboratory and process environments. Confirm that the pump drive is operated only in the manner specified in this operating manual and that safe work practices and Good Laboratory Practice (GLP) are followed. -
Page 6: About The Reglo
Section 1: Introduction ABOUT THE REGLO The REGLO Digital Pump Drive with Advanced Connectivity offers precise flow control and highly accurate fluid dispensing ideal for laboratory, process, and field use. All REGLO precision drives include a highly accurate, maintenance-free motor and an easy to navigate touchscreen that makes setup and operation easier than ever. -
Page 7: Peristaltic Miniflex Models
Section 1: Introduction Peristaltic Miniflex Models The REGLO is available in two non-cassette pump head models (78018-40 and 78018-42). The REGLO Miniflex Digital Pump Drives feature: • An easy to load pump head that accepts continuous lengths of tubing for clean flow paths. •... -
Page 8: Section 2: Basic Setup & Settings
Section 2: Basic Setup & Settings SECTION 2: BASIC SETUP & SETTINGS Touchscreen Pump Head Handle Pump Head Miniflex Models Touchscreen Roller-Head Cassette Cassette Models DB-25 Port Power Switch Power Cable Locking Barrel Connector Ethernet Port USB Port Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 9: Touchscreen Icons
Section 2: Basic Setup & Settings TOUCHSCREEN ICONS Analog Input Mode New User Calibrate Pause Calibration Complete Prime Clockwise Program Close/Cancel Ramp Down Confirm Ramp Up Connectivity Status Record Volume Continuous Mode Reset Counterclockwise Screen Lock Delete Settings Display Brightness Start Edit Stop... -
Page 10: Before Starting The Drive
Section 2: Basic Setup & Settings BEFORE STARTING THE DRIVE CAUTION: Do not block the rear panel of the pump drive. The power switch must always be easy to access and the power cord must always be easy to disconnect. CAUTION: Turn the drive off before removing or installing tubing. -
Page 11: Settings
Section 2: Basic Setup & Settings SETTINGS The Settings Screen allows access to basic configuration settings. The Settings Screen is accessed by tapping SETTINGS from any of the mode screens. NOTE: If User Management is enabled only users with authorization can access the Settings Screen (for further information see "User Management"... -
Page 12: Setting The Date
Section 2: Basic Setup & Settings Setting the Date To change the date: 1. Tap SETTINGS from any of the mode screens. The Settings Screen will be displayed. 2. Tap DATE. 3. Select the desired date format (either month/day/year or day/month/year). 4. -
Page 13: Device Information
Section 2: Basic Setup & Settings Device Information The Device Information Screen provides pump drive details such as MAC address, IP address, software version, build date, and firmware version. Factory reset and updates are also accessed from the Device Information Screen. To access the Device Information Screen: 1. -
Page 14: Wi-Fi Settings
Section 2: Basic Setup & Settings WI-FI Settings The REGLO can connect to a network using Wi-Fi and Ethernet connections. NOTE: • The Ethernet connection will take priority if both Wi-Fi and Ethernet are used simultaneously. • The REGLO supports WEP, WPA, WPA2, and None (open) Wi-Fi security protocols. To select a Wi-Fi network: 1. -
Page 15: User Management
Section 2: Basic Setup & Settings User Management The REGLO allows user access to be controlled using configurable permission levels. Default permissions: • USER: Able to use basic pump drive functions and run programs. • SUPER USER: Same level of access as USER but with the ability to create and modify programs. •... -
Page 16: Auto Start
Section 2: Basic Setup & Settings Deleting a user: NOTE: There must always be at least one ADMIN user. ADMIN users cannot delete their own user profile. 1. Tap SETTINGS from any of the mode screens. The Settings Screen will be displayed. 2. -
Page 17: Loading Tubing
Section 2: Basic Setup & Settings LOADING TUBING Cassette Models CAUTION: Turn the drive off before removing or installing tubing. Fingers or loose clothing could get caught in the drive mechanism. The REGLO Cassette models use MS/CA Click’n’go cassettes for easy loading and removal, and to allow for tubes with different diameters and materials to be used on the same roller-head. - Page 18 Section 2: Basic Setup & Settings To condition new tubing: After installing new tubing the pump should be run for 20-30 minutes at full rpm (160 rpm). This is recommended to properly condition new tubing and to increase dispense accuracy. If required, the pump can be run dry while conditioning.
-
Page 19: Miniflex Models
Section 2: Basic Setup & Settings Miniflex Models CAUTION: Turn the drive off before removing or installing tubing. Fingers or loose clothing could get caught in the drive mechanism. • Check to ensure that the rollers are clean and free of defects. •... - Page 20 Section 2: Basic Setup & Settings To condition new Miniflex tubing: After installing new tubing the pump should be run for 20-30 minutes at full rpm (350 rpm). This is recommended to properly condition new tubing and to increase dispense accuracy. If required, the pump can be run dry while conditioning.
-
Page 21: Priming The Pump Drive
Section 2: Basic Setup & Settings PRIMING THE PUMP DRIVE It is recommended that you prime the pump drive before use. Priming the pump draws fluid through the tubing and eliminates air pockets from the system. CAUTION: Turn the drive off before removing or installing tubing. Fingers or loose clothing could get caught in the drive mechanism. -
Page 22: Tube Calibration
Section 2: Basic Setup & Settings TUBE CALIBRATION To ensure accurate dispensing of fluids, tube calibration should be performed whenever fluids, flow rate or tubing is changed. Tube calibration can be accessed from the Continuous Mode Run Screen or from either of the Volume or Time Mode Edit screens. - Page 23 Section 2: Basic Setup & Settings 7. Press and hold PRIME to prime the pump. Priming will stop when PRIME is released. 8. Tap SIZE from the Continuous Mode Screen or tap EDIT and then SIZE if either the Volume or Time Mode Screen is displayed.
-
Page 24: Section 3: Operation
Section 3: Operation SECTION 3: OPERATION WARNING: Tube breakage may result in fluid being sprayed from the pump. Use appropriate measures to protect operator and equipment. CAUTION: Keep fingers away from the rotor while the pump is in operation. Stop the pump before loading or unloading tubing. -
Page 25: Continuous Mode
Section 3: Operation CONTINUOUS MODE In Continuous Mode the pump will operate at a selected rpm and/or flow rate until stopped by the user. Continuous Mode Run Screen The Continuous Mode Run Screen is accessed by selecting CONTINUOUS from the Mode Selection Screen. -
Page 26: Continuous Mode Operation
Section 3: Operation hold UNLOCKED until the icon changes to LOCKED and a red border appears around the screen. To unlock the screen: Press and hold LOCKED until the icon changes to UNLOCKED J. LOGOUT: Tap to log out a user. NOTE: This option is only available if User Management is enabled in Settings (for further information see "User Management"... -
Page 27: Saving Continuous Mode Settings As A New Program
Section 3: Operation Saving Continuous Mode Settings as a New Program Changes made to mode parameters can be saved as a new program for easier access to frequently used settings. NOTE: If User Management is enabled only users with authorization can create and modify programs (for further information see "User Management"... -
Page 28: Time Mode
Section 3: Operation TIME MODE In Time Mode the pump will operate at a selected rpm and/or flow rate for a selected time and/or batch total. At the completion of the selected time or batch total the pump will automatically stop. Time Mode Run Screen The Time Mode Run Screen is accessed by selecting TIME from the Mode Selection Screen. -
Page 29: Time Mode Edit Screen
Section 3: Operation L. FLOW DIRECTION: Tap DIRECTION to select either clockwise or counterclockwise flow direction. M. SCREEN LOCK: Locking the screen disables all touchscreen functions. To lock the screen: Press and hold UNLOCKED until the icon changes to LOCKED and a red border appears around the screen. - Page 30 Section 3: Operation To operate the pump in Time Mode: 1. Tap TIME from the Mode Selection Screen. The Time Mode Run Screen will be displayed. 2. Tap EDIT to access the Time Mode Edit Screen. 3. Tap ON TIME to set the amount of time for each pump operation. The On Time Edit Screen will be displayed.
-
Page 31: Saving Time Mode Settings As A New Program
Section 3: Operation Saving Time Mode Settings as a New Program Changes made to mode parameters can be saved as a new program for easier access to frequently used settings. NOTE: If User Management is enabled only users with authorization can create and modify programs (for further information see "User Management"... -
Page 32: Volume Mode
Section 3: Operation VOLUME MODE In Volume Mode the pump will operate at a selected rpm and/or flow rate until a selected volume of fluid has been pumped. When the selected volume has been pumped the drive will automatically stop. Volume Mode Run Screen The Volume Mode Run Screen is accessed by selecting VOLUME from the Mode Selection Screen. -
Page 33: Volume Mode Edit Screen
Section 3: Operation K. START/STOP/PAUSE: During operation, the display will change from START to PAUSE STOP/ RESET L. FLOW DIRECTION: Tap DIRECTION to select either clockwise or counterclockwise flow direction. M. SCREEN LOCK: Locking the screen disables all touchscreen functions. To lock the screen: Press and hold UNLOCKED until the icon changes to LOCKED and a red border appears around the... - Page 34 Section 3: Operation To operate the pump in Volume Mode: 1. Tap VOLUME from the Mode Selection Screen. The Volume Mode Run Screen will be displayed. 2. Tap EDIT to access the Volume Mode Edit Screen. 3. Tap VOLUME. The Dispense Volume Screen will be displayed. a.
-
Page 35: Saving Volume Mode Settings As A New Program
Section 3: Operation b. If enabled, enter the desired degrees of reverse rotation using the onscreen keypad. NOTE: Typical values range from 5 to 45 degrees. c. Tap CONFIRM to save or CANCEL to discard changes and return to the Volume Mode Edit Screen. -
Page 36: Volume Record
Section 3: Operation 2. Tap EDIT 3. Tap ANTI-DRIP. The Anti-Drip Screen will be displayed. 4. Tap ON or OFF to enable or disable ANTI-DRIP. 5. If enabled, enter the desired degrees of reverse rotation using the onscreen keypad. NOTE: Typical values range from 5 to 45 degrees. -
Page 37: Analog Input Mode
Section 3: Operation ANALOG INPUT MODE CAUTION: Power must be turned off before connecting the external analog control cable to prevent damage to the drive. The REGLO Digital Pump Drive can be controlled and monitored through the pump drive’s DB-25 female connection port. -
Page 38: Analog Input
Section 3: Operation F. LOGOUT: Tap to log out a user. NOTE: This option is only available if User Management is enabled in Settings (for further information see "User Management" on page 3-7). Analog Input CAUTION: Power must be turned off before connecting the external analog control cable to pre- vent damage to the drive. -
Page 39: Saving Analog Input Mode Settings As A New Program
Section 3: Operation Saving Analog Input Mode Settings as a New Program Changes made to mode parameters can be saved as a new program for easier access to frequently used mode settings. NOTE: If User Management is enabled only users with authorization can create and modify programs (for further information see "User Management"... -
Page 40: Masterflexlive
Section 3: Operation MASTERFLEXLIVE™ The REGLO Digital Pump Drive can be controlled and monitored through the MasterflexLive™ website using an Ethernet or Wi-Fi connection. MasterflexLive™ can be accessed from any suitable digital device connected to the internet, such as a laptop, tablet, smartphone or desktop computer. See www.masterflex.com for more information. - Page 41 Section 3: Operation • Switch the drive on using the power switch located at the rear of the drive. NOTE: If User Management is enabled you may be prompted for a username and password (For further information see "User Management" on page 3-7). The touchscreen display will revert to the previously used operation mode. •...
-
Page 42: Custom Program Modes
Section 3: Operation CUSTOM PROGRAM MODES Custom programs allow users to create easily accessible programs for frequently used pump mode settings. NOTE: If User Management is enabled only users with authorization can create and modify programs (for further information see "User Management"... -
Page 43: Adding A New Program: Volume Mode
Section 3: Operation 4. Tap ON TIME to set the amount of time for each pump operation. The On Time Edit Screen will be displayed. a. Tap HR, MIN, SEC or TENTHS and enter the desired time using the onscreen keypad. b. - Page 44 Section 3: Operation 2. Tap VOLUME. The Volume New Program Screen will be displayed. 3. Tap PROGRAM1. If required, delete the characters using the back arrow on the onscreen keypad and then enter the desired program name (up to 8 characters). 4.
-
Page 45: Adding A New Program: Analog Input Mode
Section 3: Operation b. If enabled, enter the desired degrees of reverse rotation using the onscreen keypad. NOTE: Typical values range from 5 to 45 degrees. c. Tap CONFIRM to save or CANCEL to discard changes and return to the Volume New Pro- gram Screen. -
Page 46: Using Program Modes
Section 3: Operation Using Program Modes Custom programs will appear in alphabetical order at the bottom of the Mode Selection Screen. If there are multiple programs tapping SCROLL will display additional pages. General Preparation: • Confirm the correct tubing has been selected and is properly loaded into the pump drive (for further information see "Loading Tubing"... -
Page 47: Deleting A Program
Section 3: Operation Deleting a Program NOTE: If User Management is enabled only users with authorization can delete a program (For further information see "User Management" on page 3-7). To delete a program: 1. Tap EDIT located next to the desired program name on the Mode Selection Screen (NOTE: if there are multiple programs tap SCROLL to display additional pages). -
Page 48: Section 4: Service & Maintenance
Section 4: Service & Maintenance SECTION 4: SERVICE & MAINTENANCE CAUTION: Replace the power cord only with one of the same type and rating. CAUTION: Unplug the pump drive’s power cable from the mains power outlet when cleaning or performing maintenance on the drive. FIRMWARE UPDATES If the REGLO is connected to the internet, updates can be downloaded directly onto the pump drive. -
Page 49: Cleaning The Pump Drive
Section 4: Service & Maintenance CLEANING THE PUMP DRIVE CAUTION: Unplug the pump drive’s power cable from the mains power outlet when cleaning or performing maintenance on the drive. If required, the pump drive may be wiped clean using a soft cloth lightly moistened with either isopropyl or ethyl alcohol. -
Page 50: Color-Coded Three-Stop Tubing
Section 4: Service & Maintenance Color-Coded Three-Stop Tubing Color-Coded Three-Stop Tubing suitable for use with cassettes: Color-Coded Stops MM ID ORANGE/BLACK/ORANGE 0.13 ORANGE/RED/ORANGE 0.19 ORANGE/BLUE/ORANGE 0.25 WHITE/BLUE/WHITE 0.28 RED/BLUE/RED 0.31 BROWN/BLUE/BROWN 0.33 BROWN/BLACK/BROWN 0.36 ORANGE/GREEN/ORANGE 0.38 GREEN/YELLOW/GREEN 0.44 ORANGE/YELLOW/ORANGE 0.51 WHITE/YELLOW/WHITE 0.57 ORANGE/WHITE/ORANGE... -
Page 51: Miniflex Pump Head Replacement
Section 4: Service & Maintenance MINIFLEX PUMP HEAD REPLACEMENT If necessary, the Miniflex pump head can be replaced. Contact Technical Assistance (see "Technical Assistance" on page 3-49) to order the appropriate replacement pump head. Description: Part Number Replacement Miniflex Single Channel Pump Head 77220-20 Replacement Miniflex Dual Channel Pump Head 77220-30... -
Page 52: Db-25 Electrical Connections
Section 4: Service & Maintenance DB-25 ELECTRICAL CONNECTIONS CAUTION: Power must be turned off before connecting the external analog control cable to prevent damage to the drive. Contact Arrangements: Pin No. Description Pin No. Description DB-25 DB-25 Speed Control Voltage Input (0–10 V) Speed Signal Voltage Output (0–10 V) Speed Control Current Input (0–20 mA) Start/Stop Input... -
Page 53: Troubleshooting
Section 4: Service & Maintenance TROUBLESHOOTING For further assistance, or for issues that cannot be resolved, see "Technical Assistance" on page 3-49. Symptom Cause Remedy Motor does not rotate. No power. 1. Check that the power cord is securely plugged into the drive. Display does not light. -
Page 54: Error Definitions
Section 4: Service & Maintenance ERROR DEFINITIONS Error #2: No Encoder Pulses Description: The drive's processor has not received expected encoder feedback. Actions: Drive will stop immediately. Verify load is correct and power cycle drive. If error persists see "Technical Assistance"... -
Page 55: Specifications
Section 4: Service & Maintenance SPECIFICATIONS OUTPUT Speed: 160 RPM Models 0.15 to 160 RPM 350 RPM Models 0.18 to 350 RPM Torque Output, All Models 90 oz-in Max Continuous: Speed Regulation: All Models Line ±0.1% F.S. Load ±0.1% F.S. Drift ±0.1% F.S. - Page 56 Section 4: Service & Maintenance CONSTRUCTION Dimensions (L x W x Drive Only 7.62” x 5.75” x 6.31” (194 mm x 146 mm x 160 mm) Weight: Drive Only 5.74 lbs. (2.60 kg) Enclosure Rating: All Models IP31 per IEC 60529 ENVIRONMENT Operating Temperature: All Models...
-
Page 57: Technical Assistance
Section 4: Service & Maintenance TECHNICAL ASSISTANCE If you have any questions about the use of this product contact the manufacturer or authorized seller. PRODUCT RETURN Like all pumps, the REGLO pump drive contains components that will wear over a period of time. To limit charges and delays contact the seller or manufacturer for authorization and shipping instructions before returning the product, either within or outside of the warranty period. - Page 58 3-50 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex...
- Page 59 US & Canada only *EN809 manufactured by: Toll Free 1-800-MASTERFLEX | 1-800-637-3739 Cole-Parmer Instrument Company 28W092 Commercial Avenue, Barrington, IL 60010 Outside US & Canada techinfo@masterflex.com | www.masterflex.com 1-847-549-7600 | 1-847-381-7050...
