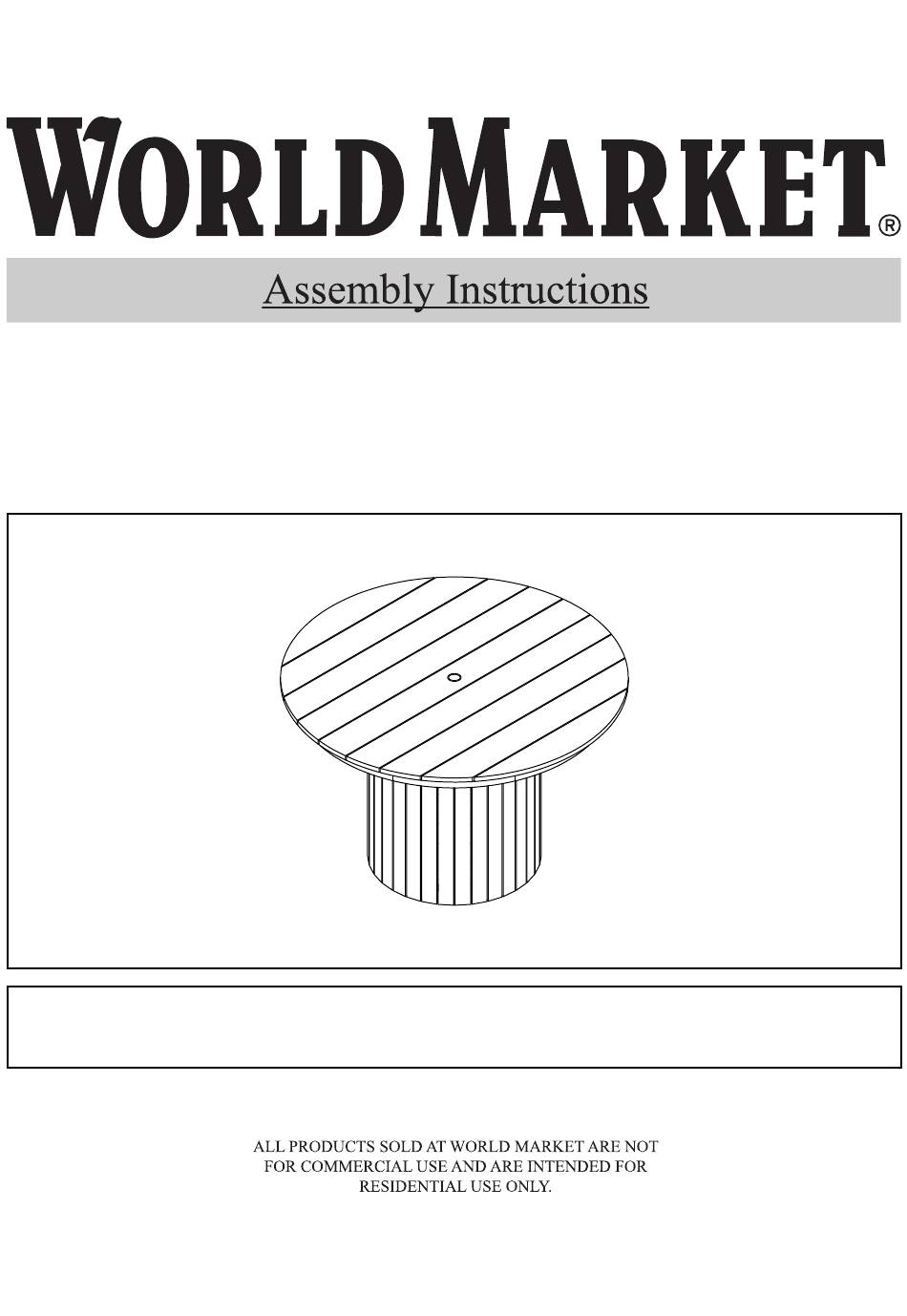

Havana Round Pedestal Table
SKU 642688
Thank you for your purchase. If you have any questions pertaining to the assembly of this
furniture piece, please contact the nearest World Market store. If you are not near a store,
please call our customer service call center toll free at 877-967-5362 for assistance.
2024.09.17
PAGE 1
Advertisement
Table of Contents
Related Manuals for World Market Havana 642688
Summary of Contents for World Market Havana 642688
- Page 1 Thank you for your purchase. If you have any questions pertaining to the assembly of this furniture piece, please contact the nearest World Market store. If you are not near a store, please call our customer service call center toll free at 877-967-5362 for assistance.
-
Page 2: Tool List
TABLETOP BASE FRAME TOP SUPPORT 1 TOP SUPPORT 2 BASE COUNTER-WEIGHT UMBRELLA CAP SHORT ALLEN BOLT SPRING WASHER 6x30mm Ø8.5/Ø13x1.5mm INSERT NUT Ø6x18mm FLAT WASHER LONG ALLEN BOLT Ø8.5/Ø20x2mm 6x45mm Tool List LABEL QTY. ALLEN KEY PAGE 2... -
Page 3: Assembly Preparation
Assemble on a clean non-marring surface (such as the product’s packing foam). Do not discard any packaging until the product has been fully assembled. In case of missing parts, please contact your nearest World Market store or call our customer service call center at 1-877-967-5362. -
Page 4: Assembly Steps
Assembly Steps Step 1 (H-1) SHORT ALLEN BOLT x4 (H-2) INSERT NUT x4 (T-1) ALLEN KEY x2 Place two Base Frame (B) pieces together onto a padded, non-marring surface as shown. Align the holes and secure by first inserting the Short Allen Bolts (H-1) and Insert Nuts (H-2) into opposite sides of the connecting through holes and engaging together. - Page 5 Assembly Steps Step 3 (H-3) LONG ALLEN BOLT x8 (T-1) ALLEN KEY x1 Using a second person to assist you, turn the assembly upright. Place the Top Support 1 (C) onto the assembly as shown, ensuring the INNER counter sink holes face upward (note: the OUTER counter sink holes will currently be facing downward).
- Page 6 Assembly Steps Step 5 (H-3) LONG ALLEN BOLT x8 (H-4) SPRING WASHER x8 (H-5) FLAT WASHER x8 (T-1) ALLEN KEY x1 Using a second person to assist you, position the Base Counter-Weight (E) on to the assembly, ensuring the holes in the Weighted Base Counter-Weight (E) align with those of the base and that the counterweight is set inside.
- Page 7 PAGE 7...
- Page 8 Customer Service Call Center, Toll Free at 877-967-5362. For valid warranty claims, World Market will repair or replace the product, or offer a full or par�al credit, in the sole discre�on of World Market. This LIMITED ONE-YEAR WARRANTY gives you specific legal rights and you may also have other rights which vary from state to state.
