World Market 567677 Assembly Instructions Manual

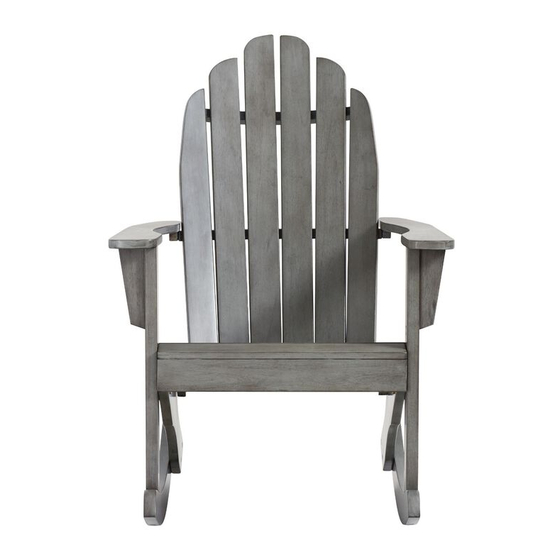

Adirondack rocking chair
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Assembly Instructions
Adirondack Rocking Chair
SKU
567677, 569644, 569643
THANK YOU FOR YOUR PURCHASE. IF YOU HAVE ANY QUESTIONS
PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT
THE NEAREST COST PLUS WORLD MARKET STORE.
IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL
CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.
NOT FOR COMMERCIAL USE
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 567677 and is the answer not in the manual?

Questions and answers

Related Manuals for World Market 567677

Summary of Contents for World Market 567677

  • Page 1 THANK YOU FOR YOUR PURCHASE. IF YOU HAVE ANY QUESTIONS PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT THE NEAREST COST PLUS WORLD MARKET STORE. IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.

  • Page 2: Component List

    Component List LABEL PICTURE DESCRIPTION Seat Slat Seat Left Leg Right Leg Backrest Left Armrest Right Armrest Left Rocker Right Rocker Page 2...

  • Page 3: Hardware List

    Hardware List LABEL PICTURE DESCRIPTION Allen Bolt M6 x 35mm Spring Washer 1 x 7/10mm Flat Washer 1 x 6.5/14mm Wood Dowel 8 x 20mm Screw 6 x 90mm Tool List LABEL PICTURE DESCRIPTION Allen Key Page 3...

  • Page 4: Assembly Preparation

    Assembly Preparation Before Beginning:  Unpack all hardware bags and components to ensure you have all parts-  Read instructions, cover to cover-  Have 2 adults on hand for assembly-  Do not assemble on flooring or carpet-  Assemble on a clean non-marring surface (packing foam)- ...

  • Page 5: Assembly Steps

    Assembly Steps Note: Do not fully tighten any bolts until the last step. Step 1 (H-1) Allen Bolt x2 (H-4) Wood Dowel x4 (T-1) Allen Key Place Right Armrest (K) onto a non-marring surface with the pre-drill holes facing up. Insert 2 Wood Dowels (H-4) into the parallel pre-drilled holes as shown.
  • Page 6 Assembly Steps Step 3 (H-1) Allen Bolt x6 (H-2) Spring Washer x6 (H-3) Flat Washer x6 (H-4) Wood dowel x2 (T-1) Allen Key Attach the Right Leg (D) to the seat assembly using Allen Bolt (H-1), Spring Washers (H-2) and Flat Washers (H-3). Do not fully tighten bolts until all parts are installed. Repeat for the Left Leg (C).
  • Page 7 Assembly Steps Step 5 (H-1) Allen Bolt x4 (T-1) Allen Key Attach Backrest (E) to each end of the Seat (B) assembly and both Armrests (C/D). Secure using Allen Bolts (H-1) and Allen Key (T-1). Engage the bolts but do not fully tighten them.

  • Page 8: Care And Maintenance

    Care & Maintenance  Do not put hot items directly on furniture surface  Do not clean furniture with harsh cleansers or polish.  Do not place furniture near heating or cooling vents.  Do not write on furniture without a padded barrier to protect the surface ...
