Summary of Contents for World Market ALICANTE II 597206

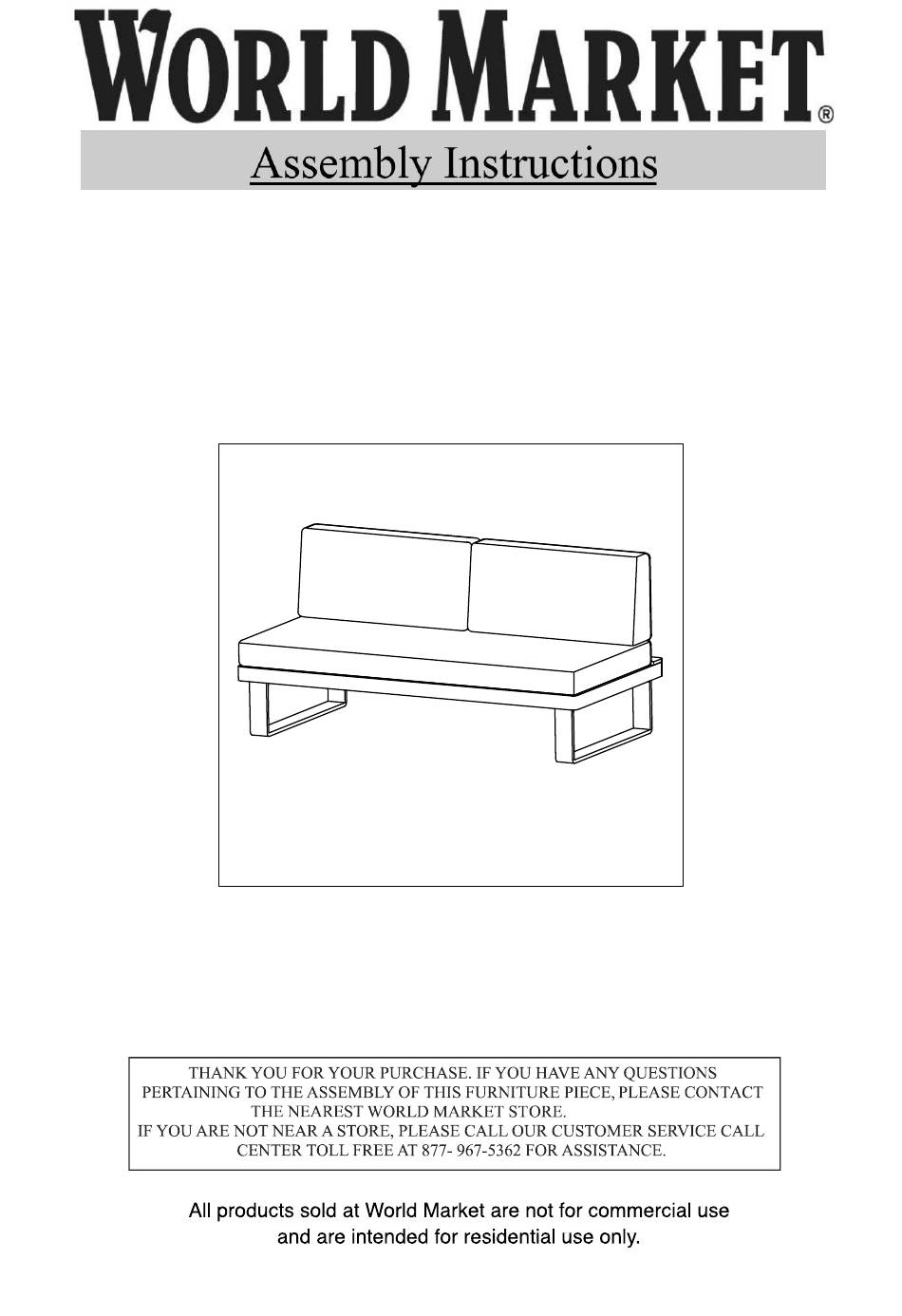

- Page 1 ALICANTE II BENCH SKU - 597206 Page 1 2022.08.08...
- Page 2 Seat Frame Right Leg Left Leg Back Frame Back Cushion Seat Cushion Short Allen Bolt (M6x15)mm Spring Washer Flat Washer (M6x1)mm Long Allen Bolt (M6x25)mm Allen Key Page 2...
- Page 3 World Market store or call our customer service call center at call 1-877-967-5362. Page 3...
- Page 4 Short Allen Bolt (M6x15)mm Spring Washer Flat Washer (M6x1)mm Allen Key Step 1 Clockwise Prepare the assembly by placing Seat Frame (A), Right Leg (B) and Left Leg ( C), down onto a padded, non-marring surface. Arrange the components as shown above. Secure the of Seat Frame (A) to both Left/Right Legs (B/ C) using Short Allen Bolt (H-1), Spring Washers (H-2) and Flat Washers (H-3), stacking the hardware in the order as shown.
- Page 5 Step 2 as shown Insert Back Frame (D) to Seat Frame Page 5...
- Page 6 Spring Washer Flat Washer (M6x1)mm Long Allen Bolt (M6x25)mm Allen Key Step 3 Clockwise Place Seat Frame upside down. Next, using Long Allen Bolts (H-4), Spring Washers (H-2) and Flat Washers (H-3), stacking the hardware in the order as shown. Engage all bolts first, and then fully tighten them using Allen Key (T-1).
- Page 7 Step 4 Leveler Feet Cap. Using a second person to assist you, turn the Bench upright. Place Seat Cushion (F), Back Cushion (E) into position as shown. Ensure all bolts have been fully tightened. Assembly is now complete and the chair is ready for use. NOTE: Levelers can be pre-installed for height adjustment to achieve stability only AFTER the unit is moved to the desired location.
-
Page 8: Care And Maintenance
• Store furniture or use an appropriate furniture cover during cold or inclement weather. All products sold at World Market are not for commercial use and are • • All products sold at World Market are not for commercial use and are intended for residential use only. - Page 9 Page 9 Page 10...
