Assembly Instructions

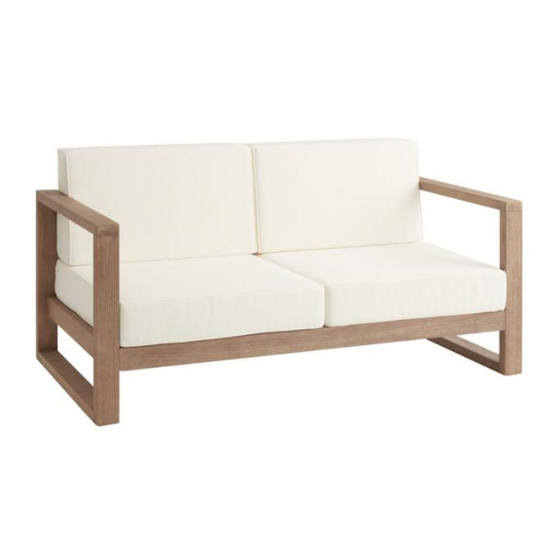

Segovia Occ Bench
SKU–582743
THANK YOU FOR YOUR PURCHASE. IF YOU HAVE ANY QUESTIONS
PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT
THE NEAREST COST PLUS WORLD MARKET STORE.
IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOM ER SERVICE CALL
CENTER TOLL FREE AT 877- 967-5362 FOR ASSISTANCE.
NOT FOR COMMECIAL USE
Page 1
Advertisement
Table of Contents
Related Manuals for World Market 582743
Summary of Contents for World Market 582743
- Page 1 THANK YOU FOR YOUR PURCHASE. IF YOU HAVE ANY QUESTIONS PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT THE NEAREST COST PLUS WORLD MARKET STORE. IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOM ER SERVICE CALL CENTER TOLL FREE AT 877- 967-5362 FOR ASSISTANCE.
- Page 2 Component List LABEL PICTURE DESCRIPTION BACK REST SEAT RIGHT FRAME LEFT FRAME BACK CUSHION SEAT CUSHION Q’TY Q’TY LABEL PICTURE DESCRIPTION LABEL PICTURE DESCRIPTION SHORT ALLEN BOLT WOOD PLUG 8x45 Ø14/Ø16x10mm LONG ALLEN BOLT ALLEN KEY 8x55 Page 2...
- Page 3 Assembly Preparation Before Beginning: • Unpack all hardware bags and components to ensure y ou have all parts- • Read instructions, cover to cover- • Have 2 adults on hand for assembly- • Do not assemble on flooring or carpet- •...
- Page 4 Assembly Steps Step 1 (H-1) SHORT ALLEN BOLT 8x45 x2 (H-2) LONG ALLEN BOLT 8x55 x6 (H-4) ALLEN KEY x1 - Attach the Back Rest (A), Seat (B) to Right Frame (C) with Short Allen Bolt (H-1), Long Allen Bolt (H-2) using Allen Key (H-4).
- Page 5 Assembly Steps Step 3 (H-3) WOOD PLUG Ø14/Ø16x10mm - Insert Wood Plug (H-3) and tap gently with hammer until flush to cover all holes as shown. Step 4 Step 5 - Place Back Cushion (E) and Seat Cushion (F) on as shown. The Bench is ready to use.
- Page 6 Care & Maintenance • Do not put hot items directly on furniture surface. Do not clean furniture with harsh cleansers or polish. • Do not place furniture near heating or cooling vents. • Do not write on furniture without a padded barrier to protect the surface. •...
