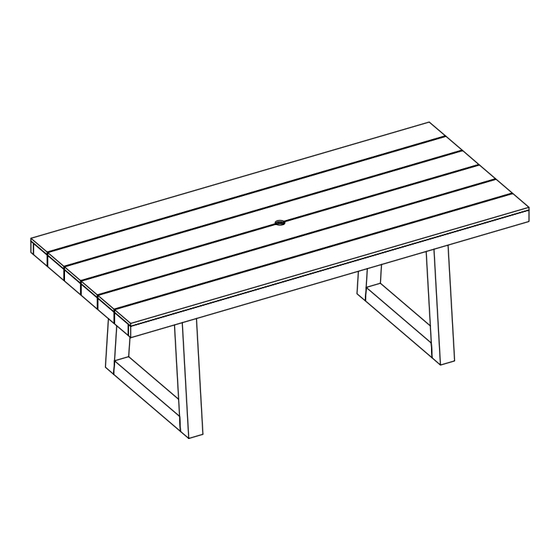

- Page 1 Assembly Instructions BUNDLE - RAYNE 7PC OUTDOOR DINING SET SKU 1075 1x DINING TABLE 6x DINING CHAIRS See following pages for individual component assembly instructions...
- Page 2 Thank you for your purchase. If you have any questions pertaining to the assembly of this furniture piece, please contact the nearest World Market store. If you are not near a store, please call our customer service call center toll free at 877-967-5362 for assistance.
-
Page 3: Component List
Component List LABEL PICTURE DESCRIPTION Table Top Right Leg Left Leg Umbrella Wooden Cap Page 2... -
Page 4: Hardware List
Hardware List Allen Bolt M8 x 50mm Flat Washer M8 x 20 x 2mm Spring Washer M8 x 12 x 2mm Hexagonal Nut M8 x 13 x 6mm U Washer 22 x 17 x 2mm Tool List Open Wrench 13 x 90 x 2mm Allen Key 4 x 110 x 30mm Page 3... -
Page 5: Assembly Preparation
Assemble on a clean non-marring surface (such as the product’s packing foam). Do not discard any packaging until the product has been fully assembled. In case of missing parts, please contact your nearest World Market store or call our customer service call center at call 1-877-967-5362. - Page 6 NOTE: Two people are required for this assembly step. Ensure you have help before proceeding. Step 1 (H-2) Flat Washer (M8) x 4 (H-3) Spring Washer (M8) x 4 (H-4) Hexagonal Nut (M8) x 4 (T-1) Open Wrench x 1 Using a second person to assist you, lay Table Top (A) upside down onto a padded, non-marring surface Position Right Leg (B) and Left Leg (C) as shown, inserting the hanger bolts through the pre-drilled corner holes on...
- Page 7 Step 3 (H-2) Flat Washer (M8) x 4 (H-3) Spring Washer (M8) x 4 (H-4) Hexagonal Nut (M8) x 4 (T-1) Open Wrench x 1 Insert the dowels in Leg Support Stretchers (D) into the receiving holes in remaining Right and Left Legs (B and C) as shown.
- Page 8 Step 5 ADJUSTABLE LEVELER Levelers are located on the bottom of each leg and may be used for additional adjustment if needed for uneven surfaces. Using a second person to assist you, carefully turn the Table right side up. Insert Umbrella Wooden Cap (E) into center hole when NOT using an umbrella.
- Page 9 Thank you for your purchase. If you have any questions pertaining to the assembly of this furniture piece, please contact the nearest World Market store. If you are not near a store, please call our customer service call center toll free at 877-967-5362 for assistance.
- Page 10 Component List LABEL PICTURE DESCRIPTION Seat Frame Rear Leg Frame Front Leg Hardware Note : Bolts H-1 and H2 are similar is size. Short Allen Bolt (M8 x 45mm) Medium Allen Bolt (M8 x 55mm) Long Allen Bolt (M8 x 80mm) Spring Washer M8 x 12 x 1.5mm Flat Washer M8 x 20 x 2mm Tool List...
- Page 11 Assemble on a clean non-marring surface (such as the product’s packing foam). Do not discard any packaging until the product has been fully assembled. In case of missing parts, please contact your nearest World Market store or call our customer service call center at call 1-877-967-5362.
- Page 12 Step 1 (H-1) Short Allen Bolt (M8x45mm) x 2 (T-1) (H-3) Long Allen Bolt (M8x80mm) x 4 (H-4) Spring Washer (M8) x 6 (H-1) (H-5) Flat Washer (M8) (T-1) (H-4) (T-1) Allen Key x 1 (H-5) (H-3) (H-4) (H-5) IMPORTANT: Please make note of the different hardware sizes and ensure you are using the correct size hardware (bolts, screws, and washers) for each step.
- Page 13 Step 3 (T-1) Allen Key x 1 ADJUSTABLE LEVELER Levelers are located on the bottom of each leg and may be used for additional adjustment if needed for uneven surfaces. Carefully turn the chair upright as shown. Ensure that it rests evenly on all 4 legs. FULLY TIGHTEN all Allen Bolt connections from Steps 1-2 at this time using Allen Key (T-1).
- Page 15 Customer Service Call Center, Toll Free at 877-967-5362. For valid warranty claims, World Market will repair or replace the product, or offer a full or par al credit, in the sole discre on of World Market. This LIMITED ONE-YEAR WARRANTY gives you specific legal rights and you may also have other rights which vary from state to state.
