Assembly Instructions

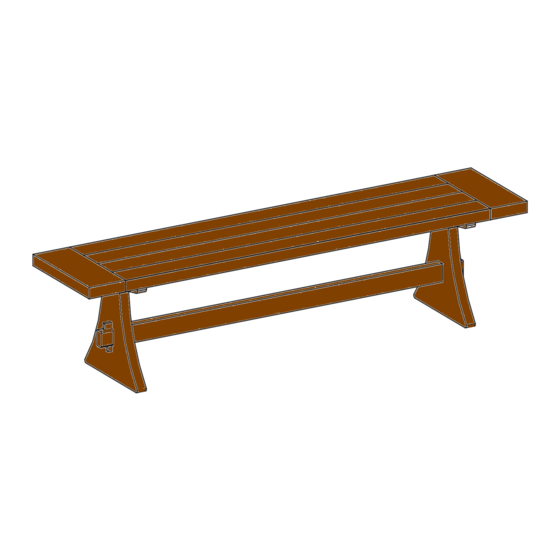

Brinley Dining Bench
SKU - 534981
THANK YOU FOR YOUR PURCHASE. IF YOU HAVE ANY QUESTIONS
PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT
THE NEAREST COST PLUS WORLD MARKET STORE.
IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL
CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for World Market Brinley 534981
Summary of Contents for World Market Brinley 534981
- Page 1 THANK YOU FOR YOUR PURCHASE. IF YOU HAVE ANY QUESTIONS PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT THE NEAREST COST PLUS WORLD MARKET STORE. IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.
- Page 2 Component List LABEL DESCRIPTION Bench Seat Support Stretcher Stopper Hardware List LABEL DESCRIPTION Long Bolt (M6x80mm) Short Bolt (M6x50mm) Spring washer (Ø6xØ11x2mm) Flat washer (Ø6xØ18x2mm) Bolt (M8x35mm) Spring washer (Ø8xØ14x2mm) Flat washer (Ø8xØ20x2mm) Tool List LABEL DESCRIPTION Ball allen key (M4x30x110mm) Page 2...
- Page 3 Do not assemble on ooring or carpet. Assemble on a clean non-marring surface (packing foam). Save all packaging until In case of missing parts contact your nearest Cost Plus World Market store or our customer service call center 877-967-5362. Page 3...
- Page 4 Assembly Steps Step 1 Attached Support (C) and Stretcher (D) to the Legs (B) as shown in the picture below. Step 2 Assemble Support with Bench Seat. Position Bench Seat (A) up side down on non marring padded surface. Secure the Support (C) using long bolt (H-1), short bolt (H2), spring washer (H-3), flat washer (H-4) onto the underside of Bench Seat (A).
- Page 5 Assembly Steps Step 3 Assemble Legs to Bench Seat. Secure Legs (B) to Bench Seat (A) as shown with Bolt (H-5), Spring washer (H-6) and Flat Washer (H-7). Tighten all bolts with Ball Allen Key (T-1) once ALL hardware are engaged. Step 4 Secure and Level Bench Adjust the levelers...
- Page 6 Care & Maintenance • Do not put hot items direct ly on furniture surface. • Do not clean furniture with harsh cleansers or polish. • Do not place furniture in direct sunlight. • heating or cooling vents. Do not place furniture near •...
