aXp RACING AX1776 Assembling Instructions

AX1776
Adventure skid plate
BMW F900GS
Compatible with Outback
Motortek crash bars
What's in the box ?
1 PM01-04-296 - Front left fixation
1 PM01-04-297 - Front middle fixation
1 PM01-04-298 - Front right fixation
2 PM01-04-299 - Rear fixation
1 PM01-04-300 - Bottom plastic block
1 NE04-01-283 - Sticker
2 NE01-06-013 - TH 6x40mm screws
2 NE01-02-005 - TFHC 6x35mm screws
2 NE10-01-004 - Alloy spacers
4 NE01-04-002 - Clamped bolts
4 NE01-02-004 - TFHC 6x30mm screws
3 NE01-02-003 - TFHC 6x25mm screws
7 NE01-04-003 - EM6F bolts
11 NE01-03-001 - M6 Washers
2 NE01-05-008 - TCHC 6x45mm screws
2 NE01-05-001 - TCHC 6x30mm screws
1 NE13-01-001 - 8mm foam stickers
The paper instructions may
be limitless, scan the QR
code to watch the tutorial
video online.

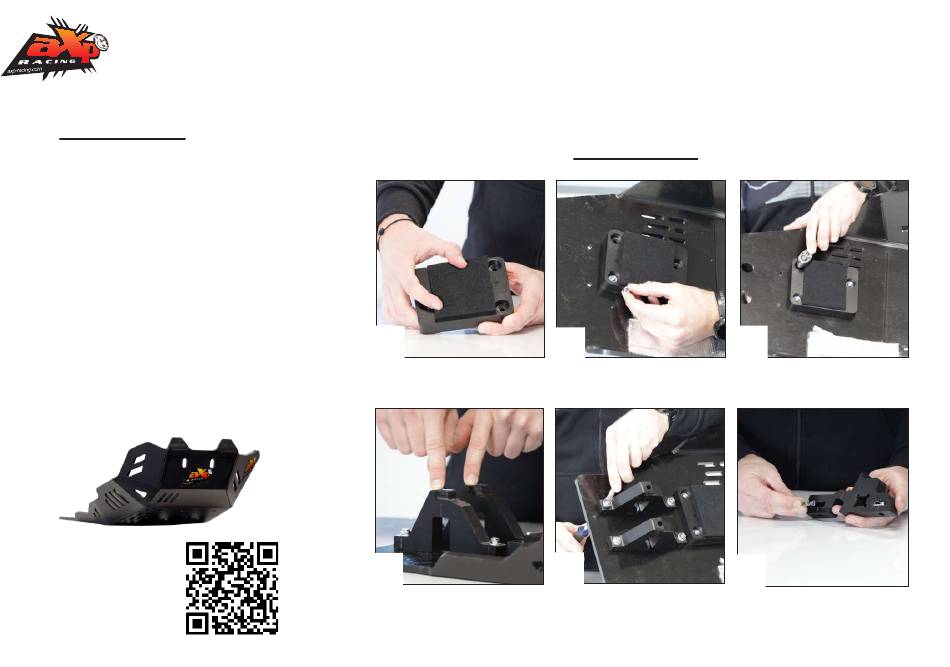

Assembling instructions
Approximate time of assembly: 30 minutes.
A skid plate is made to protect the vital components of your bike and does not have a « life warranty ».
However, production default may happen and we cover it during the first year of use.
In case of premature breakage, please write to contact@axpracing.com
1
Stick the foam on the bottom
plastic block.
4
Place the 2 rear fixations in
plastic using 4 TFHC 6x30mm
screws. The machined sides
must be on the right.
Follow the steps
2
Place the plastic block on the bottom of the skid plate using 3 TFHC
6x25mm screws + M6 washers and bolts then tighten.
5
Tighten the screws.
3
6
Place the 4 clamped bolts inside
the front fixation.
