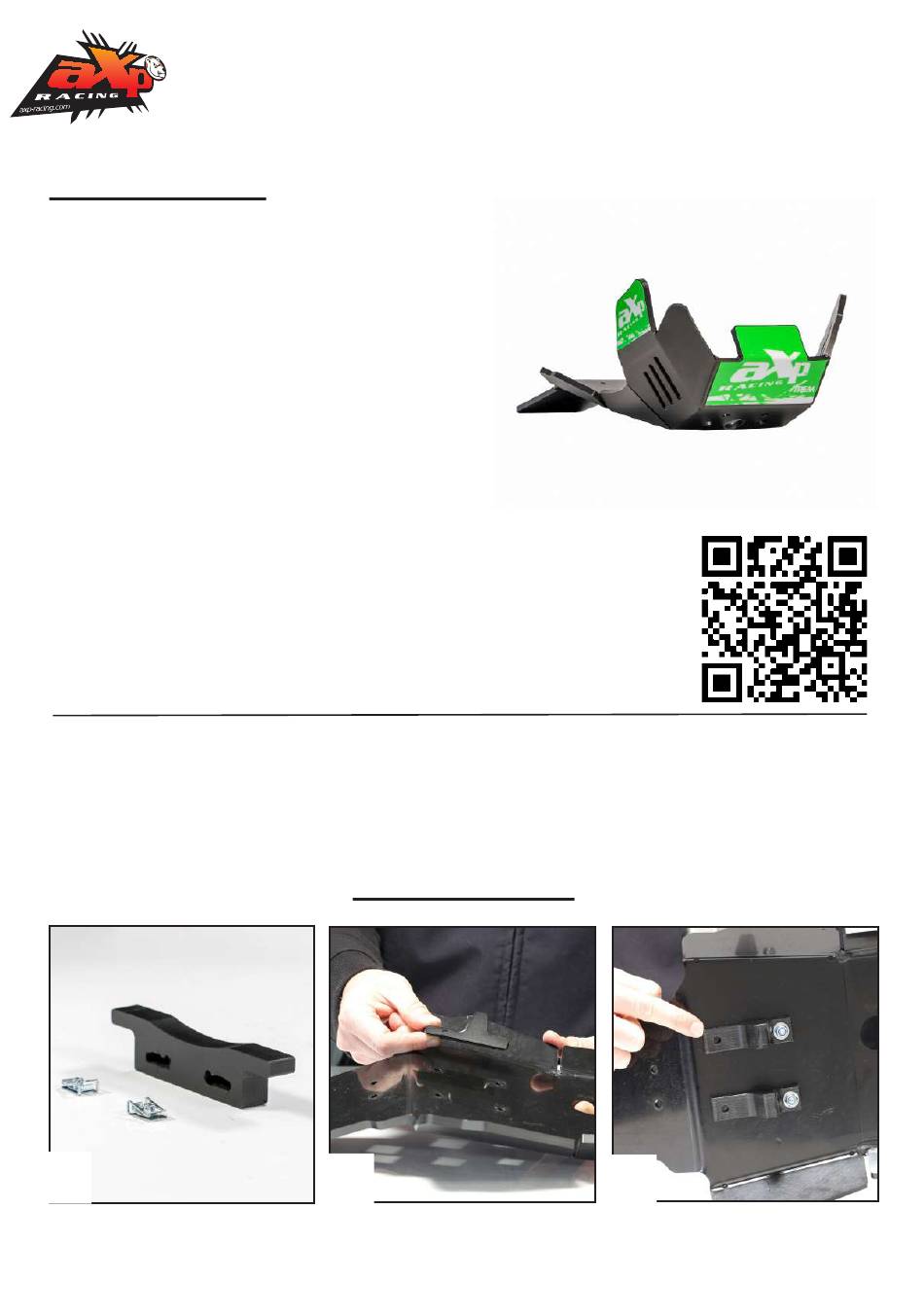

AX1773
Xtrem skid plate
Kawasaki KX250 / KX250X
What's in the box ?
1 PM01-06-092 - Linkage plate n°56
2 PM01-04-301 - Rear plastic mounts
1 NE04-01-286 - Big sticker
1 NE04-01-287 - Small sticker
1 PM01-04-280 - Front plastic fixation
2 NE01-06-003 - TH 6x30mm
2 NE10-01-004 - Alloy spacers
2 NE01-04-002 - Clamped bolts
4 NE01-04-003 - EM6F bolts
4 NE01-03-001 - M6 washers
2 NE01-02-004 - TFHC 6x30mm screws
2 NE01-02-003 - TFHC 6x25mm screws
2 NE01-02-002 - TFHC 6x20mm screws
The paper instructions may be limitless, a tutorial video is available online to
help you.
Scannez le QR code pour regarder la vidéo de montage.
Approximate time of assembly: 15 minutes.
A skid plate is made to protect the vital components of your bike and does not have a « life war-
ranty ». However, production default may happen and we cover it during the first year of use.
In case of premature breakage, please write to contact@axpracing.com
1
Place the clamped bolts in the
front fixation.
Follow the steps !
2
Place the rear brackets on the
plate, the longest part at the
back.
Assembling
instructions
3
Use 2 TFHC 6x25mm screws +
M6 washers and bolts to fix the
brackets. Note: make sure to
align the rear holes.
