AX1769

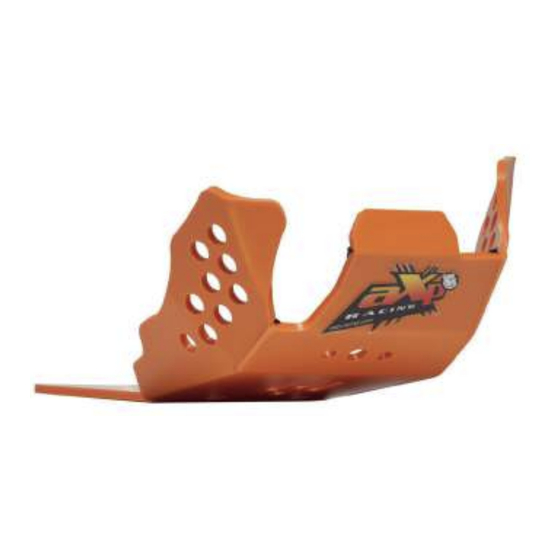

Skid plate
KTM 85SX
What's in the box ?
2 PM01-04-294 - Rear hook
1 PM01-04-295 - PEHD front fixation
1 NE04-01-280 - Sticker
2 NE01-11-001 - THF 6x25mm screws
6 NE01-04-003 - EM6F bolts
6 NE01-03-001 - M6 washers
2 NE01-04-002 - Clamped bolts
6 NE01-02-004- TFHC 6x30mm screws
Approximate time of assembly: 15 minutes.
A skid plate is made to protect the vital components of your bike and does not have
a « life warranty ». However, production default may happen and we cover it during
the first year of use.
In case of premature breakage, please write to contact@axpracing.com
The paper instructions may be limitless, a tutorial
video is available online to help you.
Scannez le QR code pour regarder la vidéo de
Assembling
instructions
montage.
