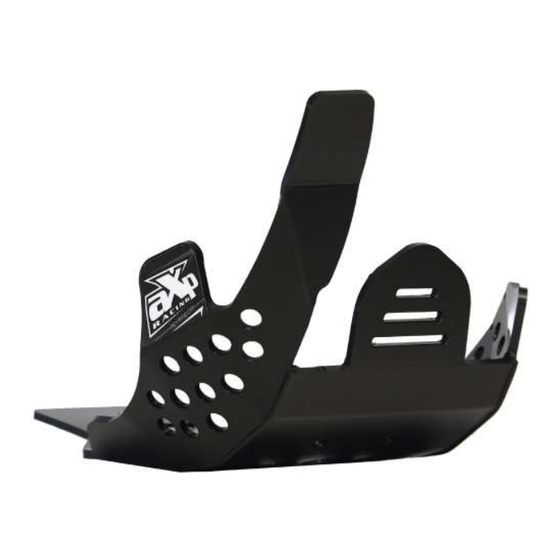

Skid plate
Yamaha - YZ450F/ YZ450FX
What's in the box ?
2 NE01-04-002 - Clamped bolts
2 NE10-01-004 - Alloy spacers
2 NE01-03-001 - M6 washers
2 NE01-04-003 - EM6F bolts
2 NE01-02-002 - TFHC 6x20 screws
1 NE01-06-010 - TH 6x15 screws
2 NE01-06-026 - TH 6x25 screws
1 NE04-01-247 - Sticker
1 PM02-07-028 - Front steel part
1 PM01-07-037 - Rear fixation PHD 6mm
The paper instructions may be limitless, a tutorial video is available online to
help you.
Scannez le QR code pour regarder la vidéo de montage.
Approximate time of assembly: 15 minutes.
A skid plate is made to protect the vital components of your bike and does not have
a « life warranty ». However, production default may happen and we cover it during
the first year of use.
In case of premature breakage, please write to contact@axpracing.com
1

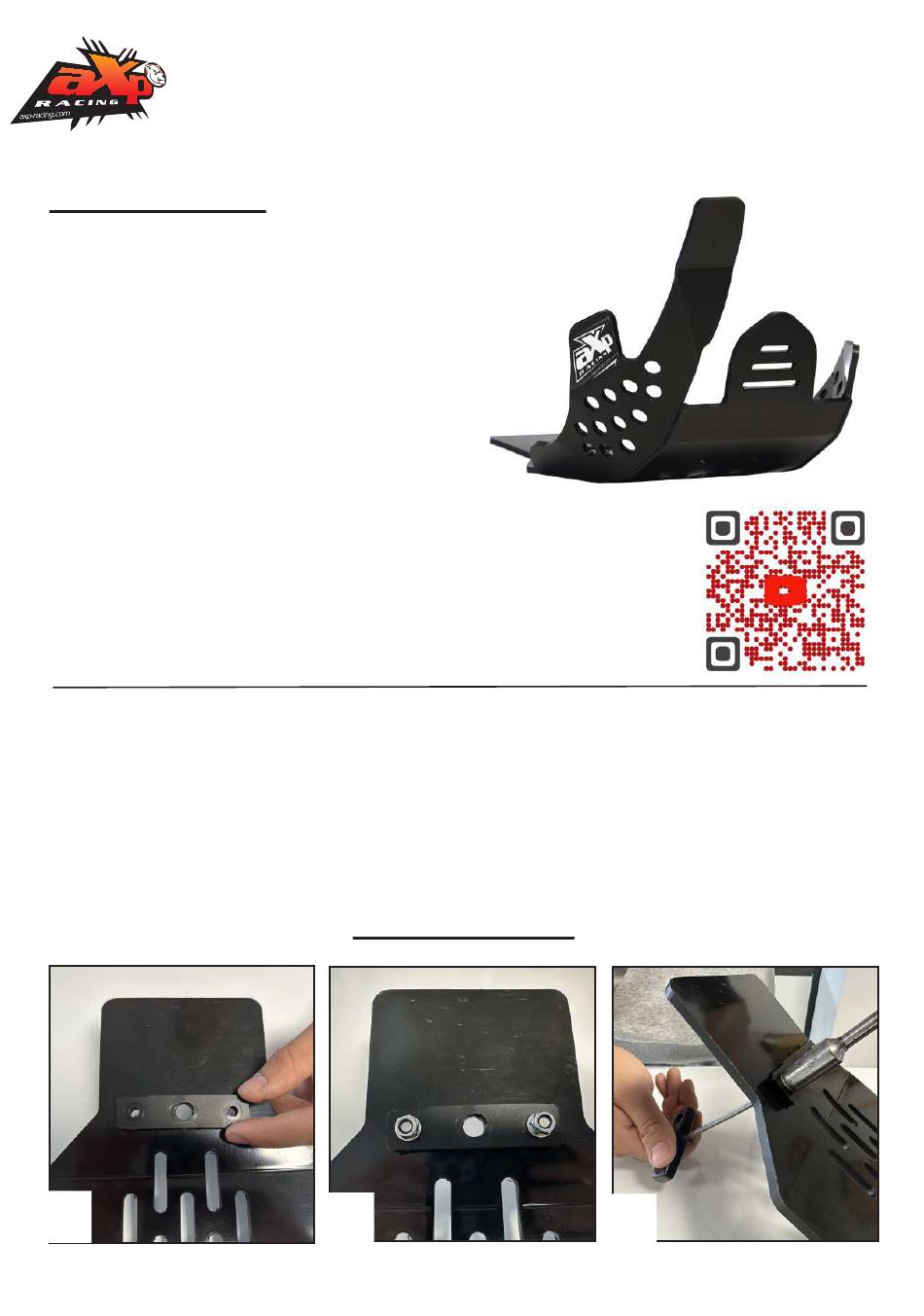

Place the small block on the
rear part of the plate.
Follow the steps !
2
Place the TFHC 6x20 screws +
washers + bolts.
Assembling
instructions
3
Tighten both sides.
