AX1725

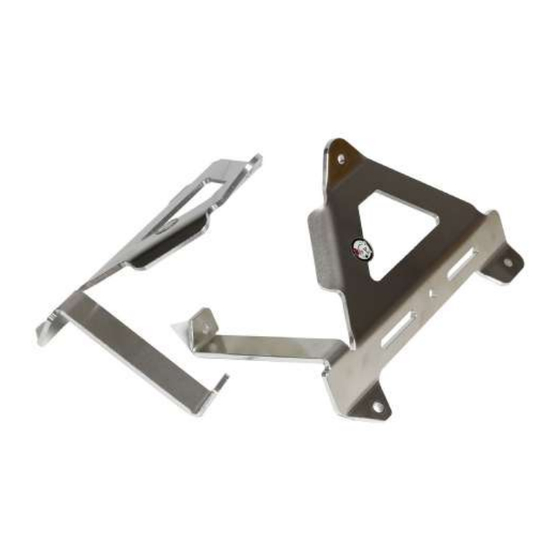

Radiator braces
What's in the box ?
6 NE01-03-001 - M6 washers
4 NE01-01-008 - TBHC 6x25mm screws
2 NE01-01-009 - TBHC 6x20mm screws
The paper instructions may be limitless, scan
the QR code to watch the tutorial video online.
Approximate time of assembly: 15 minutes.
Radiator guards are made to protect the vital components of your bike and does not
have a « life warranty ». If you notice a defect on your radiaor guards at reception,
please write to contact@axpracing.com
Fantic
Assembling
instructions
Advertisement
Related Manuals for aXp RACING AX1725
Summary of Contents for aXp RACING AX1725
- Page 1 Assembling AX1725 Radiator braces instructions Fantic What’s in the box ? 6 NE01-03-001 - M6 washers 4 NE01-01-008 - TBHC 6x25mm screws 2 NE01-01-009 - TBHC 6x20mm screws The paper instructions may be limitless, scan the QR code to watch the tutorial video online.
- Page 2 Follow the steps Remove the plastic protections Remove the OEM screw. Place the aluminium guard on on both sides. the radiator using the OEM screw. Place the plastic protection Pinch the hose for an easier Tighten the OEM screw. back in place and use the mounting.
