aXp RACING AX1751 Assembling Instructions

AX1751

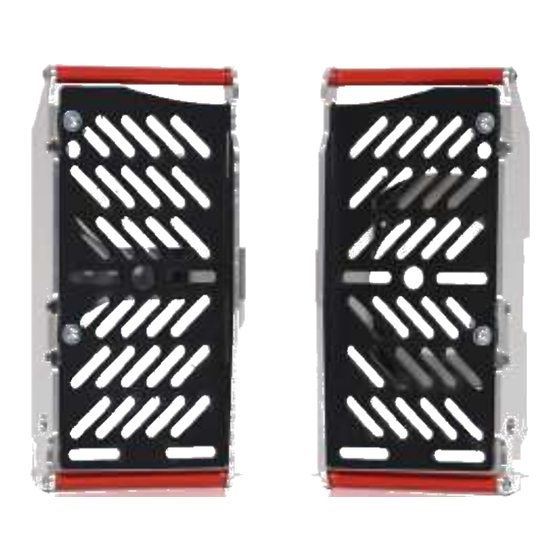

Xtrem radiator braces
Beta 350RR / 390RR / 430RR
/ 480RR Racing
What's in the box ?
4 NE03-02-033 - Red spacers 125mm
1 NE03-01-014 - Alloy spacer 45mm
1 PM01-07-075 - Right HDPE grid
1 PM01-07-076 - Left HDPE grid
2 NE10-01-008 - Alloy spacers 3mm
4 NE01-06-009 - TBHC 5x25mm screws
10 NE01-01-001 - TBHC 6x16mm screws
8 NE01-01-009 - TBHC 6x20mm screws
4 NE01-04-002 - Clamped bolts
2 NE01-04-003 - EM6F bolts
4 NE01-03-001 - M6 washers
2 NE01-07-009 - TRCC 6x16mm screws
For better durability, you can use Loctite
271 on all the screws.
The paper instructions may be
limitless, scan the QR code to
watch the tutorial video online.
Note: the colored instructions are
available on axp-racing.com

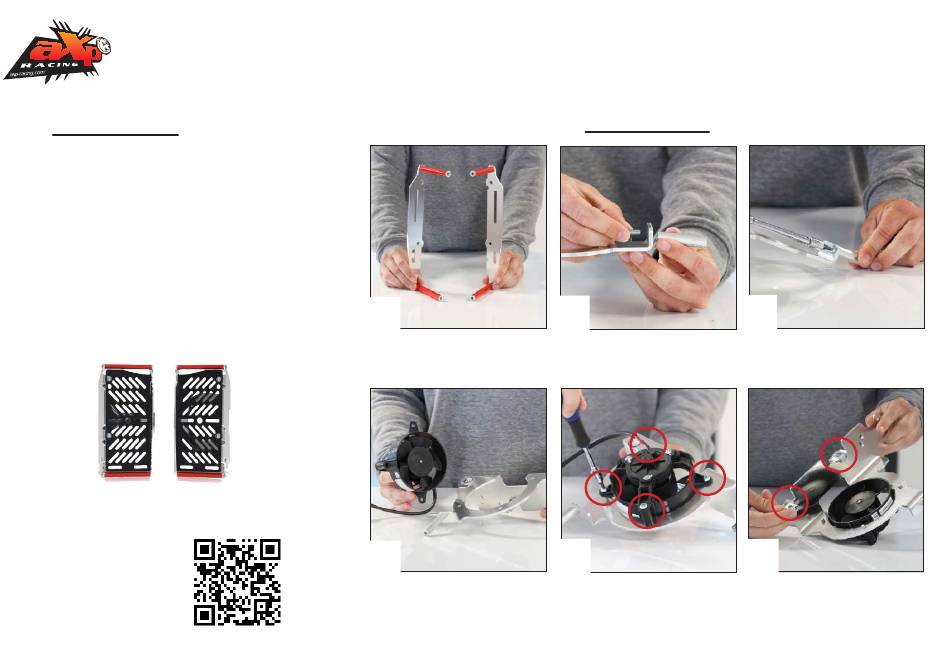

Assembling instructions
Approximate time of assembly: 30 minutes.
Radiator braces are made to protect the vital components of your bike and does not have a « life warranty ».
If you notice a defect on your radiaor guards at reception, please write to contact@axpracing.com
1
Fix the 125mm red spacers in the
2 holes on each side using TBHC
6x16mm screws.
4
Put the ventilator in the hole.
WARNING: the Beta OEM fan is
not included with the bike, so you
must buy it seperately.
Ref : 037.46.036.82.00
Follow the steps
2
Fix the alloy spacer on the right guard using a TBHC 6x16mm screw.
5
Place 4 TBHC 5x25mm screws to
maintain the fan, then tighten.
3
6
Place the clamped bolts in the
aluminum part, and repeat the
operation on the other part.
WARNING: the flat side must face
on the outside
