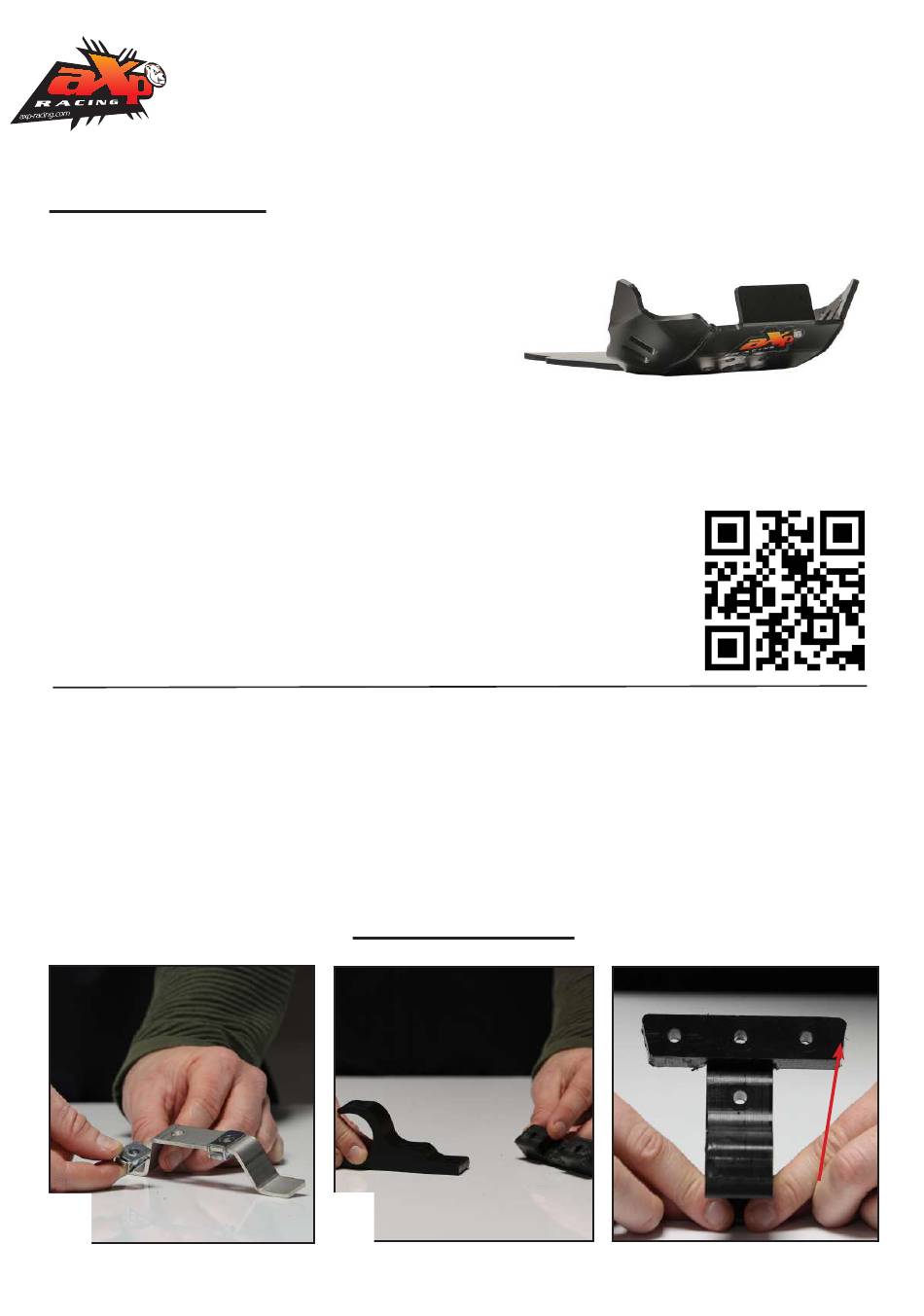

AX1734
Skid plate
Kawasaki KX500
What's in the box ?
2 NE01-11-001 - Special screws
4 NE01-04-003 - EM6F bolts
4 NE01-03-001 - M6 washers
4 NE01-02-004 - TFHC 6x30mm screws
2 NE01-04-002 - Clamped bolts
1 PM02-01-036 - Front steel fixation
1 PM01-10-021 - Rear hook 30mm
1 PM01-04-275 - Rear fixation 20mm
1 NE04-01-260 - Sticker
The paper instructions may be limitless, a tutorial video is available online to
help you.
Scannez le QR code pour regarder la vidéo de montage.
Approximate time of assembly: 15 minutes.
A skid plate is made to protect the vital components of your bike and does not have
a « life warranty ». However, production default may happen and we cover it during
the first year of use.
In case of premature breakage, please write to contact@axpracing.com
1
Place the clamped bolts in the
front steel fixation.
Follow the steps !
2
Clip the rear fixation and the hook together.
Make sure that the longest side is on top.
Assembling
instructions
Advertisement
Related Manuals for aXp RACING AX1734
Summary of Contents for aXp RACING AX1734
- Page 1 Assembling AX1734 instructions Skid plate Kawasaki KX500 What’s in the box ? 2 NE01-11-001 - Special screws 4 NE01-04-003 - EM6F bolts 4 NE01-03-001 - M6 washers 4 NE01-02-004 - TFHC 6x30mm screws 2 NE01-04-002 - Clamped bolts 1 PM02-01-036 - Front steel fixation...
- Page 2 Place the rear fixation on the Place the front steel fixation in the frame. skid plate and fix it using the It must rest on the welds. TFHC 6x30mm screws + EM6F bolts and M6 washers. Clip the hook on the frame and lift the skid plate to put it in the Put the first special screw in correct position.
