aXp RACING AX1688 Assembling Instructions

Assembling instructions
AX1688

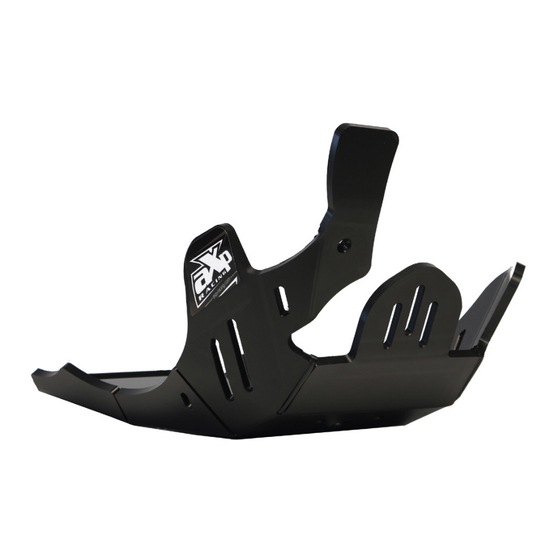

Xtrem skid plate
Yamaha - YZ450F / YZ450FX
What's in the box ?
3 NE01-04-002 - Clamped bolts
3 NE10-01-004 - Alloy spacers
4 NE01-03-001 - M6 washers
4 NE01-04-003 - EM6F bolts
2 NE01-02-003 - TFHC 6x25 screw
1 NE01-06-003 - TH 6x30 screw
2 NE01-02-002 - TFHC 6x20 screws
2 NE01-02-005 - TFHC 6x35 screws
2 NE01-06-026 - TH 6x25 screws
1 PM02-07-028 - Front steel part
1 PM01-04-248 - Rear fixation PHD 20mm
1 PM01-04-269 - Upfront fixation
1 PM01-06-076 - Plate n°46
1 NE04-01-250 - Sticker
Approximate time of assembly: 15 minutes.
A skid plate is made to protect the vital components of your bike and does
not have a « life warranty ». However, production default may happen and
we cover it during the first year of use.
In case of premature breakage, please write to contact@axpracing.com
1
Place the rear fixation on the rear
part of the plate using the TFHC 6x35
screws + 2 washers + 2 bolts and
tighten.
4
Place the clamped bolts on the steel
part. Make sure to align them to the
holes.
Follow the steps !
2
Place the clamped bolt inside the small thick block and make sure to align the
5
Place the alloy spacer on the back of
the plate.
The paper instructions
may be limitless, a
tutorial video is available
online to help you.
3
holes.
6
Place the alloy spacers on the 2 front
holes of the plate.
