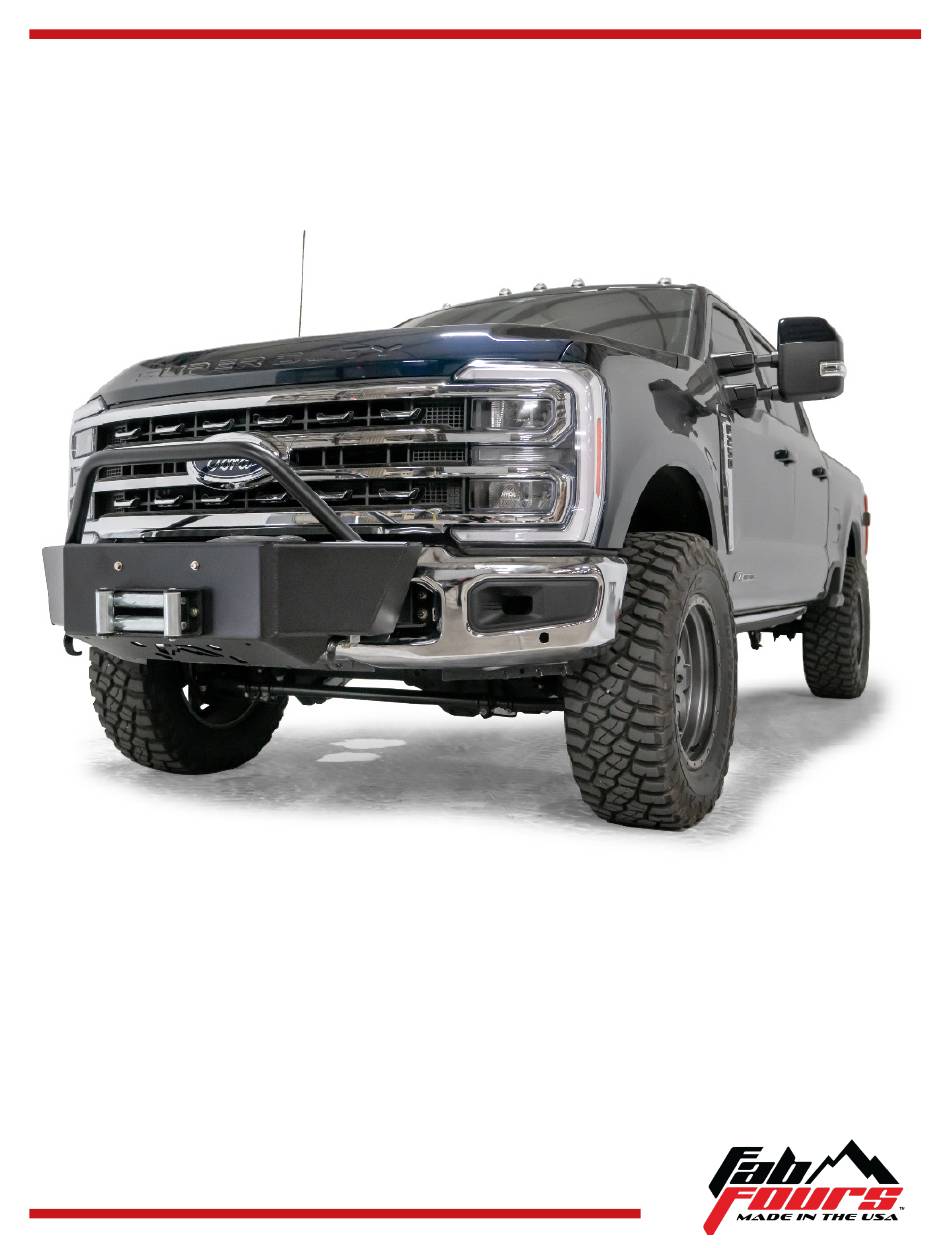

- Page 1 Installation manual prerunner WINCH MOUNT Product number: N5960 Application: 2023 FORD SUPER DUTY...
- Page 2 Use own good judgment and take your time. WARNINGS • Failure to observe the following warnings • Fab Fours, Inc. only approves installing this and instructions provided in this manual product according to these written instructions could lead to severe injury and/or death.
-
Page 3: Safety / Disclaimer
SAFETY / DISCLAIMER TABLE OF CONTENTS A MESSAGE FROM THE OWNER GETTING STARTED PROVIDED MATERIAL INSTALLATION CONTACT... - Page 4 A message from the founder Fab Fours’ was born out of a passion for customizing vehicles and a love of the outdoors. Our engineering team uses the latest 3D design software to turn new product ideas into reality. In our factory, designs come to life with the combination of cutting edge technology for metal cutting and forming and an American workforce that puts its’...
-
Page 5: Getting Started
Getting started Before you begin the installation process of your new Fab Fours product, we suggest laying out all materials and parts on a pad or protective surface. Failure to fully account for all components before beginning installation may leave vehicle... -
Page 6: Tools Required
Provided materials TOOLS REQUIRED • 18MM SOCKET WRENCH • 3/4” SOCKET WRENCH & OPEN-END WRENCH • 8MM SOCKET WRENCH (IF ACC EQUIPPED) assistance We recommend two people perform the installation as items are heavy and may need to be held in place while installing. - Page 7 Hardware kit | 50413-HW IDENTIFICATION Component NUMBER Description 50413-HW 1/2" X 1.75” YELLOW ZINC HEX HEAD BOLT, GRADE 8 50413-HW 1/2" X 2.25” YELLOW ZINC HEX HEAD BOLT, GRADE 8 50413-HW 1/2" YELLOW ZINC FLAT WASHER, GRADE 8 50413-HW 1/2" YELLOW ZINC LOCK WASHER, GRADE 8 50413-HW 1/2"...
-
Page 8: Installation
INSTALLATION Remove plastic tow hook shrouds from front bumper. (Figure 1) Figure 1 Unplug sensors and adaptive cruise control (ACC) from truck wiring harness. (Figure 2) Figure 2... - Page 9 Using 18mm socket, unbolt OEM bolts from bumper (four per side) and remove bumper from truck. (Figure 3) Figure 3 Remove OEM tow hooks by removing four (4) bottom bolts using 18mm socket, (Figure 4)
- Page 10 Using 18mm wrench, remove four (4) nuts to remove frame horn from frame. Repeat for opposite. (Figure 5) Figure 5 Install 23034 mounting bracket to driver’s side frame rail by aligning rear two (2) holes in top of frame with weld nuts in top of bracket. (Figure 6) Figure 6...
- Page 11 Insert ½” x 1.75” bolts with flat washers and lock washers (50413-HW) through frame and into weld nuts in 23034 mounting bracket. Do not tighten. Insert four (4) ½” x 1.75” bolts each with two (2) flat washers, one(1) lock washer, and one (1) hex nut (50413-HW), through the side of bracket and side of frame (two bolts per side).
- Page 12 If equipped, remove OEM ACC bracket from inside DS of bumper by removing four (4) 8mm bolts. (Figure 8) Figure 8 Insert 23044 into front DS of OEM bumper and 23045 into front PS of OEM bumper where tow hooks were located.
- Page 13 With assistance, lift OEM and bumper and mounting brackets up to truck. Align holes in 23044 & 23045 mounting brackets with OEM bumper brackets and 23034 & 23035 brackets installed in steps 6-9. Insert ½” x 2.25” bolts with flat washer, through four (4) holes in each side. Secure flat washer, and lock washer on inside of bumper with ½”...
- Page 14 With assistance, lift winch mount (23041) into position. Align holes in bottom of winch mount with weld nuts in 23044 & 23045 mounts. Attach tow hook (61366) to bottom of winch mount using 1/2” x 2.25” bolts, flat washers, lock washers (50413-HW). (Figure 11 & 12) Figure 11 Figure 12 INSTALLATION COMPLETE...
-
Page 15: Contact Information
Contact information Fab Fours Inc. 2213 Industrial Park Road Lancaster, SC 29720 Phone: (866) 385-1905 Fax: 970-385-1914 Email: support@fabfours.com fabfours.com... - Page 16 “If you’re looking for more of the same, Then you’ve come to the wrong place.” - Greg Higgs...
