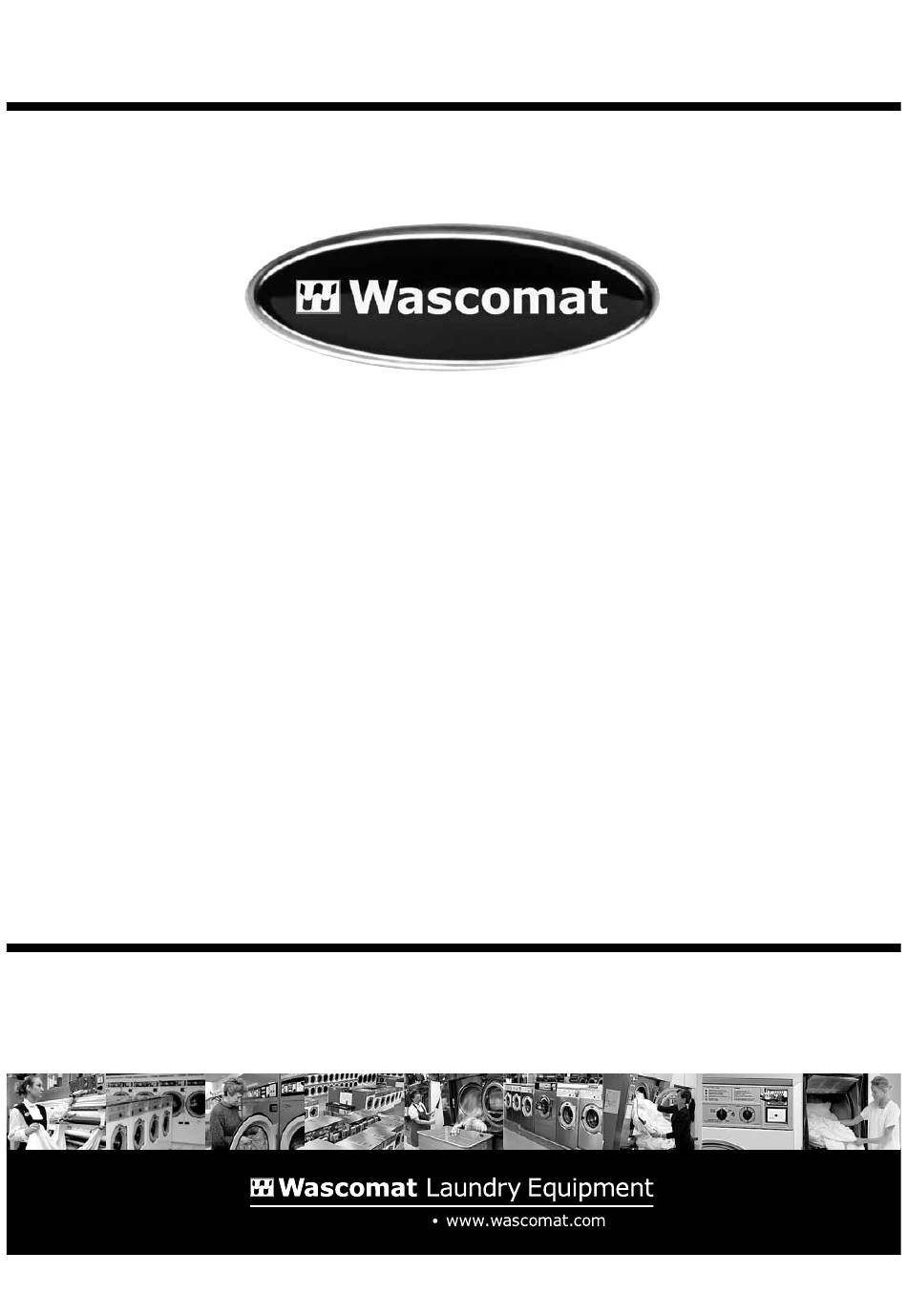

SERVICE manual
DOC. NO. 438.9030-75/04
EDITION 2011.09.23
EXSM665, EXSM680
Type EXSM.X.
Compass Control
Wascomat provides efficient washers, dryers, flatwork ironers and wetcleaning systems
in a size and model for every laundry and wetcleaning need!
516-371-4400

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXSM665 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wascomat EXSM665

Summary of Contents for Wascomat EXSM665

  • Page 1 SERVICE manual DOC. NO. 438.9030-75/04 EDITION 2011.09.23 EXSM665, EXSM680 Type EXSM.X. Compass Control Wascomat provides efficient washers, dryers, flatwork ironers and wetcleaning systems in a size and model for every laundry and wetcleaning need! 516-371-4400...

  • Page 2: Warranty Claims

    If they are not registered, you can validate your warranty claim by providing information about when and where you purchased the Wascomat machine(s), the model and serial number(s). additional warranty proof may also be required.

  • Page 3: Installation

    NOTICE TO SERVICE PERSONNEL INSTALLATION Improper installation of Wascomat laundry and wet cleaning equipment can result in personal injury and severe damage to the machine. REFER INSTALLATION TO QUALIFIED PERSONNEL! RISK OF ELECTRIC SHOCK The equipment utilizes high Voltages. Disconnect electric power before servicing.

  • Page 4: Intentionally Blank

    Intentionally blank...
  • Page 5 Service Manual EXSM665, EXSM680 Compass Control WARNING: ALL OPERATING AND MAINTENANCE PROCEDURES SHOWN ON THE NEXT PAGE OF THIS MANUAL MUST BE FOLLOWED DAILY FOR PROPER OPERATION OF YOUR WASCOMAT MACHINE. PLEASE ENTER THE FOLLOWING INFORMATION AS IT APPEARS ON THE MACHINE(S) DATA PLATE(S).
  • Page 6 Intentionally blank...
  • Page 7 Be certain to relock after re- mounting the top panel. MANUFACTURED BY WASCATOR DISTRIBUTED BY WASCOMAT, INWOOD, NEW YORK, USA 471 766202-04 LOCATED ON THE DOOR: If you need to order more safety or warning signs, call Wascomat's parts department at 516-371-2000, or call your local dealer.
  • Page 8 Be sure to keep the machine(s) in proper working order: Follow all maintenance and safety procedures. Further information regarding machine safety, service and parts can be obtained from your dealer or from Wascomat through its Technical Support Department - 516/371-0700.

  • Page 9: Table Of Contents

    Contents Contents Safety precautions ..................5 Technical data ....................7 Machine presentation ................11 Function ....................12 Program unit ..................14 Motor and motor control ............... 15 Door lock ....................16 Heating ....................17 Water connections ................17 Rear electric module ................17 Detergent container ................
  • Page 10 Contents Drain valve ....................83 Description .................... 83 Detergent container ................... 85 Description .................... 85 Heating ....................... 87 Description .................... 87 Function ....................88 Repairs ....................90 Payment systems ..................91 Abbreviations ..................... 93 Preventive maintenance ................95 Trouble shooting ..................97 The manufacturer reserves the right to make changes to design and com ponent specifications.

  • Page 11: Safety Precautions

    Safety Precautions Safety Precautions The machine is only intended for water-wash use. Do not allow minors to use the machine. Do not hose down the machine with water. The machine's door lock must under no circumstances be bypassed. If the machine develops a fault, this must be reported to the person in charge as soon as possible.

  • Page 13: Technical Data

    Technical data Technical data EXSM665 EXSM680 Innerdrum volume litres/ft 280/9.9 350/12.4 830/32 11/16 920/36 1/4 diameter mm/inch Drum speed wash extraction, max Heating electricity – steam hot water G-factor, max Weight, net kg/lbs 380/560 560/1234 Connections EXSM665 EXSM680 Water valves...
  • Page 14 Technical data Electrical connection Cold water Hot water Steam connection Drain Liquid detergent supply Control panel Soap box Water reuse Door opening in mm EXSM665 1455 515 1365 230 1325 315 EXSM680 1085 1105 1570 530 1465 185 1445 315 6174A...
  • Page 15 Technical data in inch EXSM665 36 13/16 38 3/16 57 5/16 20 1/4 4 3/4 15 3/4 2 3/16 53 3/4 9 1/16 53 3/4 EXSM680 42 11/16 43 1/2 61 13/16 20 7/8 4 3/4 20 11/16 2 3/16 57 11/16...
  • Page 16 Technical data EXSM665 EXSM680 Frequency of the dynamic force 13.4 10.8 Floor load at lbs force 1102±2136 1551±2405 max extraction 4.9±9.5 6.9±10.7...

  • Page 17: Machine Presentation

    Machine presentation Machine presentation This section presents a general overview of the functions of the machine. Most functions are then presented in detailed in separate chapters in this service manual. Water inlet valves Control unit Frequency motor control Program control board Drum s c o...

  • Page 18: Function

    Machine presentation Function This section presents a general overview of the functions of the machine. Most functions are then presented in detailed in separate chapters later on in this service manual. The washer drum (inner drum) is belt driven by a motor. This motor is located at the bottom of the machine with a belt tensioner.
  • Page 19 Machine presentation s c o 1. Detergent container 9. Drain valve 2. Water inlet valves 10. Support 3, Power supply 11. Door 4. I/O-board 12. Door lock 5. Rear electrical module 13. Control knob 6. Motor control 14. Display 7. Outer drum 15.

  • Page 20: Program Unit

    Machine presentation Program unit The control panel contains a control knob and a display. The panel can also be equipped with Program unit two preset buttons. The control panel and display are used by: • the user to select the machine’s fixed wash programs, to select up to two options for each wash program and for information on the wash process and any fault indicators.

  • Page 21: Motor And Motor Control

    Machine presentation Motor and motor control The washer drum (inner drum) is belt driven by a frequency controlled motor. The motor is located on a motor shelf under the outer drum and has been arranged with a belt tensioner. Motor control is microprocessor controlled and can control the acceleration of the drum, its rpm and its retardation very precisely.

  • Page 22: Door Lock

    Machine presentation Door lock The door lock is electromechanical with twin sa- fety breakers. The lock is bi-stable, i.e. the lock must be given an active signal from the program unit to lock as well as unlock the door. A separate circuit integrated in the program unit checks and controls the locking and unlocking of the door through a lock module.

  • Page 23: Heating

    Machine presentation Heating Electric heating heats the washing water with three elements accessible from the front of the machine. The machine’s heating system is described more thoroughly in the section Heating. Water connections The machine can have one, two, three or four wa- W as co m ter inlet valves depending on the machine size and customer requirements.

  • Page 24: Detergent Container

    Machine presentation Detergent container The detergent container has four compartments for prewash, main wash, rinse and bleaching agent/liquid detergent. The machine’s detergent container is described more thoroughly in the section Detergent container. Drain valve The valve is a diaphragm valve that is opened and closed through water pressure. The control s c o valve is mounted by the water valves.

  • Page 25: Program Unit

    Program unit Program unit Description The program unit is electronic and comprises a circuit board containing microprocessor, pro- gram memory, current regulating circuits, tem- perature and level control, etc. The program unit receives its power from a se- parate voltage unit. The program unit receives information from the temperature sensor, door lock and level swit- ches.
  • Page 26 Program unit Inputs and outputs The program unit board has the following inputs and outputs: Board connector Function Con 1 Input from temperature sensor (Temp) Con 2 Databus (D-bus) Con 3 Databus (D-bus) Con 4 Tacho Con 5 Communication, motor control unit (M-com) Con 6 Connection for software/service download (P-load) Con 7...

  • Page 27: Menu Tree

    Program unit Menu tree The machine software is constructed with menus that are structured ac- cording to the menu tree below. The menus become available when the machine is in service mode, see under the heading ”Engaging service mode”. SERVICE CONFIG 1 PAUSE PERMITTED ACTIVATE OUTPUTS...

  • Page 28: Activating Servicemode

    Program unit Activating service mode Service mode is activated by using one of the following alternative: Alt. 1 Alt. 1 Service switch on the CPU board under the top cover on the front of the machine. Alt. 2 Service switch on the I/O board at the rear of the machine to the right of the electrical connection.
  • Page 29 Program unit The machine software will now switch to its service mode. The display lists the submenus available in this mode. MAIN MENU This service manual describes the functions 01.00.00.00 and programming instructions for the following SERVICE PARAMETER PROG submenus: STATISTICS CONFIG 1 • SERVICE...

  • Page 30: Service Program

    Program unit Service program The service program is used to facilitate trou- bleshooting the machine. Using this program MAIN MENU 01.00.00.00 you can: SERVICE PARAMETER PROGR. • control the machine functions individually STATISTICS CONFIG 1 • check the sensor signals to the CPU CONFIG 2 ADJUST DISPLAY • check the communication in the machine control system 6204 • calibrate the weighing function • weigh and measure unbalance...

  • Page 31: Activate Outputs

    Program unit ACTIVATE OUTPUTS Select the ACTIVATE OUTPUTS row and press the knob. *SERVICE* 01.01.00.00 The display now shows the functions (outputs) ACTIVATE OUTPUTS that can be activated. SHOW INPUTS ARTICLE NUMBER • DOOR SHOW DLCU COM. RESET DLCU • NORMAL DRAIN • DRAIN A-D • COLD WATER 6204...

  • Page 32: Show Inputs

    Program unit SHOW INPUTS Select the SHOW INPUTS row and press the knob. The display now shows the sensor signals *SERVICE* (inputs) that can be activated. 01.02.00.00 ACTIVATE OUTPUTS • COUNT 1 SHOW INPUTS • DOOR LOCK ARTICLE NUMBER • DOOR CLOSED SHOW DLCU COM. • START BUTTON CPU RESET DLCU • SERVICE BUTTON...
  • Page 33 Program unit ARTICLE NUMBER Select the ARTICLE NUMBER row and press the knob. You can now choose on the display to *SERVICE* 01.03.00.00 show the article numbers for the program units, SHOW INPUTS I/O boards, motor control or DLCU fitted in the ARTICLE NUMBER SHOW DLCU COM. machine. Select the unit for which to show the RESET DLCU article number.
  • Page 34 Program unit Communication CPU-DLCU showed in the service program From DLCU (first data byte) bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 DLCU DLCU DLCU DLCU DLCU DLCU detects no detects detects no have not have not detects...

  • Page 35: Motor Status

    Program unit SHOW MCU COM. Select the SHOW MCU COM. row and press the knob. *SERVICE* 01.06.00.00 The display shows the status of the communica- RESET DLCU SHOW MCU COM. tion to and from the frequency control such as RESET MCU actual speed and set speed values.
  • Page 36 Program unit Motor status showed in the service program From MCU (first data byte) bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 Indicate a Reset trip Weight Unbalance Serial con- Writing, trip state state reading to mode...

  • Page 37: Weight Calibration

    Program unit WEIGHT CALIBRATION Select the WEIGHT CALIBRATION row and press the knob. *SERVICE* 01.10.00.00 SHOW COM.PORTAR • Operate the machine with an empty drum. WEIGHT CALIBRATION MEASURE WEIGHT • After weight calibration, the weight deviation MEASURE UNBALANCE will be shown in a hexadecimal format on the DISPLAY TEST EXIT bottom line of the display. • The drum will go faster and slower a num- 6204 ber of times during weight calibration.

  • Page 38: Display Test

    Program unit MEASURE UNBALANCE Select the MEASURE UNBALANCE row and press the knob. *SERVICE* 01.12.00.00 Put in a known unbalance weight. A correspon- MEASURE WEIGHT MEASURE UNBALANCE ding weight must be shown in the display once DISPLAY TEST imbalance measurement has taken place. EXIT Confirm that measurement is to be performed with YES or return to the previous menu with...

  • Page 39: Config 1

    Program unit Config 1 The configuration 1 menu contains all the fun- ctions and parameters that service personnel MAIN MENU 04.00.00.00 can change without a password. STATISTICS CONFIG 1 Engage the machine’s service mode. CONFIG 2 ADJUST DISPLAY Select the CONFIG 1 row in the main menu and RESET TO FACTORY press the knob.
  • Page 40 Program unit Select the desired function/parameter and press the knob. To engage and disengage functions, turn the CONFIG 1 knob to select YES or NO and then press the 04.01.00.00 knob. PAUSE PERMITTED RAPID ADVANCE NEW PROG. SELECT To adjust the value, set the value and press the SHOW TIME knob.

  • Page 41: Rapid Advance

    Program unit PAUSE PERMITTED Select whether it should be possible to pause during an on-going wash program. Yes = A pause is allowed during a wash program. No = A pause is not allowed during a wash program. RAPID ADVANCE Select whether is should be possible to rapid advance forward or back- ward through the wash program while it is in progress.
  • Page 42 Program unit NEW PROG. SELECT Select whether to allow switching to another wash program while one is in progress without first stepping rapidly through to the end of the current program before switching. Will only work if PAUS is allowed. Yes = Switching to a new wash program is allowed.
  • Page 43 Program unit SHOW TEMP Select whether the current water temperature is to be shown on the dis- play window while a wash program is in progress. This function cannot be shown on the display at the same time as the SHOW IS LEVEL function, only one of the functions can be shown at one time.

  • Page 44: Delayed Start

    Program unit TEMP CONTROL WATER Select whether the machine is to control and adjust the water temperature by opening and closing the main valves for hot and cold water during fil- ling. Yes = Control of main valves during filling. - Alt.1: Hot and cold water valves both open.
  • Page 45 Program unit AUTO START PAID Select whether the machine is to be able to start automatically, when full price has been paid, for the chosen wash program. Yes = Automatic start engaged. NOTE! If the signal for blocking the start button is engaged, it also applies to the blocking signal for the automatic starting func tion.

  • Page 46: Button Click

    Program unit SHOW PROG. COUNTER Select whether the contents of the machine’s counter of completed wash programs should be shown in the display window while a wash program is in progress or outside the wash program without going into service mode. The counter is shown on the display after pressing the control knob twice in quick succession.
  • Page 47 Program unit AUTO PROG SELECT Choose whether wash programme 1 should be selected automatically and displayed in start position as soon as the door is opened/closed or coins are inserted in the coin slot. Yes = Automatic programme selection takes place. No = Automatic programme selection off MEASURE WEIGHT Select whether the count weight function should be activated.
  • Page 48 Program unit SECOND LANGUAGE (COIN) Select one of the available languages to be shown as second language. Note that this function is only available on machines equipped with the coin interface software, where the user menu in the display is presented with two languages.
  • Page 49 Program unit MAX FILL TIME, SEC. Specify with the knob the maximum time (in seconds, 0 - 2550) it should take to fill the machine with water to the programmed level. If the water has not reached the correct level within the set time, the ”NO WATER”...
  • Page 50 Program unit SHOW WEIGHT TIME, SEC. Used for machines with weight count. Once weighing has been carried out, the weight obtained is displayed over the specified time. MAXDIFF, WASH TIME MIN Specify with the knob the maximum time deviation for the total time of the wash program.
  • Page 51 Program unit DECIMAL IN PRICE (AHL/OPL) On machines with coin counter, the price can be displayed with or without colon (0:00 or 000). Yes = The colon is displayed. No = The colon is not displayed. FLUSH DELAY, LIQ. SEC. Delay time before flushing of detergent after water filling is ended. The time is given in steps of 1 second in the range 0 -255 seconds.
  • Page 52 Program unit DISPLAY STATIST. SEC. Indicate using the knob how long the statistics for COINS – HOUR COUN- TER – PROGRAM COUNTER are to be displayed when the power to the machine is switched on. The time is given in steps of 1 second in the range 0 -255 seconds.
  • Page 53 Program unit QUICK START BUTTON 1 and 2 (COIN) Select if the two buttons, available on the Compass timer, shall be used as quick start buttons or as option buttons. Yes = The button is set to quick start. No = The button is set to option button. NOTE! Only in GEN6COINOP software and Freescale microprocessor S12.

  • Page 54: Master Code

    Program unit USE TEXT MESSAGING Change the default value NO to YES. If the value is set to NO the TMIS (text messaging) function will not be activated. USE CODE TO UNLOCK This menu is used if the laundry is in need of extra security. This does not require that the customer needs a mobile phone.

  • Page 55: Activate Wash Program

    Program unit Activate wash program The ACTIVATE WASH PROGR. menu is used to specify the wash programs in the program library MAIN MENU 08.00.00.00 that are to be made available to the user and in RESET TO FACTORY which order the wash programs are to be pre- ACTIVATE WASH PROGR.

  • Page 57: I/O Modules

    I/O modules I/O modules General Washing machines may be equipped with either one or two I/O modules: • I/O module 1 controls internal machine functions and is always instal- led in the machine prior to delivery. It controls outputs to water valves, waste discharge and heating. • I/O module 2 is installed as an optional extra, controlling the external functions of the machine, i.e. inputs from payment and booking sys- tems and outputs to detergent pumps.

  • Page 58: Function Options Via The Service Program

    I/O modules Function options via the service program Engage service mode, highlight the SERVICE line in the main menu and press the knob. MAIN MENU 01.00.00.00 The display will now show the different subme- SERVICE PARAMETER PROGR. nus in the service program. STATISTICS CONFIG 1 Highlight the ARTICLE NUMBER line and press...

  • Page 59: Function Options Via Program Designation

    I/O modules Function options via program designation The parameter software installed in a machine’s W465H program device on delivery is specified on 2 Model 9867610010 Product no 00520 / 9999999 Serial no plates, one located on the inside of the door and 09999999 0000 43232003245 Date Wiring diag 432771001,3A02 Program...

  • Page 60: Function Options For Type 1 And Type 2 I/O Modules

    I/O modules Function options for Type 1 and Type 2 I/O modules Function options, I/O module Type 1 Waste Waste Waste Waste Waste Heating Heating Heating Heating Heating 3 Hot water 3 Hot water – 1 Hot water 1 Hot water 3 Cold water 4 Cold water 4 Cold water...

  • Page 61: Replacing Of I/O Module

    I/O modules Replacement of I/O module I/O modules 1 and 2 are installed in the same way, but are located in different parts of the machine. The following illustration only shows how to replace I/O module 2, but the same pro- cedure also applies to I/O module 1.

  • Page 62: External Connections To I/O Module Type 2

    I/O modules External connections to I/O module type 2 Connection of external dosing equipment The external dosing equipment power supply must never be connected to the machine’s incoming terminal block or to the edge connectors on the IO-board. • Connect the external pump assembly for liquid washing detergent to I/O module 2, which is located to the right of the incoming power supply.
  • Page 63 I/O modules Outputs • External power supply (e.g. 24V DC) for pumps is to be connected to 9 and 10. If the internal power supply (from the washing machine) is to be used, it may be taken from 1 (N) and connected to 9 and from 2 (L) and connected to 10.
  • Page 64 I/O modules • Connection 8 may be connected if there is to be a pause in the wash program, e.g. while detergent is being dosed. The figure shows an example of engaging a 24V pause signal. The wash program will pause for as long as the pause signal remains active (high). Dosing system Common 0V 24 V Pause signal 24V DC 6266...

  • Page 65: Circuit Diagram Of Function Options For I/O Module Type 2

    I/O modules Circuit diagram of function options for I/O module type 2 The wiring diagram for I/O module type 2 may be one of the following vari- ants: 22A, 22B, 22C, 22D, 22E or 22F. Type of I/O card Address Function I/O:s P out Inp opt...
  • Page 66 I/O modules Type of I/O card Address Function I/O:s P out Inp opt V in Out 5NO Out CO Central payment Start 230 Program run 1 Central payment Supply 0 Common 24V Program run 1 Start 24 Supply 24 Central payment Start permitted 6316 • To start the machine from a central payment system, the payment system...
  • Page 67 I/O modules Type of I/O card Address Function I/O:s P out Inp opt V in Out 5NO Out CO Central payment Coges Machine free 1 Start permitted Central payment EBS, Camping Start permitted 6313 • The central payment or booking system shall transmit an active (high) signal to the washing machine once permission has been granted to start the machine. The signal must remain active (high) until the machine starts.
  • Page 68 I/O modules Type of I/O card Address Function I/O:s P out Inp opt V in Out 5NO Out CO "Time of day discount" "Time of day discount" 100-240VAC "Time of day discount" 24V AC/DC 6314 • The figure shows standard function addressing for machines with the 3L41 program package. • By maintaining an activated (high) signal on connection 5 ("Price red"), the price of the wash program can be reduced.
  • Page 69 I/O modules Type of I/O card Address Function I/O:s Inp opt P out V in Out 5NO Out CO 6315 • Heating pause: By connecting a signal to connection 6, you can pause opera- tion of the machine whilst it heats up. The machine will pause for as long as the pause signal remains active (high).
  • Page 70 I/O modules Type of I/O card Address Function I/O:s Con 110 Con 107 Central booking / payment EBS / PCB / Camping Start permitted 230V Central booking / payment Start permitted EBS / PCB / Camping +24V Central payment Status machine Start permitted Plexa Compact 6944...

  • Page 71: Machines With I/O Module Type 3

    I/O modules Machines with I/O module type 3 P-BUS P-BUS DRAIN COLD 6636 • By maintaining an active (high) signal on connection 3 "Price reduction”, the price of the wash program can be reduced. This function has a number of uses, including providing reductions during a specific period of the day. Whilst the signal remains active (high), the price of the wash program is reduced by the percentage entered in the price programming menu.

  • Page 72: Addressing I/O Modules

    I/O modules Addressing I/O modules After replacing an I/O module or in instances where a second module has been added to a MAIN MENU 08.00.00.00 washing machine, the new I/O module must be RESET TO FACTORY addressed in order to activate its function op- ACTIVATE WASH PROGR.

  • Page 73: Door And Door Lock

    Door and door lock Door and door lock Description The door locks consists of the following: • Door lock, which contains - An actuator that locks the door lock and also has two built-in micro switches, S4a and S4b. The actuator is bi-stable, i.e., it has two stable positions: locked door and unlocked door.

  • Page 74: Function

    Door and door lock Function The door lock locks the door When the door is closed (closed door lock switch S3), the programme unit may request door locking by applying a voltage of 200-240 V on the door lock controller A31 input X92. The following check is made by the A31 card prior to locking of the door: • No water in drum - input "level"...
  • Page 75 Door and door lock The door lock unlocks the door The programme unit requests door unlocking by applying 0 V on input X92 of the door lock controller. The following check is made prior to unlocking of the door: • No water in drum - input "Level" from level guard B2 is closed = 0 V • Drum not turning - pulse frequency on input "Tacho"...

  • Page 76: Repairs

    Door and door lock Repairs Repair work on the machine should only be done by specially trained personnel. Emergency opening of door lock 1. Take down power from the machine by tur- ning the main power switch to the 0 position. 2.
  • Page 77 Door and door lock Replacing the door lock 1. Take down power from the machine by turning the main power switch to the 0 position. 2. Remove the door (two screws in each hinge). 3. Remove the front panel. 4. Remove the door lock (three holding screws). 5.

  • Page 79: Motor And Motor Control

    Motor and motor control Motor and motor control DANGER Be careful when measuring the electric components in the motor control. All components have a potential difference of approx. 300 V in relation to protective earth and neutral. When the green LED on the motor control card is lit, the components carry dangerous vol- tages.

  • Page 80: Motor

    The motor is connected directly to the motor control via a cable with quick connectors. This cable contains two fuses and a VDR-resis- tance. The size of the fuses are different depen- ding on machine size. EXSM665 EXSM680 Motor Rotation sensor B3 5468C 5465B...

  • Page 81: Motor Control

    Motor and motor control Motor control The motor control unit is microcomputer con- Motor control U1 trolled and is situated under the top cover of the machine, right above the outer drum. The unit consists of a PCB (mother board) fitted on a heat sink that does double-duty as part of the housing.

  • Page 82: Function

    Motor and motor control Function DANGER Be careful when measuring the electric components in the motor control. All components have a potential difference of approx. 300 V in relation to protective earth and neutral. When the green LED on the motor control card is lit, the compo- nents carry dangerous voltages.

  • Page 83: Inputs And Outputs

    Motor and motor control The motor control is also able to deliver various instantaneous and output values during con- stant speed, acceleration and retardation. These values are used to calculate the weight of the loaded laundry and to detect any load imbalan- ces.
  • Page 84 Motor and motor control X304: Door lock connector The collector output function is controlled from X311 the programme unit (X301). The collector output does not switch on if there is no communication with the programme unit. Tacho signal from the motor (via door lock con- trol A31) is needed to control the motor. Card No.
  • Page 85 Motor and motor control X312: AC supply to motor and input from the motor thermal protector The motor is fed with alternating current with va- rying frequency that is proportional to the motor speed. This connector also includes the input from the thermal protector of the motor.

  • Page 86: Led Indications

    Motor and motor control LED indications Two LEDs, one yellow and one green, indicate any errors on the motor controller and motor. The table below shows the blinking patterns of the various error codes. Green LED LED blinking pattern Cause OK blink (brief pause every 5 seconds) Microcomputor in motor control unit not working, voltage is on.

  • Page 87: Repairs

    Motor and motor control Repairs Main power switch Repair work on the machine should only be done by specially trained personnel. Motor replacement Disassembly 1. Swith off power to the machine by turning the main power switch to the 0 position. 2.

  • Page 88: Adjustments

    Model Force A Post tensioning B New belt C (mm) (mm) EXSM665 EXSM680 B, C To adjust drive belt tension, first undo the motor retaining screw a couple of turns, then press down on the motor to achieve proper tensioning.

  • Page 89: Drain Valve

    Drain valve Drain valve Description The drain valve is situated on a flange at the bot- tom of the outer drum and can be accessed from the front after removing the front cover. The drain valve consists of the following principal parts: • Lower part with rubber diaphragm.

  • Page 91: Detergent Container

    Detergent container Detergent container Description The detergent container of the machine is designed for use with powder and liquid detergent. The container is divided into four sub-compartments as follows: • Compartment 1 - For pre wash with powder or liquid detergent. • Compartment 2 - For main wash with detergent powder. • Compartment 3 - Rinse. • Compartment 4 - Main wash with liquid detergent or, bleaching-agent. The connections for incoming water are situated on the rear side of the container.

  • Page 93: Heating

    (alt.) the front after the front plate is removed. Distribution board, I/O board 2 The contactors are placed in the rear control unit. Machine Heating element size model (kW) EXSM665 6 x 4 W as co m Heating elements 7225, 5207...

  • Page 94: Function

    Heating Function Electric heating with fusible cut-out on element The six heating elements in the machine are connected to separate phases and are switched on and off using two heating contactorrs, K21 och K22. The heating contactors are controlled by the programme unit A1, output (X36:7). The programme unit receives information on the water temperature in the machine through an analogue signal from the temperature sensor...
  • Page 95 Heating Function (machines built for mop washing) Electric heating without fusible cut-out on element The three heating elements in the machine are connected to separate phases and switched on and off using two serial heating contactors. Hea- ting contactor K21 is controlled by programme unit A1, output (x36:7).

  • Page 96: Repairs

    Heating Repairs Repair work on the machine should only be done by specially trained personnel. Heating element Replacing the heating elements Wen replacing the heating elements, there is a risk that water still left in the machine may flood onto the floor. Be sure to dry up any spilled water since it may cause people to slip and hurt themselves.

  • Page 97: Payment Systems

    Payment systems Payment systems Various systems for payment and booking systems are available. See below table. Abbreviation Explanation Coin Meter Single. Supplied with coin meter, single slot. Coin Meter Double. Supplied with coin meter, double slot. CMSL Coin Meter Single Latch. Supplied with coin meter, single slot.
  • Page 98 Payment systems Abbreviation Explanation EBSK Electrolux BokningsSystem Kommunicerande. Supplied with interface for central booking/payment system EBSK. PCPXS Prepared Central Payment eXternal Start. Prepared for central payment system with external start, e.g. for the French market. Prepared Central Booking. Prepared for central booking/payment system, i.e., Coges, Camping. Electrolux Booking System.

  • Page 99: Abbreviations

    Abbreviations Abbreviations Abbreviation Explanation DLCU Door lock control unit Motor control unit Residual moisture control Management information system Central payment system Scale unit Software DMIS Detergent management system EMIS External management information system Clock-wise Counter clock-wise A/D SCU Analog/digital scale unit...

  • Page 101: Preventive Maintenance

    Preventive maintenance Preventive maintenance To maintain correct and proper functioning and to prevent interruption of service, the following maintenance scheme should be adhered to. The maintenance interval should be adapted to how frequently the machi- ne is used. Daily • Check the door and door lock: - Let the door remain open and try starting the machine.
  • Page 102 Preventive maintenance - Verify that all internal hoses do not leak. - Inspect the drive belt. Adjust the tension or replace if necessary. - Check that water does not leak onto the floor. - If the heating time is unusually long, check the heating elements. If the water is very hard, check whether there are lime deposits on the heating elements.

  • Page 103: Troubleshooting

    Troubleshooting Troubleshooting General information on troubleshooting The troubleshooting section is used to trace errors in the machine to a defective component or unit. There is a memory in the program unit that will save the selected program for approx. 3-5 minutes in the case of power cuts. The machine will restart automatically if the power is turned on again within this time.

  • Page 104: Error Code

    Troubleshooting Errors with error code An error in the program or in the machine is indicated on the display by an error message comprising an error code and a descriptive text. Error code ERROR NO WATER 6204 Error code The following is a brief description of all error codes. The following pages describe error codes, possible causes and corrective measures for each code.
  • Page 105 Troubleshooting Error code Text message (from CPU) Program failure No motor comm. Level adjust. Emergency stop Timeout heating Door lock Start not allowed Master comm. I/O MCU Interlock I/O Communication No I/O addressed Checksum from DLCU Level offset CPU/DLCU low level Dryer comm.
  • Page 106 Troubleshooting Only for WDX630cc/co, WDX655cc/co Error code Text message (from Dryer program unit) Short temp input sensor short temp outp. sensor Fan motor too hot Drum motor too hot External error Machine overheated Filter lid open Incorrect programming Drying error RMC program Drying error Autostop PR.
  • Page 107 Troubleshooting Activating service mode Service mode is activated by using one of the following alternative: Alt. 1 Alt. 1 Service switch on the CPU board under the top cover on the front of the machine. Alt. 2 Service switch on the I/O board at the rear of the machine to the right of the electrical connection.
  • Page 108 Troubleshooting Only for WB4130H, WB4180H Service mode is activated by using one of the Alt. 1 following alternative: Alt. 1 Service switch on the I/O board at the rear of the machine to the right of the electrical connection. Alt. 2 Service switch on CPU card under left 6578 hand side of the top cover.
  • Page 109 Troubleshooting Only for WDX630cc/co, WDX655cc/co Service mode is activated by using one of the following alternative: Alt. 1 Service switch on the CPU board under the top cover on the front of the machine. Alt. 1 Alt. 2 Service switch on the CPU card will be activated via a link arm which can be ac- cessed from the front below the top front panel.
  • Page 110 Troubleshooting The machine software will now switch to its service mode. The display lists the submenus available in this mode. MAIN MENU This service manual describes the functions 01.00.00.00 and programming instructions for the following SERVICE PARAMETER PROG submenus: STATISTICS CONFIG 1 • SERVICE CONFIG 2...
  • Page 111 Troubleshooting Description of error codes and causes Error codes from CPU Error code 01, NO WATER This error code is generated by the CPU board. When filling with water, the level specified by the wash program must be attained within a certain time. This time is normally set to 10 minutes but can vary depending on the type of machine and the software.
  • Page 112 Troubleshooting Error code 04, NTC LOW TEMP This error code is generated by the CPU board. This error code is display- ed if the temperature around the NTC sensor is below approx. -9°C. A low temperature means the resistance in the sensor is too high, above approx.
  • Page 113 Troubleshooting Error code 07, OVERFILLED This error code is generated by the CPU board. The error code arises if the drum has been filled with water above a predetermined level during an on-going wash program. It can be caused by a blocked level hose, drops of water in the level tube, defective filler valve, defective electronic filler control, etc.
  • Page 114 Troubleshooting Error code 09, KLIXON This error code is generated by the CPU board. The error code means that the temperature in the motor has been so high that the klixon breaker in the motor has been triggered. It can be caused by overloading the motor due to an overloaded drum, low rpm for long periods, defective klixon breaker in motor, short in cable between motor and CPU board, etc.
  • Page 115 Troubleshooting Error code 11, UNB. ON AT PROG. START This error code is generated by the CPU board. The error code means that the mechanical imbalance breaker, if existing, is already active when the wash program starts. It can be caused by a defective imbalance breaker, mechanical problem making the imbalance breaker always active, short in the edge connection or cables, etc.
  • Page 116 Troubleshooting Error code 15, EMERGENCY STOP This error code is generated by the CPU board. The error code arises if the emergency stop switch has been activated on the machine. The cause can be inadvertent activation of the emergency stop, defective emergency stop switch, incorrect or shorted cable, etc.
  • Page 117 Troubleshooting Error code 20, I/O MCU INTERLOCK This error code is generated by the CPU board. The program controller has read from the motor control or I/O board that the interlock is not ac- tive. The reason for interlock failure can be a problem with the hatch lock, damaged motor supply cables or the I/O board with interlock voltage etc.
  • Page 118 Troubleshooting Error code 23, NO I/O ADDRESSED The error code means that there is no I/O board addressed in the system at all. Action: • (Requires password) Readdress the existing I/O board from the service menu. Error code 24, CHECKSUM FROM DLCU This error code is generated by the CPU board. The program unit has de- tected an error in the internal communication in the DLCU-processor.
  • Page 119 Troubleshooting Error code 28, CPU/DLCU LOW LEVELS The DLCU contains a mechanical level monitor which ensures that there is no water in the machine when the lock opens. To ensure that the level monitor functions correctly, the mechanical level monitor is compared with a nominal value generated by the CPU, which is compared with the elec- tronic level check.
  • Page 120 Troubleshooting Error codes from MCU Error code 31, HEAT SINK TOO HOT This error code is generated by the motor control. There is a temperature sensor (NTC) mounted on the motor control cooling flange next to the po- wer transistors in the output stage. If the temperature of the cooling flange gets too high (>...
  • Page 121 Troubleshooting Error code 32, MOTOR TOO HOT This error code is generated by the motor control. Each time the motor is started from stationary, the motor control will first measure the resistance between two phases in the motor. The motor control processor governs the output transistors so that a DC current flows between two phases in the motor winding.
  • Page 122 Troubleshooting Error code 33, NO INTERLOCK This error code is generated by the motor control. The motor control must be powered with 230V/50 or 60 Hz on the interlock input in order to drive the motor. This signal is a confirmation that the door is closed and locked. Motor control receives its commands to rotate the drum from the timer via a serial communication link between the motor control and timer.
  • Page 123 Troubleshooting Error code 35, MOTOR SHORT CIRCUIT This error code is generated by the motor control. The motor control reads the power consumption of the motor continuously. If the current for some reason gets too high (= exceeds a certain limit), the motor control will cut the current to the motor. After the motor has stopped (= tachometer indi- cates stationary motor), the motor control will attempt to restart it. If the motor control then detects high motor current again, the ”Short circuit motor”...
  • Page 124 Troubleshooting Error code 36, INTERLOCK HARDWARE This error code is generated by the motor control. The motor control must be powered with 230V/50 or 60 Hz on the interlock input in order to drive the motor. The interlock circuits in the motor control have been split into two channels so that a component error in motor control cannot give a false confirmation that the door is locked.
  • Page 125 Troubleshooting Error code 38, HIGH DC VOLTAGE This error code is generated by the motor control unit. The motor control unit constantly measures the voltage over the mains input. If the voltage is too high (= exceeds a certain limit), the motor control unit will shut off the current to the motor. Once the motor has stopped (= the tacho sensor indicates that the motor is stationary), the motor control unit checks to see whether the input voltage is still high.
  • Page 126 Troubleshooting Error code 42, NO PARAMET. SET IN MCU This error code is generated by the motor control unit. The motor controller (MCU) (inverter) contains several different parameter sets for different motors. During power up the timer checks that the cor- rect parameter set digit is written into the MCU.
  • Page 127 Troubleshooting Error code 45, MOTOR NOT FOLLOWING This error code is generated by the motor control. The motor control must always receive information on the rotation of the motor from the tacho sensor in order to rotate. If the tacho sensor is not working, the motor can rotate for max.
  • Page 128 Troubleshooting Error codes from DLCU Error code 51, CHECKSUM FROM CPU DLCU has detected an error in the internal communication between DLCU and CPU. The DLCU processor will reset itself when the error has disap- peared. CPU reads the error message when the program starts and finishes and generates an error code, the error message is ignored between these two occasions.
  • Page 129 Troubleshooting Error code 52, CHARGE CIRCUIT DLCU contains an arming circuit that is charged when the door lock coil is to be activated. For safety reasons, this arming circuit must be discharged when the door lock coil is not to be activated. If the arming circuit for operating the door lock is charged when it is not supposed to be, an error message will be sent to the CPU processor.
  • Page 130 Troubleshooting Error code 54, TACHO, NO SET SIGNAL DLCU counts the tacho pulses from the motor in order to guarantee that the drum is stationary when the door is opened. To ensure that the signal from the tacho generator is working correctly, DLCU compares the tacho signal to a digital bit value from the CPU processor, which is due to the CPU having activated the motor.
  • Page 131 Troubleshooting Error code 56, SET SPEED DOOR OPEN DLCU counts the tacho pulses from the motor in order to guarantee that the drum is stationary when the door is opened. To ensure that the signal from the tacho generator is working correctly, DLCU compares the tacho signal to a digital bit value from the CPU processor, which is due to the CPU having activated the motor.
  • Page 132 Troubleshooting Error code 60, ACTUATOR CIRCUIT The DLCU processor controls the door lock actuator coil. The DLCU pro- cessor checks continuously that the coil is engaged. DLCU can detect a break in the circuit (>50 kohm) (DLCU cannot detect a short in the circuit). If there is a break in the actuator circuit, CPU will be notified;...
  • Page 133 Troubleshooting Only for WDX630cc/co, WDX655cc/co Error codes from DRYER PROGRAM UNIT For more information see Service Manual for Selecta II Error code 73, SHORT TEMP INPUT SENSOR The thermistor element measuring the air inlet temperature to the drum, or the wiring to the sensor has shorted. (E 03 in the Service Manual for Selecta II).
  • Page 134 Troubleshooting Error code 80, INCORRECT PROGRAMMING Programming error/incorrect or missing parameter. (E 10 in the Service Manual for Selecta II). Error code 81, DRYING ERROR RMC PROGRAM Maximum allowable RMC time exceeded (non-coin operated models only). (E 11 in the Service Manual for Selecta II). Error code 82, DRYING ERROR AUTOSTOP PR.
  • Page 135 BuiLd a neW Laundry WiTh LoW-cosT financinG or LeasinG from WascomaT* With Wascomat/viking financing or leasing you can obtain and install durable, efficient, state-of-the-art Wascomat washers, dryers and non-polluting, environmentally-friendly wetcleaning equipment to meet all anti-pollution regulations.
  • Page 136 Coin operated and commercial wetcleaning need. energy and gas efficient, user With the push of a button, the unique Wascomat friendly TD dryer models with optional unique “Dual-Use” Wetcleaner converts to an ideal laundry Wascomat washer for washing shirts, comforters, drapes, all Residual Moisture Control (RMC).

This manual is also suitable for:

Exsm680

Table of Contents
