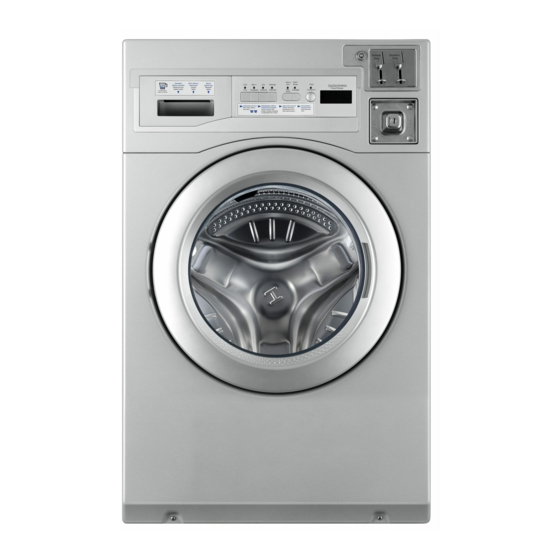

Wascomat ENCORE Laundrylux WHLFP715M Operating Manual
  1. Manuals
  2. Brands
  3. Wascomat Manuals
  4. Washer
  5. Encore WHLFP715M
  6. Operating manual

Wascomat ENCORE Laundrylux WHLFP715M Operating Manual

Hide thumbs Also See for ENCORE Laundrylux WHLFP715M:

Advertisement

Quick Links

Download this manual
MODEL NO. WHLFP715M
W A S H E R O P E R A T I N G M A N U A L
DOC. NO. 098014
EDITION 09.2018

Advertisement

loading
Need help?

Need help?

Do you have a question about the ENCORE Laundrylux WHLFP715M and is the answer not in the manual?

Questions and answers

Related Manuals for Wascomat ENCORE Laundrylux WHLFP715M

Summary of Contents for Wascomat ENCORE Laundrylux WHLFP715M

  • Page 1 MODEL NO. WHLFP715M W A S H E R O P E R A T I N G M A N U A L DOC. NO. 098014 EDITION 09.2018...
  • Page 2 Intentionally blank...
  • Page 3 Operating Manual WHLFP715M WARNING: ALL OPERATING AND MAINTENANCE PROCEDURES SHOWN IN THIS MANUAL MUST BE FOLLOWED DAILY FOR PROPER OPERATION OF YOUR MACHINE. PLEASE ENTER THE FOLLOWING INFORMATION AS IT APPEARS ON THE MACHINE(S) DATA PLATE(S). MACHINE MODEL MACHINE SERIAL NUMBER(S) ELECTRICAL CHARACTERISTICS: VOLTS, PHASE,...
  • Page 4 Intentionally blank...
  • Page 5 SAFETY AND WARNINGS SIGNS Replace If Missing Or Illegible LOCATED ON THE FRONT OF THE DETERGENT DRAWER: LOCATED AT THE REAR OF THE MACHINE: LOCATED NEXT TO DOOR:...
  • Page 6 SAFETY AND WARNINGS SIGNS WARNING LABEL FOR POWER CABLE: FIRE HAZARD LABEL ADJACENT TO DOOR:...
  • Page 7 SAFETY AND WARNINGS SIGNS ELECTRICAL HAZARD LABEL ADJACENT TO DOOR: LOCATED ON THE REAR SHIPPING SECURITY BRACE: If you need to order more safety or warning signs, call the Laundrylux Parts Department at (516) 371-2000, or call your local dealer.
  • Page 8 IMPORTANT SAFETY INSTRUCTIONS IMPORTANTES MESURES DE SECURITE WARNING - AVERTISSEMENT - Pour réduire les risques d´incendie, de choc électrique ou de blessure quand, I´appareil est utilisé: 1. Read all instructions before using the appliance. Lire toutes les instructions avant d’utiliser l’appareil. 2.
  • Page 9 NOTICE TO: OWNERS, OPERATORS AND DEALERS IMPROPER INSTALLATION AND INADEQUATE MAINTENANCE, POOR HOUSEKEEPING AND WILLFUL NEGLECT OR BYPASSING OF SAFETY DEVICES MAY RESULT IN SERIOUS ACCIDENTS OR INJURY. TO ASSURE THE SAFETY OF CUSTOMERS AND/OR OPERATORS OF YOUR MACHINE, THE FOLLOWING MAINTENANCE CHECKS MUST BE PERFORMED ON A DAILY BASIS.
  • Page 10 Intentionally blank...
  • Page 11 Contents Control Panel + Instructions For Use ..............1:1 Heavy Soil + Extra Rinse ................2:1 Coin Meter ......................3:1 Fault Codes ......................4:1 Operating Mode ....................5.1 Service Mode ....................6.1 Preventive Maintenance ...................7.1 Wash Programs ....................8.1 The manufacturer reserves the right to make changes to design, material...
  • Page 12 Control Panel The display control panel allows the selection of the main wash programs. As desired, soiling. The control panel consists of program selection buttons (A), option buttons (B), a start button (C), and a display (D) which shows the time remaining and the price for each program.
  • Page 13 Instructions for Use Washing • Load garments into the machine and close the door. Do not overload washer. • Add liquid detergent, bleach, and fabric softener as recommended on the product label. Do not level line. Compartment 1 – Powder or liquid detergent Compartment 2 –...
  • Page 14 Instructions for Use • Press the Start button. water than top loading washers while achieving very high quality laundering results. However, sudsing if regular detergent (liquid or powder) is used, especially if too much detergent is used. We STRONGLY RECOMMEND using low sudsing detergent that is clearly marked “HE” and that no more than 1/3 cup be used for a full load.
  • Page 15 Intentionally blank...
  • Page 16 Instructions for Use Wash Program Description The machine offers four standard wash programs, and two optional features. The basic wash programs are Cold, Warm, Hot, and Delicate. The optional features are Heavy Soil and Extra Rinse. The options can be added to the basic wash programs (except for Delicate), in any combination. On coin-operated models, a different price can be charged for each program, and an additional price can be programmed for each of the two option buttons.
  • Page 17 Intentionally blank...
  • Page 18 Coin Meter In coin-operated machines, prices for programs and options must be programmed during machine Prices can be programmed as dollars and cents or as the number of coins or tokens required to start. There are four wash programs COLD, WARM, HOT, and DELICATE and two options HEAVY SOIL and EXTRA RINSE that can be programmed to the same or different prices.
  • Page 19 Coin Meter DISCOUNT PRICE “PROMOTION” PROGRAMMING The washer is capable of applying a “Promotion” percentage discount to the vend price of a percentages can be selected using the washer’s built-in Real Time Clock (RTC) or one promotion event can be selected using an optionally-installed, external signal provided by a clock-driven relay or switch.
  • Page 20 Coin Meter 8. Press START, a two digit day number (“0d”) for which the start day(s) of the week for promotion #1 will be displayed. (01=Sunday, 02=Monday, ...07=Saturday, 08=All days, 09=Monday-Friday only, 0A=Saturday and Sunday only, 00=promotion is inactive.) Edit this number using the DELICATE button to cycle through the allowed values.
  • Page 21 If power to the machine is accidentally cut, the machine will restart automatically when power is restored. The machine will resume the program it was running at the point the power was cut. Faults/errors in the program or machine are indicated by a numerical error code on the panel display.
  • Page 22 The washer is capable of accepting payment using coins or tokens in COIN MODE or using payment cards in CARD MODE (serial). Setting the machine to COIN MODE and setting all wash program and option prices to “0.00” will allow the machine to operate for free in OPL mode.
  • Page 23 and view usage statistics. The service mode also allows a technician to activate individual components of the machine, for troubleshooting. The software also provides a “Limited Service Mode” (LSM) that allows a technician to activate machine components, via PIN entry, without having access to the coin vault service switch.
  • Page 24 STATISTICS (NON-RESETTABLE): 000 - Cold program counter. Range: 0000 to F999, (A=10, ... F=15 e.g. “B101” = 11,101) 001 - Warm program counter. Range: 0000 to F999 002 - Hot program counter. Range: 0000 to F999 003 - Delicate program counter. Range: 0000 to F999 004 - Rinse and Spin program counter.
  • Page 25 025 - Mainwash time: from 0-999 seconds, default=”360”, i.e. six minutes. 026 - Decimal in price: “00”= default=decimal displayed, ”01”= no decimal (token). 028 - Regret Time: The allowable time, after program start, that a user can change the wash program/options or add items to the wash.
  • Page 26 *056 - Detergent pump trigger signal. *057 - Bleach pump trigger signal. *058 - Softener pump trigger signal. *059 - Coin meter test, each dropped coin adds 1 to displayed total. Registers 009 and 010 unaffected. 070 - RTC set-up: 24hr format, “070”>yyyy>mm.dd>hh.mm>”070”. During set up, the RTC is stopped.
  • Page 27 Preventive Maintenance To keep your machine in proper working order, follow the preventive maintenance recommendations provided below. Leave the loading door open when the machine is not in use. Daily • Check the door and door lock: - Open the door and try starting the machine. The machine MUST NOT START. - Close the door, start the machine and try opening the door using reasonable force.
  • Page 28 Wash Programs COLD COLD HEAVY EXTRA HEAVY SOIL PROGRAM NO OPTION SOIL RINSE EXTRA RINSE PreRinse - - - 2 min C low - - - 2 min C low Drain - - - - - - 3 min C low 3 min C low 3 min C low 3 min C low...
  • Page 29 Wash Programs WARM WARM HEAVY EXTRA HEAVY SOIL PROGRAM NO OPTION SOIL RINSE EXTRA RINSE PreRinse - - - 2 min CH low - - - 2 min CH low Drain - - - - - - 3 min CH low 3 min CH low 3 min CH low 3 min CH low...
  • Page 30 Wash Programs HEAVY EXTRA HEAVY SOIL PROGRAM NO OPTION SOIL RINSE EXTRA RINSE PreRinse - - - 2 min CH low - - - 2 min CH low Drain - - - - - - 3 min CH low 3 min CH low 3 min CH low 3 min CH low Drain...
  • Page 31 Wash Programs DELICATE DELICATE HEAVY EXTRA HEAVY SOIL PROGRAM NO OPTION SOIL RINSE EXTRA RINSE PreRinse - - - Available Available Available Drain - - - (DOUBLE (DOUBLE (DOUBLE - - - BEEP) BEEP) BEEP) Drain - - - 4 min C Drain Rinse 1 1 min C high...
  • Page 32 Wash Programs RINSE AND SPIN RINSE AND SPIN* HEAVY EXTRA HEAVY SOIL PROGRAM NO OPTION SOIL RINSE EXTRA RINSE PreRinse - - - Drain - - - - - - Drain - - - - - - Drain - - - Rinse 1 4 min C Drain...
  • Page 33 Sales and Administration: (516) 371-4400 Spare Parts: (516) 371-2000 Technical Support: (516) 371-0700 En Mexico: 001-800-010-1010 461 Doughty Blvd., Inwood, NY 11096...
