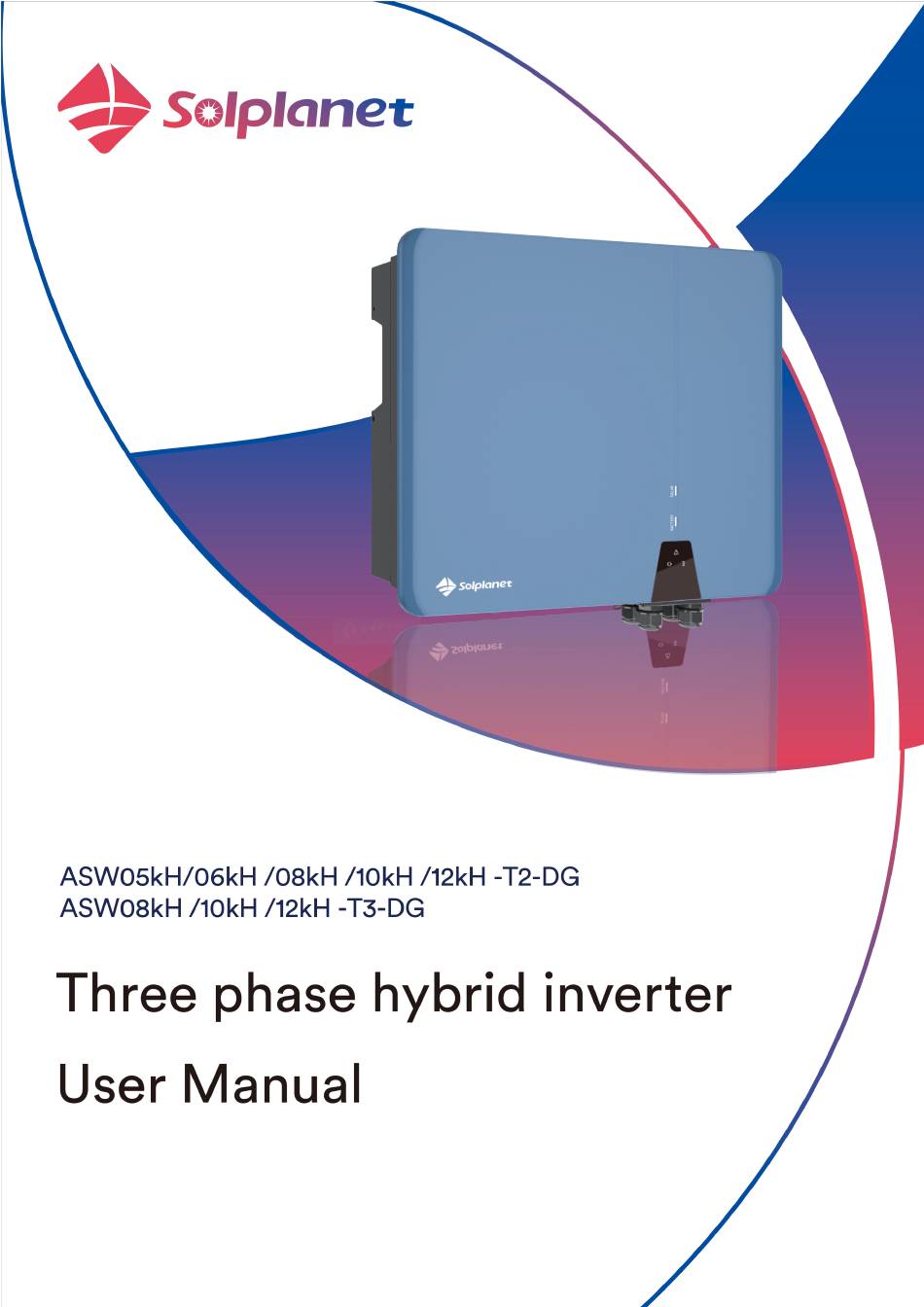

Solplanet ASW05kH-T2-DG User Manual

Three phase hybrid inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASW05kH-T2-DG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Solplanet ASW05kH-T2-DG

Summary of Contents for Solplanet ASW05kH-T2-DG

  • Page 2: Table Of Contents

    EPS Load cable connection........................43 Generator cable connection ........................47 DC connection ............................50 Battery connection ..........................57 Ai-Dongle connection ..........................59 Communication equipment connection ....................61 Commissioning and operating ........................71 Inspection before commissioning ......................71 Commissioning procedure ........................71 Solplanet APP ..............................72...
  • Page 3 Brief introduction ........................... 72 Download and install ..........................72 Create an account ..........................72 Create a plant ............................73 Setting parameters ..........................80 8.6 Parallel parameter setting and using ......................97 8.7 Activated Arc-fault Circuit Interrupter (AFCI)..................101 8.8 Digital output and Heat pump settings ....................103 Decommissioning the product ........................

  • Page 4: General Information

    You will find the latest version of this document and further information on the product in PDF format at www.solplanet.net. It is recommended that this document is stored in an appropriate location and be available at all times.

  • Page 5: Symbols

    1.4 Symbols DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE Indicates a situation which, if not avoided, can result in property damage.

  • Page 6: Safety

     The entire battery voltage range must be completely within the permissible input voltage range of the product. The product must only be used in countries for which it is approved by Solplanet and the grid operator.  Knowledge of all applicable laws, standards and directives.
  • Page 7 leading to electric shock and burns. Do not touch non-insulated cable ends.  Do not touch the DC conductors.  Do not touch any live components of the product.  Do not open the product.  Observe all safety information provided by the battery manufacturer. ...
  • Page 8 WARNING Danger to life due to electric shock from destruction of the measuring device due to overvoltage！ Overvoltage can damage a measuring device and result in voltage being present in the enclosure of the measuring device. Touching the live enclosure of the measuring device results in death or lethal injuries due to electric shock. Only use measuring devices with a measurement span higher than the DC input voltage range ...

  • Page 9: Symbols On The Label

    2.3 Symbols on the label Beware of a danger zone！ This symbol indicates that the product must be additionally grounded if additional grounding or equipotential bonding is required at the installation site. Beware of high voltage and operating current！ The inverter operates at a high voltage and current. Work on the product must only be carried out by skilled and authorized personnel.

  • Page 10: Unpacking And Storage

    3 Unpacking and storage 3.1 Scope of delivery Check the scope of delivery for completeness and any visible external damage. Contact your distributor if the scope of delivery is incomplete or damage. Object Description Type/Quantity Inverter Mounting bracket Ai-Dongle AC connector (black) Tubular terminal Hex Key S=2.5 EPS Load connector (blue)

  • Page 11: Product Storage

    Plug: PV-KST4-EVO ST/10II PV-BP4-EVO 2/10 Crimp contact (10mm²) PV-SP4-EVO 2/10 Document Smart meter Fastener package Communication terminal package 3.2 Product storage Suitable storage is required if the inverter is not installed immediately: Store the inverter in the original packing case. ...

  • Page 12: Inverter Overview

    4 Inverter overview 4.1 Product description Figure shown here is for reference only. The actual product received may differ！ Object Name Description Mounting flanges Used for mounting the inverter onto the mounting bracket Two points, used for the fixed connection between the inverter and the Inverter fixed point mounting-bracket.

  • Page 13: Led Indicator

    4.3 LED indicator Function Description Glowing The product operates normally and the solar energy is available. Flashing The product is self-checking automatically, or the firmware is updating. SOLAR The solar energy is not available. Glowing The product operates normally and the battery energy is available. The product is self-checking automatically, or the firmware is updating, or the Flashing SOC of the battery is low.

  • Page 14: Supported Grid Types

    The product is equipped with an Ai-Dongle as standard, which provides a user interface for configuring and monitoring the product. The Ai-Dongle can connect to the internet via WLAN or an ethernet cable. Solplanet communication products or a third-party monitoring device can be used if the Ai-Dongle is not connected.
  • Page 15 (not both simultaneously) can be used to measure the export active power. The communication of the smart meter can be connected via RS485 (see section 6.9.1, Terminal 2). The smart meter that can be used with this product must be approved by Solplanet. For more information about the smart meter, please contact Solplanet service.
  • Page 16 This product complies with IEC 62109-2 clause 13.9 for earth fault alarm monitoring. If an earth fault alarm occurs, the red color LED indicator will light up. At the same time, the error code 38 will be sent to the Solplanet Cloud.

  • Page 17: Basic System Solution

    4.6 Basic system solution The product is a high-quality inverter which can convert solar energy to AC energy and store energy into battery. The product can be used to optimize self-consumption, store energy in the battery for future use or feed into public grid. A diesel generator interface allows a generator to charge batteries and power the loads connected to the EPS port.
  • Page 18 The inverter and battery data is stored on the Solplanet cloud server. Smart Mobile Device The Solplanet app can be installed on a smart mobile device to view the PV plant information. The inverter and battery data can also be viewed via a computer which is logged into the Computer Solplanet cloud desktop web application.
  • Page 19 For other countries, the following diagram is an example for grid systems without special requirement on wiring connection. UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...

  • Page 20: Energy Management

    10kW 12kW 63Amax/600v DC Breaker 20A/400V 25A/400V 32A/400V 32A/400V 40A/400V AC Breaker AC Breaker AC Breaker AC Breaker AC Breaker Depends on household Energy Management The energy management mode depends on PV energy and the user’s preference. There are four energy management modes that can be chosen.
  • Page 21 Case 1: PV power generation is lower than the load power consumption and there is no available battery energy. The balance of load power, if any, is supplied from the grid. Case 2: PV power generation is lower than the load power consumption and there is available battery energy. The balance of load power, if any, is supplied from the grid.
  • Page 22 Case 3: PV power generation is larger than the load power consumption. Battery charging via PV energy is prioritised. PV energy is exported to the grid if it is greater than the load power consumption and when the battery is completely charged. The energy management during night: Case 1: Battery energy is available.
  • Page 23 Case 2: Battery energy not available. The load power consumption will be supplied by the grid. Reserve mode The battery is regarded as a back-up energy storage device. PV power prioritises the charging of the battery if it is not completely charged.
  • Page 24 Case 2: The battery is completely charged, the load power consumption is supplied by excess PV power and the balance, if any, is supplied by the grid. Case 3: The battery discharges when there is a loss of the utility grid. UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 25 With Generator A diesel generator is connected to then inverter. The inverter will send a command to start the inverter when grid loss, the battery soc is too low and if PV energy can not support load. UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 26 With Smart-load When the household load is connected to the generator terminal, the system can determine whether to connect or disconnect the load of the port based on the battery SOC value set by the user. The smart load mode mainly refers to the load that does not need continuous power supply in the customer's access home. The load can only be used when the customer thinks that the energy is sufficient.

  • Page 27: Parallel System

    4.8 Parallel System 4.8.1 Grid parallel The hybird inverter can operate as a parallel system. The system can even work when the utility grid is loss occasionally. A Master Inverter B Slaver Inverter 1 C Slaver Inverter N D Grid port E EPS load port F Communication cable UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 28 Hybrid inverters with the same model can be connected in parallel in grid port. the EPS load should be independent of each inverter and the battery should be same model, show as follows. UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 29 4.8.2 Grid and EPS parallel There is another parallel solution: Grid and EPS parallel, which can support larger EPS load and can operate even when grid loss. A Master Inverter B Slaver Inverter 1 C Slaver Inverter N D Grid port E EPS load port F Communication cable Hybrid inverters with the same model can be connected in parallel in EPS port and grid port at the same time, the battery...
  • Page 30 should be same model, show as follows: UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 31 CAUTION Risk of damage to the inverters! Due to incorrect connection, the inverter will be permanently damaged The EPS phase sequence of all inverters in the parallel system must be completely consistent when Multi machine EPS in parallel  enable, strongly recommend measure each PIN of EPS and Grid connector before commission, make sure the same phase PIN of master and slaver inverter is connected together.
  • Page 32 When the master inverter of the parallel system is broken and all inverters are powered off, replace the master inverter: power off  all the inverter, move the stick and meter to new master inverter, the Ethernet cable and 120ohm matching resistor are also connected with the replacement of the master inverter, and then all power on, wait for the green light on the stick to turn on, click to scan the inverter.

  • Page 33: Mounting

    5 Mounting 5.1 Requirements for mounting DANGER Danger to life due to fire or explosion！ Despite careful construction, electrical devices can cause fires. This can result in death or serious injury. Do not mount the product in areas containing highly flammable materials or gases. ...

  • Page 34: Taking Out And Moving The Product

    In case of multiple inverters, reserve specific clearance between the inverters.  The product should be mounted such that the LED signals can be recognised and read without difficulty. The DC switch of the product must always be freely accessible. 5.2 Taking out and moving the product Open the inverter carton, take the inverter out of the packaging and place at the designated installation location.
  • Page 35 Step 2： Gently hammer the plastic wall plugs into the drilled hole. Step 3： Align the mounting-bracket with the hole positions and use the supplied screws to secure the mounting bracket onto the wall. Step 4： Lift and hang the inverter onto the mounting-bracket and ensure that the mounting flanges fit securely into the mounting-bracket.
  • Page 36 Step 5： Fix the inverter with screws. Installation complete. UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...

  • Page 37: Electrical Connection

    6 Electrical connection 6.1 Connection Interface description Figure shown here is for reference only. The actual product received may differ！ Object Description Battery connection terminals DC-switch PV Input Ai-Dongle connector Communication interface GEN connector AC connector EPS Load connector Additional grounding screw UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...

  • Page 38: Connecting Additional Grounding

    6.2 Connecting additional grounding The inverter is equipped with a residual current monitoring unit (RCMU). The RCMU monitoring device detects when there is no grounding conductor connected and disconnects the inverter from the utility grid if this is the case. Hence the product does not require an additional grounding or equipotential bonding when operating.

  • Page 39: Grid Cable Connection

    Step 3： Apply paint to the grounding terminal to ensure corrosion resistance. Installation Complete. 6.3 Grid cable connection 6.3.1 Requirements for the Grid connection Cable Requirements The cable must be dimensioned in accordance with the local and national directives for the dimensioning of cables. The requirements for the minimum wire size derive from these directives.
  • Page 40 This is necessary, for example, in an IT system if there is no neutral conductor present and you intend to install the inverter between two line conductors. If you are uncertain about this, contact your grid operator or Solplanet.
  • Page 41 Crimping tool selection and crimping requirements are shown in the following figure： Step 4： Insert the cables into the terminal holes in turn according to the phase sequence marked on the pipe head, and then lock each cable with the terminal using a hexagonal screwdriver and screw the torque 1.2+/-0.1N·m.. UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 42 Step 5： Insert the main body into the terminal hear clasp and a “click” sound should be heard when done correctly. Step 6： Tighten the nut with an open-ended wrench (torque 2.5±0.5 N·m). UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...

  • Page 43: Eps Load Cable Connection

    6.3.3. Connecting the grid connector Step 1： Remove the dust cover. Step 2： Connect the AC plug into the connector, a “click” sound should be heard when done correctly.. Complete the installation. 6.4 EPS Load cable connection 6.4.1 Requirements for the EPS Load connection For EPS Load connection requirements, refer to “6.3.1 Grid Connection Requirements”...
  • Page 44 Step 2： Separate the EPS load connector. Step 3：Crimp the AC cable (when using multi-strand cable) with bootlace ferrules using appropriate crimping tools. UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 45 Crimping tool selection and crimping requirements are shown in the following figure： Step 4： Insert the cables into the terminal holes in turn according to the phase sequence marked on the pipe head, and then lock each cable with the terminal using a hexagonal screwdriver and screw the torque 1.2+/-0.1N·m. UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 46 Step 5： Insert the main body into the terminal hear clasp and a “click” sound should be heard when done correctly. Step 6： Tighten the nut with an open-ended wrench (torque 2.5±0.5N·m). 6.4.3 Connecting the EPS Load connectors Step 1： Remove the dust cover. UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...

  • Page 47: Generator Cable Connection

    Step 2： The installation arrow indicates insertion the female connector, and hear the “click” sound. Complete the installation. 6.5 Generator cable connection 6.5.1 Requirements for the generator cable connection For generator cable connection requirements, refer to “6.3.1 Grid Connection Requirements” for details. 6.5.2 Assembling the generator cable connectors Step 1：...
  • Page 48 Step 3：Crimp the AC cable (when using multi-strand cable) with bootlace ferrules using appropriate crimping tools. Crimping tool selection and crimping requirements are shown in the following figure： Step 4： Insert the cables into the terminal holes in turn according to the phase sequence marked on the pipe head, and then lock each cable with the terminal using a hexagonal screwdriver and screw the torque 1.2+/-0.1N·m.
  • Page 49 Step 5： Insert the main body into the terminal hear clasp and a “click” sound should be heard when done correctly. Step 6： Tighten the nut with an open-ended wrench (torque 2.5±0.5N·m). 6.5.3. Connecting the generator cable connectors Step 1： Remove the dust cover. UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...

  • Page 50: Dc Connection

    Step 2： The installation arrow indicates insertion the female connector, and hear the “click” sound. Complete the installation. 6.6 DC connection 6.6.1 Requirements for the DC connection Requirements for the PV modules per input: All PV modules should be of the same type. ...

  • Page 51: Assembling The Dc Connectors

    6.6.2 Assembling the DC connectors DANGER Danger to life due to electric shock when live components or DC cables are touched！ When exposed to light, the PV modules generate high DC voltage which is present in the DC cables. Touching live DC cables results in death or lethal injuries due to electric shock.
  • Page 52 Step 2： Crimp the contacts with the corresponding cables and a “click” sound should be heard when done correctly. If the stranded wire is not visible in the chamber, the cable is not correctly inserted and the connector must be reassembled.
  • Page 53 Cable requirements: Item Description Value Cable type PV1-F, UL-ZKLA or USE2 External diameter 5-8 mm Conductor cross-section 2.5-6 mm² Number of copper wires At least 7 ≥1100v The rated voltage Procedure: Step 1： Strip 12 mm of cable insulation from the cable. Step 2：...
  • Page 54 Step 4： Ensure that the cable is correctly positioned. 6.6.3 Connecting the PV module DANGER Danger to life due to high voltages in the inverter！ When exposed to light, the PV modules generate high DC voltage which is present in the DC cables. Touching live DC cables results in death or lethal injuries due to electric shock..
  • Page 55 DC cable must always have the same polarity as the DC connector. Step 5： Ensure that the open-circuit voltage of the PV array does not exceed the maximum DC input voltage of the inverter. Step 6： Connect the assembled DC connectors to the inverter until they audibly snap into place. NOTICE Do not operate the DC switch during the operation of the inverter, otherwise it will cause the inverter to stop or even damage the inverter.
  • Page 56 Type 2 DC connector: Connect the assembled DC connectors to the inverter.  For unused DC connectors, push down the clamping bracket and push the swivel nut up to the thread. Insert the DC  connectors with sealing plugs into the corresponding DC inputs on the inverter. UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...

  • Page 57: Battery Connection

    Before connecting the battery, it is important to make sure the battery is officially listed in the Hybrid-battery compatibility list, please download the list from the website: https://solplanet.net/products/asw-5-12kH-T2-T3-series/. Assemble the battery connectors as described below. Be sure to observe the correct polarity. The Battery connectors are marked with the symbols “+”...
  • Page 58 6.7.2 Assembling the Battery connectors Procedure: Step 1： Strip 6-7.5 mm of the cable insulation from the cable. Step 2： Assemble the cable ends with the appropriate crimping tools. Step 3： Insert the cable through cable gland, and insert into the insulator until it snaps into place. Gently pull the cable backward to ensure firm connection.

  • Page 59: Ai-Dongle Connection

    Step 2： Connect the assembled DC connectors to the inverter. Complete the installation. 6.8 Ai-Dongle connection Procedure: Step 1： Rotate the nut, take out the sealing ring, hold the locking structure, and take out the wiring terminal. Step 2： Lock the communication cable to the wiring terminal according to the sequence shown in the following figure.
  • Page 60 Step 3： Insert the wiring terminal into the sealing head, adjust the communication cable, insert the sealing ring, and lock nut. Step 4： Remove the dust and waterproof cover of the Ai-Dongle on the inverter and retain it. Step 5： Attach the Ai-Dongle to the connection port in place and tighten it into the port by hand with the nut in the modular.

  • Page 61: Communication Equipment Connection

    NOTICE Rotating the body of the Ai-dongle will damage the Ai-dongle! The Ai-dongle body is protected by locking nuts to protect the reliability of the connection. If it is rotated, the Ai-dongle may become damaged. It can only be locked by a nut. Do not rotate the body of the Ai-dongle.
  • Page 62 PIN definition Description Terminal Object RJ-45 TCP/IP  RJ-45 CANAH CANAL  Monitor RJ-45 RS485A RS485B  PIN definition Object Description Terminal Multifunction Relay Multifunction Relay/Generator startup DO2/DO1 4pin signal Relay NS-protection (network Smart Meter and system protection) 6pin Device RS485A RS485B Positive...

  • Page 63: Communication Cable Connection

    Smart Meter Terminal 2 can be used to connect the smart meter and NS-protection (network and system protection) device. The PIN definition is shown as above NS-protection (network and table. system protection) Device Terminal 3 can be used to connect the ripple control receiver and DRMs Ripple control receiver device device.
  • Page 64 Step 3： Connect the communication cable crimped to the corresponding communication port. Step 4： Install the communication cover on the inverter. Step 5： Tighten the cable gland nuts. UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 65 Complete the installation. 6.9.3 Ripple control receiver connection The product is equipped with one interface (terminal block C) to connect a Ripple Control Receiver device. The Ripple control receiver device can be connected to terminal block C(pin1~pin4，pin6). Step 1：Remove the cable jacket and strip the wire insulation. Step 2：Remove the push-in connector from the accessory pack.
  • Page 66 Installation completed. 6.9.4 NS protection connection The product is equipped with one connection (terminal block B) for connection to an external central grid protection device. Step 1：Remove the cable jacket and strip the wire insulation. Step 2：Remove the push-in connector from the accessory pack. Insert the stripped wires into the push-in terminal terminals.
  • Page 67 Installation completed. The Figure above is as reference and the manual of the third party device should be consulted, as also the manuals of other brands. UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 68 6.9.5 Current Transformer connection CT is an optional accessory. UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 69 6.9.6 Smart meter connection (Eastron SDM630-Modbus V2) The grid structure supported by the product is TN-S. For other grid types, please refer to 4.4. EASTRON Meter UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 70 6.9.7 Smart meter connection (CHINT DTSU666) NOTICE Only Eastron and CHINT meters are supported. Meter in the attachment bag is CHINT DTSU666 . Models that support EASTRON meters are EASTRON SDM630-Modbus V2 and EASTRON SDM630MCT V2 . Only meters provided by Soplanet can be used. UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...

  • Page 71: Commissioning And Operating

    7 Commissioning and operating 7.1 Inspection before commissioning CAUTION Danger to life due to high voltages on DC conductors! When exposed to sunlight, the PV array generates dangerous DC voltage which is present in the DC conductors. Touching the DC and AC conductors can lead to lethal electric shocks.. Only touch the insulation of the DC cables.

  • Page 72: Solplanet App

    Procedure: Step 1： Open Solplanet App to enter the login screen, and tap “Do not have an account” to enter the next screen. Step 2： The user groups “Business user” and “End user” need be selected according to your identity, and tap “Next step”.

  • Page 73: Create A Plant

    8.4 Create a plant Step 1 Step 2 Step 3 Step 4 Step 5 UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 74 Procedure: Step 1： Open Solplanet App to enter the login screen, enter the account name and password, and tap “Log in” to enter the next screen. Step 2： Tap the symbol “+” to enter the next screen, and tap “Create or modify a plant”, then the camera of the mobile automatically turns on, and scan the QR code of the Ai-dongle to enter the next screen, tap “Create new plant”...
  • Page 75 Step 1 Step 2 UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 76 Step 3 Step 4 Step 5 Step 6 UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 77 Step 7 Eastron SDM630-Modbus V2 Step 7 Step 8 UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 78 Eastron SDM630-Modbus V2 Step 8 Step 9 Step 9 Step 10 UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 79 Step 11 UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...

  • Page 80: Setting Parameters

    8.5 Setting parameters 8.5.1 Inverter configuration The Solplanet’s products comply with local grid code when leaving the factory. But you still should check the grid code and the parameters according to the requirements of the installation site. Once configuration of the product is completed, the product will start operating automatically...
  • Page 81 Choose the reactive power control mode. Configure the ○ of the cos φ (P) curve. Configure the parameters of the fix Q value or fix parameters of the Q (U) curve. Configure the parameters Reactive power settings cos φ value. ○...
  • Page 82 Step 1 Step 2 8.5.3 Active power reduction at overfrequency P(f) There are four modes (Please refer to the following table) can be chosen for this function and many parameters can be configured according to the requirement of the local grid company. Procedure: Step 1：...
  • Page 83 Step 1 Step 2 UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 84 Step 3 Step 4 UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 85 Table description Name Description Act. Power as a ○ Droop is defined as the active power as a percentage of P percentage of P The active power will continuously move up and down the frequency characteristic curve in the frequency range of f1 to f Linear stop Act.
  • Page 86 8.5.4 Active power reduction at overvoltage P(U) There are five modes (Please refer to the following table) can be chosen for this function and many parameters can be configured according to the requirement of the local grid company. Procedure: Step 1： Tap “Active power settings” to enter to the next page. Step 2：...
  • Page 87 Step 3 Step 4 UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 88 Table description Name Description Droop is defined as the active power as a percentage of P ○ The active power will continuously move up and down the voltage Act. Power as a percentage of characteristic curve in the voltage range of Ustart to U stop , Linear The active power reduce from the P...
  • Page 89 8.5.5 Cosφ(P) curve configuration The power related control mode cosφ(P) controls the cosφ of the output as a function of the active power output. There are four coordinate points that can be configured. The coordinate points are the active power as a percentage of P the displacement factor cosφ.
  • Page 90 Step 3 Step 4 Table description Parameter Description ○ The active power as a percentage of P ○ The displacement factor that is cosine of the phase angle between the Cosφ fundamental components of the line to neutral point voltage and the respective current.
  • Page 91 The lock-in voltage value that enables the automatic reactive power ○ Activating delivery mode. voltage Activation threshold as a percentage of U corresponds to ‘lock-in’ voltage. The lock-out voltage value that disables the automatic reactive power ○ Deactivating delivery mode. voltage Deactivation threshold as a percentage of U corresponds to ‘lock-out’...
  • Page 92 Step 3 Step 4 Table description Name Description ○ The voltage as a percentage of U ○ The reactive power as a percentage of P ○ Phase Choose the over-excited or under-excited. UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...

  • Page 93: Generator Settings

    Activating power The lock-in active power value that enables the automatic reactive power ○ delivery mode. as a percentage Activation threshold as a percentage of P corresponds to ‘lock-in’ power. of P The lock-out active power value that disables the automatic reactive power Deactivating ○...
  • Page 94 ○ ○ Step 1 Step 2 Step 3 UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 95 ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Step 4 Table description Name Description ○ Generator enable Used to enable the generator port function. ○ Normally open relay that closes when the Generator Start signal state is Generator start and stop active.
  • Page 96 ○ Always plug in when grid is When this function is enabled, the smart load will switch on when the grid available is present. ○ When the SOC value of the battery exceeds the set value, the smart load Load connect SOC will be connected ○...

  • Page 97: Parallel Parameter Setting And Using

    Before enable Asymmetrical power output, make sure the phase sequence of CT or meter is consistent with grid and inverter.otherwise inverter will work abnormal. If Asymmetrical power output is enable, the export power control can chose Lower phase power. in this mode , every phase(L1,L2,L3) will not export power to grid even if there is a value in export power limit setpoint.
  • Page 98 Power on the PV of all parallel inverters, but do not power on the battery and AC.  When the parallel wiring is completed, the battery and AC power cannot be connected before the parallel parameters  are setup. Unless remote shutdown is set for each inverter through the APP, the master inverter can be turned on again after setting up the parallel system.
  • Page 99 Multi machine EPS in parallel Step 3 Step 3 UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...
  • Page 100 Multi machine EPS in parallel Step 4 UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0425...

  • Page 101: Activated Arc-Fault Circuit Interrupter (Afci)

    The Solplanet App can establish a communication connection to the inverter via WLAN, thereby achieving near-end maintenance on the inverter. The Arc-fault Circuit Interrupter (AFCI) function can be activated on the Solplanet App. Both the "Business user" and "End user" user groups can activate the AFCI function during PV plant commissioning. However, only the "Business user"...
  • Page 102 Step 1 Step 2 Step 3 Step 4 UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0325...

  • Page 103: Digital Output And Heat Pump Settings

    8.8 Digital output and Heat pump settings In the Digital output menu, you can configure the two Digital output interfaces (DO1/DO2). The Heat pump control parameters can be configured in the Heat pump settings. The two items are associated, and you should start with the Digital output interfaces before the Heat pump settings.
  • Page 104 Step 3 Step 3 Step 4 UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0325...
  • Page 105 Function Description The inverter can control the operation mode of a compatible heat pump according to the defined threshold . There are two options in the drop-down ○ ○ 1 、 menu: Total PV generation and Export to grid. The first uses the AC output Threshold based on power of the inverter as the basis for the threshold whereas the second uses the AC power output to the grid using data from the main meter.

  • Page 106: Decommissioning The Product

    9 Decommissioning the product 9.1 Disconnecting the inverter from voltage sources Prior to performing any work on the product, always disconnect it from all voltage sources as described in this section. Always adhere to the prescribed sequence. WARNING Danger to life due to electric shock from destruction of the measuring device due to overvoltage！ Overvoltage can damage a measuring device and result in voltage being present in the enclo- sure of the measuring device.
  • Page 107 suitable measuring device. Step 7： Loosen and remove the Grid connector. Unlock instructions ① Rotate the latch as shown. ② Remove the female end of the cable to unlock the account. Step 8： Loosen and remove the EPS Load connector. Unlock instructions ①...

  • Page 108: Dismantling The Inverter

    ① Insert a flat-blade screwdriveror an angled screwdriver ② Pull the DC connectors out. (blade width: 3.5mm) into one of the side slots. Step 11： Remove the communication cover. Remove the communication cable in reverse order by referring to 6.7 Communication equipment connection.

  • Page 109: Technical Data

    10 Technical data 10.1 ASW05 kH/06kH/08kH/10kH/12kH-T2-DG ASW12KH -T2- ASW05KH-T2- ASW06KH-T2- ASW08KH-T2- ASW10KH-T2- Type DC Input 12000 Wp 15000 Wp 18000 Wp Maximum power of PV array 7500 Wp 9000 Wp 10000 W 10000 W 10000 W Max. power per MPP tracker 7500 W 9000 W 1100 V...
  • Page 110 the AC voltage <2%, and AC power >50% of the rated power Adjustable displacement power factor 0.8 leading to 0.8 lagging Overvoltage category in accordance with IEC 60664-1 Efficiency Maximum efficiency 98.0% 98.2% 98.4% 98.4% 98.4% European weighted efficiency 97.2% 97.5% 97.9% 97.9%...

  • Page 111: Asw08Kh/10Kh/12Kh-T3-Dg

    10.2 ASW08kH/10kH/12kH-T3-DG ASW08KH -T3-DG ASW10KH -T3-DG ASW12KH -T3-DG Type DC Input 12000 Wp 15000 Wp 18000 Wp Maximum power of PV array 10000 W 10000 W 10000 W Max. power per MPP tracker 1100 V Maximum input voltage Rated input voltage 630 V 60 V Minimum input voltage...

  • Page 112: General Data

    Efficiency Maximum efficiency 98.4% 98.4% 98.4% European weighted efficiency 97.9% 97.9% 97.9% Battery data Max. charging power from PV and grid 12000 W 12000 W 12000 W Max. charging power from grid 8000 W 10000 W 12000 W Max discharging power 8000 W 10000 W 12000 W...

  • Page 113: Protective Device

    Topology Non-isolated Operating temperature range -25℃ … +60℃ Allowable relative humidity 0% ... 100% range (non-condensing) Degree of protection for electronics in IP66 accordance with IEC 60529 Climatic category in accordance with IEC 4K4H 60721-3-4 Protection class (according to IEC 62103) Pollution degree outside the enclosure Pollution degree inside the enclosure Max.

  • Page 114: Troubleshooting

    11 Troubleshooting When the PV system does not operate normally, we recommend the following solutions for quick troubleshooting. If an error or warning occurs, there will have “Event Messages" display in the LCD screen and monitor tools. The corresponding corrective measures are as follows: Error code Message Corrective measures...
  • Page 115 protection device. Please check the cable of NS-protection device，if the cable connection is normal,  the NS-protection trigged. AFCI Self Test Fail Make exchange of the inverter.  Disconnect each MPPT tracker, and eliminate any abnormalities.  AFCI Fault Make exchange of the inverter if complete the above guide with fault is still there. ...

  • Page 116: Maintenance

    12 Maintenance 12.1 Cleaning the contacts of the DC switch DANGER High voltage of PV string may cause life danger！ If the DC connector is disconnected while the PV inverter is working, electric arc may occur, causing electric shock and burns.

  • Page 117: Recycling And Disposal

    When the customer needs warranty service during the warranty period, the customer must pro- vide a copy of the invoice, factory warranty card, and ensure the electrical label of the inverter is legible. If these conditions are not met, Solplanet has the right to refuse to provide with the relevant warranty service.

  • Page 118: Contact

    16 Contact EMEA Service email: service.EMEA@solplanet.net APAC Service email: service.APAC@solplanet.net LATAM Service email: service.LATAM@solplanet.net Solplanet Technology Co., Ltd Hotline: +86 400 801 9996 Add.: Room 904 - 905, No. 757 Mengzi Road, Huangpu District, Shanghai 200023 https://solplanet.net/contact-us/ UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0325...
  • Page 119 UM0057_ASW05-12KH-T2-T3-DG_EN_V02_0325...

This manual is also suitable for:

Asw06kh-t2-dgAsw08kh-t2-dgAsw10kh-t2-dgAsw12kh-t2-dgAsw08kh-t3-dgAsw10kh-t3-dg ... Show all
