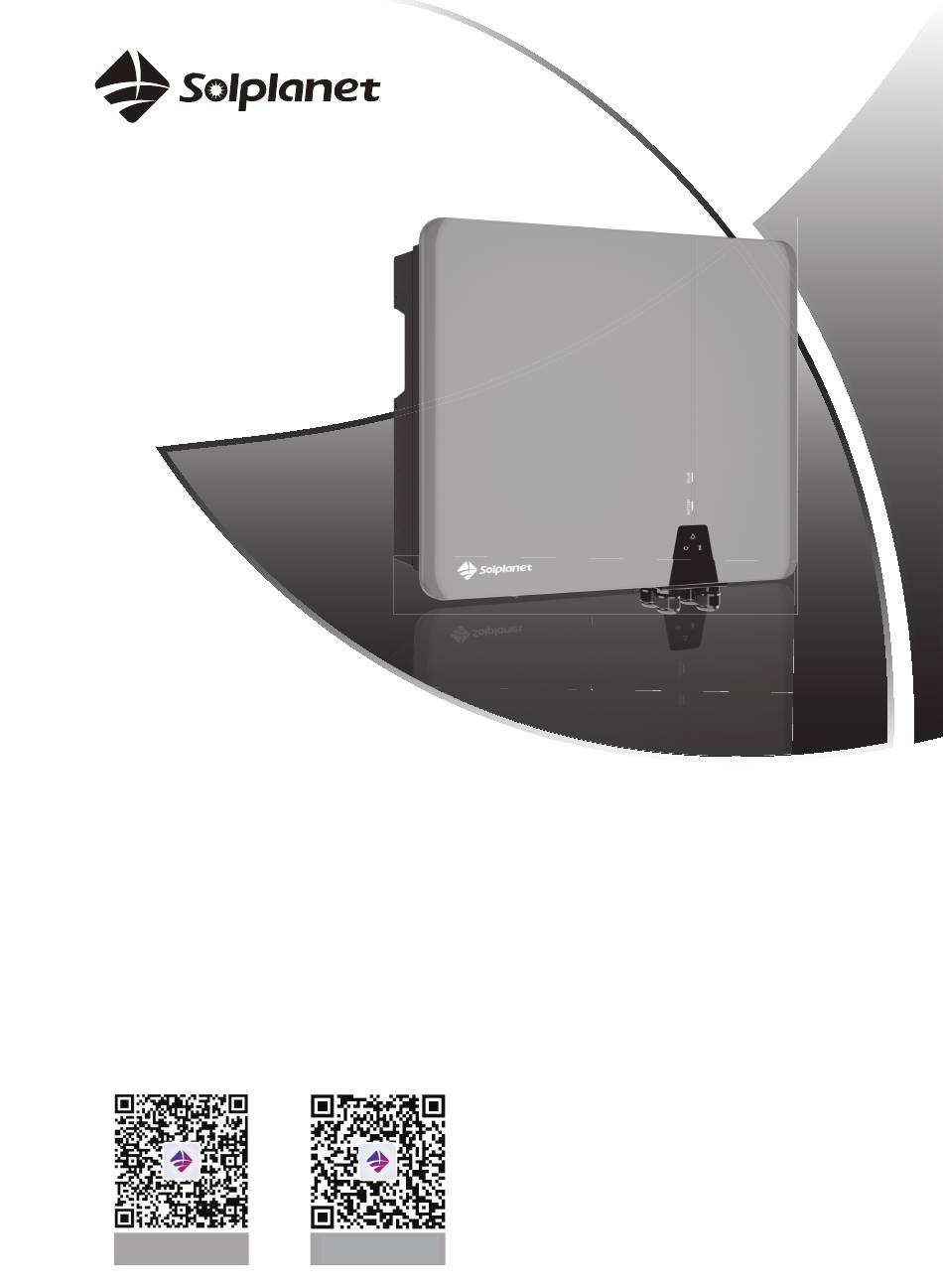

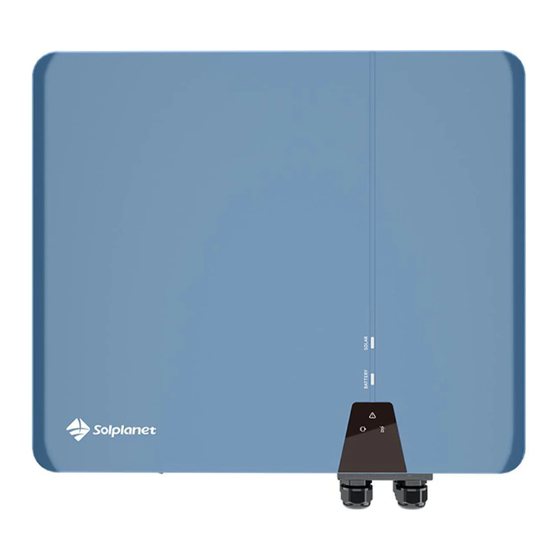

- Page 1 ASW05kH/06kH/08kH/10kH/12kH-T2 ASW05kH/06kH/08kH/10kH/12kH-T2-O ASW08kH/10kH/12kH-T3 ASW08kH/10kH/12kH-T3-O Three phase hybrid inverter Quick Installation Guide Android...
-
Page 3: General Information
The contents of this guide may be updated or revised due to product development. The information in this guide is subject to change without notice. The latest version of this document and the manual for installation, commissioning, configuration and decom- missioning are to be found in PDF format at www.solplanet.net. SAFETY 2.1 Intended use... - Page 4 The product must only be operated in connection with an intrinsically safe lithium-ion battery approved by AISWEI. The entire battery voltage range must be completely within the permissible input voltage range of the product. The product must only be used in countries for which it is approved by AISWEI and the grid operator.
- Page 5 ！ DANGER Danger to life due to electric shock when touching live components in backup mode！ Even if the AC breaker and the PV switch of the inverter are disconnected, the parts of the system may still be live when the battery is switched on due to backup mode. •...
- Page 6 ！ DANGER Danger to life due to electric shock when touching live system compo- nents in case of a ground fault！ If a ground fault occurs, parts of the system may still be live. Touching live parts and cables may result in death or lethal injuries due to electric shock. •...
- Page 7 2.3 Symbols on the label Beware of a danger zone！ This symbol indicates that the product must be additionally grounded if additional grounding or equipotential bonding is required at the installation site. Beware of high voltage and operating current！ The inverter operates at high voltage and current. Work on the inverter must only be carried out by skilled and authorized electricians.
-
Page 8: System Wiring Diagram
SYSTEM WIRING DIAGRAM QG0049_ASW05-12KH-T2-T3_EN_540-300254-00_0323... - Page 9 QG0049_ASW05-12KH-T2-T3_EN_540-300254-00_0323...
-
Page 10: Eu Declaration Of Conformity
AISWEI Technology Co., Ltd. confirms herewith that the products described in this document are in compliance with the fundamental requirements and other relevant provisions of the above mentioned directives. The entire EU Declaration of Conformi- ty can be found at www.solplanet.net. QG0049_ASW05-12KH-T2-T3_EN_540-300254-00_0323... -
Page 11: Scope Of Delivery
OVERVIEW BATTERY GRID COM0 LOAD Object Description Battery Port DC-switch 指示逆变器当前的工作状态 LED指示灯 PV Input Ai-Dongle Communication ports AC connector EPS connector Additional grounding screw SCOPE OF DELIVERY Ai-Dongle ×1 Wall Bracket ×1 EPS connector ×1 DC connector ×3/4 AC connector ×1 Inverter×1 Fastener package ×1... -
Page 12: Mounting Environment
MOUNTING ENVIRONMENT × × × √ √ √ ＞75° × × × √ √ √ × +60℃ -25℃ IP66 4K4H ≤100% max.4000m ≥500mm ≥500mm ≥500mm QG0049_ASW05-12KH-T2-T3_EN_540-300254-00_0323... - Page 13 DIMENSIONS Unit：mm （ Lumbar foramen） 2-φ9 4-9×17 MOUNTING Φ10 mm 90° 70mm 10mm 5N·m QG0049_ASW05-12KH-T2-T3_EN_540-300254-00_0323...
- Page 14 · SECOND PROTECTIVE GROUNDING L=E+(2~3)mm L · QG0049_ASW05-12KH-T2-T3_EN_540-300254-00_0323...
- Page 15 AC CONNECTION 4mm²~6mm² 12.5~17.5mm click 1.2±0.1N·m click QG0049_ASW05-12KH-T2-T3_EN_540-300254-00_0323...
- Page 16 BACKUP LOAD CONNECTION 4mm²~6mm² 12.5~17.5mm click 1.2±0.1N·m click QG0049_ASW05-12KH-T2-T3_EN_540-300254-00_0323...
- Page 17 PV CONNECTION TYPE 1 - Phoenix Contact click 2.5-6mm Φ - 5 8mm √ × TYPE 2 2.5-6mm Φ - 5 8mm QG0049_ASW05-12KH-T2-T3_EN_540-300254-00_0323...
-
Page 18: Battery Connection
BATTERY CONNECTION QG0049_ASW05-12KH-T2-T3_EN_540-300254-00_0323... -
Page 19: Communication Setup
COMMUNICATION SETUP 15.1 Communication connection RJ45-1 RJ45-3 RJ45-5 Terminal-1 Terminal-2 Terminal-3 RJ45-2 RJ45-4 RJ45-6 Terminal-4 PIN definition Object Description Terminal Monitor COM2 RS485A RS485B RS485A RS485B RJ45-3 RJ45-4 COM5 CANAH CANAL X RS485A RS485B QG0049_ASW05-12KH-T2-T3_EN_540-300254-00_0323... - Page 20 PIN Definition Object Description Terminal Multifunction Relay 1 Multifunction Relay 2 4pin Terminal-1 DO1/DO2 PT100 Temperture Sensor Smart Meter UFR Device Terminal-2 6pin Negative Negative RS485A RS485B Positive Positive Ripple Control Receiver Device DRMS Device Terminal-3 6pin DI*4/DRM0 REF GEN/0 COM LOAD/0 DI_4 DI_3 DI_2...
- Page 21 15.2 Current Transformer connection BATTERY RJ45-1 RJ45-3 RJ45-5 GRID Terminal-1 Terminal-2 COM0 Terminal-3 LOAD RJ45-2 RJ45-4 RJ45-6 Terminal-4 1 2 3 4 5 6 Black Arrow pointing to inverter Grid QG0049_ASW05-12KH-T2-T3_EN_540-300254-00_0323...
- Page 22 15.3 Ai-Dongle connection × √ QG0049_ASW05-12KH-T2-T3_EN_540-300254-00_0323...
- Page 23 ——Inverter model ——Inverter serial number ——Photovoltaic module model ——Photovoltaic modules number and strings number connected to each MPPT ——Fault code ——Installation location EMEA Service email: service.EMEA@solplanet.net APAC Service email: service.APAC@solplanet.net LATAM Service email: service.LATAM@solplanet.net Aiswei Greater China Service email: service.china@aiswei-tech.com...
- Page 24 AISWEI Technology CO., Ltd...
