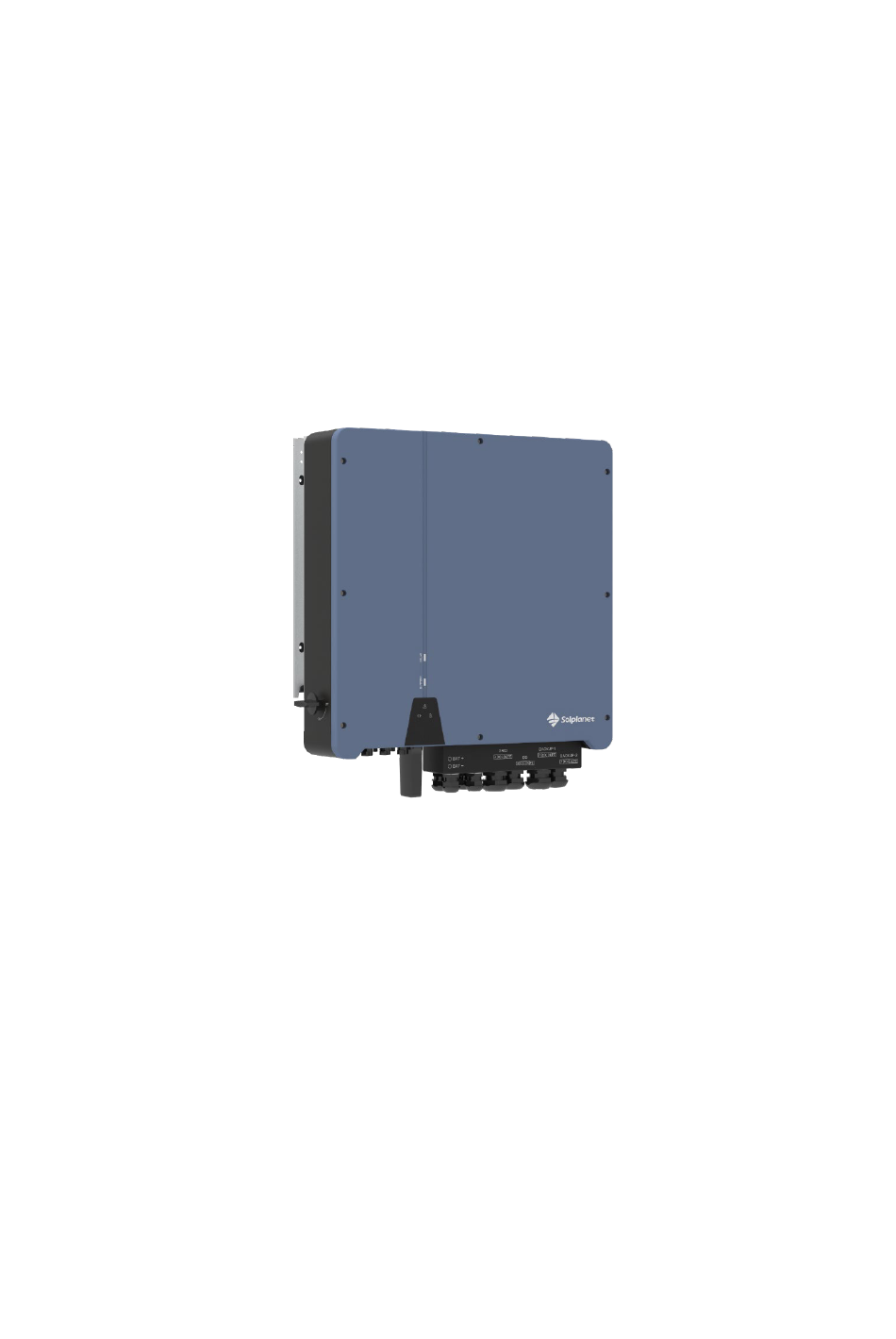

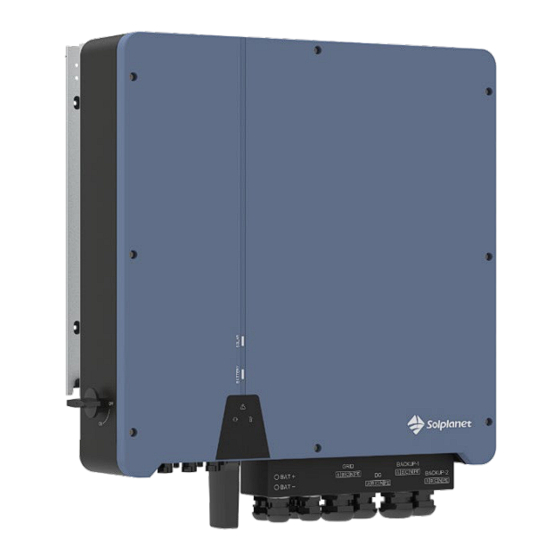

- Page 1 Three phase Hybrid Inverter User Manual (For ASW08KH-T1，ASW10KH-T1，ASW12KH-T1) AiSWEI Technology (Shanghai) Co.,Ltd. www.solplanet.net 2022 Version: A...
-
Page 2: Table Of Contents
Three phase Hybrid Inverter User Manual Catalog 1 Notes on this Manual ............................. 5 1.1 Scope of Validity ............................5 1.2 Target Group ..............................5 1.3 Symbols Used ..............................5 2 Safety ................................... 5 2.1 Important Safety Instructions ........................5 2.2 Battery Safety Instructions ........................ - Page 3 Three phase Hybrid Inverter User Manual 6.4.1 Battery breaker .................................. 24 6.4.2 Battery connection diagram ............................24 6.4.3 BMS PIN Definition ................................24 6.4.4 Battery power cable Connection Steps ........................25 6.5 CT Connection ............................25 6.6 DRM Connection ............................26 6.7 Wi-Fi Connection ............................
- Page 4 PRODUCT SPECIFICATIONS All specifications and descriptions contained in this document are verified to be accurate at the time of printing. However, because continuous improvement is a goal at SOLPLANET, we reserve the right to make product modifications at any time.
-
Page 5: Notes On This Manual
1 Notes on this Manual 1.1 Scope of Validity This manual is an integral part of solplanet three phase hybrid inverter, it describes the assembly, installation, commissioning, maintenance and other information of the product. Please read it carefully before operating. - Page 6 Three phase Hybrid Inverter User Manual Grounding the PV generator. Comply with the local requirements for grounding the PV modules and the PV generator. It is recommends connecting the generator frame and other electrically conductive surfaces in a manner which ensures continuous conduction and ground these in order to have optimal protection of system and persons.
- Page 7 Three phase Hybrid Inverter User Manual unplugging DC, battery in plug and MAINS couplers. When accessing the internal circuit of inverter, it is very important to wait 5 minutes before operating the power circuit or demounting the electrolyte capacitors inside the device. Do not open the device beforehand since the capacitors require time sufficiently discharge! Measure the voltage between terminals UDC+ and UDC- with a multi-meter (impedance at least 1M ohm) ...
-
Page 8: Battery Safety Instructions
Three phase Hybrid Inverter User Manual Earth connection essential before connecting supply. Incorrect grounding can cause physical injury, death or equipment malfunction and increase electromagnetic. Make sure that grounding conductor is adequately sized as required by safety regulations. Do not connect the ground terminals of the unit in series in case of a multiple installation. -
Page 9: Ce Directives
Three phase Hybrid Inverter User Manual Do not operate this inverter until it is isolated from battery, mains and on-site PV generation suppliers. Danger to life due to high voltage. There is residual voltage existing in the inverter after powering off. which needs 5 min to discharge. -
Page 10: System Diagram
Three phase Hybrid Inverter User Manual The wiring diagram is for reference only, and the complete electrical connection shall meet the requirements of local regulations. Please control the home loads, and make sure it’s within the “BACKUP output rating” under BACKUP ... -
Page 11: Work Modes
Three phase Hybrid Inverter User Manual The arrow on the CT points to the power grid, as shown. Do not misconnect the phase sequence. Backup load is connected to Backup1 or Backup2 port. Because the length of CT line is limited, the inverter needs to be installed near the parallel dot, ... -
Page 12: Work Modes: Custom Mode
Three phase Hybrid Inverter User Manual 3.4.2 Work modes: Custom mode When PV, Grid, Battery is available: On charge time, solar energy will charge battery as first priority. The excess energy will supply power to the loads. If solar energy is sufficient to supply loads and charge battery, and if there's still some extra energy, then the excess power will feed the power to grid On charge time, solar energy will charge battery as first priority. -
Page 13: Off-Grid Mode
Three phase Hybrid Inverter User Manual 13) Solar energy will charge battery as first priority, if solar energy is excess, the excess power will supply load. If solar energy is not sufficient to charge battery and supply loads, grid will supply power to loads. 3.4.3.2 2. -
Page 14: Terminals Of Pv Inverter
Three phase Hybrid Inverter User Manual 3.6 Terminals of PV inverter Function label Description PV1+ PV string 1 positive input PV string 1 Input port PV1- PV string 1 negative input PV2+ PV string 2 positive input PV string 2 Input port PV2- PV string 2 negative input COM1... -
Page 15: Technical Data
Function label Description Backup2 line ground electrode Qualified electrician will be required for the installation. 4 Technical Data Model ASW08kH-T1 ASW10kH-T1 ASW12kH-T1 Max. PV array power 12 kWp STC 15 kWp STC 18 kWp STC Max. input voltage 1000 V... - Page 16 Three phase Hybrid Inverter User Manual Model ASW08kH-T1 ASW10kH-T1 ASW12kH-T1 Max. input current from grid 25.5 A 31.8A 38.2 A Nominal output voltage 3W+N+PE, 220 / 380 V; 230 / 400 V; 240 / 415 V Nominal output frequency 50 Hz / 60 Hz...
-
Page 17: Installation
Three phase Hybrid Inverter User Manual Model ASW08kH-T1 ASW10kH-T1 ASW12kH-T1 Max. permissible value for relative 0~95% humidity (non-condensing) Max. operating altitude 4000m (>2000m power derating) Country of Manufacture THE PEOPLE'S REPUBLIC OF CHINA Inverter topology (Solar/ battery) Transformer less / Transformer less User interface LED &... -
Page 18: Mounting
Three phase Hybrid Inverter User Manual Object Description Inverter Bracket Expansion screws and pan-head screws PV connectors (2*positive, 2*negative) WIFI Stick User manual Current transformer 5.3 Mounting 5.3.1 Installation Guide ASW H-T1 Series hybrid inverter is designed for outdoor installation (IP 65). Make sure the installation site meets the following conditions: Not in direct sunlight. -
Page 19: Space Requirement
Three phase Hybrid Inverter User Manual Not higher than altitude of about 2000m above sea level. Not in environment of precipitation or humidity (＞95%). Under good ventilation condition. The ambient temperature in the range of -20℃ to +60℃. 10) The slope of the wall should be within ± 5°. 11) The wall hanging the inverter should meet conditions below: solid brick/concrete, or strength equivalent mounting surface. -
Page 20: Electrical Connection
6 Electrical Connection 6.1 Grid Connection ASW H-T1 Series hybrid inverter is designed for three phase grid Voltage is 380/400V, frequency is 50/60Hz. Cables and Micro-breaker are recommended as follows Inverter ASW08kH-T1 ASW10kH-T1 ASW12kH-T1 Cable ≥5mm copper cable ≥ 6mm copper cable ≥10 mm... -
Page 21: Pv Connection
Select PV modules with excellent function and reliable quality. Open-circuit voltage of module arrays connected in series should be <Max. DC input voltage; operating voltage should be conformed to MPPT voltage range. Max.DC Voltage Limitation Type ASW08KH-T1 ASW10KH-T1 ASW12KH-T1 Max. DC Voltage(V) - Page 22 Three phase Hybrid Inverter User Manual electric safety rules when connecting. Please do not make PV positive or negative ground. The following requirements of PV modules need to be applied for each input area. Please do not make PV positive or negative ground! ...
-
Page 23: Backup Load Connection
Remove 10mm of insulation from the end of wire. 2） Step2. Connect the AC connector to the BACKUP port of the inverter with a slotted screwdriver Table 5 Cable and Micro-breaker recommended Model ASW08KH-T1 ASW10KH-T1 ASW12KH-T1 Cable 4-5 mm²... -
Page 24: Battery Connection
6.4.1 Battery breaker Before connecting to battery, please install a nonpolarized DC breaker to make sure inverter can be securely disconnected during maintenance Model ASW08KH-T1 ASW10KH-T1 ASW12KH-T1 Voltage Nominal voltage of DC breaker should be larger than maximum voltage of battery. -
Page 25: Battery Power Cable Connection Steps
Three phase Hybrid Inverter User Manual Definition BMS_CANH BMS_CANL 6.4.4 Battery power cable Connection Steps Step1. Choose the 10mm2 wire and strip the cable to 15mm. Step2. Remove waterproof cover plate. 3） Step3. Disassemble the waterproof connector and pass the cable through the waterproof connector. 4）... -
Page 26: Drm Connection
Three phase Hybrid Inverter User Manual The arrow on the CT points to the power grid, as shown. 6.6 DRM Connection This feature is currently reserved 6.7 Wi-Fi Connection The connection refers to “Wi-Fi stick User Manual” for detail information. WIFI Connection Steps: Step1. -
Page 27: Instructions For Led Indicator
Three phase Hybrid Inverter User Manual If the left indicator is not blue, please check below the three points: All the connections are correct. All the external breakers are switched on. The DC switch on the inverter is in the “ON” position. ... - Page 28 Three phase Hybrid Inverter User Manual Content Codes Solutions DischgOverCur nothing needs to do, wait one minute for the inverter to restart. Check whether the load is in compliance with the specification. Cut off all the power and shut down all the machines; disconnect the load and plug in to restart machines, then check whether the load is short circuited if the fault has been eliminated.
- Page 29 Three phase Hybrid Inverter User Manual Content Codes Solutions SolarUnconect PV is not connected. PV switch is not closed. Check PV availability. Grid CtReverse Check whether the CT is connected in the correct direction. Contact customer service if error warning continues. bus under vol Check the input mode setting is correct.
- Page 30 Three phase Hybrid Inverter User Manual Content Codes Solutions bus soft fail Restart the inverter and wait until it functions normally. inv soft fail Contact customer service if error warning continues. bus short inv short fan fault BusRelayFault GridRlyFault BACKUP rly fault GFCI fault Load CT fault OffgridRlyFal...
-
Page 31: Contact Information
Sales: +36 70 787 0070 Service: +31 20 800 4844 sales.hu@solplanet.net service.eu@solplanet.eu Service: +36 465 00 384 service.hu@solplanet.net SOLPLANET THE NETHERLANDS Sales: +31 202 402 557 SOLPLANET AUSTRALIA sales.nl@solplanet.net Sales: +61 390 988 674 Service: +31 208 004 844 sales.au@solplanet.net service.eu@solplanet.net...
