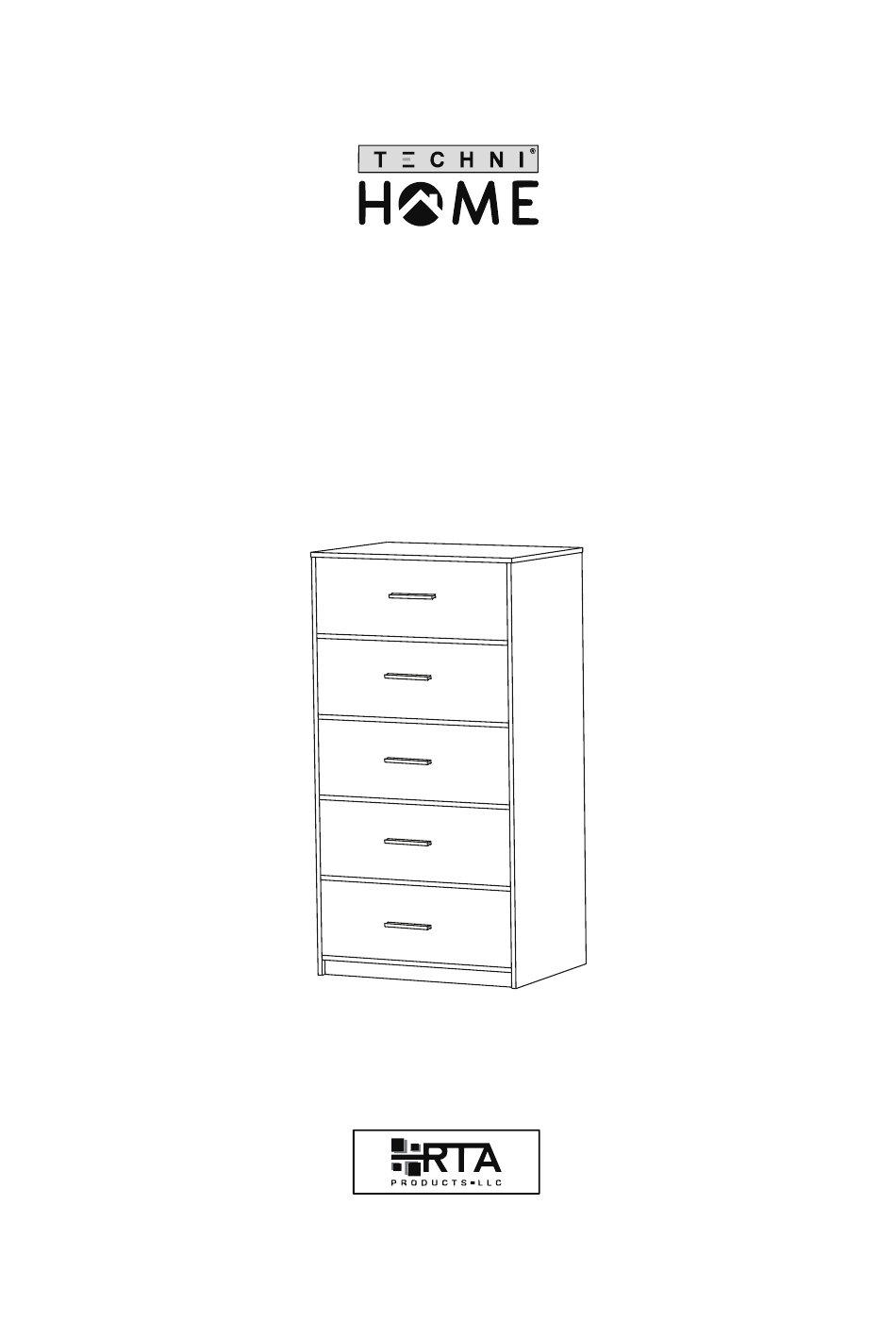

- Page 1 5-DRAWER DRESSER MODEL RTA-DSR05 ASSEMBLY INSTRUCTIONS REV.2-ALL-8395-1124 Thank you for purchasing our product!
-
Page 2: Hardware List
& Replacement Parts within the Customers & AK-HI-PR orders: of all the parts and 48 Contiguous United States: RTA Products will replace the part free of hardware listed below. charge, while the customer is responsible for shipping costs plus any International Please email us at: support@rtaproducts.com... -
Page 3: Assembly Steps
RTA-DSR05 ASSEMBLY STEPS WE RECOMMEND TO PLACE THE PIECES OVER BLANKETS OR TABLECLOTHS TO PROTECT THEIR FINISH DURING ASSEMBLY. STEP 1 This step requires of Use screws #5 to assemble the left 2 persons supports D to the left panel A, and the... - Page 4 RTA-DSR05 STEP 2 This step Attach the bolts #2 into the indicated requires of holes on the side panels A and B. 2 persons Hardware M6x40 Tools (included)
- Page 5 RTA-DSR05 STEP 3 Hardware Attach F to G with dowels #1. Ø8x40mm Tools (included) STEP 4 This step Assemble all the pieces C, F and G to the requires of left panel A by inserting the cam locks #3 2 persons and turn them to lock the pieces.
- Page 6 RTA-DSR05 STEP 5 This step Similarly to step 4, assemble the right side requires of panel B to C, F and G with cam locks #3. 2 persons Hardware Ø15x10mm Tools (included) Insert Then Turn STEP 6 This step FIRST: Attach the bolts requires of #2 to the top panel H.
- Page 7 RTA-DSR05 TIP OVER WARNING! VERY IMPORTANT - PLEASE READ! Children have died from funiture tip over. To reduce the risk of tip over: • Install the anti tipping device that is included with this product. • Follow the instructions on page 7 of this manual for installing the anti tipping device and have the unit secure to the wall.
- Page 8 RTA-DSR05 STEP 7 This step DO NOT SKIP THE INSTALLATION requires of 2 persons OF THE ANTI TIPPING DEVICE! Hardware M4x25mm FIRST: On the back of the unit, attach the cross bars I to the Safety Strip side panels A and B with screws #4, with the Safety Strips #8 also installed AT THE TOP AND UNDER the cross bars.
- Page 9 RTA-DSR05 STEP 8 Hardware FIRST: Unfold the drawers J and place the bottoms K into each of them. Sets Handle with 2 screws Tools (included) (x5) (x5) (x5) THEN: Attach the handles #6 to the drawers with their own screws #6.
-
Page 10: Care And Maintenance
RTA-DSR05 WARNINGS Not paying attention to the following warnings could result in injuries. Children have died from funiture tip over. To reduce the risk of tip over: • Make sure you have installed the anti tipping device that has been included with this product.
