Summary of Contents for RTA NAUTICA TECHNI HOME RTA-508DT

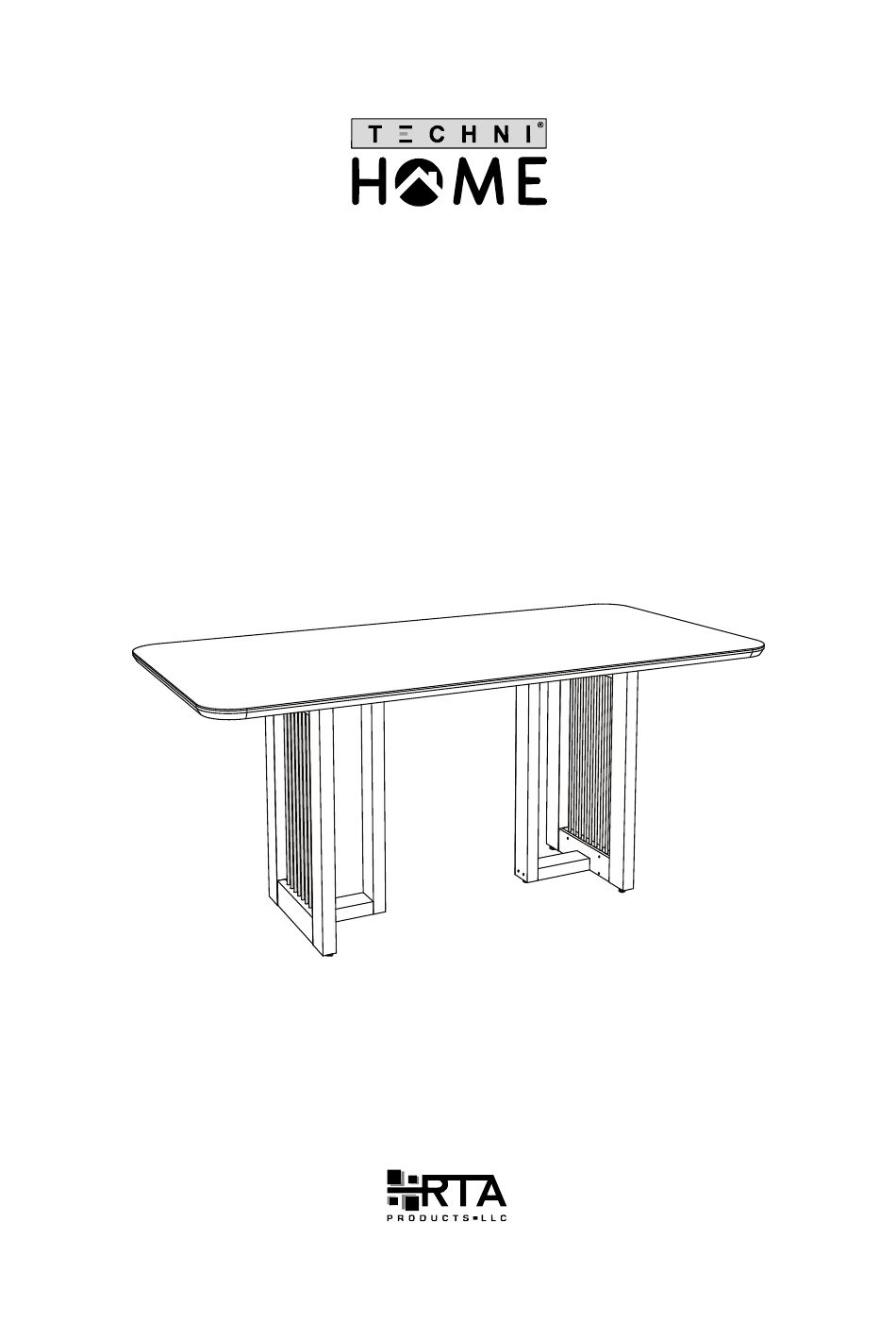

- Page 1 NAUTICA DINING TABLE MODEL RTA-508DT ASSEMBLY INSTRUCTIONS REV.HEN-1-8265-1024 Thank you for purchasing our product...
-
Page 2: Main Parts List
Customers & AK-HI-PR orders: of all the parts and & Replacement Parts within the 48 Contiguous United States: RTA Products will replace the part free of hardware listed below. charge, while the customer is responsible for shipping costs plus any International Please email us at: support@rtaproducts.com... -
Page 3: Main Parts Layout
RTA-508DT HARDWARE LIST MAIN PARTS LAYOUT (For reference) ITEM PART QTY SIZE / DESCRIPTION 5x80mm mm 10 20 30 40 50 60 70 80 3.5x40mm 10 20 30 40 50 60 4x25mm 10 20 30 40 50 60 4x14mm 10 20 30 40 50 60 Ø8x60mm... -
Page 4: Assembly Steps
RTA-508DT ASSEMBLY STEPS WE RECOMMEND TO PLACE THE PIECES OVER BLANKETS OR TABLECLOTHS TO PROTECT THEIR FINISH DURING ASSEMBLY. STEP 1 FIRST: Install the dowels E on Hardware LONG DOWELS! each of the supports #3 and #4. Ø8x60mm 22.6" Tubes... - Page 5 RTA-508DT STEP 3 Hardware FIRST: With the legs #5 still oriented as before (very important!), attach the glides I to the tee nuts J. 4x14mm Metal plates Glides Glue Tools (Not included) THEN: Assemble the first two (2) legs to one of the frames #3-#4, and the other two (2) to the other frame as shown.
- Page 6 RTA-508DT STEP 4 FIRST: For each of the legs #1, Hardware insert the tee nuts J at the bottom. 5x80mm Insert nuts (Top) (Bottom) Tee nuts Glides THEN: Attach the Glue glides I to the nuts J. Tools (Not included)
- Page 7 RTA-508DT STEP 5 This step FIRST: Assemble one of the top cross bars #6 requires of between the top supports #4 with screws A. 2 persons Hardware 5x80mm Insert nuts Glue Tools (Not included) THEN: Assemble the supports #2 (on the legs #1) to the supports #3 with screws A.
- Page 8 RTA-508DT STEP 6 Hardware FIRST: Assemble the other top cross bar #6 between the top supports #4 with screws A. 5x80mm 4x25mm Insert nuts Tools (Not included) THEN: Align the legs #1 to the holes on #6, so the line mark at the top of #1 coincide with the holes on #6, and secure using screws C.
- Page 9 RTA-508DT STEP 7 Hardware SHORT DOWELS! FIRST: Attach dowels F to the legs #5 on the OUTERMOST holes. 3.5x40mm Ø8x25mm Glue Tools (Not included) THEN: Assemble #7 to the legs #1 and #5 with screws B. PAY ATTENTION TO THE...
- Page 10 RTA-508DT STEP 8 Hardware FIRST: Carefully place the wooden This step tabletop #8 over the support panels # 7. requires of 2 persons Hardware 4x25mm Tools (Not included) THEN Secure the tabletop with screws C from underneath.
- Page 11 RTA-508DT P.10 P.10 STEP 9 This step FIRST: Attach the silicone bumpers L to the requires of tabletop #8. Below are the recommended 2 persons Hardware positions and distances from the side edges. Kits 2 8 " Bumpers 2 4 "...
-
Page 12: Care And Maintenance
RTA-508DT P.11 P.11 WARNINGS Not paying attention to the following warnings could result in injuries. WEIGHT LIMIT - DO NOT EXCEED (40 Kg) Do not sit, climb or stand on the table. ABOUT THE TEMPERED GLASS REGULAR GLASS TEMPERED GLASS The top is made of Safety Tempered Glass, which is safer than regular glass.
