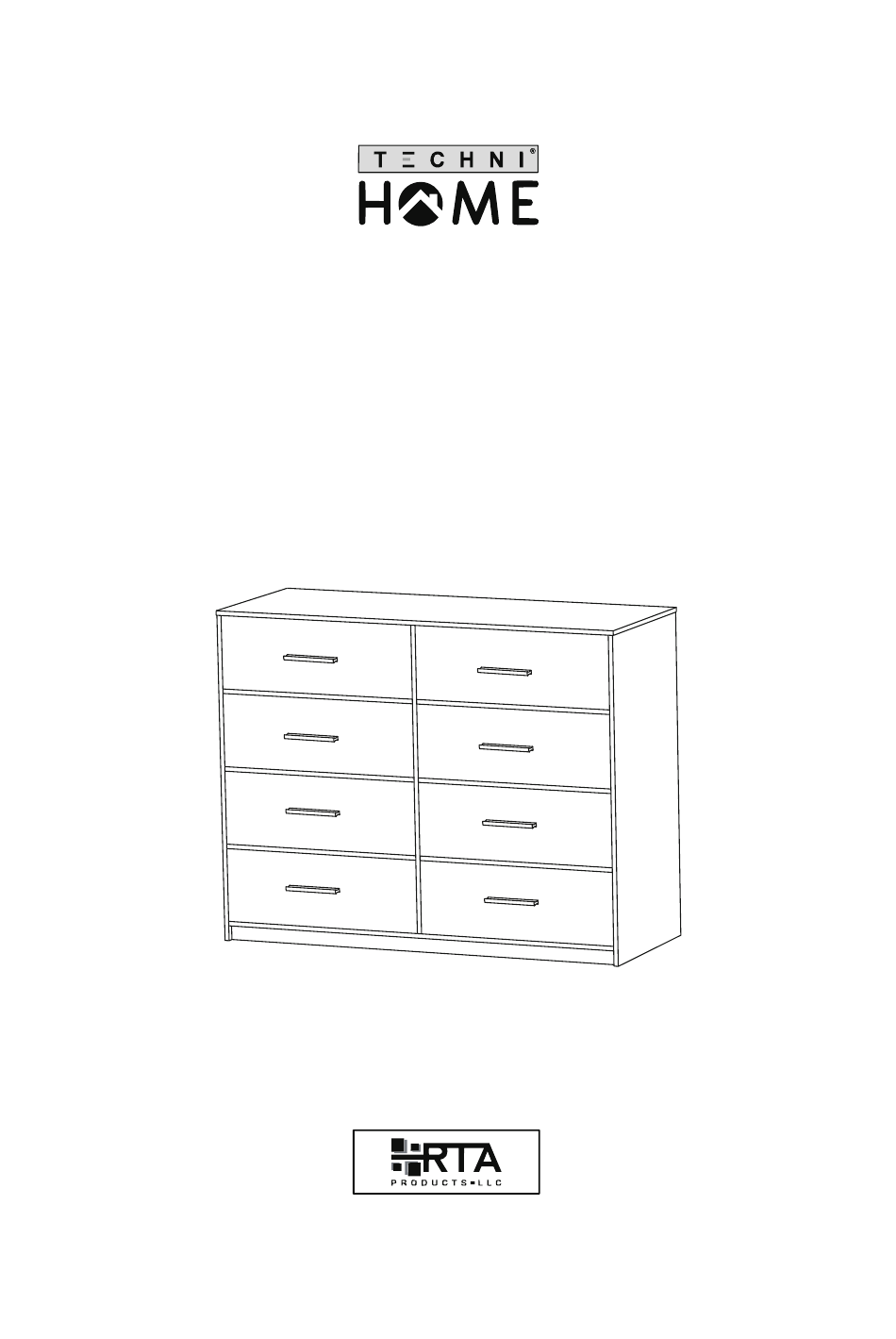

- Page 1 8-DRAWER DRESSER MODEL RTA-DSR08 ASSEMBLY INSTRUCTIONS REV.2-ALL-8395-1124 Thank you for purchasing our product!
-
Page 2: Hardware List
Do a quick inventory Customers & AK-HI-PR orders: of all the parts and & Replacement Parts within the RTA Products will replace the part free of hardware listed below. 48 Contiguous United States: charge, while the customer is responsible Please email us at: for shipping costs plus any International support@rtaproducts.com... -
Page 3: Assembly Steps
RTA-DSR08 ASSEMBLY STEPS WE RECOMMEND TO PLACE THE PIECES OVER BLANKETS OR TABLECLOTHS TO PROTECT THEIR FINISH DURING ASSEMBLY. STEP 1 Assemble F to the bottom of C with screws #1. Hardware ( F r o n t ) M7x40mm... - Page 4 RTA-DSR08 STEP 4 Hardware Assemble E to C on each side with screws #4 and nuts #5. The screw goes through E on one side of C, and M6x63 through another E on the other side, and screws into #5.
- Page 5 RTA-DSR06 STEP 6 Hardware First: Assemble H to A and I to B with screws #9 as shown. M6x40 M6x25 Tools (included) (Top) (Top) (Front) (Front) (Back) (Back) H goes on A I goes on B (Bottom) (Bottom) THEN: Attach bolts #2...
- Page 6 RTA-DSR08 STEP 7 This step FIRST: Use cam locks #3 to assemble to requires of D, J and K the panel A on the LEFT side, 2 persons and B on the RIGHT side as shown. Hardware ( B a c Ø6x40mm...
- Page 7 RTA-DSR08 TIP OVER WARNING! VERY IMPORTANT - PLEASE READ! Children have died from funiture tip over. To reduce the risk of tip over: • Install the anti tipping device that is included with this product. • Follow the instructions on page 7 of this manual for installing the anti tipping device and have the unit secured to the wall.
- Page 8 RTA-DSR08 STEP 9 This step DO NOT SKIP THE INSTALLATION requires of 2 persons OF THE ANTI TIPPING DEVICE! Hardware M4x25mm FIRST: On the back of the unit, attach the cross bars M to the Safety Strip panels A, B and C with screws #8, with the Safety Strips #13 also installed AT THE TOP AND UNDER the cross bars on A and B.
- Page 9 RTA-DSR08 STEP 10 Hardware FIRST: Unfold the drawers N and place the bottoms O into each of them. Sets Handle with 2 screws Tools (included) (x8) (x8) (x8) THEN: Attach the handles #10 to the drawers with their own screws #10.
-
Page 10: Care And Maintenance
RTA-DSR08 WARNINGS Not paying attention to the following warnings could result in injuries. Children have died from funiture tip over. To reduce the risk of tip over: • Make sure you have installed the anti tipping device that has been included with this product.
