Delphi dns series non-isolated point of load dc/dc power modules

Table of Contents

ELECTRICAL CHARACTERISTICS CURVES

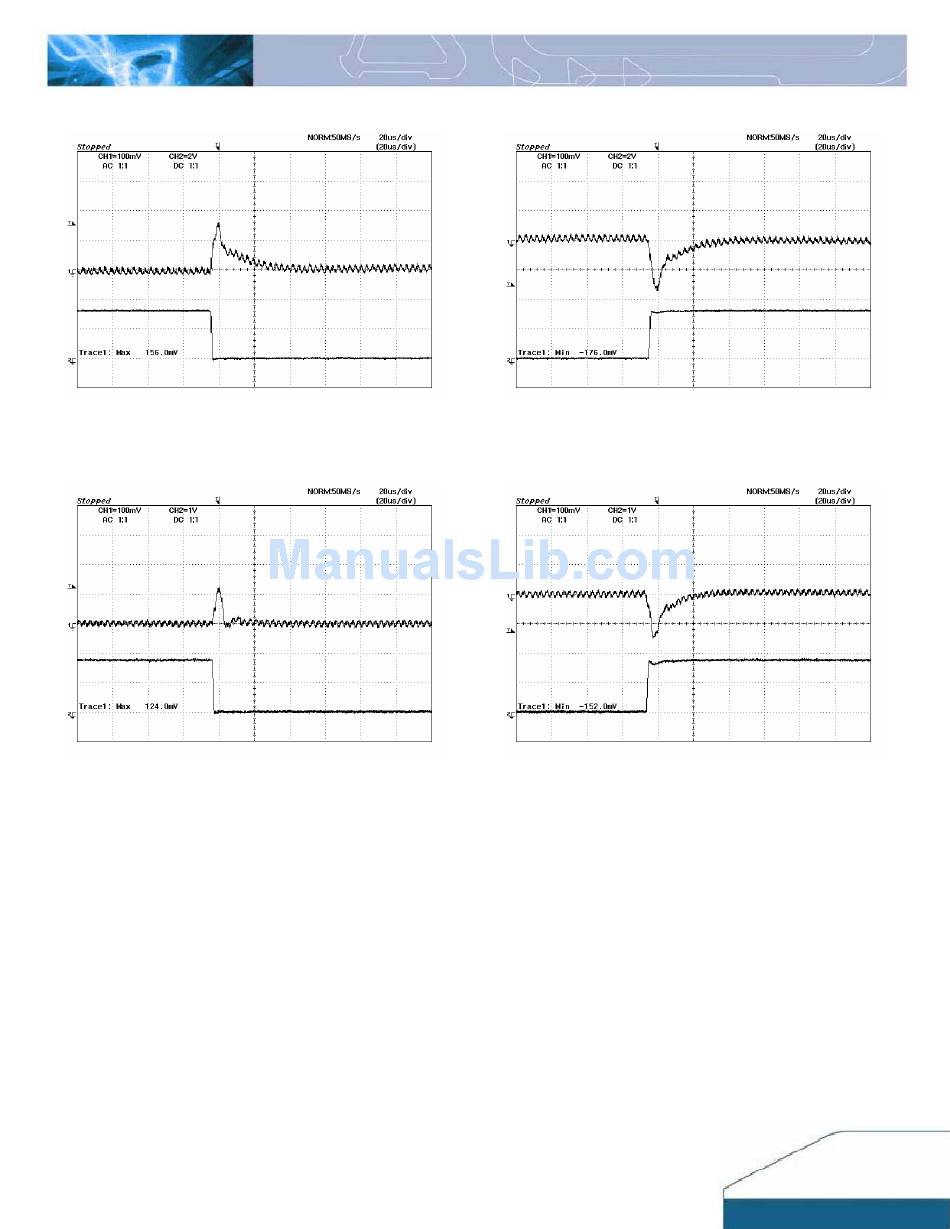

Figure 19: Typical transient response to step load change at

2.5A/μS from 100% to 50% of Io, max at 5Vin, 3.3Vout

(Cout = 1uF ceramic, 10μF tantalum)

Figure 21: Typical transient response to step load change at

2.5A/μS from 100% to 50% of Io, max at 5Vin, 1.8Vout

(Cout =1uF ceramic, 10μF tantalum)

DS_DNS04SIP06A_07172008

Figure 20: Typical transient response to step load change at

2.5A/μS from 50% to 100% of Io, max at 5Vin, 3.3Vout

(Cout =1uF ceramic, 10μF tantalum)

Figure 22: Typical transient response to step load change at

2.5A/μS from 50% to 100% of Io, max at 5Vin, 1.8Vout

(Cout = 1uF ceramic, 10μF tantalum)
