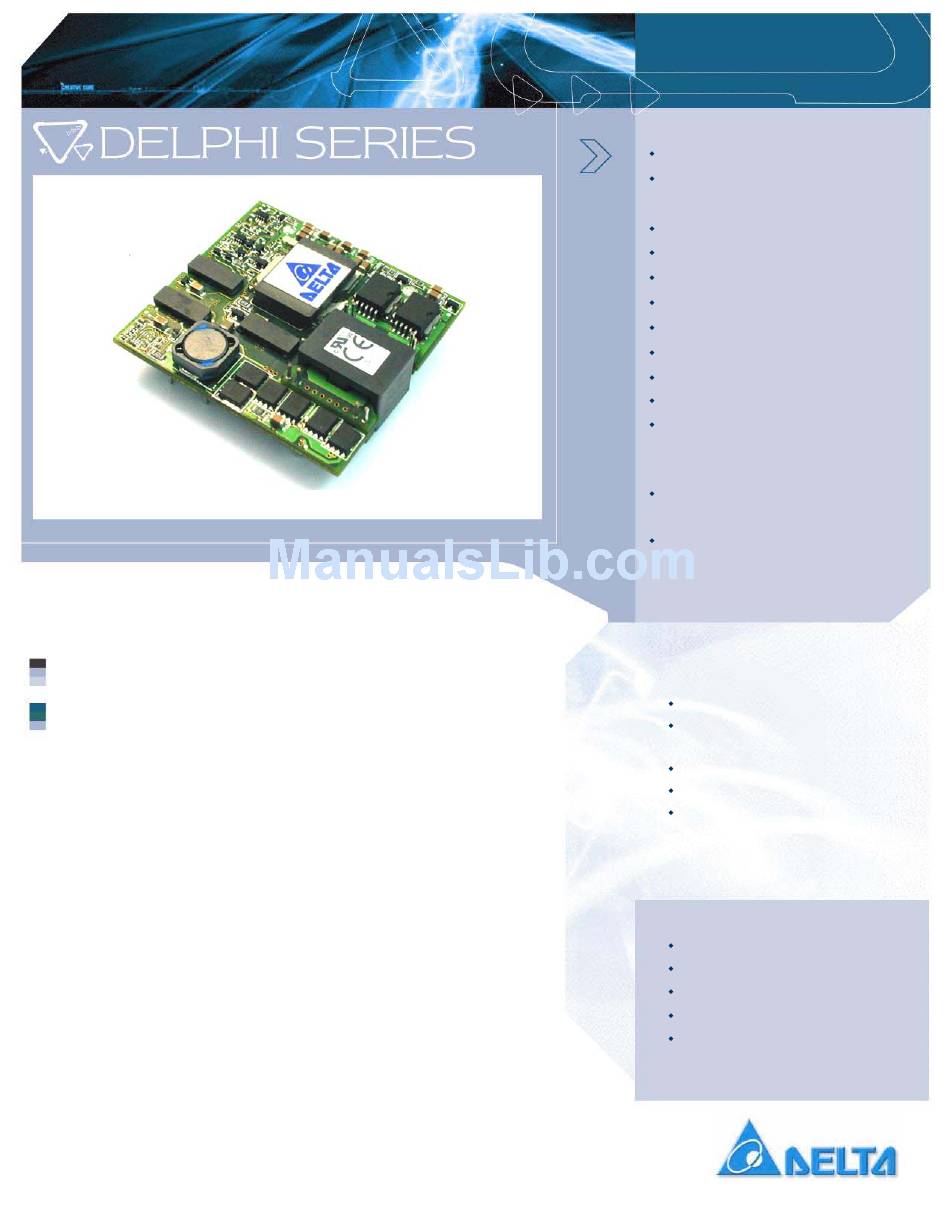

Delphi Series H48SR, 200W Half Brick Family
DC/DC Power Modules: 48V in, 1.8V/80A out
The Delphi Series H48SR Half Brick, 48V input, adjustable single
output, isolated, open frame DC/DC converters are the latest offering
from a world leader in power systems technology and manufacturing —
Delta Electronics, Inc. This product family provides up to 200 watts of
power or up to 80A of output current in an industry standard footprint.
This product represents the next generation of design technology which
may be utilized to provide high levels of current at very low output
voltages required by today's leading-edge circuitry. Utilizing an
advanced patented thermal and electrical design technology, the Delphi
Series H48SR converters are capable of providing much higher output
current capability with excellent transient response and lower common
mode noise. Featuring a wide operating output voltage range and high
current at low output voltages, these units offer more useable power
over a wide range of ambient operating conditions. The wide range
trimmable output feature allows the user to both reduce and
standardize part numbers across different and/or migrating voltage
requirements.
DATASHEET
DS_H48SR1R880_06272006
FEATURES
1
High Efficiency 89% @ 1.8V/80A
Standard footprint: 58.4 x 61.0 x 11.7mm
(2.30" x2.40" x0.46")
Industry standard pin out
Startup into pre-biased load
Fixed frequency operation
Fully protected: OTP, OVP, OCP, UVLO
No minimum load required
Wide output trim range
Fast transient response
Basic insulation
ISO 9001, TL 9000, ISO 14001, QS9000,
OHSAS18001 certified manufacturing
facility
UL/cUL 60950 (US & Canada)
Recognized, and TUV (EN60950) Certified
CE mark meets 73/23/EEC and
93/68/EEC directives
OPTIONS
Short lead lengths
Latching/non-latching over voltage
protection
Positive/negative trim
Positive/negative remote on/off
100V/100ms transient capability or
80V input OVLO
APPLICATIONS
Telecom/DataCom
Wireless Networks
Optical Network Equipment
Server and Data Storage
Industrial/Test Equipment
Delta Electronics, Inc.
Advertisement
Table of Contents
Related Manuals for Delta Electronics Delphi H48SR
Summary of Contents for Delta Electronics Delphi H48SR
- Page 1 DC/DC converters are the latest offering from a world leader in power systems technology and manufacturing — Delta Electronics, Inc. This product family provides up to 200 watts of power or up to 80A of output current in an industry standard footprint.
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS =25°C, airflow rate=300 LFM, V PARAMETER ABSOLUTE MAXIMUM RATINGS Input Voltage Continuous Transient (100ms) Operating Device Temperature Storage Temperature Input/Output Isolation Voltage INPUT CHARACTERISTICS Operating Input Voltage Input Under-Voltage Lockout Turn-On Voltage Threshold Turn-Off Voltage Threshold Lockout Hysteresis Voltage Maximum Input Current No-Load Input Current Off Converter Input Current... - Page 3 ELECTRICAL CHARACTERISTICS CURVES 36Vin Figure 1: Efficiency vs. load current for minimum, nominal, and maximum input voltage at 25°C. (Vout=1.8V) 36Vin Figure 3: Efficiency vs. load current for minimum, nominal, and maximum input voltage at 25°C. (Vout=0.8V) DS_H48SR1R880_06272006 24.0 48Vin 75Vin 20.0 16.0...
- Page 4 ELECTRICAL CHARACTERISTICS CURVES 36Vin Figure 5: Efficiency vs. output voltage for minimum, nominal, and maximum input voltage at 25°C. (Iout=80A) Io=80A Figure 7: Typical input characteristics at room temperature DS_H48SR1R880_06272006 48Vin 75Vin OUTPUT VOLTAGE (V) Figure 6: Power dissipation vs. output voltage for minimum, nominal, and maximum input voltage at 25°C.
- Page 5 ELECTRICAL CHARACTERISTICS CURVES Figure 9: Turn-on transient at zero load current (2 ms/div). Top Trace: Vout: 1V/div; Bottom Trace: ON/OFF input: 2V/div Figure 11: Output voltage response to step-change in load current (75%-50%-75% of Io, max: di/dt = 2.5A/µs). Load Ω...
- Page 6 ELECTRICAL CHARACTERISTICS CURVES Figure 13: Input Terminal Ripple Current, i output current and nominal input voltage with 12µH source impedance and 33µF electrolytic capacitor (500 mA/div). Copper Strip Vo(+) Vo(-) Figure 15: Output voltage noise and ripple measurement test setup Vin=48V Figure 17: Output voltage vs.
-
Page 7: Thermal Curves
THERMAL CURVES Figure 18: Hot spot location (unit in mm) H48SR1R880(Standard) Output Current vs. Ambient Temperature and Air Velocity @ Output Voltage 1.8V (Either Orientation) Output Current(A) Natural Convection 100LFM 200LFM Figure 20: Output current vs. ambient temperature and air velocity (Vin=48V / 75V, V =1.8V ) DS_H48SR1R880_06272006... -
Page 8: Design Considerations
DESIGN CONSIDERATIONS Input Source Impedance The impedance of the input source connecting to the DC/DC power modules will interact with the modules and affect the stability. A low ac-impedance input source is recommended. If the source inductance is more than a few µH, we advise adding a 10 to 100 µF electrolytic capacitor (ESR <... -
Page 9: Features Descriptions
FEATURES DESCRIPTIONS Over-Current Protection The modules include an internal output over-current protection circuit, which will endure current limiting for an unlimited duration during output overload. If the output current exceeds the OCP set point, the modules will automatically shut down (hiccup mode). The modules will try to restart after shutdown. - Page 10 FEATURES DESCRIPTIONS (CON.) Output Voltage Adjustment (TRIM) To increase or decrease the output voltage set point, the modules may be connected with an external resistor between the TRIM pin and either the SENSE(+) or SENSE(-). The TRIM pin should be left open if this feature is not used.
-
Page 11: Thermal Considerations
THERMAL CONSIDERATIONS Thermal management is an important part of the system design. To ensure proper, reliable operation, sufficient cooling of the power module is needed over the entire temperature range of the module. Convection cooling is usually the dominant mode of heat transfer. Hence, the choice of equipment to characterize the thermal performance of the power module is a wind tunnel. -
Page 12: Mechanical Drawing
MECHANICAL DRAWING Pin No. Name -Vin ON/OFF +Vin +Vout +SENSE TRIM -SENSE -Vout Notes: Pins 1-3, 5-7 are 1.00mm (0.039”) diameter Pins 4 and 8 are 2.00mm (0.079”) diameter All pins are copper with Tin plating. DS_H48SR1R880_06272006 Function Negative input voltage Remote ON/OFF Positive input voltage Positive output voltage... -
Page 13: Part Numbering System
PART NUMBERING SYSTEM Form Input Number of Factor Voltage Outputs H- Half Brick S- Single 36V~75V MODEL LIST Part Number H48SR1R860NRFA H48SR1R880NRFA H48SR3R360NRFA Please contact us for modules with fixed output voltages. CONTACT: www.delta.com.tw/dcdc USA: Telephone: East Coast: (888) 335 8201 West Coast: (888) 335 8208 Fax: (978) 656 3964 Email:...
