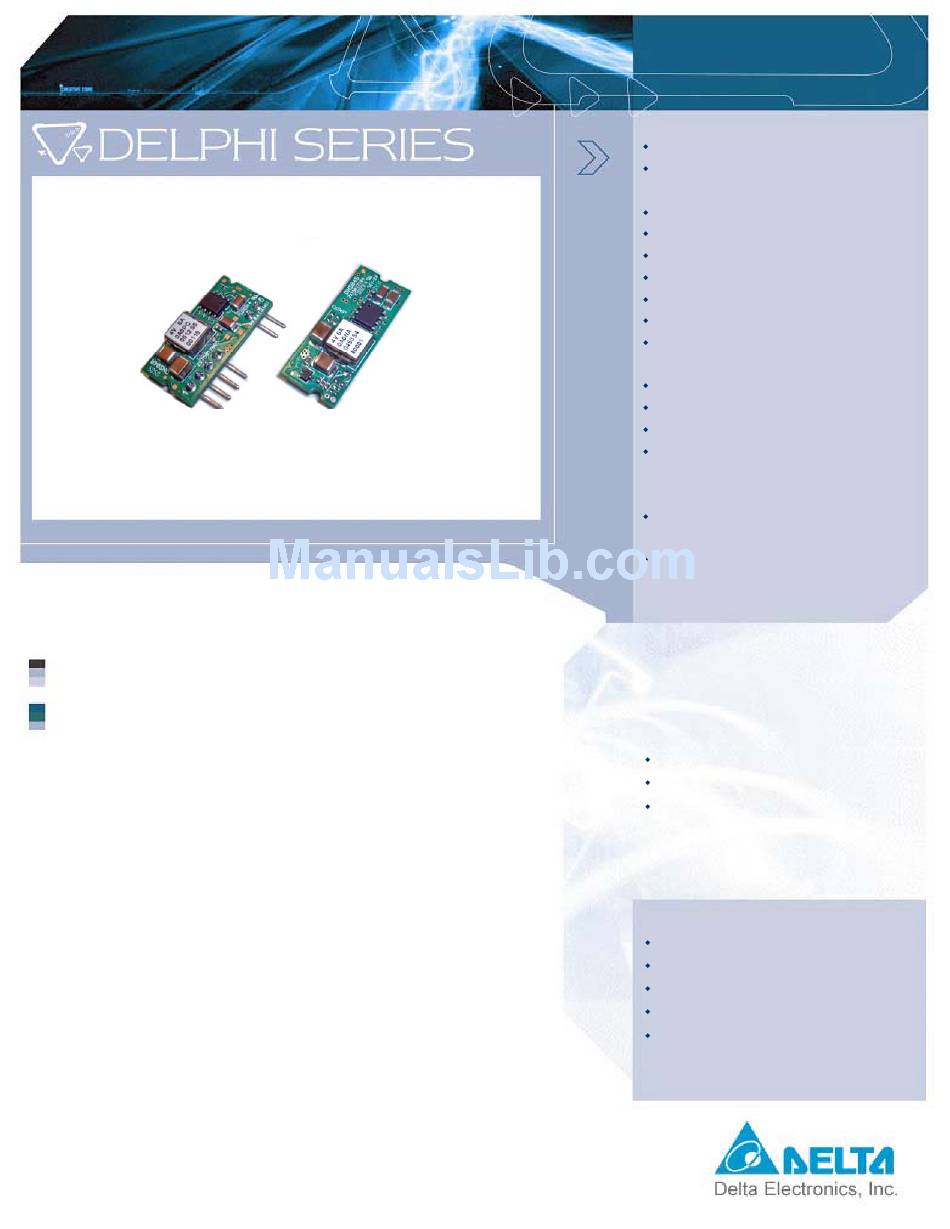

Delphi DNS, Non-Isolated Point of Load
DC/DC Power Modules: 2.8-5.5Vin, 0.75-3.3V/6Aout
The Delphi Series DNS, 2.8-5.5V input, single output, non-isolated
Point of Load DC/DC converters are the latest offering from a world
leader in power systems technology and manufacturing -- Delta
Electronics, Inc. The DNS series provides a programmable output
voltage from 0.75V to 3.3V using an external resistor and has flexible
and programmable tracking features to enable a variety of startup
voltages as well as tracking between power modules. This product
family is available in surface mount or SIP packages and provides up
to 6A of output current in an industry standard footprint. With creative
design technology and optimization of component placement, these
converters possess outstanding electrical and thermal performance,
as well as extremely high reliability under highly stressful operating
conditions.
DATASHEET
DS_DNS04SIP06_07172008D
FEATURES
High efficiency: 94% @ 5.0Vin, 3.3V/6A out
Small size and low profile: (SIP)
25.4 x 12.7 x 6.7mm (1.00"x 0.50"x 0.26")
Single-In-Line (SIP) packaging
Standard footprint
Voltage and resistor-based trim
Pre-bias startup
Output voltage tracking
No minimum load required
Output voltage programmable from
0.75Vdc to 3.3Vdc via external resistor
Fixed frequency operation
Input UVLO, output OTP, OCP
Remote on/off
ISO 9001, TL 9000, ISO 14001, QS9000,
OHSAS18001 certified manufacturing
facility
UL/cUL 60950 (US & Canada) Recognized,
and TUV (EN60950) Certified
CE mark meets 73/23/EEC and 93/68/EEC
directives
OPTIONS
Negative on/off logic
Tracking feature
SIP package
APPLICATIONS
Telecom / DataCom
Distributed power architectures
Servers and workstations
LAN / WAN applications
Data processing applications
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Delta Electronics Delphi Series DNS
Summary of Contents for Delta Electronics Delphi Series DNS
- Page 1 Delphi DNS, Non-Isolated Point of Load DC/DC Power Modules: 2.8-5.5Vin, 0.75-3.3V/6Aout The Delphi Series DNS, 2.8-5.5V input, single output, non-isolated Point of Load DC/DC converters are the latest offering from a world leader in power systems technology and manufacturing -- Delta Electronics, Inc.
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS = 25°C, airflow rate = 300 LFM, V = 2.8Vdc and 5.5Vdc, nominal Vout unless otherwise noted.) PARAMETER ABSOLUTE MAXIMUM RATINGS Input Voltage (Continuous) Tracking Voltage Operating Temperature Storage Temperature INPUT CHARACTERISTICS Operating Input Voltage Input Under-Voltage Lockout Turn-On Voltage Threshold Turn-Off Voltage Threshold Maximum Input Current... - Page 3 ELECTRICAL CHARACTERISTICS CURVES LOAD (A) Figure 1: Converter efficiency vs. output current (3.3V out) LOAD (A) Figure 3: Converter efficiency vs. output current (1.8V out) LOAD (A) Figure 5: Converter efficiency vs. output current (1.2V out) DS_DNS04SIP06A_07172008 4.5V 5.5V Figure 2: Converter efficiency vs. output current (2.5V out) 2.8V 5.5V Figure 4: Converter efficiency vs.
- Page 4 ELECTRICAL CHARACTERISTICS CURVES (CON.) Figure 7: Output ripple & noise at 3.3Vin, 2.5V/6A out Figure 9: Output ripple & noise at 5Vin, 3.3V/6A out Figure 11: Turn on delay time at 3.3Vin, 2.5V/6A out DS_DNS04SIP06A_07172008 Figure 8: Output ripple & noise at 3.3Vin, 1.8V/6A out Figure 10: Output ripple &...
- Page 5 ELECTRICAL CHARACTERISTICS CURVES (CON.) Figure 13: Turn on delay time at 5Vin, 3.3V/6A out Figure 15: Turn on delay time at remote turn on 5Vin, 3.3V/16A Figure 17: Turn on delay time at remote turn on with external capacitors (Co= 5000 µF) 5Vin, 3.3V/16A out DS_DNS04SIP06A_07172008 Figure 14: Turn on delay time at 5Vin, 1.8V/6A out Figure 16: Turn on delay time at remote turn on 3.3Vin, 2.5V/16A...
- Page 6 ELECTRICAL CHARACTERISTICS CURVES Figure 19: Typical transient response to step load change at 2.5A/μS from 100% to 50% of Io, max at 5Vin, 3.3Vout (Cout = 1uF ceramic, 10μF tantalum) Figure 21: Typical transient response to step load change at 2.5A/μS from 100% to 50% of Io, max at 5Vin, 1.8Vout (Cout =1uF ceramic, 10μF tantalum) DS_DNS04SIP06A_07172008...
- Page 7 ELECTRICAL CHARACTERISTICS CURVES (CON.) Figure 23: Typical transient response to step load change at 2.5A/μS from 100% to 50% of Io, max at 3.3Vin, 2.5Vout (Cout =1uF ceramic, 10μF tantalum) Figure 25: Typical transient response to step load change at 2.5A/μS from 100% to 50% of Io, max at 3.3Vin, 1.8Vout (Cout =1uF ceramic, 10μF tantalum) Figure 27: Output short circuit current 5Vin, 0.75Vout...
-
Page 8: Test Configurations
TEST CONFIGURATIONS TO OSCILLOSCOPE 100uF BATTERY Tantalum Note: Input reflected-ripple current is measured with a simulated source inductance. Current is measured at the input of the module. Figure 29: Input reflected-ripple test setup COPPER STRIP 10uF SCOPE tantalum ceramic Note: Use a 10μF tantalum and 1μF capacitor. Scope measurement should be made using a BNC connector. -
Page 9: Features Descriptions
DESIGN CONSIDERATIONS (CON.) The power module should be connected to a low ac-impedance input source. Highly inductive source impedances can affect the stability of the module. An input capacitance must be placed close to the modules input pins to filter ripple current and ensure module stability in the presence of inductive traces that supply the input voltage to the module. -
Page 10: Over Temperature Protection
FEATURES DESCRIPTIONS (CON.) Over-Temperature Protection The over-temperature protection consists of circuitry that provides protection from thermal damage. If the temperature exceeds the over-temperature threshold the module will shut down. The module will try to restart after shutdown. If the over-temperature condition still exists during restart, the module will shut down again. - Page 11 FEATURE DESCRIPTIONS (CON.) The amount of power delivered by the module is the voltage at the output terminals multiplied by the output current. When using the trim feature, the output voltage of the module can be increased, which at the same output current would increase the power output of the module.
- Page 12 On/Off Simultaneous Simultaneous tracking (Figure 41) is implemented by using the TRACK pin. The objective is to minimize the voltage difference between the power supply outputs during power up and down. The simultaneous tracking can be accomplished by connecting Vo to the TRACK pin of PS2.
-
Page 13: Thermal Considerations
THERMAL CONSIDERATIONS Thermal management is an important part of the system design. To ensure proper, reliable operation, sufficient cooling of the power module is needed over the entire temperature range of the module. Convection cooling is usually the dominant mode of heat transfer. Hence, the choice of equipment to characterize the thermal performance of the power module is a wind tunnel. - Page 14 DNS04S0A0R06(Standard) Output Current vs. Ambient Temperature and Air Velocity Output Current(A) @ Vin = 5.0V, Vo = 0.75V (Either Orientation) Natural Convection Figure 47: DNS04S0A0R06 (Standard) Output current vs. ambient temperature and air velocity@Vin=5V, Vo=0.75V (Either Orientation) DNS04S0A0R06(Standard) Output Current vs. Ambient Temperature and Air Velocity Output Current(A) @ Vin = 3.3V, Vo = 2.5V (Either Orientation) Natural...
-
Page 15: Mechanical Drawing
MECHANICAL DRAWING SMD PACKAGE (OPTIONAL) SIP PACKAGE DS_DNS04SIP06A_07172008... -
Page 16: Part Numbering System
PART NUMBERING SYSTEM Product Numbers of Input Voltage Series Outputs DNS - 6A 04 - 2.8~5.5V S - Single DNM - 10A 10 –8.3~14V DNL - 16A MODEL LIST Model Name Packaging DNS04S0A0S06NFD DNS04S0A0S06PFD DNS04S0A0R06NFD DNS04S0A0R06PFD CONTACT: www.delta.com.tw/dcdc USA: Telephone: East Coast: (888) 335 8201 West Coast: (888) 335 8208 Fax: (978) 656 3964...
