Uplus Lighting IN1000 STROBE User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
IN1000 STROBE
Please read the instructions carefully before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IN1000 STROBE and is the answer not in the manual?

Questions and answers

Related Manuals for Uplus Lighting IN1000 STROBE

Summary of Contents for Uplus Lighting IN1000 STROBE

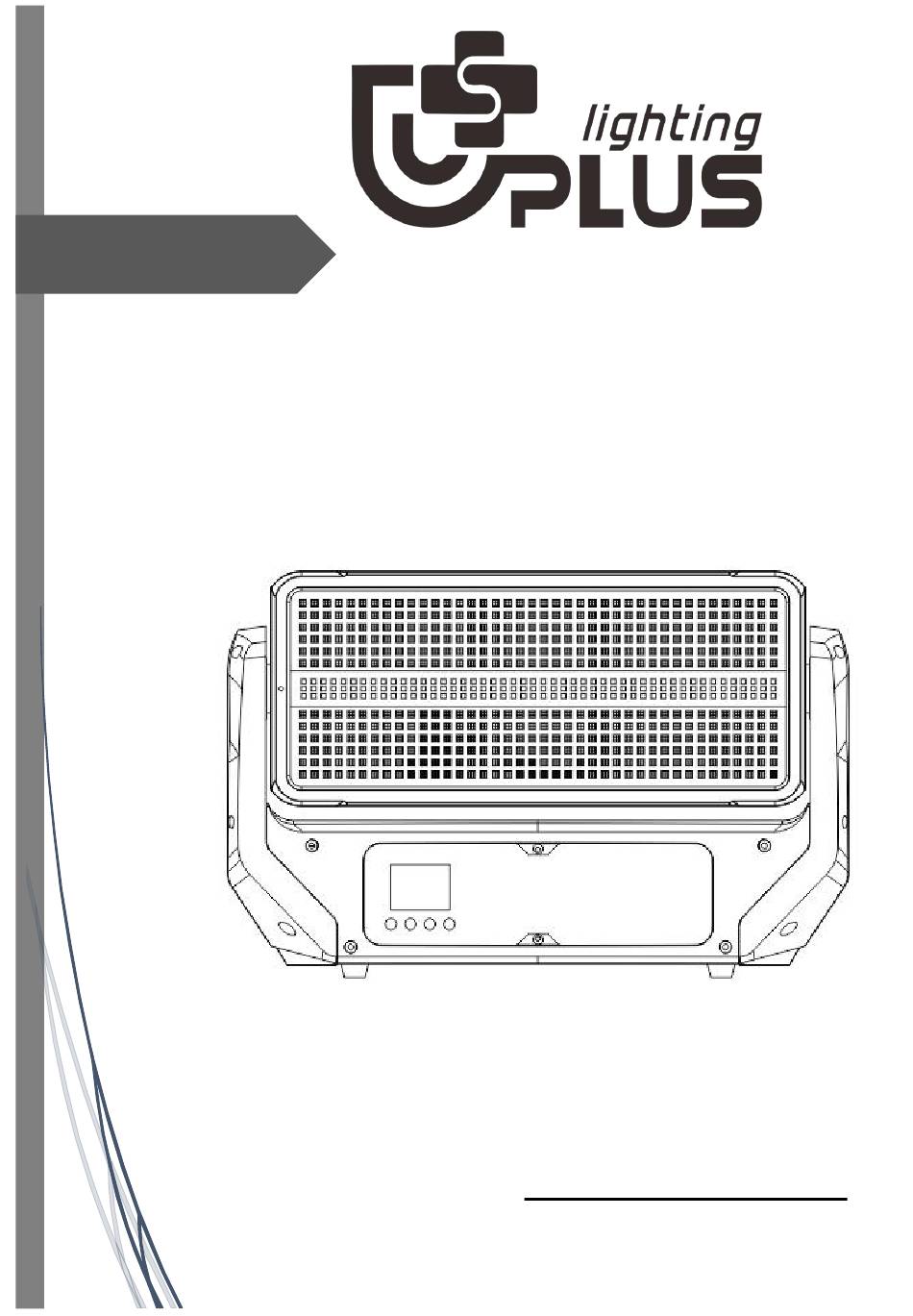

  • Page 1 User manual IN1000 STROBE Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 Technical Specifications………………………………………………………………………4-5 Control Menu ……………………………………………………………………………………5-6 DMX Channels 14CH …………………………………………………………………… ……6-8 DMX Channels 23CH …………………………………………………………………… ……8-10 DMX Channels 68CH …………………………………………………………………… ……10-13 DMX Channels 62CH …………………………………………………………………… ……13-15 DMX Channels 17CH …………………………………………………………………… ……16-17 DMX Channels 11CH …………………………………………………………………… ……18-19 DMX Channels 20CH ……………………………………………………………………...

  • Page 3: Safety Instructions

    STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction & problem owing to ignore the manual.

  • Page 4: Technical Specifications

    contact the nearest authorized technical assistance center. Always use the same type spare parts. •DO NOT touch any wire during operation as high voltage might be causing electric shock. Warning: •To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. •The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

  • Page 5: Control Menu

    Protocol: DMX-512, RDM RDM: Bidirectional communication Cooling: Temperature controlled, overheating protection Effects Dimmer: 0-100% electronic Shutter: electronic, max. 20 Hz Internal Effects: LED Macro Effects Connectors Signal connection: XLR 5-Pin & 3-Pin In/Out Power Input: PowerCON In/Out Operating Conditions Mains voltage: 100-240V AC / 50-60Hz Power: 1000W Maximum ambient temperature: -30°C / 86°F, 50°C / 122°F Operating Position: any...

  • Page 6: Dmx Channels 14Ch

    Press "ENTER" to save and Exit, Press "Cancel" does not save and Exit Level 1 Level 2 Description DMX Address 001-512 Set DMX address DMX_CH14 Compressed Pro 14CH DMX_CH23 Normal 23 CH DMX_CH68 SPix 68CH DMX_CH62 SPix Pro 62CH Channel DMX_CH17 1Pix Pro 17CH Mode...
  • Page 7 Beam Dimmer line speed 0-255 Beam Shutter speed and Beam macro speed 0-255 No effect 0-36 mode1 Ramp up (fade on stop) ◢ 37-40 No function 41-44 mode2 Ramp down (stop on fade) ◣ 45-48 No function 49-52 mode3 Ramp up down (fade on fade) ▲ 53-56 No function 57-60...

  • Page 8: Dmx Channels 23Ch

    Beam Macro 27 244-247 Beam Macro 28 248-251 No function 252-255 No function 0-65 Tilt reset on* 66-67 Tilt reset off* 68-69 Special / Control Fan mode = Auto 201-204 Fan mode = High 205-209 No function 210-255 RGB Intensity Intensity 0-100% 0-255 RGB Dimmer line speed...
  • Page 9 No function 57-60 mode4 Random white beam (Flicker a few 61-64 times at random) No function 65-68 mode5 Random 69-72 mode6 up down (stop on stop) ⊥ 73-76 White beam, left to right 77-80 No function 81-84 White beam, right to left 85-88 No function 89-92...

  • Page 10: Dmx Channels 68Ch

    RGB Dimmer line speed RGB Shutter speed No function 0-36 mode1 Ramp up (fade on stop) ◢ 37-40 No function 41-44 mode2 Ramp down (stop on fade) ◣ 45-48 No function 49-52 mode3 Ramp up down (fade on fade) ▲ 53-56 Plate Shutter No function...
  • Page 11 mode4 Random white beam (Flicker a few 61-64 times at random) No function 65-68 mode5 Random 69-72 mode6 up down (stop on stop) ⊥ 73-76 White beam, left to right 77-80 No function 81-84 White beam, right to left 85-88 No function 89-92 Beam Macro 1...
  • Page 12 RGB Shutter speed No function 0-36 mode1 Ramp up (fade on stop) ◢ 37-40 No function 41-44 mode2 Ramp down (stop on fade) ◣ 45-48 No function 49-52 mode3 Ramp up down (fade on fade) ▲ 53-56 Plate Shutter No function 57-60 mode4 Random white beam (Flicker a few 61-64...

  • Page 13: Dmx Channels 62Ch

    Plates Green Plates green intensity 0-100% 0-255 Plates Blue Plates blue intensity 0-100% 0-255 Plates Red Plates red intensity 0-100% 0-255 Plates Green Plates green intensity 0-100% 0-255 Plates Blue Plates blue intensity 0-100% 0-255 Plates Red Plates red intensity 0-100% 0-255 Plates Green Plates green intensity 0-100%...
  • Page 14 mode5 Random 69-72 mode6 up down (stop on stop) ⊥ 73-76 White beam, left to right 77-80 No function 81-84 White beam, right to left 85-88 No function 89-92 Beam Macro 1 93-96 Beam Macro 2 97-100 Beam Macro 3 101-104 Beam Macro 4 105-108...
  • Page 15 mode1 Ramp up (fade on stop) ◢ 37-40 No function 41-44 mode2 Ramp down (stop on fade) ◣ 45-48 No function 49-52 mode3 Ramp up down (fade on fade) ▲ 53-56 No function 57-60 mode4 Random white beam (Flicker a few 61-64 times at random) No function...

  • Page 16: Dmx Channels 17Ch

    Plates Green Plates green intensity 0-100% 0-255 Plates Blue Plates blue intensity 0-100% 0-255 Plates Red Plates red intensity 0-100% 0-255 Plates Green Plates green intensity 0-100% 0-255 Plates Blue Plates blue intensity 0-100% 0-255 Pixel 1 Plates blue intensity 0-100% 0-255 Pixel 2 Plates blue intensity 0-100%...
  • Page 17 Beam Macro 5 109-112 Beam Macro 6 113-116 Beam Macro 7 117-120 Beam Macro 8 121-124 Beam Macro 9 125-128 Beam Macro 10 129-132 No function 133-179 Beam Macro 11 180-183 Beam Macro 12 184-187 Beam Macro 13 188-191 Beam Macro 14 192-195 Beam Macro 15 196-199...

  • Page 18: Dmx Channels 11Ch

    mode6 up down (stop on stop) ⊥ 73-76 No effect 77-255 Plates Red Plates red intensity 0-100% 0-255 Plates Green Plates green intensity 0-100% 0-255 Plates Blue Plates blue intensity 0-100% 0-255 RGB MACRO Speed 0-255 RGB MACRO color 0-255 RGB MACRO dimmer line speed 0-255 Easy 11 CH MODE...

  • Page 19: Dmx Channels 20Ch

    Beam Macro 6 113-116 Beam Macro 7 117-120 Beam Macro 8 121-124 Beam Macro 9 125-128 Beam Macro 10 129-132 No function 133-179 Beam Macro 11 180-183 Beam Macro 12 184-187 Beam Macro 13 188-191 Beam Macro 14 192-195 Beam Macro 15 196-199 Beam Macro 16 200-203...
  • Page 20 mode2 Ramp down (stop on fade) ◣ mode3 Ramp up down (fade on fade) ▲ mode4 Random white beam (Flicker a few times at random) mode5 Random mode6 up down (stop on stop) ⊥ No function 0-90 Beam FX 1 93-96 Beam FX 2 97-100...

  • Page 21: Dmx Channels 104Ch

    mode6 up down (stop on stop) ⊥ 91-100 No effect 101-255 No effect RGB FX 1 6-10 RGB FX 2 11-15 RGB FX 3 16-20 RGB FX 4 21-25 RGB FX 5 26-30 RGB FX 6 31-35 RGB FX 7 36-40 RGB FX 8 41-45...
  • Page 22 LEDS Arrangement 2 221-230 LEDS Arrangement 3 231-240 LEDS Arrangement 4 241-250 No function 251-255 Reserve DMX Channel 104 CH MODE Channel Command range Tilt 0-185° 0-255 Fine Tilt 0-255 Beam Intensity 0-100% 0-255 Intensity Beam Flash duration 7-650 ms 0-255 Duration Beam Rate...
  • Page 23 Beam FX 21 220-223 Beam FX 22 224-227 Beam FX 23 228-231 Beam FX 24 232-235 Beam FX 25 236-239 Beam FX 26 240-243 Beam FX 27 244-247 Beam FX 28 248-251 No function 252-255 Beam Macro Intensity 0-100% 0-255 Speed RGB Intensity 0-255...
  • Page 24 RGB FX 23 116-120 RGB FX 24 121-125 RGB FX 25 126-130 RGB FX 26 131-135 RGB FX 27 136-140 RGB FX 28 141-145 RGB FX 29 146-150 RGB FX 30 151-155 No effect 156-255 RGB Macro 0-255 Speed RGB Macro 0-255 Color Green...
  • Page 25 red intensity 0-100% 0-255 Plates Red Plates red intensity 0-100% 0-255 Plate Plates Background green intensity 0-100% 0-255 Plates green intensity 0-100% 0-255 Green Pixel 5 blue intensity 0-100% 0-255 Plates Blue Plates blue intensity 0-100% 0-255 red intensity 0-100% 0-255 Plates Red Plates red intensity 0-100%...

  • Page 26: Dmx Channels 85Ch

    red intensity 0-104% 0-255 Plates Red Plates red intensity 0-104% 0-255 Plate Plates Background green intensity 0-104% 0-255 Plates green intensity 0-104% 0-255 Green Pixel 16 blue intensity 0-104% 0-255 Plates Blue Plates blue intensity 0-104% 0-255 red intensity 0-105% 0-255 Plates Red Plates red intensity 0-105%...
  • Page 27 Pixel 10 0-255 Pixel 10 Plates blue intensity 0-100% 0-255 Pixel 11 0-255 Pixel 11 Plates blue intensity 0-100% 0-255 Pixel 12 0-255 Pixel 12 Plates blue intensity 0-100% 0-255 DMX Channel 85 CH MODE Channel Command range Tilt 0-185° 0-255 red intensity 0-100% 0-255 Plates Red...
  • Page 28 red intensity 0-101% 0-255 Plates Red Plates red intensity 0-101% 0-255 Plate Background green intensity 0-101% 0-255 Plates Green Plates green intensity 0-101% 0-255 Pixel 13 blue intensity 0-101% 0-255 Plates Blue Plates blue intensity 0-101% 0-255 red intensity 0-102% 0-255 Plates Red Plates red intensity 0-102% 0-255...

  • Page 29: Dimension

    Pixel 10 0-255 Pixel 10 Plates blue intensity 0-100% 0-255 Pixel 11 0-255 Pixel 11 Plates blue intensity 0-100% 0-255 Pixel 12 0-255 Pixel 12 Plates blue intensity 0-100% 0-255 5.Dimension 6.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A.

  • Page 30: Fixture Cleaning

    3. Check the power on LED. B. Not responding to DMX controller 1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly. 2. If the DMX LED is on and no response to the channel, check the address settings and DMX polarity. 3.
