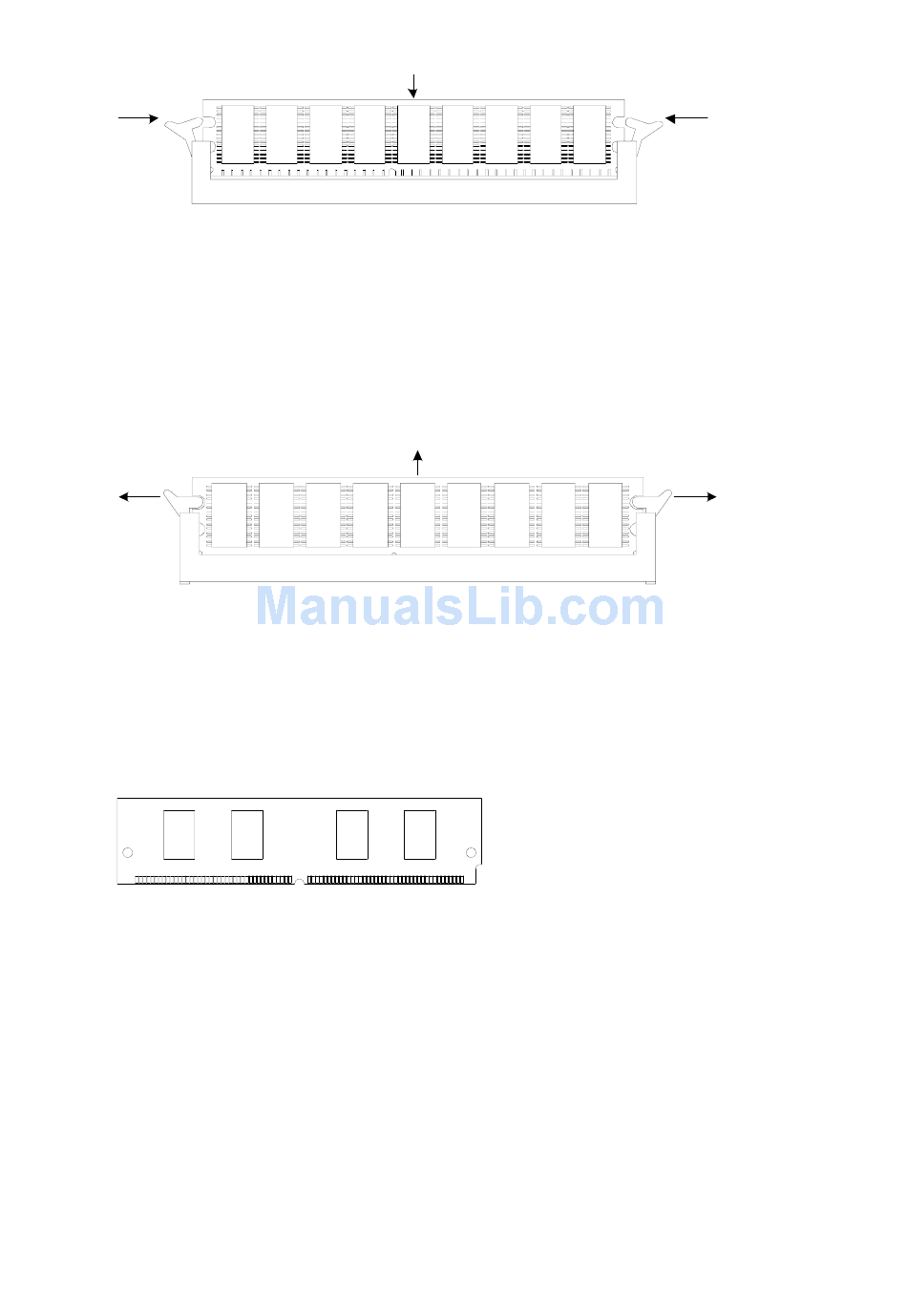

Figure 6-15 Install memory bar into the slot

Follow the steps below to remove the memory bar:

Step 1: Make sure all power interfaces are shut down, and then proceed.

Step 2: Press the spring clips on the two sides of the memory bar, and pull outwards levelly until the

memory bar separates with the spring clips and forms an angle of 45 degrees with the main board.

Step 3: Remove the memory bar.

Figure 6-16 Remove memory bar from the slot

Replacing VPM

Figure 6-17 VPM structure

6-10
