Memory Bar Structure

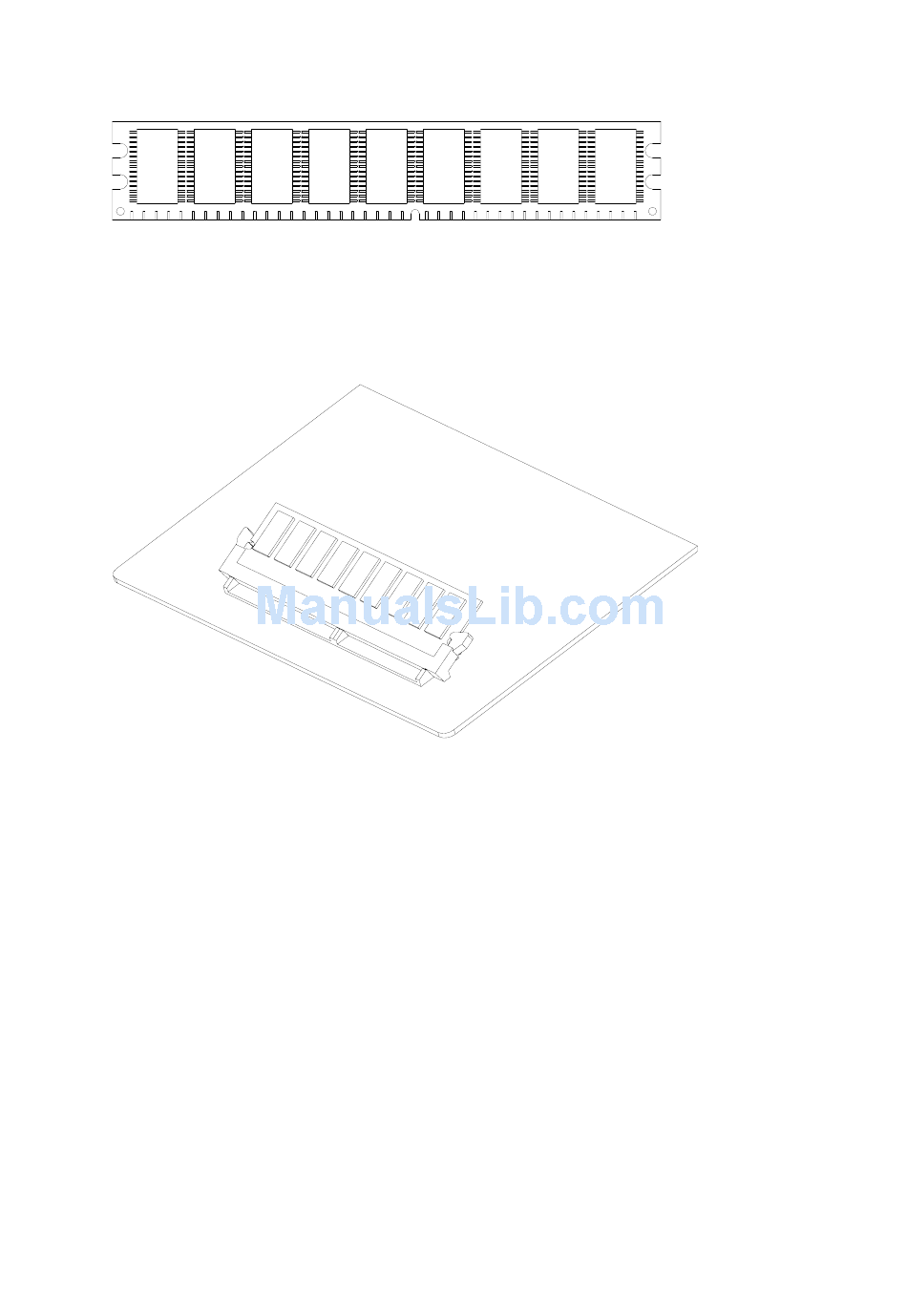

Figure 6-13 Memory bar structure

Figure 6-14 MPUF memory bar slot

Follow the steps below to install the memory bar:

Step 1: Make sure all power interfaces are shut down, and then proceed.

Step 2: Align the memory bar golden finger with the slot on the main board.

Step 3: Insert the memory bar into the slot along the slot guides.

Step 4: Press the memory bar vertically until you hear a chick. This indicates the Memory bar is fixed

within the slot.

Step 5: Check if the spring clip has locked the memory bar slot.

6-9
