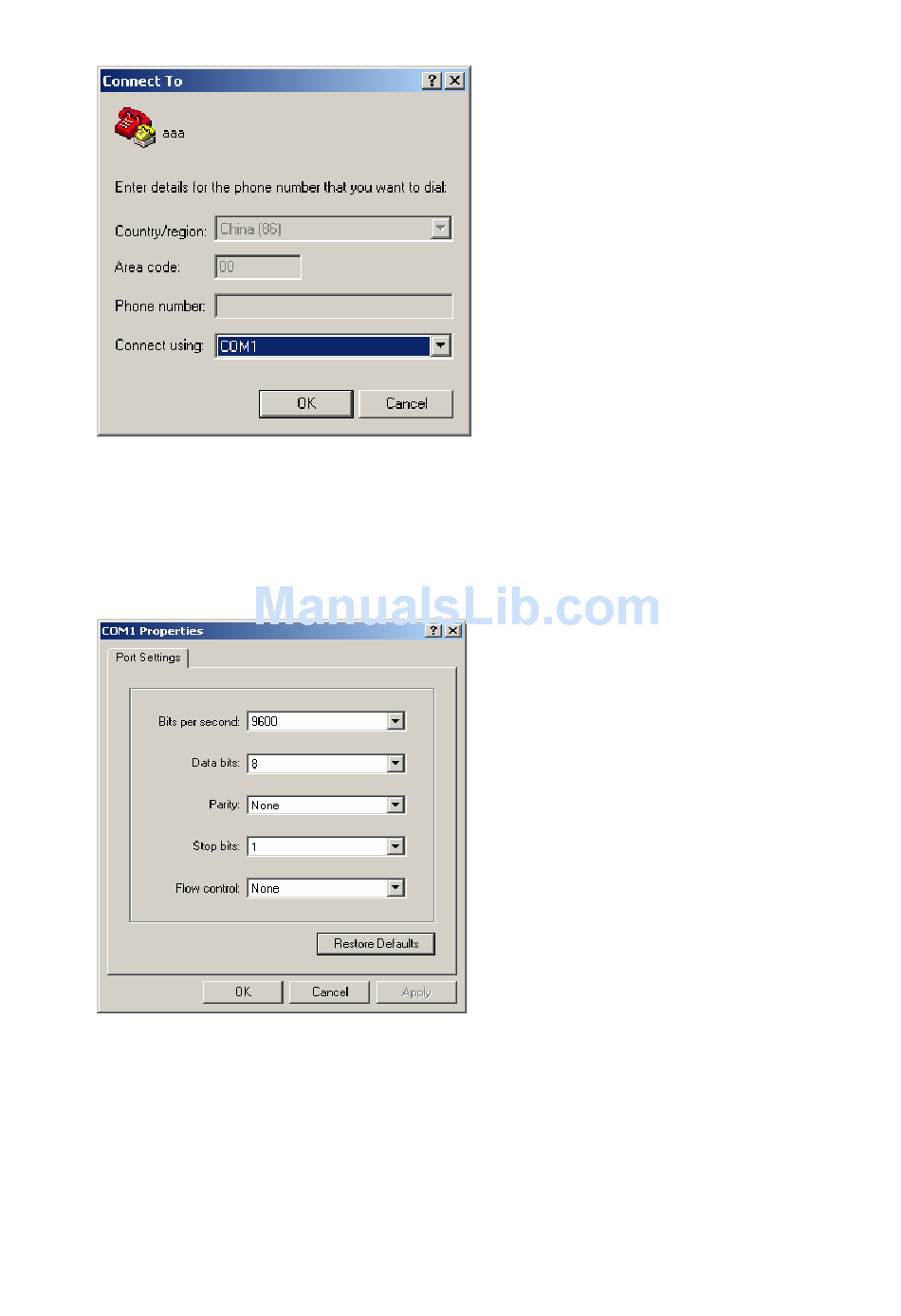

Figure 4-2 Local configuration connection interface
2) Setting serial interface parameters. As shown in Figure 4-3, in the properties dialog box of the
serial interface, set the baud rate to 9600, data bit to 8, no parity check, stop bit to 1, and flow
control to none. Then, click <OK> to return to the [HyperTerminal] window.
Figure 4-3 Set serial interface parameters
3) Set HyperTerminal properties. Select [File\Properties\Settings] in the [Hyper Terminal] window to
enter the [aaa Properties] window as shown in the following figure. Select the terminal emulation
type to be VT100 or Auto detect, and click <OK> to return to the [HyperTerminal] window.
4-2
