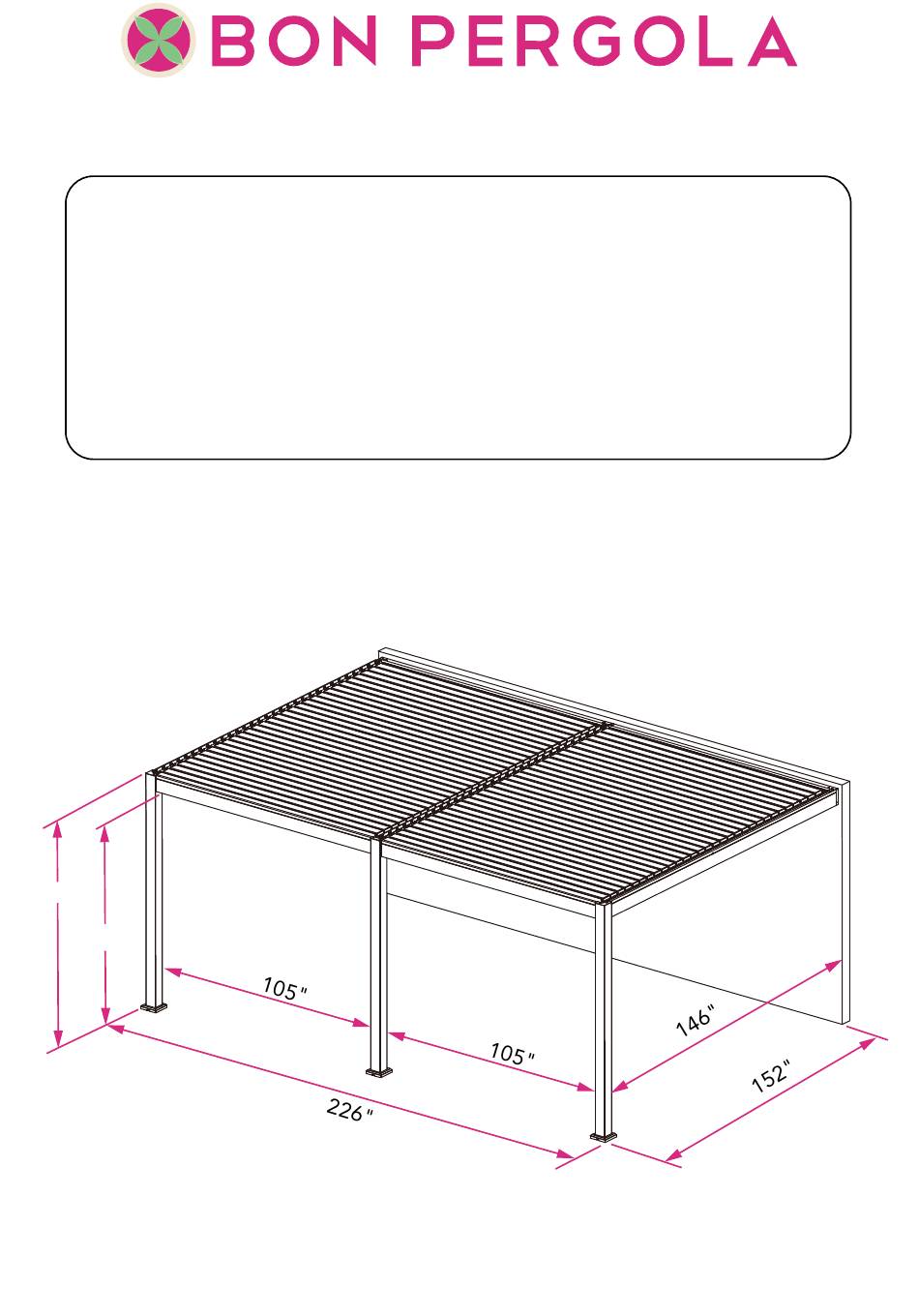

- Page 1 User Instructions Villa Pergola motorized operation Size: 13’x19’ Double Bay ( 400 x 600cm ) *Please visit www.bonpergola.com for the latest instruction under Q&A section* Size: 13’x19’ 104" 97 1/2" v2023.03...
-
Page 2: Table Of Contents
Content Tools and man force ................3 Parts List....................3-4 Product Description................5 Safety Instruction..................5 Mounting....................6-19 Dismounting...................21 Storage....................21 Disposal....................21 Attention: Read this instruction manual carefully and completely before mounting and usage. Keep this manual for future reference. Dear Customer, Congratulations and welcome to our Villa Pergola family. To enjoy your Villa Pergola for its lifetime and for you and other’s safety, please follow the assembly instructions. -
Page 3: Tools And Man Force
Tools and man force Recommended: 2 or 3 people Additional tools : >1.5m 1. Ladder 2. M10/13 open wrench supplied 3. Rubber mallet 4. Tape measure 5. 5mm hexagon wrench supplied 6. Pencil 7. Spirit level 8. Electric drill Parts List *Please check all parts against the parts list before commencing construction of pergola.* SIZE:13’x19’... - Page 4 SIZE:13’x19’ or 400X600CM PARTS LIST: *Please check all parts against the parts list before commencing construction of pergola.* Louver beam with motorize connection Louver beam with motorize connection Wall mount beam Wall mount beam Beam Beam Center Beam Gutter Gutter Gutter Post + post connector...
-
Page 5: Product Description
Product Description: Make the most of your outdoor living area with your pergola. Relax and enjoy the outdoors while being protected from sun. The coated aluminum frame pergola is perfect for shading your garden, deck, courtyard and swimming pool. Important Safety Instructions: Warning: For the safety of you and other persons it is important to follow below instructions and obey warnings. -
Page 6: Mounting
Step 1 ③ ① Attach base plate x2 to the bottom of posts ( D1 x1, D2 x1 ,and ),use bolts x8 to attach with hex key or electric drill D1 D2 posts should be installed diagonally as below Optional Post + post connector M8x20... - Page 7 Step 2 According the height of C2 to measure the height of 16 ,use anchor to fasten Wall Bracket Beam M8X100 expansion bolt...
- Page 8 Step 3 Use bolts 12 x6 to fasten beam B1 & beam B2 Slider Beam with motor direction & slots...
- Page 9 Step 4 Connect A2 / B2 with 14 ,fasten the screws,and insert the middle beam C3 Lock the screws. Connect the B1 and B2 , insert C1 into D3 , fasten the screws. M8x22.4 Hexagon bolt M8x20 Hexagon bolt Beam with motor L bracket Center Beam Beam...
- Page 10 Step 5 Insert the A1 / C1 into D1 ,then connect B1 with 14 ,fasten the screws. Beam with M8x20 Hexagon bolt M8x22.4 Hexagon bolt Beam motor direction & slots L bracket...
- Page 11 Step 6 Cover the post with x 2,fasten the screws. Cover the beam on both sides with ,fasten the screws M8x20 Hexagon bolt Upright cover Cover plate...
- Page 12 Step 7 Placed all gutter E1 , E2 , F1 , F2 in proper position as picture Motor with motor bracket Gutter...
- Page 13 Step 8 ⑪ 1. Fasten x2 gutter connector ② 2. If motor wire is running downward through the post, use to connect ⑪ with as shown below to not allow water drain through this post. 50 to 40 connector Gutter connector...
- Page 14 Step 9 ⑩ Fasten motor x2 with its screws as shown below. Motor with motor bracket...
- Page 15 Step 10 Connect the female and male plugs for the LED lighting (DC24V to DC24V) and motor (DC24V to DC24V) and Motor with motor bracket Plug the power cable into local socket. ***Note: You can test your motor at this stage. Plug in and use its remote. Poqwe plug Main power Poqwe plug...
- Page 16 Step 11 Place center louver H into 16th slot, lining up with the holes ⑥ Using M10 nut x2, secure the louver in place Place Steering louvers I x2 in line with 7th slot on the beam A1 and A2 Fit all common louvers G x58 into the remaining slots in the beams M10 screw cap Centre louver...
- Page 17 Step 12 J x 4 (flat L-shaped aluminum profile). One for each other of the slats is required. ⑦ ⑧ ⑨ Use bolt x124, plastic spacer x124 and nut x124 to tighten for 600X400cm size. Secure the louvers at each end. ***NOTE: 1.
- Page 18 Step 13 *Check for diagonal distance in between the posts L1~L4 and K1~K4 are equal. *Please note, this step is very important to ensure the pergola are in a rectangle shape in any angle. It’s extremely important if you are installing a screen before anchor the pergola down or afterward. Wall Post Post...
- Page 19 Step 14 Mark holes for Wedge Anchor/Bolt x12 for each post Note the drill size should be 12 mm. Insert the bolts. Use a hammer drill if necessary. Place the posts over the bolts. Tighten the nuts. Once installed, make sure any remaining plastic is removed and silicone is used along all corners and gutters to be waterproof.
-
Page 20: Motor Setup
Motor set up 1.Function and Features ※ 86mm*86mm, in accordance with international installation standard; ※ The electric structure is partial conformity with the standard fire protection requirement of the electrician; ※ Industrial grade microcomputer chip is used to improve product quality and reliability greatly; ※... -
Page 21: Dismounting
Dismounting If you want to disassemble the Pergola, please follow the following process. Attention! At least two people are needed for this step. • Keep the Pergola louvers open before you begin with dismounting. Bind the Louvers of the Pergola together to avoid unintended unfolding. This might cause damage and injury. You can use the protection band that was fixed on the Pergola when purchasing it.
