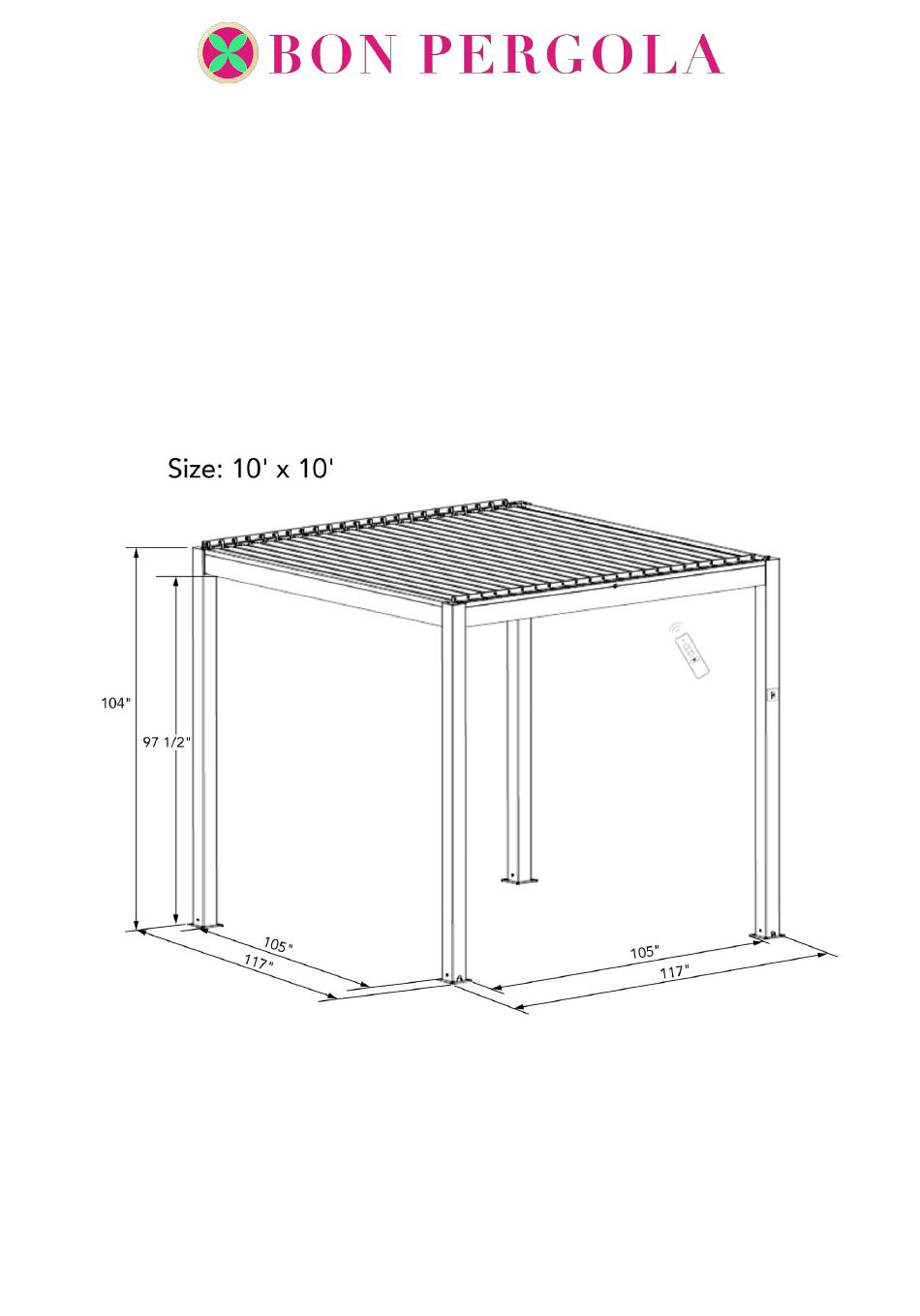

- Page 1 User Instructions Villa Pergola for motorized operation Size:10’x10’(300x300cm) 10’x13’(300x400cm) 13’x13’(400x400cm)
-
Page 3: Table Of Contents
Content Tools and man force ................3 Parts List....................4-6 Product Description................7 Safety Instruction..................7-8 Mounting....................9-18 Dismounting...................19 Storage....................19 Disposal....................20 Attention: Read this instruction manual carefully and completely before mounting and usage. Keep this manual for future reference. -
Page 4: Tools And Man Force
Dear Customer, Congratulations and welcome to our Villa Pergola family. To enjoy your Villa Pergola for its lifetime and for you and other’s safety, please follow the assembly instructions. Before you start the assembly process and using the Pergola, we suggest you are best to get familiar with this product. -
Page 5: Parts List
Parts List Please check all parts against the parts list before commencing construction of pergola. SIZE:10’x10’ or 300X300CM PARTS LIST:... - Page 6 SIZE:10’x13’ or 300X400CM and 13’x13’ or 400X400CM PARTS LIST: Hardware and other parts: ①M8x20 countersunk screw ②50 to 40 connector ③Base plate ④Upright cover ⑤M10 screw cap ⑥M8x20 Hexagon bolt ⑦Plastic Spacer ⑧Locking nut ⑨Motor with motor bracket ⑩M8X100 expansion bolt ⑪Gutter connector...
-
Page 7: Product Description
Aluminum profile parts list: ⒶBeam with slots ⒷBeam with motor direction & slots ⒸBeam Post + post connector Post + post connector Post + post connector ⒺGutter ⒻGutter ⒼCommon louver ⒽCentre louver ⒾDriving louver ⒿControl rod Product Description Make the most of your outdoor living area with your pergola. Relax and enjoy the outdoors while being protected from sun. - Page 8 A minimum of three healthy adults are required to move and install the pergolaas the product is big and heavy. Do not try to install the pergola alone. If the pergola falls, it could cause serious injuries and damages! Contact an authorized assembler for help. Do not install the pergola when you find damage parts are that parts are missing.
-
Page 9: Mounting
Mounting and usage Step 1 Attach base plate ③x4 to the bottom of posts ( x2 ,and x1),use bolts x8 to attach with hex key or electric drill ① posts should be installed diagonally as below... - Page 10 Step 2 Attach beamⒶX1 Ⓑx1 and Ⓒbeam x1,use bolts ⑥ to fasten...
- Page 11 Step 3 Attach beamⒸx1, use bolts ⑥x12 to fasten...
- Page 12 Step 4 Attach upright cover ④x4,use bolts ⑥x8 to fasten...
- Page 13 Step 5 1. Slide the ⑨ motor into Ⓕ gutter before hooking onto the beam in the direction as shown below. 2. Attach all four gutters (Ⓔx2 andⒻ x2 )by hooking inside theⒶ, Ⓑ, Ⓒ beams...
- Page 14 Step 6 Fasten motor ⑨x1 with its screws as shown below.
- Page 15 Step 7 1. Fasten x4 gutter connector ⑪ 2. If motor wire is running downward through the post, use to connect with ② ⑪ shown below to not allow water drain through this post.
- Page 16 Step 8 Connect the female and male plugs for the LED lighting (DC24V to DC24V) and motor (DC24V to DC24V) and plug the power cable into local socket. ***Note: You can test your motor at this stage. Plug in and use its remote.
- Page 17 Step 9 Located holes in center of beams(ⒶandⒷ) 1. Place Center Louver on the slot where it is align with the hole visible. For 10’x10’ (300x300cm): Ⓗinto 12th slot, lining up with the open holes. Place Center Louver For 10’x13’ (300x400cm) and 13’x13’ (400x400cm): Ⓗinto 16th slot, lining up with the holes for 10’x13’...
- Page 18 Step 10 Fix Ⓙx 2 (flat L-shaped aluminum profile). One for each other of the slats is required. *Use bolt⑥x46, plastic spacer⑦x46 and nut⑧x46 to tighten for 300x300 cm and 400x400cm size*. *Use bolt⑥x64, plastic spacer⑦x64 and nut⑧x64 to tighten for 300x400 cm and 400x400cm size.
- Page 19 Step 11 Mark holes for expansion bolt ⑩x4 on each post. Note the drill size should be 12 mm. Insert the bolts. Use a hammer drill if necessary. Place the posts over the bolts. Tighten the nuts. Once installed, make sure any remaining plastic is removed and silicone is used along all corners and gutters to be waterproof.
- Page 20 Motor set up...
-
Page 21: Dismounting
Dismounting If you want to disassemble the Pergola, please follow the following process. Attention! At least two people are needed for this step. Keep the Pergola louvers open before you begin with dismounting. Bind the Louvers of the Pergola together to avoid unintended unfolding.
